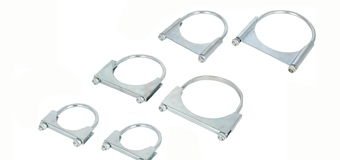

Production series of U-bolt clamp
Today we will introduce one of our hot clamps, U-bolt.
This clamp is widely used in various pipe connections, auto parts, solar panels, generator sets, and even agricultural greenhouses.

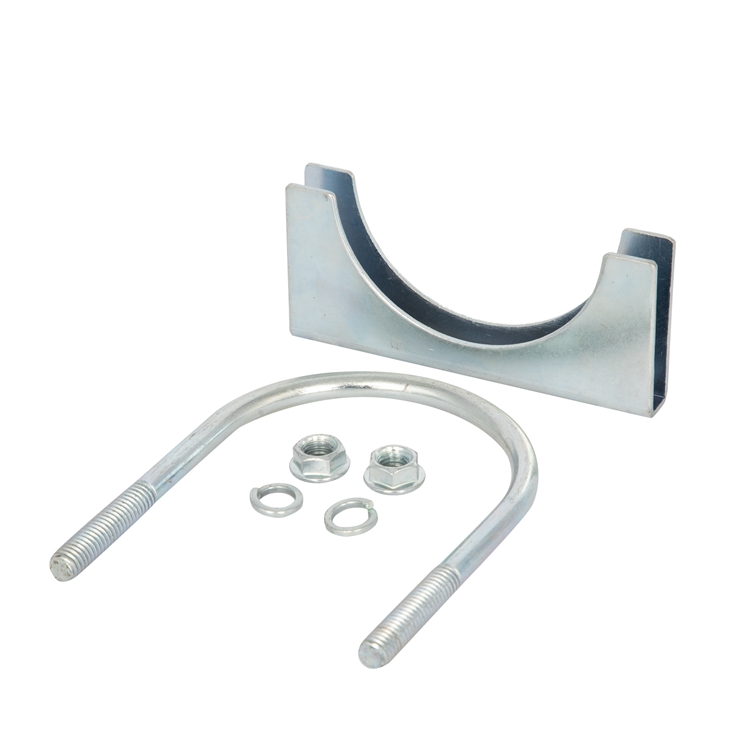

There are 2 options for material: carbon steel and 304. The product consists of three parts: nut, U bolt and base(saddle), besides gasket (optional);
Following is the technical datas for this clamp:
Nut specification | (Bolt) Inner diameter | Thickness of Saddle |
P 5/16-18 | 6.8mm | 2mm |
P 3/8-16 | 8.3mm | 2.75mm |
M8 | 7mm | 2mm |
M10 | 8.8mm | 2.5mm |
In addition, customized products are available in our side.
We export with the standard carton packaging.
Clamps with the sizes of ≤76mm , 100 PCs for one carton ;
Clamps with the sizes of 80mm-102mm , 50 PCs for one carton ;
Clamps with the sizes of >102mm , 25 PCs for one carton ;
Usually the weight for one carton will be max 15 KGs.
We can also provide individual white box packaging.
With your detailed request about material, size and quantity, we will provide you soon with the quotation!
