U-Bolt Exhaust Clamp

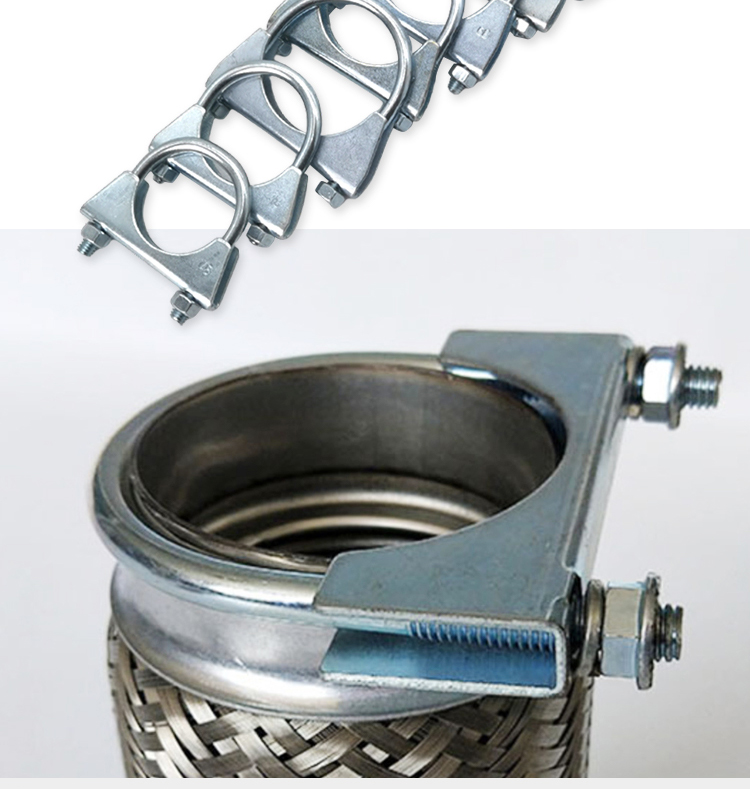

| YDCT U-bolt exhaust clamps are designed to secure exhaust pipes and components in automotive and industrial applications, offering reliable connection without welding. We provide U-bolt exhaust clamp material is divided into carbon steel and stainless steel 304 two kinds, the product is composed of nuts, bolts and base three parts, and gasket (optional). The general market is different, its nut specifications are different, the base thickness is different. M8 or 5/16" U-bolt, the U-bolt, the diameter is 7mm, the thickness of the base is 2mm, the base thickness of 3/8-16 is 2.75mm (generally in the North American market), the base thickness of M10 is 2.5mm, the conventional price default bolt is M8. | |||||||||
Ready-to-Ship U-Bolt Clamps and Pipe Supports
YDCT offers a wide range of standard U-bolt clamps designed for exhaust systems, pipe installations, and industrial assemblies.Our stock items cover popular sizes from small exhaust connections to 4 inch U-bolt exhaust clamps, ensuring fast delivery and consistent quality.

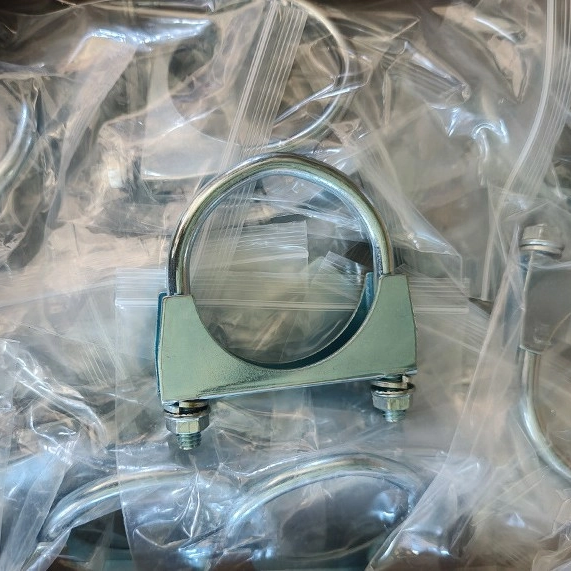

Each exhaust U-bolt clamp consists of a U-bolt, a saddle plate, and two hex nuts. The U-bolt provides the clamping force while the saddle distributes the pressure evenly across the pipe surface.Common options include U bolt exhaust clamps, pipe U-bolt clamps, and heavy-duty U clamp bolts—all available from bulk inventory with flexible order quantities.

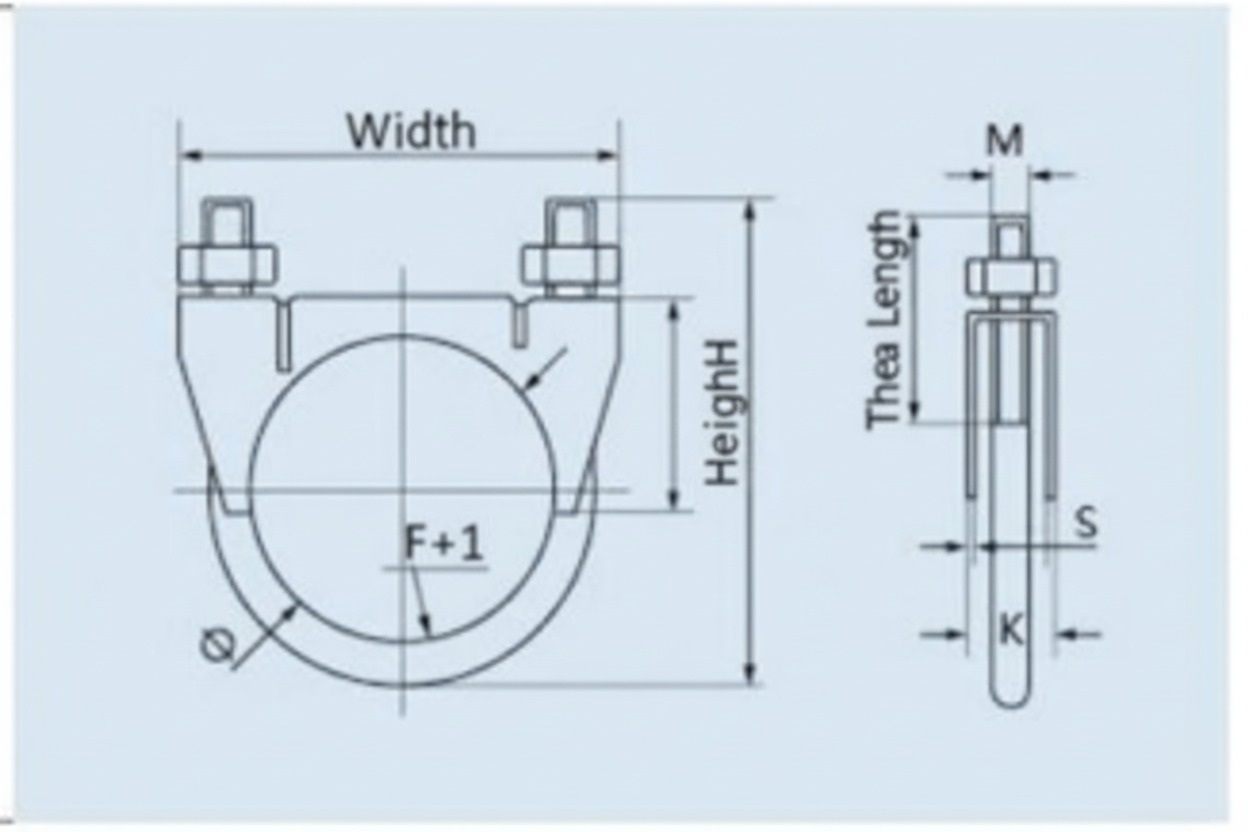

| Type | Size Ø | Height H | Width W | Thread length L | F | M | K | S |
| A | 36 | 63 | 63 | 25 | 28.5 | M8 | 15 | 2 |
| 38 | 64 | 64 | 25 | 29 | M8 | 15 | 2 | |
| 42 | 65 | 70 | 25 | 31 | M8 | 15 | 2 | |
| 45 | 73 | 73 | 30 | 33 | M8 | 15 | 2 | |
| 48 | 77 | 76 | 30 | 34 | M8 | 15 | 2 | |
| 50 | 79 | 78 | 30 | 36 | M8 | 15 | 2 | |
| 54 | 83 | 82 | 30 | 37 | M8 | 15 | 2 | |
| 58 | 87 | 86 | 30 | 40 | M8 | 15 | 2 | |
| 63.5 | 75 | 92 | 30 | 43 | M8 | 15 | 2 | |
| 65 | 94 | 93 | 30 | 44 | M8 | 15 | 2 | |
| 70 | 95 | 100 | 40 | 43 | M8 | 15 | 2 | |
| 73 | 110 | 102 | 40 | 43 | M8 | 15 | 2 | |
| B | 54 | 89 | 87 | 40 | 32 | M10 | 17 | 3 |
| 94 | 128 | 128 | 45 | 60 | M10 | 21 | 3 | |
| 106 | 150 | 138 | 45 | 65 | M10 | 21 | 3 |
① The material is divided into carbon steel and 304;
② Accessories are divided into nuts, bolts and base three parts, of which gaskets are optional, gaskets have spiral and conventional flat;

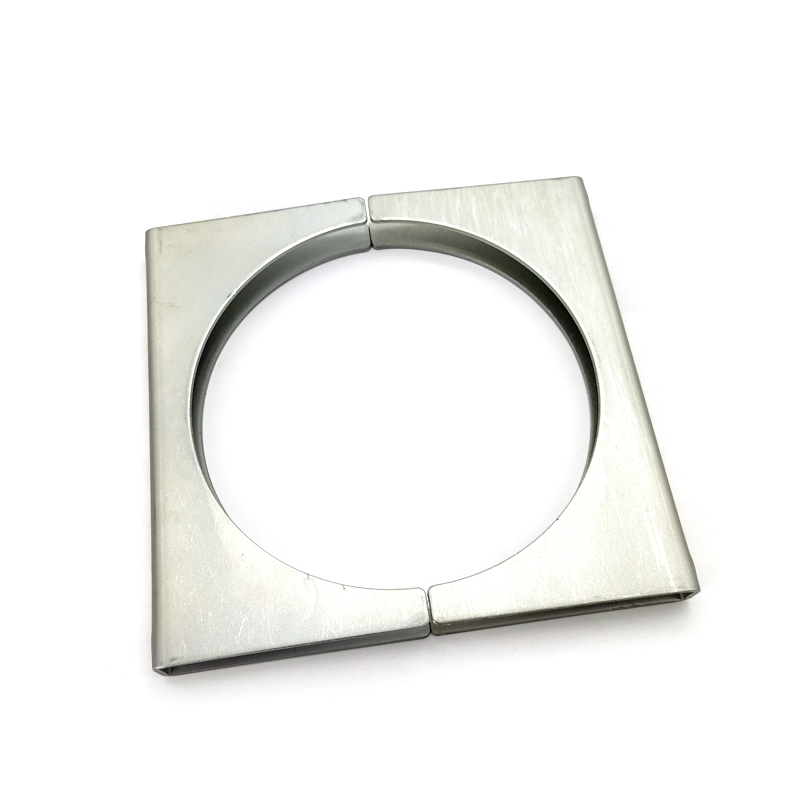

③ The base can be pressed to increase strength if necessary;
④ MOQ, 200 sets of carbon steel, 304 need 1000 sets;
⑤ Size adjustment range: according to the outside diameter of the pipe, there is a 1-2mm adjustment range;

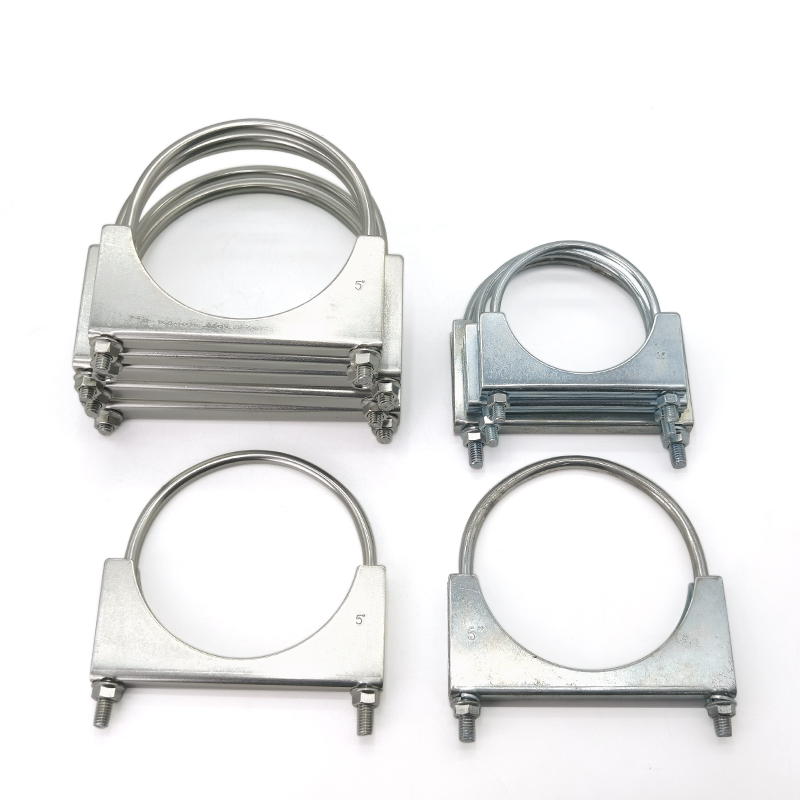

⑥ Agricultural machinery products, galvanized layer thickness requirements of 13μm microns, conventional only 3-5μm microns;
Ready-to-Ship U-Bolt Clamps and Pipe Supports
YDCT offers a wide range of standard U-bolt clamps designed for exhaust systems, pipe installations, and industrial assemblies.Our stock items cover popular sizes from small exhaust connections to 4 inch U-bolt exhaust clamps, ensuring fast delivery and consistent quality.
Each exhaust U-bolt clamp consists of a U-bolt, a saddle plate, and two hex nuts. The U-bolt provides the clamping force while the saddle distributes the pressure evenly across the pipe surface.Common options include U bolt exhaust clamps, pipe U-bolt clamps, and heavy-duty U clamp bolts—all available from bulk inventory with flexible order quantities.
| Type | Size Ø | Height H | Width W | Thread length L | F | M | K | S |
| A | 36 | 63 | 63 | 25 | 28.5 | M8 | 15 | 2 |
| 38 | 64 | 64 | 25 | 29 | M8 | 15 | 2 | |
| 42 | 65 | 70 | 25 | 31 | M8 | 15 | 2 | |
| 45 | 73 | 73 | 30 | 33 | M8 | 15 | 2 | |
| 48 | 77 | 76 | 30 | 34 | M8 | 15 | 2 | |
| 50 | 79 | 78 | 30 | 36 | M8 | 15 | 2 | |
| 54 | 83 | 82 | 30 | 37 | M8 | 15 | 2 | |
| 58 | 87 | 86 | 30 | 40 | M8 | 15 | 2 | |
| 63.5 | 75 | 92 | 30 | 43 | M8 | 15 | 2 | |
| 65 | 94 | 93 | 30 | 44 | M8 | 15 | 2 | |
| 70 | 95 | 100 | 40 | 43 | M8 | 15 | 2 | |
| 73 | 110 | 102 | 40 | 43 | M8 | 15 | 2 | |
| B | 54 | 89 | 87 | 40 | 32 | M10 | 17 | 3 |
| 94 | 128 | 128 | 45 | 60 | M10 | 21 | 3 | |
| 106 | 150 | 138 | 45 | 65 | M10 | 21 | 3 |
① The material is divided into carbon steel and 304;
② Accessories are divided into nuts, bolts and base three parts, of which gaskets are optional, gaskets have spiral and conventional flat;
③ The base can be pressed to increase strength if necessary;
④ MOQ, 200 sets of carbon steel, 304 need 1000 sets;
⑤ Size adjustment range: according to the outside diameter of the pipe, there is a 1-2mm adjustment range;
⑥ Agricultural machinery products, galvanized layer thickness requirements of 13μm microns, conventional only 3-5μm microns;
YUEDING EXHAUST
As one of China's leading exhaust flexible components manufacturers, YDCT focuses on helping you get the right parts that fit your project, whether for automotive systems or industrial equipment. We produce a complete range of stainless steel flex pipes, metal bellows, expansion joints, and exhaust clamps, all designed for durability and easy installation. More importantly, we can customize each order to match your needs — from OEM logo marking and material options to color selection and drawing-based production with reasonable MOQ. You tell us what you need, and we’ll make sure every piece arrives ready to perform, with the quality and consistency you expect.
Global Shipping & Payment Flexibility
We ship worldwide with EXW, FOB, or CIF terms, and support safe payment methods like T/T, PayPal, and L/C — flexible for different order sizes.
Factory-Direct Reliability

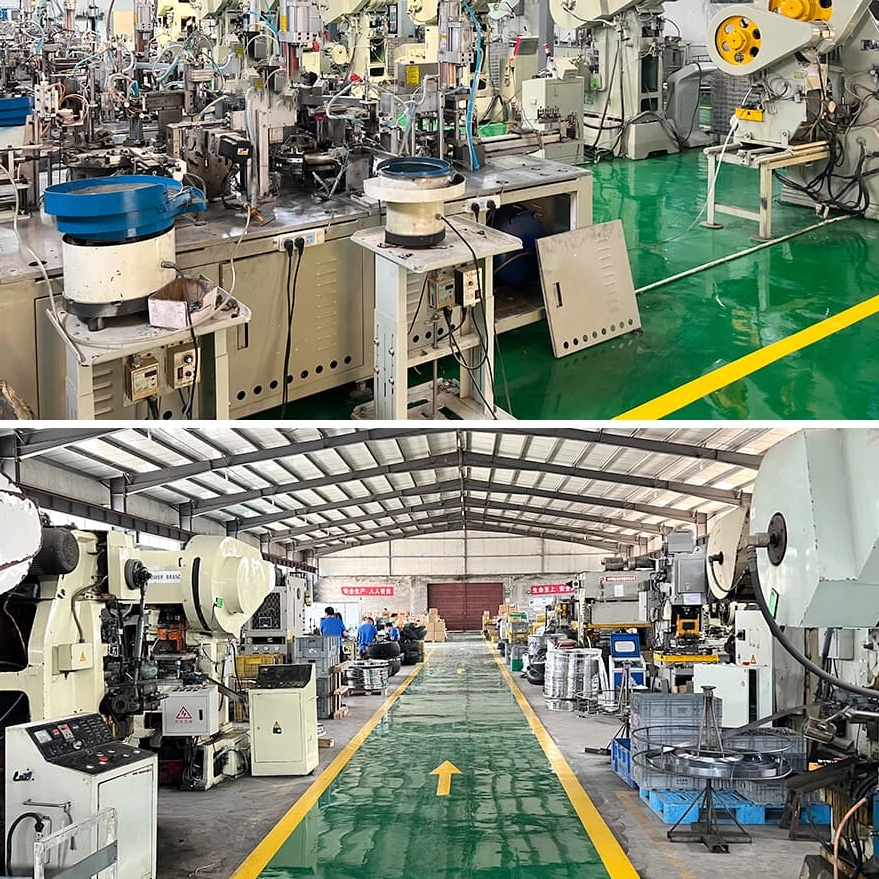

We make most products in our own factory and work closely with reliable partners for others, so every shipment meets the same level of quality.
