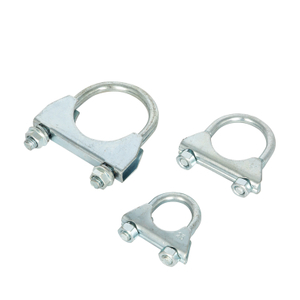

Zinc Plated Exhaust U Bolt Hose Clamp

Views: 333     Author: Site Editor     Publish Time: 05-06-2022      Origin: Site

Inquire

U bolt clamp mainly used for fixing vehicle and mechanical exhaust devices,adopting special molding structure and manufacturing process, the product is easy to operate and use, with strong leak proofness and fastness.For future information and products details,pls feel free to contact us.

Main market : Colombia, Mexico, Canada, Australia, Latvia, United Kingdom, United States of America, Germany


Production Description



Known as muffler clamps, these U-bolts have a rounded mounting plate that fully surrounds pipe, conduit, and tubing for a secure fit. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.

Zinc-plated steel U-bolts have good corrosion resistance in most environments. Chrome-plated steel U-bolts are more corrosion resistant than zinc-plated steel U-bolts. 304 stainless steel U-bolts have excellent corrosion resistance and good chemical resistance.

Exhaust silencer galvanized steel U bolt hose clamp for tube pipe


NO. PARAMETERS DETAILS
1 Diameter 1) Zinc plated: M6/M8/M10


2) Stainless steel:M6/M8/M10
2 Size From 1-1/2” to 6”
3 OEM/ODM OEM/ODM is welcome



Product Components


U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

12


Material



TO PART NO.

MATERIAL

GASKET

U BOLT

NUT

TOUG

W1

Galvanized  Steel

Galvanized  Steel

Galvanized  Steel

TOUSS

W4

SS200/SS300 Series

SS200/SS300 Series

SS200/SS300 Series

TOUSSV

W5

SS316

SS316

SS316


Usage



U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting. U-bolts are also used to hold ropes together.
The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.

As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar, then a more convenient measurement system needs to be used.

U-bolt clamps do work, but they are not really reusable, and they crush the pipe, so it is really had to take them apart for service. Not to mention the nuts tend to rust, locking them together forever.


16



  • Written By  yuedingexhaust.com Team
    YuedingExhaust.com Development Group specializes in automotive exhaust system R&D, with a core engineering team experienced in aftermarket exhaust pipe design and manufacturing. Our R&D department holds multiple patents for exhaust structure and performance optimization, developed through practical collaborations with automotive workshops worldwide. Custom exhaust solutions are available via our contact portal for tailored specifications.
