What Is Bellows Failure?

Bellows, including exhaust bellows, are crucial in industrial systems, yet they often fail unexpectedly. Why do these essential components break down, causing costly downtime? Understanding bellows failure is key to preventing it. In this post, you'll learn about common failure causes, material selection, environmental impacts, installation best practices, and maintenance strategies to ensure your bellows last longer."

Common Causes of Bellows Failure

Bellows play a crucial role in many industrial systems, providing flexibility and protection. However, several factors can cause them to fail prematurely. Understanding these causes helps prevent downtime and costly repairs.

Incorrect Choice of Bellows Material

Choosing the wrong material is a top reason bellows fail early. Each environment demands specific properties. For instance, rubber bellows work well for light-duty tasks but won't hold up against industrial oils or high heat. In such cases, materials like treated leather or technical polymers (polyurethane, silicone) perform better. Always consult specialists to pick the right material based on the operating environment.

Extreme Environmental Conditions

Bellows exposed to harsh conditions—high temperatures, humidity, chemicals, or UV rays—can degrade quickly if not designed for those challenges. For example, wastewater treatment plants often subject bellows to corrosive agents and sudden temperature swings. Without proper resistance, the bellows may become brittle or lose elasticity. To counter this, use chemical- and temperature-resistant materials, apply protective coatings, or opt for reinforced designs.

Incorrect Bellows Installation

Improper installation can deform or damage bellows. Common mistakes include misalignment, overtightening, or using unsuitable clamps. These errors can pinch or cut the bellows during operation. Proper alignment, securing, and following manufacturer guidelines are essential. When in doubt, seek expert installation help to ensure longevity.

Lack of Regular Maintenance

Even durable bellows need regular checks. Dirt buildup, exposure to contaminants, or unnoticed cracks can shorten their life. Establish a preventive maintenance plan that includes frequent visual inspections. Replace bellows showing signs of wear like hardening, cracking, or uneven surfaces before failure occurs.

Intensive Use or Use Outside Technical Specifications

Bellows have defined operating limits, such as maximum pressure, load, and movement cycles. Using them beyond these limits accelerates wear and failure. For example, a bellows rated for 1,000 cycles per hour will not last long if used at 5,000 cycles. Always match bellows to the actual workload, and consider reinforced or custom designs for demanding applications.

Regularly review your bellows' operating environment and usage to ensure the material and design still meet the demands, preventing unexpected failures.

Material Selection for Bellows

Different Materials Used in Bellows

Bellows come in various materials, each suited for different industrial needs. Common materials include:

● Rubber: Flexible and good for light-duty tasks, but weak against oils, heat, and chemicals.

● Treated Leather: Offers better resistance to oils and abrasion than rubber.

● Technical Polymers: Materials like polyurethane and silicone provide good durability and chemical resistance.

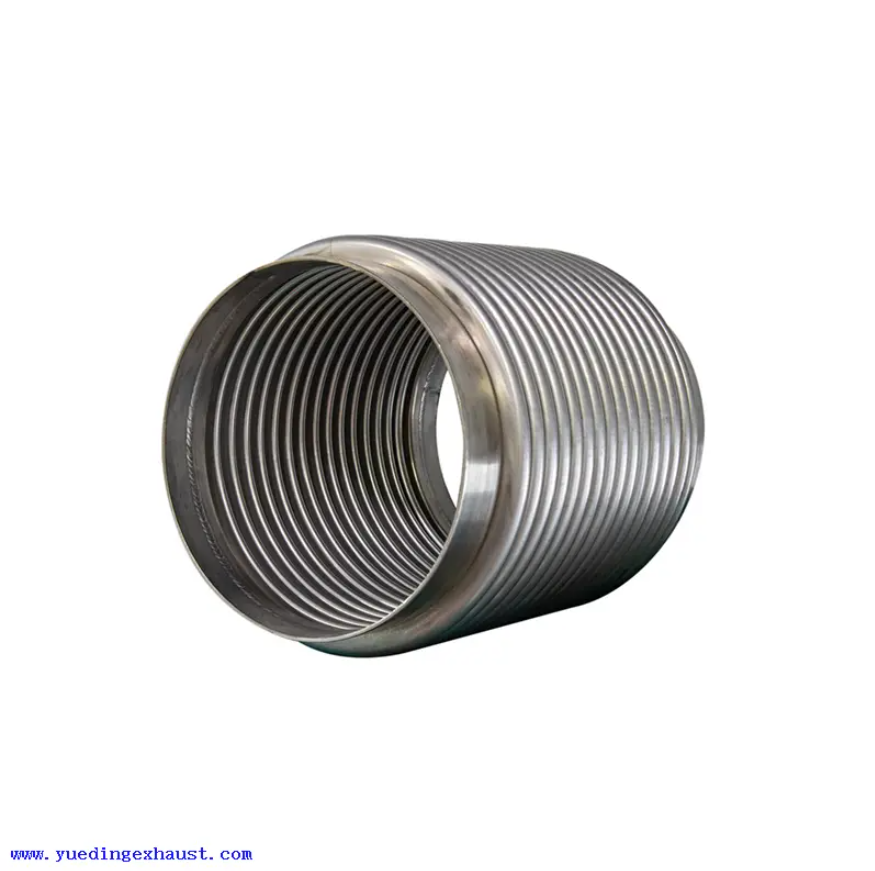

● Stainless Steel: Often used for metal bellows, especially when high temperature and pressure resistance is needed.

● Industrial Fabrics: Sometimes reinforced with coatings to handle harsh environments.

Each material has unique properties affecting flexibility, strength, and resistance to wear.

How to Choose the Right Material

Choosing the right bellows material involves considering several factors:

● Operating Environment: Temperature, pressure, chemical exposure, and humidity levels.

● Mechanical Stress: Expected movement cycles and load.

● Chemical Compatibility: Resistance to oils, solvents, acids, or other chemicals present.

● Durability Requirements: Expected lifespan and maintenance intervals.

● Cost and Availability: Balancing budget with performance needs.

Consulting with manufacturers or specialists can help select materials that meet your system’s demands. For example, a wastewater treatment plant may require bellows resistant to corrosive chemicals and temperature swings, favoring treated leather or reinforced polymers over simple rubber.

Impact of Material on Bellows Longevity

The material directly influences how long bellows last before failing. Using the wrong material leads to premature cracking, brittleness, or deformation. For instance:

● Rubber bellows in high-temperature settings may degrade quickly.

● Metal bellows without proper heat treatment can suffer from stress corrosion cracking.

● Leather bellows exposed to harsh chemicals might lose flexibility.

Proper material choice reduces downtime and repair costs. It also ensures the bellows maintain their protective functions, like vibration absorption and contamination prevention, throughout their service life.

Always match bellows material to your specific application environment and operating conditions to maximize lifespan and performance.

Environmental Factors Affecting Bellows

Bellows are often exposed to tough environmental conditions that can speed up their wear and cause failure. Understanding these factors helps in choosing the right bellows and protecting them properly.

High Temperatures and Humidity

Heat and moisture are common enemies of bellows. High temperatures can make materials like rubber or certain polymers soften, lose elasticity, or even melt. Humidity can cause swelling or promote corrosion in metal bellows. For example, bellows in steam systems or outdoor machinery often face these challenges daily. If the bellows material isn't designed to handle heat or moisture, it can crack or become brittle quickly.

Exposure to Chemicals and UV Rays

Bellows in industrial settings may come into contact with chemicals such as oils, solvents, acids, or alkalis. These substances can degrade materials by breaking down their molecular structure. UV rays from sunlight can also damage bellows made from polymers or rubber by causing surface cracking and loss of flexibility. For instance, bellows used in wastewater treatment plants or chemical factories need special resistance to these factors to avoid premature failure.

Protective Coatings and Reinforcements

To combat environmental damage, bellows can be treated with protective coatings or reinforced with additional materials. Coatings act as barriers against chemicals, moisture, and UV rays, extending the bellows' life. Reinforcements, such as metal spirals or fabric layers, add strength and resistance to mechanical stress and environmental wear. Choosing the right protective measures depends on the specific environment and type of bellows used.

Always assess the operating environment thoroughly and select bellows with materials and protective treatments suited to resist heat, humidity, chemicals, and UV exposure for longer service life.

Installation Best Practices

Proper installation is key to ensuring bellows perform well and last as long as possible. Mistakes during installation can cause damage that leads to early failure. Let’s explore common errors and how to avoid them.

Common Installation Errors

Many bellows fail because of simple installation mistakes. Some frequent errors include:

● Misalignment: If the bellows isn’t aligned correctly with the connected parts, it can get pinched or stretched unevenly. This causes stress points that lead to cracks or tears.

● Overtightening: Using too much force on clamps or fasteners can deform the bellows, reducing flexibility and causing premature wear.

● Wrong clamps or fittings: Using clamps that don’t fit the bellows properly can pinch or cut the material during operation.

● Ignoring spacing requirements: Bellows need a certain distance between fixing points to expand and contract freely. Too little space restricts movement and stresses the bellows.

These errors often happen when installers don’t follow guidelines or lack experience. The result is bellows that fail far sooner than expected.

Correct Alignment and Securing

To avoid damage, it’s vital to align bellows carefully during installation. Here’s what to keep in mind:

● Check alignment visually and with measuring tools: Make sure the bellows sits straight between connection points without twisting or bending.

● Use appropriate clamps: Choose clamps designed for the bellows’ size and material. They should hold firmly without crushing.

● Maintain proper spacing: Follow manufacturer instructions on the minimum and maximum distances between supports or fixing points.

● Avoid forcing the bellows: Never stretch or compress the bellows beyond its designed limits during installation.

Proper securing also means checking tightness after installation and periodically during maintenance. Loose fittings can cause leaks or movement that damages the bellows.

Importance of Following Manufacturer's Recommendations

Each bellows design has specific installation requirements. Manufacturers provide detailed instructions based on material, size, and intended use. Ignoring these can void warranties and lead to failure.

● Read and understand installation manuals: They contain critical information about alignment, securing, and environmental considerations.

● Use recommended tools and accessories: These are tested to work with the bellows without causing damage.

● Seek expert help if unsure: Specialized technicians or engineers can ensure the installation meets all technical standards.

Following manufacturer guidelines not only extends bellows life but also ensures safety and optimal system performance.

Always perform a post-installation inspection to verify correct alignment, secure fittings, and proper spacing—this simple step prevents many common bellows failures.

Maintenance Strategies for Bellows

Proper maintenance is vital to keep bellows functioning and extend their lifespan. Even the best materials and installations can wear down over time without regular care. Here’s how to maintain bellows effectively.

Preventive Maintenance Plans

A preventive maintenance plan helps catch issues early and avoid unexpected failures. It should include scheduled inspections, cleaning, and parts replacement based on the bellows’ operating conditions and manufacturer recommendations. Planning maintenance ahead reduces downtime and repair costs.

Key steps in a preventive plan:

● Establish inspection intervals based on usage and environment.

● Train staff to recognize common wear signs.

● Document all inspections and repairs for future reference.

● Coordinate maintenance with overall system checks.

Visual Inspections and Monitoring

Frequent visual checks are the simplest and most effective way to monitor bellows. Look for:

● Cracks or tears in the material.

● Hardening or brittleness.

● Uneven wear or deformation.

● Signs of contamination or dirt buildup.

● Loose clamps or fittings.

Use a checklist during inspections to ensure consistency. In critical applications, consider using sensors or cameras to monitor bellows condition remotely.

Signs of Wear and When to Replace

Recognizing wear early prevents catastrophic failure. Replace bellows if you observe:

● Cracks extending through the bellows wall.

● Significant loss of flexibility or elasticity.

● Hard spots or areas where material feels brittle.

● Permanent deformation or flattening.

● Leakage or contamination inside the bellows.

Don’t wait for complete failure. Early replacement saves money and prevents damage to connected equipment.

Implement a routine visual inspection schedule and train personnel to spot early wear signs—this simple step can greatly extend bellows service life and reduce costly downtime.

Handling and Usage Guidelines

Proper handling and usage of bellows significantly affect their durability and performance. Bellows are designed to operate within specific limits, and staying within these boundaries helps prevent early failure.

Adhering to Operating Range

Every bellows has a defined operating range, including maximum pressure, temperature, movement cycles, and expansion limits. Staying within these parameters is crucial. For example, if a bellows is rated for 1,000 cycles per hour, pushing it to 5,000 cycles will cause rapid wear. Similarly, exceeding pressure or temperature limits can weaken the material or cause deformation. Always consult the manufacturer's specifications and ensure your system operates within those limits.

Consequences of Overuse

Overusing bellows or operating them beyond their technical specifications leads to several problems:

● Material Fatigue: Repeated stress causes cracks or tears.

● Loss of Elasticity: The bellows may become stiff and unable to absorb vibrations.

● Permanent Deformation: Excessive movement or pressure can cause warping or flattening.

● Leakage: Damaged bellows might allow contaminants in or fluids out, risking system failure.

Such issues result in downtime, costly repairs, and potential damage to connected equipment.

Custom Designs for Demanding Applications

If your application requires operation beyond standard bellows limits, consider custom designs. Manufacturers can tailor bellows to handle higher pressures, temperatures, or cycle rates by:

● Using reinforced materials or layers.

● Increasing wall thickness.

● Adding protective coatings.

● Designing specific geometries to distribute stress evenly.

Custom bellows ensure reliability even in demanding environments, reducing the risk of premature failure.

Always verify your bellows’ operating conditions against manufacturer specs and consult experts for custom solutions when standard bellows don’t meet your application demands.

Conclusion

Bellows failure often arises from incorrect material choice, harsh environments, improper installation, and inadequate maintenance. Proper management involves selecting the right materials, adhering to installation guidelines, and maintaining usage within specified limits. Effective preventive measures significantly reduce downtime and repair costs. Zhejiang Yueding Corrugated Tube Co., Ltd. offers high-quality bellows with tailored solutions for demanding applications, ensuring reliability and longevity. Their products deliver exceptional value by minimizing failure risks and enhancing system performance.

FAQ

Q: What is exhaust bellow failure?

A: Exhaust bellow failure occurs when the exhaust bellow, a flexible component in exhaust systems, becomes damaged due to factors like incorrect material choice, extreme conditions, or improper installation.

Q: How can I prevent exhaust bellow failure?

A: Prevent exhaust bellow failure by selecting the right material for your environment, ensuring proper installation, and conducting regular maintenance checks for signs of wear.

Q: Why is material selection crucial for exhaust bellows?

A: Material selection is crucial because the wrong material can lead to premature exhaust bellow failure due to environmental stressors like heat, chemicals, or pressure.

Q: What are the benefits of regular maintenance for exhaust bellows?

A: Regular maintenance extends exhaust bellow lifespan, prevents unexpected failures, and reduces repair costs by identifying wear early on.

Q: How do I choose the right exhaust bellow for my application?

A: Consult with specialists to select an exhaust bellow material that matches your operating environment's temperature, pressure, and chemical exposure.
