Are Exhaust Bellows Better Than Flex Pipe?

When it comes to exhaust systems, the choice between exhaust bellows and flex pipes is crucial for ensuring optimal performance and longevity. Both components play essential roles in managing vibrations and thermal expansion, but they are designed for different applications and conditions. Exhaust bellows, known for their ability to absorb larger movements and handle misalignments, offer superior durability in demanding environments. In contrast, flex pipes excel in isolating high-frequency vibrations but are limited in their capacity to accommodate thermal expansion. This article explores the key differences between exhaust bellows and flex pipes, helping you determine which option is better suited for your specific needs.

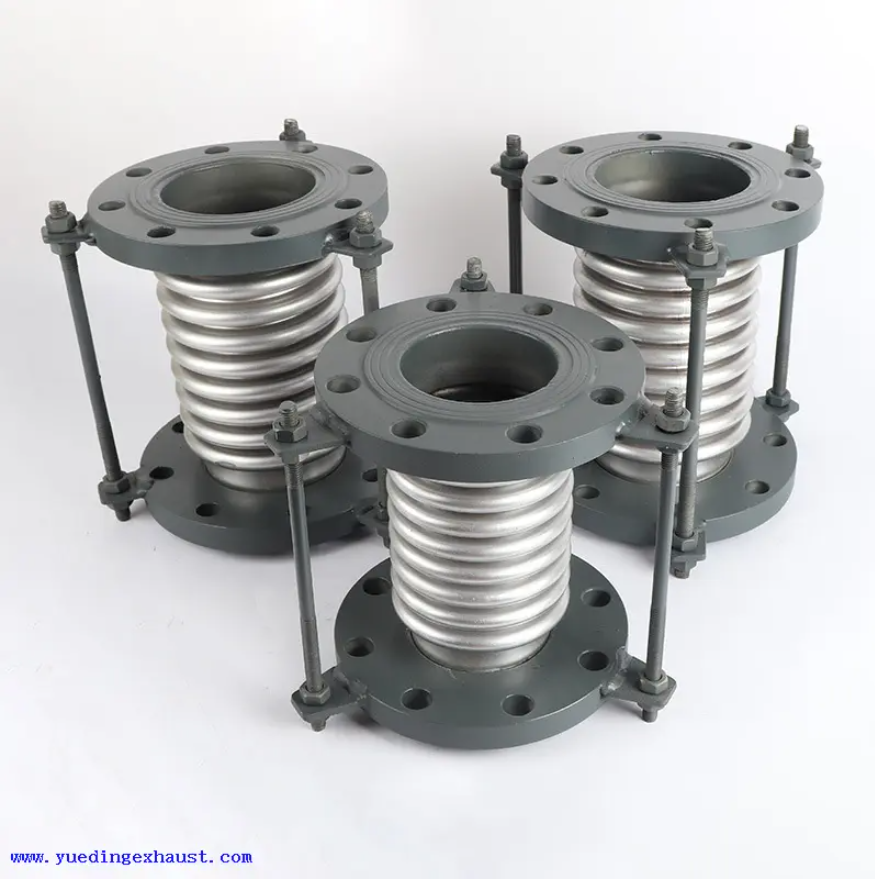

Understanding Exhaust Bellows

What are exhaust bellows?

Exhaust bellows, also called expansion joints, are flexible components designed to absorb movement in exhaust piping systems. They handle vibrations, thermal expansion, and pipe misalignments. Unlike flex pipes, bellows can compress and expand, making them ideal for absorbing larger movements and stresses in piping.

Construction and materials of exhaust bellows

Exhaust bellows are typically made from stainless steel, chosen for its strength and resistance to high temperatures and corrosion. They come in two main types:

● Single-ply bellows: Made from one layer of metal, suitable for moderate expansion and vibration absorption.

● Multi-ply bellows: Consist of two or more layers of metal, often up to five, offering greater flexibility, durability, and vibration dampening.

The bellows have larger corrugations (or grooves), allowing them to compress and expand more than flex pipes. Multi-ply bellows also provide better resistance to wear and fatigue, extending their service life in demanding environments.

Applications and benefits of using exhaust bellows

Exhaust bellows are widely used in industrial settings such as power generation, marine engines, and heavy machinery exhaust systems. Their key benefits include:

● Absorbing thermal expansion: They compensate for pipe length changes caused by high temperatures, preventing stress and damage.

● Vibration isolation: Bellows reduce the transmission of engine vibrations to the rest of the exhaust system, protecting connected components.

● Handling misalignment: Their flexibility allows for minor pipe misalignments without causing leaks or failures.

● Durability: Multi-ply construction offers longer service life and better performance under cyclic loading.

Because of these features, exhaust bellows are often the preferred choice for critical applications requiring reliable performance under harsh conditions.

Selecting multi-ply bellows over single-ply can significantly improve durability and flexibility, especially in high-temperature or high-vibration environments.

Exploring Flex Pipes

What are flex pipes?

Flex pipes are flexible components designed primarily to absorb high-frequency, low-amplitude vibrations in exhaust systems. Unlike exhaust bellows, flex pipes do not compress; they are built to flex slightly to isolate engine vibrations from the rest of the exhaust piping. This makes them ideal for applications where vibration damping is needed but where thermal expansion or lateral movement is minimal.

Construction and materials of flex pipes

Flex pipes typically consist of a single ply of metal, often stainless steel, formed into small, closely spaced corrugations. These small grooves allow the pipe to flex but not compress. An external braided layer usually surrounds the corrugated tube, providing pressure retention and structural support. This braid prevents the pipe from swelling or deforming under pressure, but it also means that flex pipes should never be compressed, as this would damage the assembly and reduce its lifespan.

The single-ply construction and smaller corrugations make flex pipes thinner and generally less durable than exhaust bellows. However, this design keeps them lightweight and cost-effective for many vibration isolation needs.

Applications and benefits of using flex pipes

Flex pipes are commonly used in automotive exhaust systems, light machinery, and other environments where vibration isolation is necessary but where significant thermal expansion or movement is not expected. Their benefits include:

● Vibration absorption: Flex pipes effectively dampen engine vibrations, preventing stress transfer to other exhaust components.

● Cost efficiency: They are generally less expensive than bellows, making them suitable for budget-conscious applications.

● Ease of installation: Their simpler design and smaller size allow for easier fitting in tight spaces.

● Lightweight: The single-ply construction reduces overall weight, which can be advantageous in automotive or portable machinery contexts.

However, flex pipes are not designed to handle pipe expansion or misalignment. Using them in situations with significant thermal growth or lateral movement can cause premature failure.

Flex pipes should never be compressed during installation or operation, as compression damages the external braid and compromises pressure retention.

Comparative Analysis: Exhaust Bellows vs Flex Pipes

Performance under different conditions

Exhaust bellows and flex pipes serve different roles in exhaust systems due to their unique designs. Bellows excel in handling thermal expansion, lateral movements, and pipe misalignments. Their larger corrugations allow compression and expansion, making them ideal for high-temperature environments where pipe length changes are common. Multi-ply bellows, in particular, absorb vibrations and expansion better than single-ply versions.

Flex pipes primarily absorb high-frequency, low-amplitude vibrations. Their small corrugations and external braided layer enable flexing but not compression. This makes them suitable for applications with minimal thermal growth or lateral movement, such as many automotive exhausts. However, flex pipes should never be compressed, as this damages their structure and reduces lifespan.

In summary:

● Bellows: Handle thermal expansion, vibrations, and misalignment well.

● Flex pipes: Best for vibration isolation only, not for expansion or misalignment.

Durability and maintenance requirements

Durability varies significantly between the two. Exhaust bellows, especially multi-ply types, offer superior durability due to their layered construction and larger corrugations. They withstand cyclic loading, high temperatures, and mechanical stresses better than flex pipes. This translates to longer service life and less frequent replacements in demanding industrial settings.

Flex pipes, made from a single ply with smaller corrugations, are thinner and less robust. The braided exterior provides pressure retention but is vulnerable to damage if compressed or misaligned. Flex pipes require careful installation and regular inspection to avoid premature failures. They are more sensitive to wear in harsh environments.

Maintenance tips:

● Bellows: Inspect for cracks, corrosion, and deformation; multi-ply bellows generally require less frequent maintenance.

● Flex pipes: Check for braid integrity, avoid compression, and ensure proper alignment to prevent early failure.

Cost considerations

Cost is a key factor when selecting between exhaust bellows and flex pipes. Flex pipes are generally less expensive due to simpler, single-ply construction and smaller corrugations. Their lightweight design also reduces material costs and can ease installation in confined spaces.

Exhaust bellows, especially multi-ply models, cost more upfront because of their complex construction and superior materials. However, their longer lifespan and better performance often justify the initial investment in industrial or critical applications.

Cost comparison:

Choosing the right balance between upfront cost and long-term value depends on your specific application needs.

When selecting between exhaust bellows and flex pipes, prioritize the type of movement and environmental conditions your system will face to avoid costly premature failures.

Choosing the Right Option for Your Needs

Factors to consider when selecting exhaust components

Choosing between exhaust bellows and flex pipes depends on several key factors:

● Type of movement: If your system experiences significant thermal expansion or lateral movement, bellows are better. For mainly vibration isolation, flex pipes work well.

● Environmental conditions: High temperatures and harsh environments favor bellows due to their durability. Flex pipes suit milder conditions.

● Space constraints: Flex pipes are smaller and easier to fit in tight spaces. Bellows may require more room but offer greater flexibility.

● Load and stress levels: Systems with heavy cyclic loading or mechanical stress benefit from multi-ply bellows.

● Alignment issues: Bellows tolerate pipe misalignments better, reducing leak risk.

● Budget: Flex pipes cost less upfront but may need more frequent replacement. Bellows have higher initial cost but longer service life.

Industry-specific recommendations

Different industries have distinct needs:

● Automotive: Flex pipes are common here due to their vibration damping and compact size. They fit well in exhaust systems with minimal expansion.

● Power generation: Multi-ply bellows are preferred for generator exhausts to handle thermal growth and vibration.

● Marine: Bellows withstand corrosive saltwater environments and engine vibrations effectively.

● Heavy machinery: Bellows provide durability and flexibility for harsh operating conditions.

Expert tips on making the right choice

● Always assess the expected movement type and magnitude before selecting.

● Consider multi-ply bellows for critical or high-stress applications despite higher cost.

● Avoid using flex pipes where compression or misalignment is expected.

● Consult with manufacturers or specialists to match product specifications to your system.

● Factor in total lifecycle cost, not just upfront price, to optimize value.

Prioritize the type of movement and environmental demands your exhaust system faces to select bellows for expansion and misalignment or flex pipes for pure vibration damping.

Installation and Maintenance Tips

Proper installation techniques for exhaust bellows and flex pipes

Installing exhaust bellows and flex pipes correctly ensures their performance and longevity. For exhaust bellows, it’s crucial to align the piping properly to avoid excessive stress. Since bellows can handle some misalignment, minor adjustments are acceptable, but large misalignments should be corrected before installation. Always ensure the bellows are installed without compression or stretching beyond their design limits. Use proper flange connections and tighten bolts evenly to prevent leaks and damage.

Flex pipes require even more precise alignment because they can't handle compression or significant misalignment. The external braided layer restricts compression, so avoid any bending or twisting that could deform the pipe. Flex pipes should be installed straight or with gentle curves within their flexibility range. Use appropriate clamps or flanges to secure the pipe without over-tightening, which could crush the braid.

Both components benefit from support brackets or hangers to reduce stress on the flexible section. Avoid rigid supports that restrict movement or cause bending moments at the ends.

Common maintenance practices

Regular inspections are key to maintaining exhaust bellows and flex pipes. Check for visible signs of wear such as cracks, corrosion, or deformation. For bellows, inspect the corrugations for fatigue or thinning metal, especially in high-temperature environments. Multi-ply bellows generally require less frequent checks but don’t skip scheduled maintenance.

Flex pipes need careful monitoring of the braided exterior. Look for fraying, broken wires, or bulging areas that indicate internal damage. Since flex pipes are thinner, early detection of damage prevents catastrophic failure.

Cleaning debris and corrosive deposits from the surface prolongs life. Use appropriate cleaning agents that won’t harm the metal. Lubricate flange connections if applicable, and ensure bolts remain tight over time.

Troubleshooting common issues

If you notice leaks, vibrations, or unusual noises, start by checking the installation. Misalignment or improper support often causes premature failure. For bellows, excessive compression or stretching can cause cracks or ruptures. If bellows appear collapsed or overly extended, reassess the piping layout.

Flex pipes showing bulges or braid damage likely suffered compression or twisting. Replace damaged flex pipes immediately to avoid leaks or rupture.

Vibration-related noise may indicate loose fittings or worn components. Tighten connections and replace worn bellows or flex pipes as needed.

If you encounter frequent failures, consider switching to a more robust component. Multi-ply bellows handle harsher conditions better than flex pipes.

Always support bellows and flex pipes properly during installation to prevent undue stress and extend their service life.

Case Studies and Real-World Applications

Examples of exhaust bellows in industrial settings

Exhaust bellows shine in heavy-duty industrial environments where pipes face extreme heat, vibration, and movement. For instance, power plants often use multi-ply exhaust bellows in generator exhaust systems. These bellows absorb the thermal expansion of long pipe runs that can grow several inches when heated to high temperatures. They also isolate engine vibrations, preventing damage to connected equipment.

Marine engines provide another example. Ships operate in corrosive saltwater conditions and endure constant engine vibrations. Exhaust bellows made from stainless steel multi-ply construction resist corrosion and fatigue, extending service life and reducing downtime. Their ability to handle lateral movements helps accommodate slight misalignments from hull flexing during rough seas.

In heavy machinery, such as mining equipment or large diesel engines, exhaust bellows ensure reliable operation despite harsh conditions. They protect exhaust piping from cracking due to vibration and thermal cycling, maintaining system integrity.

Examples of flex pipes in automotive applications

Flex pipes are common in automotive exhaust systems, especially in passenger vehicles and light trucks. They absorb high-frequency engine vibrations, preventing these forces from damaging rigid exhaust components. Their compact size fits well in tight engine compartments where space is limited.

For example, many cars use flex pipes near the engine manifold to reduce vibration transmission to the rest of the exhaust system. This improves ride quality and reduces noise. Flex pipes also compensate for small movements caused by engine torque and road conditions.

In contrast to industrial bellows, automotive flex pipes are typically single-ply with an external braided layer. This design offers enough flexibility for vibration damping but not for pipe expansion. Hence, they are ideal where thermal growth is minimal and movement mostly involves vibration.

Lessons learned from real-world implementations

Real-world cases reveal valuable lessons for selecting between exhaust bellows and flex pipes:

● Match the component to the movement type: Bellows excel where thermal expansion, lateral movement, or misalignment occur. Flex pipes suit vibration isolation only.

● Consider environment and durability: Industrial settings demand multi-ply bellows for corrosion resistance and long life. Automotive applications often prioritize cost and space, favoring flex pipes.

● Installation matters: Proper alignment and support prevent premature failure. Bellows tolerate some misalignment; flex pipes require precise installation to avoid compression or twisting.

● Lifecycle costs: Bellows may cost more upfront but reduce maintenance and downtime in harsh conditions. Flex pipes are cheaper but may need frequent replacement under heavy stress.

● Customization adds value: Tailoring bellows or flex pipes to specific applications, such as adding liners or selecting materials, improves performance and longevity.

In summary, understanding the operating conditions and demands guides the right choice. Real-world use confirms that exhaust bellows and flex pipes serve distinct roles, and choosing correctly enhances system reliability and cost-effectiveness.

When applying exhaust bellows or flex pipes, analyze the exact movement and environmental stresses to select the component that best fits your system’s real-world demands.

Conclusion

Exhaust bellows and flex pipes serve distinct roles in exhaust systems. Bellows handle thermal expansion, vibrations, and misalignment, while flex pipes excel in vibration isolation. For critical applications, bellows offer durability and reliability. Conversely, flex pipes are cost-effective for less demanding environments. Consult experts for tailored solutions. Zhejiang Yueding Corrugated Tube Co., Ltd. provides high-quality exhaust bellows, ensuring value and performance in demanding conditions. Their expertise helps clients choose the best options for specific needs.

FAQ

Q: What is an exhaust bellow?

A: An exhaust bellow, also known as an expansion joint, is a flexible component designed to absorb movement, vibrations, and thermal expansion in exhaust systems.

Q: How do exhaust bellows differ from flex pipes?

A: Exhaust bellows can compress and expand, handling larger movements, while flex pipes primarily absorb vibrations and cannot compress.

Q: Why choose exhaust bellows over flex pipes?

A: Exhaust bellows are preferred for handling thermal expansion, misalignment, and vibrations in harsh environments, offering greater durability.

Q: Are exhaust bellows more expensive than flex pipes?

A: Yes, exhaust bellows generally cost more due to their complex construction and superior materials, but they offer longer service life.
