Convenient Install Stainless Steel Expansion Bellows Compensator For Piping Systems

Product Description

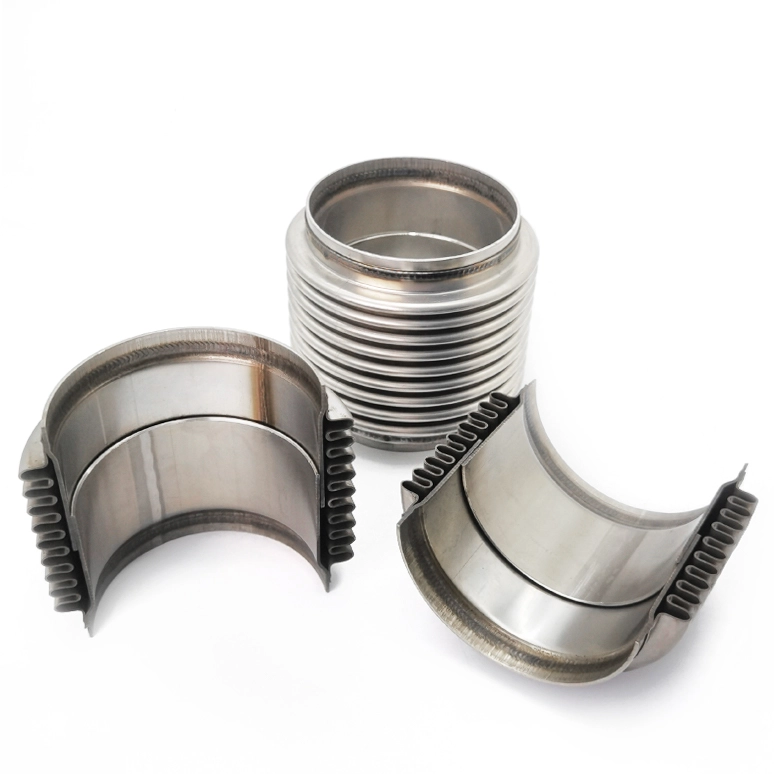

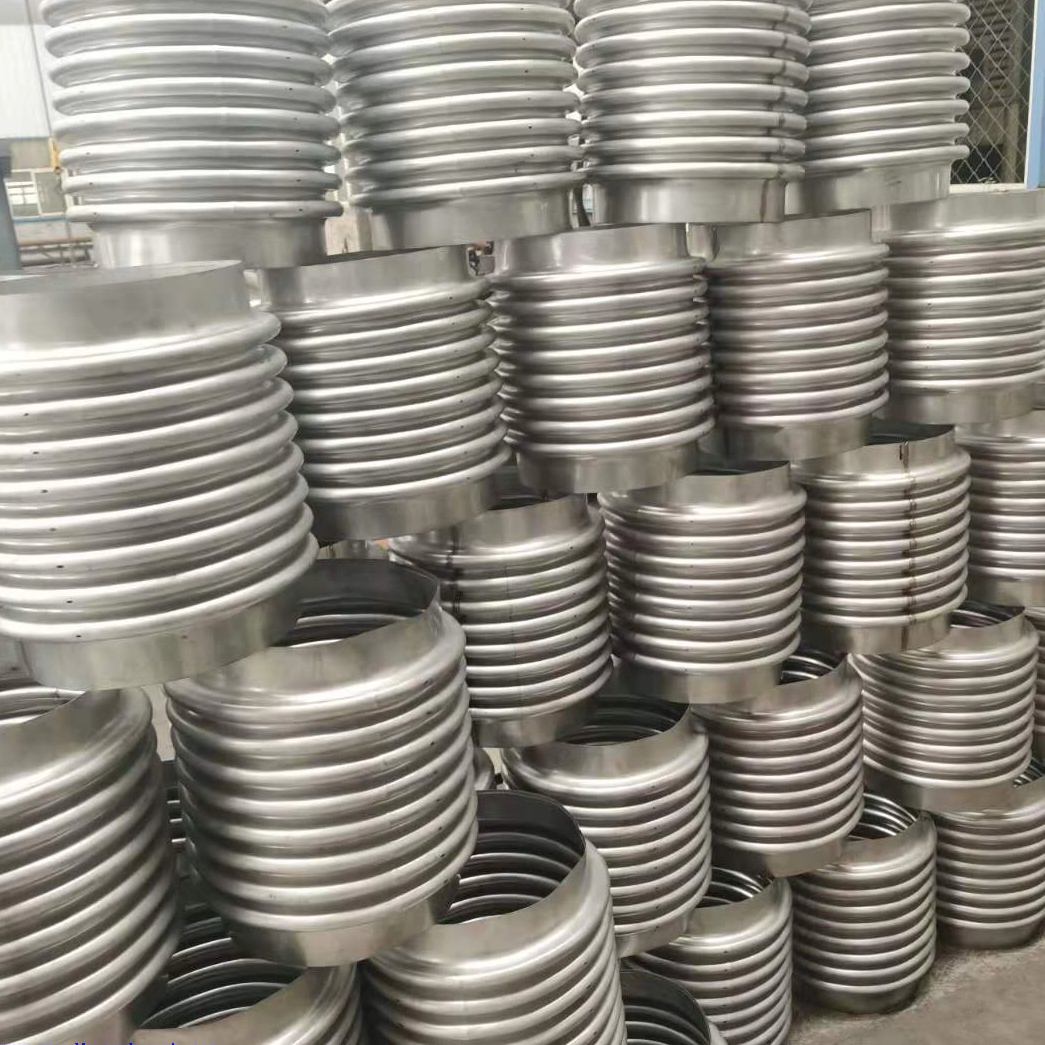

Convenient Install Stainless Steel Expansion Bellows Compensator For Piping Systems

Bellows Expansion/Metal Bellows Expansion Joint / Stainless Steel Expansion Bellows

Introduction of Metal bellows

Metal car bellows expansion joint (they are also called compensators) are compensating elements for thermal expansion and relative movement in pipelines, containers and machines. They consist of one or more metal car bellows expansion joint, connectors at both ends, and tie rods that depend on the application. They are differentiated according to the three basic types of movement: axial, angular and lateral expansion joints.

Detailed product description

1. Nonmetal expansion joint.
   2. Absorbs thermal expansion and shock.
   3. Compensates converting misalignment.
   4. Metal expansion joints are used in a wide variety of piping application to compensate for thermal expansion or contraction and to absorb equipment vibration or pipe motions.
   5. We manufacture single, two-ply and multiply testable bellows in different sizes using precision forming technology.
   6. The bellow is made of stainless steel, whcih have good performance for extreme pressure, temperature and corrosive conditions.
   7. Compensate axial movements.
   8. Optimized design for fatigue resistnce and endurance.
   9. Widely used to absorb termal expansion in pipe systems carring water, steam, oil and gases.
   10.Stainless bellows compensators or expansion joints are designed according to the client's specifications ad design.

Advantages

•  The simplest expansion joint to absorb all the movements of the pipe section

•  The flow direction is not modified

•  The lower cost of expansion joints

Its modular design allows for convenient installation, reducing downtime and maintenance costs for contractors and project owners. Compared to rigid pipe connections, this product effectively prevents pipeline deformation and protects pumps, valves, and other critical components from stress damage.

Yueding (YDCT) provides customized sizes, pressure ratings, and connection types to meet different project specifications. Whether used in oil & gas transmission, chemical plants, power generation, or HVAC piping, our expansion bellows offer a reliable and long-term solution for system efficiency.

FAQ

Q1: What is the function of a stainless steel expansion bellows compensator?
A: It is designed to absorb axial, lateral, and angular movements in piping systems caused by thermal expansion, vibration, or pressure fluctuations, ensuring system stability and longer service life.

Q2: Which industries commonly use expansion bellows compensators?
A: They are widely applied in power plants, chemical processing, oil & gas pipelines, HVAC systems, shipbuilding, and water treatment projects.

Q3: What materials are available for the bellows and end connections?
A: The bellows are usually made of stainless steel (e.g., SS304, SS316L) for corrosion resistance, while the flanges or weld ends can be supplied in stainless steel or carbon steel depending on the project requirements.

Q4: How do I choose the right compensator for my piping system?
A: Key factors include pipeline diameter, working pressure, operating temperature, medium type, and installation space. Customized designs are available to match specific project conditions.

Q5: What are the advantages of stainless steel expansion bellows compared to rubber or fabric joints?
A: Stainless steel compensators offer higher temperature resistance, longer durability under pressure, and better chemical resistance, making them more reliable in industrial environments.
