Mesh Braided

Availability:
Quantity:

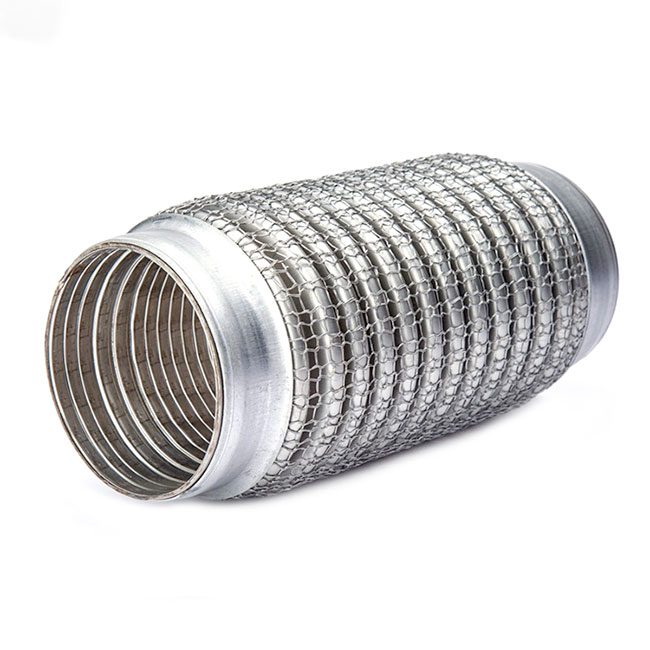

Outer wire mesh flexible exhaust pipe with interlock

What is Flexible Pipe?

The flexible pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.

Material: Stainless steel 304,201,409 etc.

Caps: Aluminum steel or stainless steel

Type: Bellows+Outer Wire Mesh+Interlock


Exhaust Flex Pipe Size Table (Other sizes can be customized)
Part Number Inlet Diameter Inlet Diameter Overall Length Overall Length
inch mm inch mm
YD17504B 1 3/4" 45 4" 102
YD17506B 1 3/4" 45 6" 152
YD17508B 1 3/4" 45 8" 203
YD17510B 1 3/4" 45 10" 254
YD17512B 1 3/4" 45 12" 305
YD20004B 2" 51 4" 102
YD20006B 2" 51 6" 152
YD20008B 2" 51 8" 203
YD20010B 2" 51 10" 254
YD20012B 2" 51 12" 305
YD22504B 2 1/4" 57 4" 102
YD22506B 2 1/4" 57 6" 152
YD22508B 2 1/4" 57 8" 203
YD22510B 2 1/4" 57 10" 254
YD22512B 2 1/4" 57 12" 305
YD25004B 2 1/2" 63.5 4" 102
YD25006B 2 1/2" 63.5 6" 152
YD25008B 2 1/2" 63.5 8" 203
YD25010B 2 1/2" 63.5 10" 254
YD25012B 2 1/2" 63.5 12" 305
YD30004B 3" 76.2 4" 102
YD30004B 3" 76.2 6" 152
YD30004B 3" 76.2 8" 203
YD30004B 3" 76.2 10" 254
YD30004B 3" 76.2 12" 305
YD35006B 3 1/2" 89 6" 152
YD35008B 3 1/2" 89 8" 203
YD35010B 3 1/2" 89 10" 254
YD35012B 3 1/2" 89 12" 305
YD40008B 4" 102 8" 203
YD400010B 4" 102 10" 254
YD400012B 4" 102 12" 305

123


Feature:

1.Automobile exhaust system component

2. Installed between engine and muffler

3. decrease vibration and engine noise

4.To compensate displacement and installation tolerances

5. Smooth inner surface to ensure waste gas to convey the back part

6.To Bear load

Package:

8

Why do you choose us?

1. we are factory. The price is competitive.

2. Good quality is guaranteed. From production to loading, there are technical workers to inspect.

3.Delivery time is on time.

4.Sample are available. But you need to pay the freight.

5.Professional package which assure long distance sea transportation.

Our Customers:

7
