Introduction to Hose Clamps

Hose Clamps are an important component in modern industry. Hose Clamps are used as wire and cable protection tubes for wires, cables, signals for automation instruments, and as residential shower hoses. Hose Clamps are a type of hardware used to attach hoses and tubes to a variety of objects and fixtures, from bathroom sinks to car engines and more. The fitting to which the hose is attached is known as a barb or tip. The Hose Clamp is first placed on the end of the hose to be fixed to the tip, then the hose is secured around the tip and the clamp is tightened so that the hose does not come loose. Below I will give you specific information about Hose Clamps so that you can increase your knowledge of them.

This is the list of contents：

·Principle

·Advantages

·Application areas



Principle

A Hose Clamp with a clamp ring, a tensioning device, and a positioning piece set for positioning the Hose Clamp on the hose. It is desired to make the installation of the hose simple. For this purpose, the positioning arrangement has at least two positioning members.

The Hose Clamp, in which the second clamp can be moved reliably until it is separated from the locking part, does not clamp the two clamps together too much and maintains the tightening force of the leaf spring body. The Hose Clamp has a leaf spring body and, at one end, a long opening and a first clamp, while at the other end, an insert and a second clamp are formed. A locking tab with a hooked locking portion is formed in the first tab through a bend, while an engagement holding portion is formed in the second tab. A wedge-shaped portion is provided on the locking tab that widens from the locking portion towards the bending portion, and a stop portion that is generally parallel to the first tab. The wedge is arranged in a plane approximately parallel to the circumference of the leaf spring body, and the intersection between the wedge and the stop is offset in the width direction concerning the locking section.

Advantages

1. Flexible between Hose Clamp pitches.

2. Hose Clamps have good expansion and contraction, with no blockage or stiffness.

3、The Hose Clamps are light in weight and have good consistency in caliber.

4、Hose Clamps have good flexibility, repetitive bending, and flexibility.

5、Hose Clamps have good corrosion resistance and high-temperature resistance.

6、Hose Clamps are resistant to rodent bites and have good abrasion resistance, preventing internal electrical wires from being worn.

7、Hose Clamps are resistant to bending, tensile properties, and side pressure.

8、The Hose Clamps are soft and smooth, easy to install, and position for threading.

Application areas

Hose Clamps have a beautiful shape, easy to use, have strong tightening force, and have good sealing performance. They are mainly used for fastening and sealing the joints of common rubber hoses, nylon plastic hoses, cloth hoses, and water belts for vehicles, ships, diesel engines, petrol engines, machine tools, fire-fighting and other mechanical equipment and chemical equipment; they are also used for the installation of construction pipes, with good performance, high sealing, and easy installation.

The above is the Hose Clamp-related knowledge, if you need further understanding, please contact us, and we will answer for you one by one, this is our website：https://www.yuedingexhaust.com/



Today we will introduce one of our hot products, the T-type V-band clamp.

This type of clamp is widely used in flange connection of circular pipes, sealing of containers and barrels, ventilation and exhaust, fire protection, water treatment pipe connection, etc., also includes filter racks, turbocharger systems, exhaust systems, and industrial applications that require flange-to-flange face joints, etc.

The material of T-type V-band clamps are normally: 201 and 304. The product is composed of four parts: steel belt, band, bolt and nut. It is sealed with stainless steel belt and V-shaped belt ring. The clamp is bent and formed by the mold, and has the design of anti-loosening spring, which can hold the hose tightly under various complicated working conditions with strong sealing performance. It can add a release valve device to the bolt to form a quick release function. It can also add flanges to the band, The male and female flanges are widely used for installation. Their unique positioning bands are more convenient for welding, and avoid shift during installation to fix firmly. One of the characteristics of the T-type V-band clamp is that it can be adjusted slightly. It works lightly and fast to make sure the flanges and seals are adjusted evenly and tightly.

Below are pictures of our products:

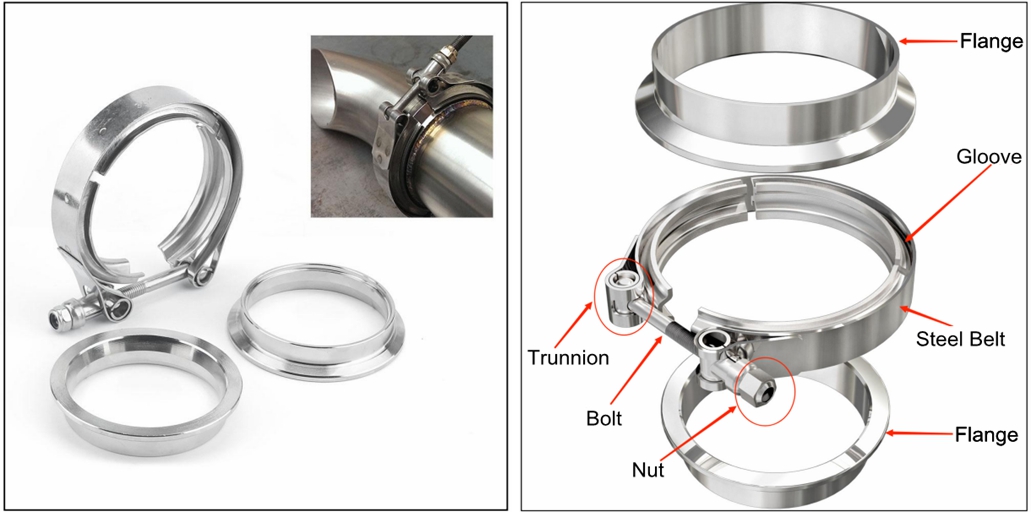

                                                             Application of T-type V-band clamp                                        Exploded view of T-type V-band clamp with flange

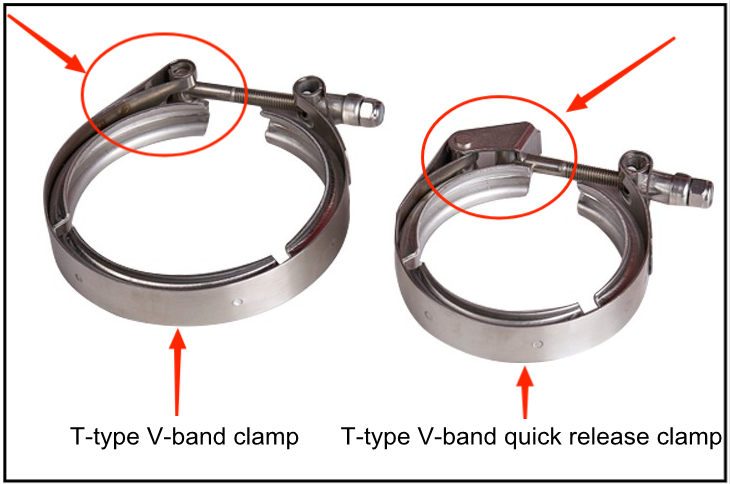

Difference between T-type V-band clamp and T-type V-band quick release clamp

In addition, we can develop molds and customize products of various sizes according to customer needs.

Our conventional export carton packaging has different quantity standards according to the specifications and sizes. Generally it is one piece per box. As long as the batch quantity is large enough, we can also provide single white box or other forms of packaging.

You only need to provide material and size, we will provide you with a quotation in time!

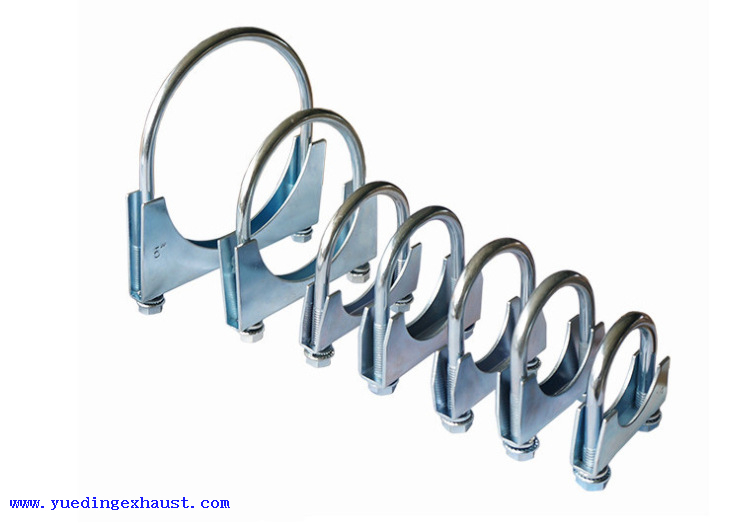

U bolt clamp mainly used for fixing vehicle and mechanical exhaust devices,adopting special molding structure and manufacturing process, the product is easy to operate and use, with strong leak proofness and fastness.For future information and products details,pls feel free to contact us.

Main market : Colombia, Mexico, Canada, Australia, Latvia, United Kingdom, United States of America, Germany

Production Description

Known as muffler clamps, these U-bolts have a rounded mounting plate that fully surrounds pipe, conduit, and tubing for a secure fit. Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.

Zinc-plated steel U-bolts have good corrosion resistance in most environments. Chrome-plated steel U-bolts are more corrosion resistant than zinc-plated steel U-bolts. 304 stainless steel U-bolts have excellent corrosion resistance and good chemical resistance.

Exhaust silencer galvanized steel U bolt hose clamp for tube pipe

NO.	PARAMETERS	DETAILS
1	Diameter	1) Zinc plated: M6/M8/M10
		2) Stainless steel:M6/M8/M10
2	Size	From 1-1/2” to 6”
3	OEM/ODM	OEM/ODM is welcome

Product Components

U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

Material

TO PART NO.	MATERIAL	GASKET	U BOLT	NUT
TOUG	W1	Galvanized  Steel	Galvanized  Steel	Galvanized  Steel
TOUSS	W4	SS200/SS300 Series	SS200/SS300 Series	SS200/SS300 Series
TOUSSV	W5	SS316	SS316	SS316

Usage

U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting. U-bolts are also used to hold ropes together.
The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.

As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar, then a more convenient measurement system needs to be used.

U-bolt clamps do work, but they are not really reusable, and they crush the pipe, so it is really had to take them apart for service. Not to mention the nuts tend to rust, locking them together forever.

What are the characteristics of automobile exhaust pipe clamps

Automobile exhaust pipe clamps are often used in assembly work, it is used to hold and rotate steel pipe workpiece, according to their load capacity, weight, and type, they can be widely used in the installation of the automotive pipeline, it is a tool often used in the installation and maintenance work of automotive pipeline. This article will introduce the characteristics of different automobile exhaust pipe clamps from three aspects.

Here is the list：

l The characteristics of different categories of automobile exhaust pipe clamps

l The role of different automobile exhaust pipe clamps

l How to buy according to the characteristics

Classification of automobile exhaust pipe clamps

The material of automobile exhaust pipe clamp can be divided into plastic ABS automobile exhaust pipe clamp, aluminum alloy automobile exhaust pipe clamp, stainless steel automobile exhaust pipe clamp, carbon steel automobile exhaust pipe clamp, and so on.

Metal automobile exhaust pipe clamps are hard and have good water pressure strength, external pressure strength, and impact strength, which are suitable for piping projects under various conditions. Some metal clamps are coated with PVC, which has the advantages of strong adhesion, low-temperature resistance, impact resistance, wear resistance, humidity and heat resistance, salt spray resistance, tensile resistance, acid and alkali resistance, aging resistance, high-pressure resistance, chemical resistance, and excellent weather resistance, and will not produce cracks in the open air.

The role of different automobile exhaust pipe clamps

Automobile exhaust pipe clamps are widely used in the development of vehicle pipeline arrangements. The main function is to clamp the pipeline and provide positioning guidance for the direction of the pipeline, which is a necessary part of the production of modern vehicles. In actual use, if the fixed part of the clamp is not positioned, and the fixed clips are cylindrical and can be rotated in the sheet metal holes, it will not play a good guiding role. Automobile exhaust pipe clamps have the characteristics of unobstructed flow, full diameter, low flow resistance, no blockage, zero leakage, and not easily affected by harsh environments, as well as low maintenance costs, simple design, and easy standardization of production of automobile exhaust pipe clamps. In automotive assembly, automobile exhaust pipe clamps are needed to connect and fix accessories, and they play a significant role in the long-term operation of the car.

How to buy according to the characteristics

If the material of automobile exhaust pipe clamps is not selected properly, it may cause the clamps to be unstable and easy to produce strange noise, or even cause the pipes to fall off causing unpredictable problems, we must choose the right automobile exhaust pipe clamps according to the characteristics of automobile exhaust pipe clamps and our own needs.

First of all, you need to choose the material with a stable size, which can ensure the dimensional stability of the product under different environmental conditions such as high and low temperature, humidity difference, etc., so that it can clamp the pipe more firmly; secondly, you need to choose the material with good impact resistance, not easy to break; finally, you need to choose the material with good oil resistance.

As a functional component of the car, the automobile exhaust pipe clamp plays a vital role in fixing the car pipe. Understanding the characteristics of automobile exhaust pipe clamps can help us to choose the clamps according to our needs. The above is all the content of this article around the characteristics of automobile exhaust pipe clamps, I hope it will help you.
