Specification
| Item | Material | Spec.(inch) | Clamp ID(mm) | Flange ID(mm) |

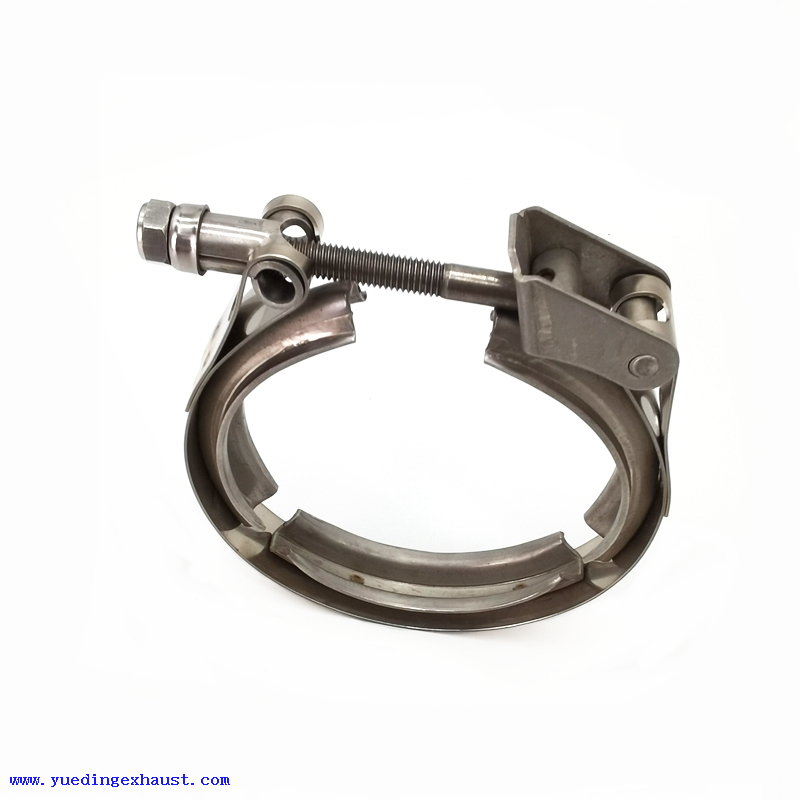

| V band clamps ( both standard latch and quick release latch) | Superior Grade Stainless steel 304 | 1.5” | 60 | 38.9 |
| 1.75” | 66.4 | 45.3 | ||
| 2” | 72.8 | 51.6 | ||
| 2.25” | 79.1 | 57.9 | ||
| 2.36” | 81.6 | 64.3 | ||
| 2.5” | 85.5 | 70.6 | ||
| 2.75” | 91.8 | 77 | ||
| 3” | 98.2 | 83.3 | ||
| 3.25” | 104.5 | 89.7 | ||
| 3.5 | 110.9 | 96.1 | ||
| 4” | 123.5 | 102.4 | ||
| 4.5” | 136.3 | 115.1 | ||
| 5” | 149 | 127.8 | ||
| 6” | 174.4 | 153.2 |
