In the complex world of engineering components, metal bellows have carved a unique niche for themselves. These precision-engineered mechanical devices are designed to absorb movement, isolate vibration, and compensate for thermal expansion, making them indispensable in various high-demand applications. But what exactly are the advantages of bellows, especially metal bellows? Let’s explore their functionality, technical superiority, and wide-ranging benefits across industries.

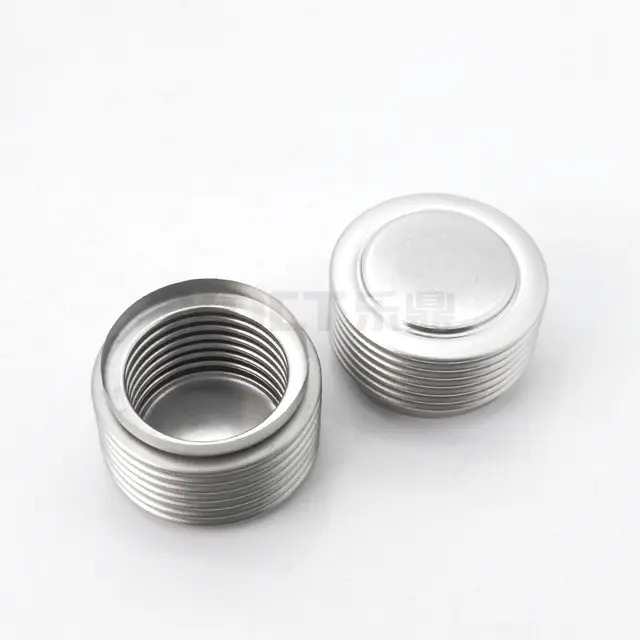

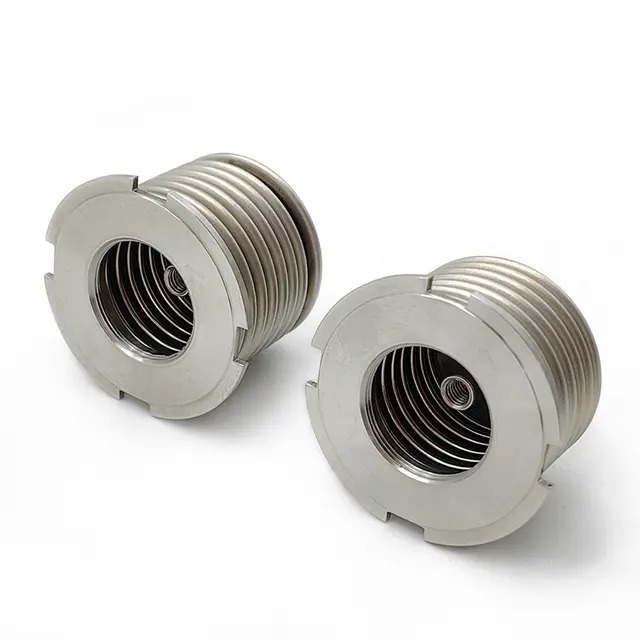

Metal bellows are flexible, corrugated cylindrical components usually made from stainless steel, nickel alloys, or other resilient metals. They are designed to flex under pressure or movement while maintaining a hermetically sealed environment. These structures are commonly used in piping systems, aerospace applications, vacuum environments, and precision instrumentation.
Their design allows for axial, lateral, and angular movement, making them superior in compensating for mechanical displacement. Unlike rubber or fabric bellows, metal bellows provide excellent temperature resistance, long-term durability, and resistance to corrosion and fatigue, making them ideal for harsh environments.
One of the core strengths of metal bellows is their ability to absorb and compensate for multi-directional movement. Whether it’s axial expansion, lateral deflection, or angular misalignment, metal bellows adapt without damaging connected equipment. This feature is particularly important in piping systems where pressure and temperature fluctuations can cause material deformation.
In industrial settings such as oil refineries or chemical plants, pipes may expand or contract due to heat. A metal bellows expansion joint absorbs this stress, reducing the risk of cracking or leakage. By mitigating mechanical strain, metal bellows help extend the lifespan of connected equipment and reduce maintenance costs.
Metal bellows excel in extreme environments. Whether operating in cryogenic conditions or at high temperatures exceeding 800°C, they retain structural integrity and performance. Their construction from high-grade metals such as Inconel, Monel, or stainless steel gives them excellent resistance to pressure and thermal cycling.
In aerospace or nuclear applications, metal bellows often function in vacuum environments or high-pressure vessels. Their ability to maintain a seal and prevent gas or fluid leakage under high pressure makes them invaluable in mission-critical systems.
| Property | Metal Bellows Performance |
|---|---|
| Operating Temperature | -200°C to 800°C+ |
| Pressure Resistance | Up to 3000 psi (depending on design) |
| Material Fatigue Life | 10,000+ cycles |
| Corrosion Resistance | Excellent (depends on alloy used) |
Another prominent benefit of metal bellows is their hermetic sealing capability. When absolute isolation is required—whether to protect a vacuum, shield electronics, or avoid contamination—metal bellows offer unmatched sealing properties. This is especially critical in medical devices, aerospace fuel systems, or high-vacuum chambers used in semiconductor manufacturing.
Unlike gaskets or rubber seals, which degrade over time, metal bellows maintain a leak-tight seal throughout thousands of cycles. This ensures the system remains secure, efficient, and contamination-free.
Durability is a key reason why metal bellows are favored over alternative flexible components. These components are often subjected to cyclical stress, vibrations, and thermal fluctuations. Because of their welded or hydroformed construction, they exhibit superior fatigue resistance—meaning they can withstand repeated expansion and contraction without failure.
Depending on design specifications, metal bellows can operate for tens of thousands of cycles, making them ideal for applications requiring longevity and low maintenance. In critical systems like aircraft engines or satellite subsystems, their reliability can mean the difference between mission success and failure.
Despite their strength and resilience, metal bellows are surprisingly lightweight and compact. This makes them ideal for space-constrained environments or mobile applications. They can be custom-engineered to meet specific dimensional and load requirements, eliminating the need for bulky compensators or joints.
In industries such as aerospace, medical instrumentation, or microelectronics, every millimeter and gram counts. Metal bellows offer a high strength-to-weight ratio, delivering flexibility and sealing without compromising space or adding unnecessary weight.
In many industrial and mechanical systems, vibration can lead to premature component wear or system failure. Metal bellows serve as vibration isolators, absorbing shock and damping noise. Their natural flexibility allows them to decouple sensitive equipment from vibrations transmitted through pipelines or rotating machinery.
This property is particularly valuable in precision manufacturing equipment, HVAC systems, and power generation units where stability is crucial. By isolating motion and minimizing noise, metal bellows improve system efficiency, reduce operational noise levels, and increase user comfort.
Metal bellows are found in a wide range of industries, including:
Aerospace: Fuel systems, flight control actuators, and vacuum chambers
Medical Devices: Surgical equipment, respiratory systems, and implantable devices
Semiconductors: Ultra-clean vacuum chambers and wafer handling systems
Oil & Gas: Pipe expansion joints, valve seals, and compressors
Automotive: Exhaust systems, turbochargers, and emission control systems
Their adaptability across different environments and engineering challenges demonstrates the incredible utility of metal bellows.
Stainless steel, Inconel, Hastelloy, and bronze are commonly used due to their corrosion resistance and mechanical strength.
With proper design and usage, metal bellows can last over 10,000 to 50,000 operational cycles depending on the environment.
Absolutely. Metal bellows are highly customizable in terms of size, material, wall thickness, and movement range to fit specific application needs.
While they may have a higher initial cost compared to rubber or plastic alternatives, their longevity and reliability make them cost-effective over the long term.
Metal bellows are an engineering marvel that delivers unmatched flexibility, sealing, durability, and resistance under pressure. From absorbing thermal expansion in pipelines to maintaining vacuum integrity in space applications, their advantages are broad and profound. Engineers and designers across diverse industries continue to rely on metal bellows to solve mechanical challenges with elegance and precision.When choosing a mechanical component that offers long-term reliability, high performance, and environmental resistance, metal bellows stand out as a smart investment.
