How To Choose An Proper Elbow

Inquire


The importance of choosing the Proper elbow

  • Avoid Costly Repairs: Wrong elbows lead to leaks, corrosion, or blockages .

  • Optimize Flow Efficiency: Proper angles and radii reduce fluid resistance .

  • Ensure System Safety: Matching material to fluid type prevents hazards.

  • Extend System Lifespan: Durable materials withstand harsh environments.


To effectively avoid potential safety hazards and eliminate unnecessary additional costs, selecting suitable elbow fittings is undoubtedly of great importance. However, despite their simple and ordinary appearance, elbow fittings hide intricate technical principles behind them. Whether for ordinary consumers or professional purchasers, when purchasing elbow fittings, they often face many doubts and challenges. Next, I will introduce you to elbow fittings and provide some reference suggestions for selecting appropriate ones.


The Basic knowledge of elbows

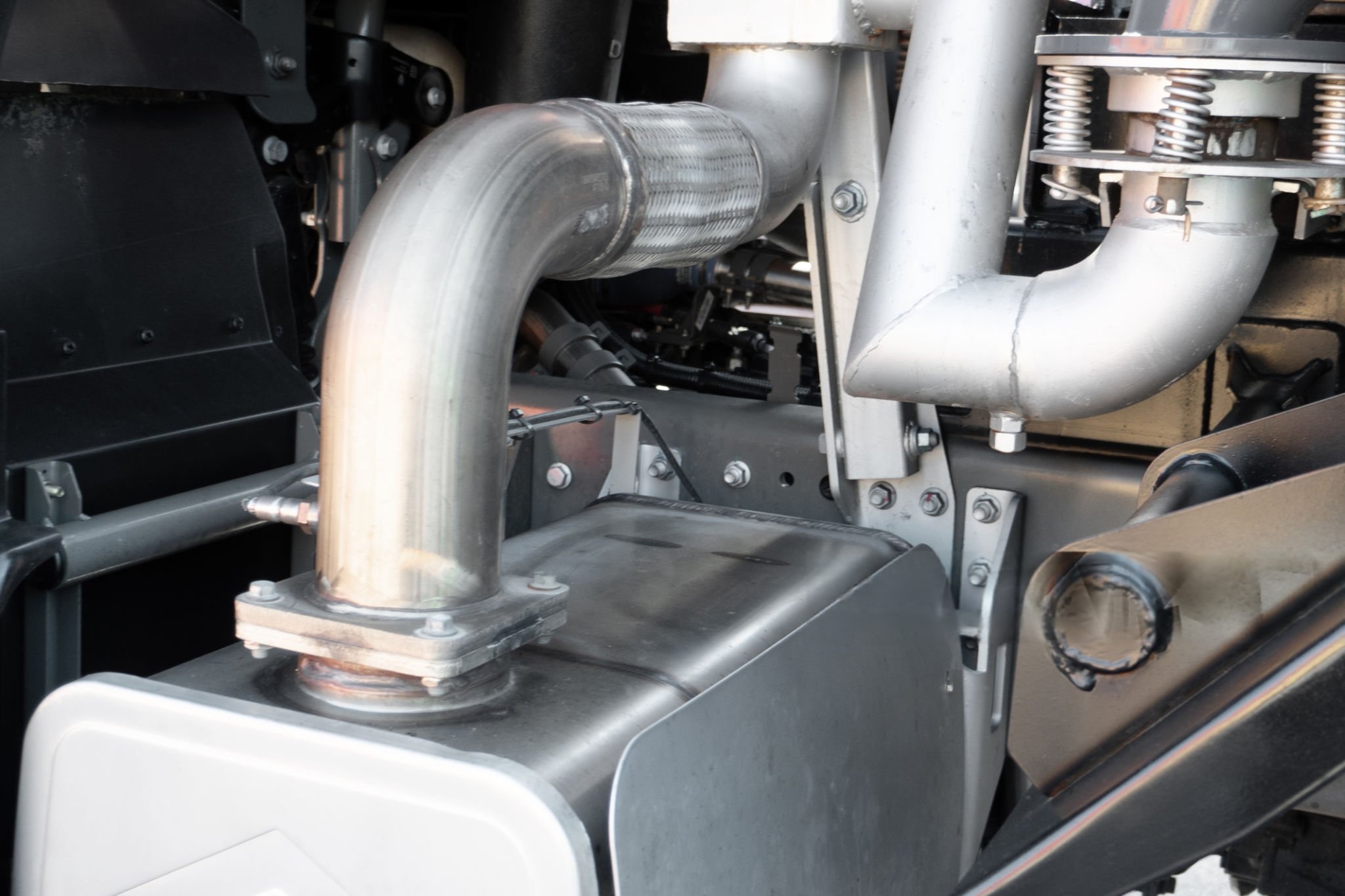

exhaust elbowElbow pipes are pipe fittings with arbitrary bending angles and diverse configurations, including elbow pipes of various angles, U-shaped pipes, return bends and arc elbow pipes. They are used when pipeline routes need to make turns. With reference to this diagram,
"R"denotes the bending radius of the elbow pipe, which is the radius of the central arc of the elbow.


A larger "R" results in a larger curved section of the pipeline and a smoother bend. A smaller "R"leads to a smaller curved section and a sharper bend. Under the 3A standard, "1.5D" is the long radius and "1.0D" is the short radius. The difference between them lies in their bending radius values.“D” represents the outer diameter of the elbow. "1.5D" means the bending radius is 1.5 times the outer diameter of the elbow. “1.0D” means the bending radius is equal to the outer diameter of the elbow.


Then we first classify the types of elbow pipes according to their materials and understand their characteristics:

  • Stainless steel elbows: Mainly made of 304 and 316L stainless steel, with high corrosion resistance and strength.

  • Carbon steel elbows: Cost-effective and easy to weld.

  • Plastic elbows: Lightweight, resistant to freezing and cracking, and have good insulation.

  • FRP (Fiberglass Reinforced Plastic) elbows: Corrosion-resistant, insulating, and aging-resistant.


Several key Factors to choosing the Proper elbow

1. Clarify Application Scenarios


Daily Life Scenarios: For example, for household drainage and ventilation, lightweight and easy-to-install plastic elbows are preferred, as they are low-cost and resistant to frost cracking.

Industrial Scenarios: For example, in chemical industry and energy, stainless steel or FRP elbows are selected according to the corrosiveness, temperature and pressure of the fluid to ensure corrosion resistance and pressure resistance.

Automotive/Mechanical Scenarios: If compact layout and high temperature resistance are required, short radius carbon steel elbows or customized angle stainless steel elbows are available.


2. Determine Elbow Angle and Radius Design

  • Standard Angle Selection

90° Elbows: Ideal for right-angle turns in spaces with ample room, such as industrial pipeline layouts in factories.

45° Elbows: Used for gentle flow direction adjustments to reduce fluid impact, e.g., in automotive cooling systems.

180° Elbows: Enable pipeline U-turns to save space, commonly found in boiler water circulation systems.


stainless steel elbow exhaust pipe

  • Custom Non-Standard Angles Complex Environments

For navigating obstacles between equipment, custom angles (e.g., 30°, 60°) can optimize space utilization.

Radius Design Principles

Long Radius (R=1.5D): Minimizes fluid resistance, suitable for high-velocity, large-flow systems (e.g., natural gas pipelines), reducing pressure loss by ~30%.

Short Radius (R=1D): Occupies less space, ideal for constrained installations (e.g., ship pipelines), though pressure loss may increase.


3. Balance Between Cost and Long-Term Performance

Short-Term Costs: When the budget is limited, prioritize carbon steel elbow pipes or 201 stainless steel elbow pipes to meet basic functional requirements.

Long-Term Costs: For applications with high-quality requirements, such as industrial pipelines operating 24/7, invest in 316L stainless steel or FRP elbow pipes to reduce maintenance frequency and downtime losses.


In any case, it is crucial to bear in mind that inferior materials may lead to leaks and corrosion, and the hidden costs such as maintenance and production shutdowns may far exceed the initial cost savings. Therefore, it is necessary to balance the relationship between cost and quality, and flexibly select elbow pipes made of different materials and processes in different scenarios to achieve the highest cost-performance ratio.


Conclusion

The above systematically analyzes the key points for selecting elbow pipes from dimensions such as application scenarios, specification design, and cost-performance balance. A suitable elbow pipe requires comprehensive consideration of multiple factors, including the usage environment, dimensional specifications, material characteristics, and budget constraints. In addition, choosing a high-quality supplier is a critical factor in ensuring product quality and service.


Our factory relies on mature automated production lines and a professional technical R&D team to strictly control the entire production process, providing a solid guarantee for product quality. Moreover, our complete after-sales service system ensures that you have no worries, and we look forward to becoming your trusted partner!
