Mass-produced vehicles face multiple engineering constraints when it comes to exhaust system design, including emissions compliance, noise regulations, cost efficiency, packaging space, assembly processes, and long-term durability. To ensure regulatory compliance and maintain reliability, manufacturers often use thicker wall materials, more complex silencing structures, and carefully positioned catalytic converters with proper O₂ sensor placement. These measures, while effective for legal and operational requirements, compromise optimal exhaust flow and acoustic performance. From a tuning perspective, many aftermarket exhaust upgrades simply restore the engine’s original potential that was “sacrificed” during mass production compromises.

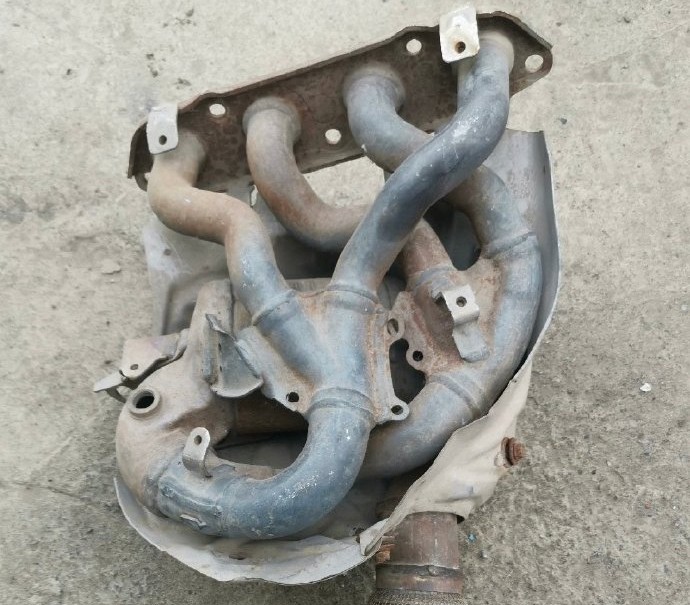

Automakers prioritize passing emissions tests and ensuring long-term reliability over peak performance. Exhaust geometries are optimized for minimal regulatory risk, which often leads to increased flow resistance, complex muffler chambers, and conservative pipe diameters. These compromises affect torque and throttle response, particularly in mid-range RPMs.
Aftermarket exhaust upgrades can help recover this lost potential. By addressing backpressure, harmonizing pulse waves, and optimizing pipe geometry, tuners can achieve a balance that restores engine responsiveness without compromising legal compliance or daily drivability.

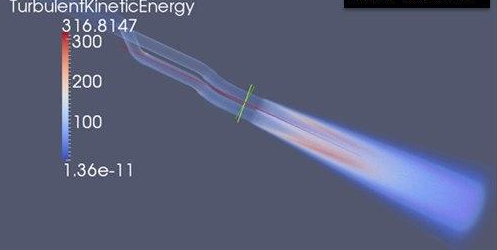

The behavior of exhaust gases is dictated by fluid dynamics and acoustic resonance. Contrary to common belief, simply reducing backpressure does not always improve engine performance. Each combustion event produces pressure pulses and rarefaction waves, which reflect and overlap at geometric transitions such as diameter changes, junctions, muffler chambers, and tailpipe exits. Controlled backpressure is essential for proper cylinder scavenging, preventing unburned mixture loss at low to mid RPMs and avoiding exhaust blowback during throttle lift.
Excessively low backpressure can reduce mid-range torque, increase fuel consumption, and generate unwanted cabin resonance. Experience shows that increasing pipe diameter beyond the factory specification by 10–15% is generally the safe limit for naturally aspirated engines. Turbocharged or high-power applications may tolerate larger diameters, but careful evaluation of turbine A/R ratios, boost targets, and fueling strategies is required.
The concept of “equal-length” headers is not merely about making all primary pipes the same length. It involves synchronizing exhaust pulse arrivals so that rarefaction waves return during valve overlap, creating a scavenging effect. Primary pipe length directly influences tuning RPM: shorter pipes favor higher RPM response, longer pipes support low-to-mid torque. Manufacturing tolerances of ±2–3 mm and precise control over collection angles are critical to maintain pulse timing and resonance.
Pipe diameter, length, and bend quality significantly impact torque and horsepower curves. Proper selection requires balancing flow velocity, engine characteristics, and packaging constraints.
For naturally aspirated engines, increasing mid- and tailpipe diameters by 10–15% is generally safe. Overly large diameters reduce gas velocity, compromising low-RPM torque. Turbocharged engines or racing applications may use larger diameters but must align with boost targets and turbine sizing. The key metric is flow velocity, which must remain sufficient at low RPMs to maintain effective scavenging.
Mandrel-bent pipes maintain a consistent cross-section through bends, minimizing flow restriction and improving resonance control. Crush-bent pipes can flatten at bends, creating localized turbulence and potential high-frequency noise. Mandrel bending can improve effective flow by 5–10% for the same diameter and ensures consistent manufacturing quality.
Headers and midsections play a pivotal role in determining power delivery and acoustic behavior. Choosing the right header type and midsection components allows engineers to target specific RPM ranges.

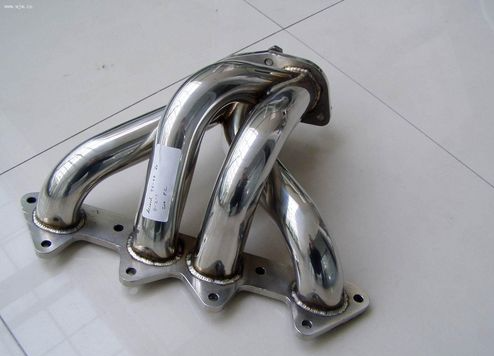

4-1 headers feature shorter primary pipes that converge early, optimizing high-RPM power and track-oriented performance. 4-2-1 headers have longer primaries and secondary merges, enhancing mid-range torque and daily drivability. The real performance difference comes from primary/secondary pipe lengths, diameters, and merge angles, rather than marketing slogans.
Catalytic converters are essential for emissions compliance but introduce flow resistance and alter acoustic characteristics. High-flow catalytic converters reduce pressure drop and improve exhaust velocity, potentially emphasizing high-frequency content that may require resonators for noise control. Quarter-wave resonators provide targeted frequency reduction by reflecting destructive waves to cancel specific sound peaks, with allowances for temperature-related changes in exhaust gas velocity.

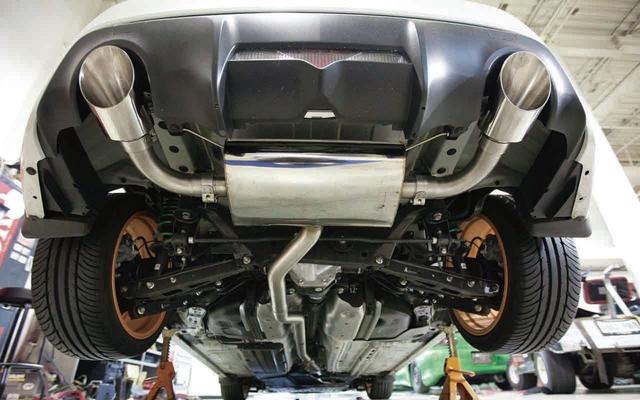

Tailpipe and muffler design directly affect sound quality, backpressure, and NVH (Noise, Vibration, Harshness). Different muffler types and tailpipe configurations allow tuners to prioritize power, comfort, or compliance.
Straight-through designs offer minimal restriction and active high-frequency response. Chambered mufflers emphasize low-frequency damping but introduce higher backpressure. Perforated with packing materials targets mid-to-high frequencies but requires attention to material aging and temperature tolerance. Hybrid approaches combine straight-through paths with controlled absorption for street-legal yet responsive performance.

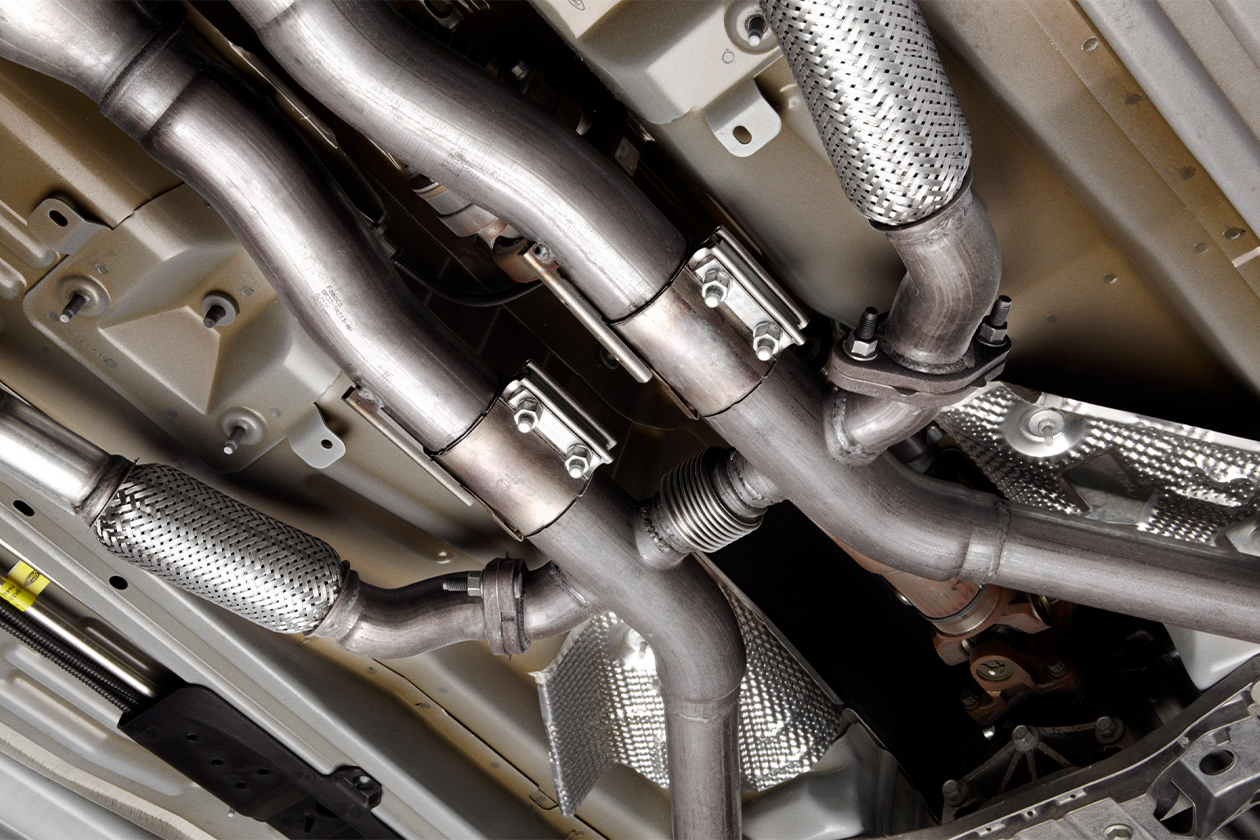

Flexible bellows and ball joints accommodate powertrain movement and thermal expansion, reducing stress concentrations and in-cabin resonance. V-band clamps allow quick assembly and even compression, ideal for repeated removal or track maintenance, while U-clamps are cost-effective for fixed joints but less convenient. Proper sealing is critical for accurate O₂ sensor readings, ECU stability, and sound integrity. Recommended manufacturing standards include flange flatness <0.15 mm, roundness control at clamp points, and 100% pressure or leak testing.
Material choice and welding method influence durability, sound quality, and weight. Stainless steel (SUS304), mild stainless (SUS409), and titanium each offer unique advantages, while wall thickness and welding precision affect NVH and longevity.
SUS304 provides corrosion resistance and neutral sound, suitable for mid-to-high-end modifications. SUS409 is cost-effective, durable under high temperatures, and commonly used in factory applications. Titanium is lightweight, high-temperature resistant, and favored for track-oriented builds, producing a pronounced metallic resonance.
TIG welding delivers precise, dense welds suitable for thin-wall applications, while MIG welding is faster and appropriate for mass production. Wall thickness around 2.0 mm is recommended for durability and NVH control; thinner walls may lead to ringing and fatigue cracking.Besides these two welding methods, we also employ laser welding, which offers exceptional precision, minimal heat distortion, and uniform penetration. This technology is especially advantageous in the production of automotive exhaust components and flexible bellows, where tight tolerances, vibration resistance, and long-term durability are critical. Laser welding ensures clean seams, reduces potential leak points, and improves the reliability of performance exhaust upgrades under both street and track conditions.
Proper testing ensures exhaust modifications meet design targets, safety, and regulatory requirements. Measurements include backpressure, SPL/frequency spectrum, OBD monitoring, and leak verification.
Backpressure tests quantify pressure drop under load, while SPL and frequency spectra confirm sound behavior at various RPMs. Leak testing, using water or air at 0.25–0.3 MPa, verifies the integrity of flanges, flex joints, clamps, and welds. OBD monitoring ensures stable fuel trims and O₂ sensor performance.
Practical examples show the impact of modifications:
NA Street Cars (Honda D16): Converting to equal-length 4-2-1 with mild midsection upgrades improved mid-range torque and cabin resonance without significantly increasing peak horsepower.
US Street/Highway (Ford Mustang 5.0): Mandrel-bent 2.75" mid-tail section with straight-through mufflers improved high-RPM response while maintaining SPL compliance.
Turbo Track Builds (BMW N55): High-flow catalysts and V-band connections enhanced serviceability and high-frequency sound, with long-chamber resonators managing cabin NVH.
Q1: Can I improve performance by upgrading only the mid-tail section?
A: For naturally aspirated engines, upgrading mid-tail plus adding a resonator improves throttle response and mid-range acceleration. Turbocharged engines benefit from high-flow catalysts and properly tuned tailpipes, but rear O₂ strategy must be addressed.
Q2: Is 4-1 always stronger than 4-2-1?
A: Not necessarily. 4-1 excels at high RPM and sustained power, while 4-2-1 prioritizes mid-range torque. Performance depends on primary/secondary lengths and merge angles.
Q3: Will increasing pipe diameter always help?
A: No. Overly large diameters reduce low-RPM torque in NA engines. A 10–15% increase is generally safe for street cars, while turbo or high-power applications require careful evaluation of boost and noise constraints.
Q4: Why do downpipe upgrades sometimes produce metallic noise?
A: Often due to thin walls, bracket stiffness, clamp pre-load, or misalignment. Check V-band seating, flange flatness, and add flexible bellows or support as needed.
Q5: Why does equal-length make the exhaust sound “less lively”?
A: Equal-length headers harmonize pulses, creating a tighter and more linear sound. Minor tailpipe modifications can preserve character without sacrificing tuning.
Exhaust system upgrades require balancing backpressure, acoustic tuning, durability, and compliance. Effective modifications start with target operating conditions and RPM ranges, followed by optimizing headers, midsection, tailpipes, and connections. Most street users benefit from a setup combining equal-length 4-2-1 headers, high-flow catalysts, mandrel-bent mid-tail sections, and resonators/absorptive elements to achieve responsive, compliant, and comfortable performance.
Quick Reference Table – Recommended Configurations
| Target Use Case | Header Suggestion | Midsection Recommendation | Tailpipe & Muffler | Connection & Material | Notes |
|---|---|---|---|---|---|
| Daily Commuting / Low RPM | 4-2-1 equal-length, slightly long | TWC or HFC with small resonator | Straight-through + absorptive | Flex bellows + V-band, SUS304 2.0mm | Monitor 1–1.5 kHz resonance |
| Highway / Track | 4-1 equal-length, slightly short | HFC + low-pressure straight-through | Straight-through large flow | Full V-band, reinforced mounts | Prioritize power, compliance secondary |
| Turbo Mid-High Power | Merge angle matched to turbine | High-flow catalyst + straight path | Primarily straight, optional 1/4 wave branch | Titanium + 304, high-temp focus | Manage rear O₂ and thermal control |
| Silent / Comfort | 4-2-1 optimized secondary | Chambered + resonator | Perforated absorption | 304 + thick wall, critical TIG welds | Prioritize cabin NVH |
