When you source exhaust components for commercial vehicles or industrial machinery, every part must meet standards of endurance, heat resistance, and reliability. The exhaust flex pipe, while often small in size, plays a vital role in system longevity and emissions performance. In this article, we break down how exhaust flex pipes work, why testing is essential, and how a factory-grade validation process ensures that each component can be trusted across a range of operating environments.
Flex pipes are essential to allow the exhaust system to expand, contract, and flex along with engine movement. Without them, the stress of thermal expansion or vibration could lead to rigid pipe cracking or joint failure. Whether in heavy-duty diesel trucks in Brazil or fleet vehicles across the UAE, an exhaust flex pipe helps stabilize the entire emission channel.
They are most often installed near the downpipe or just after the catalytic converter. Their braided exterior and inner bellow allow a degree of axial and lateral movement, reducing load on the rest of the exhaust system.
Flex pipes absorb both vibration and thermal expansion. As the engine moves or shakes under load, and as temperature swings from cold start to full operating heat (sometimes exceeding 600°C), the flex pipe expands and compresses. Its inner liner prevents gas turbulence, while the stainless steel braid provides structural integrity.
You may wonder: how hot does an exhaust flex pipe get?
In test environments, we've recorded surface temperatures above 750°C under continuous load. Hence, heat resistance is a critical performance parameter.

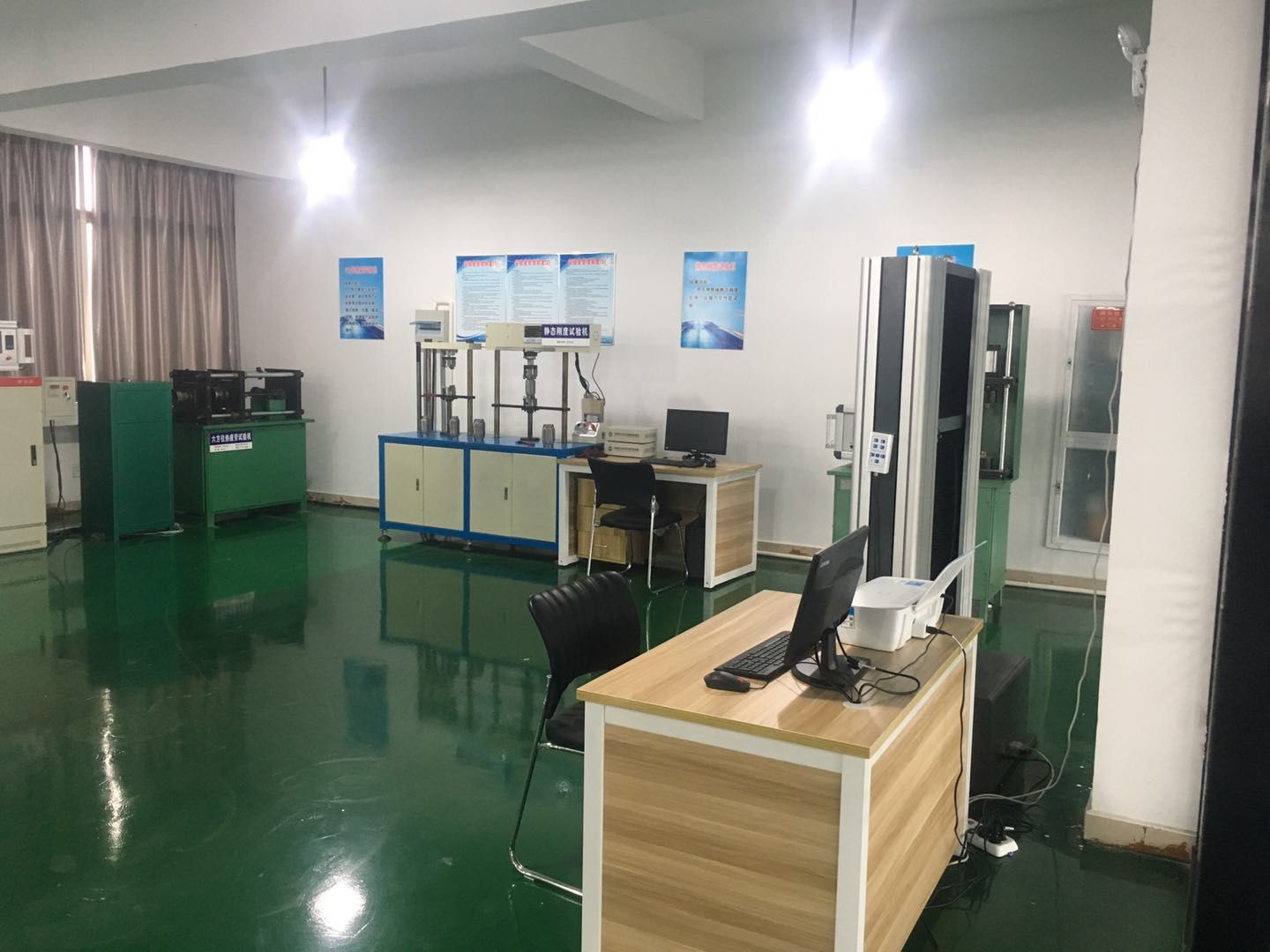

Our factory performs a full battery of tests on every batch of exhaust flex pipes. These simulate years of use within days and provide reliable data to global B2B buyers. Below are key tests each product undergoes:

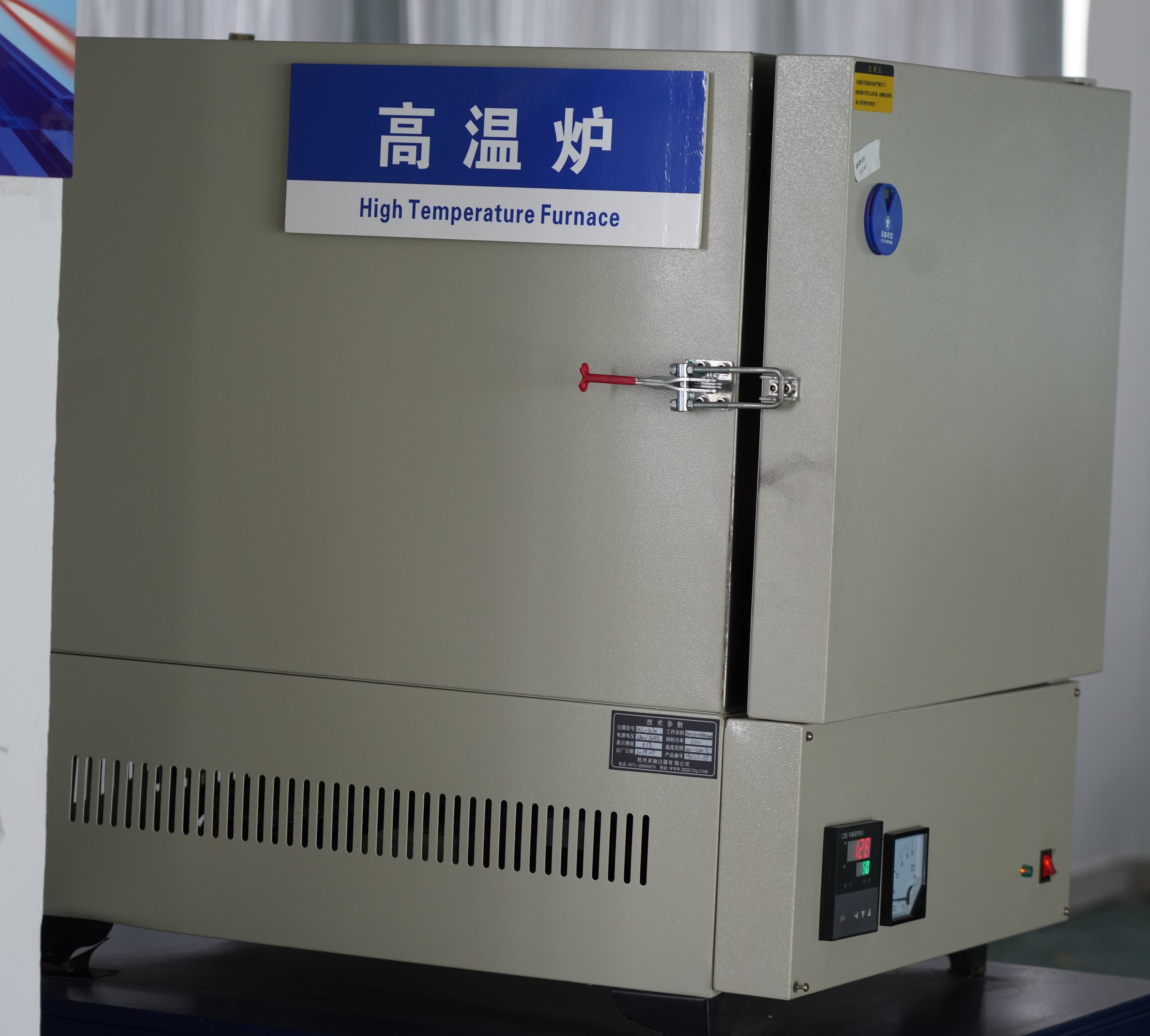

We repeatedly expose flex pipes to 100–750°C cycles to simulate real-world startup/shutdown sequences. Any changes in wall thickness, cracking, or discoloration are noted.

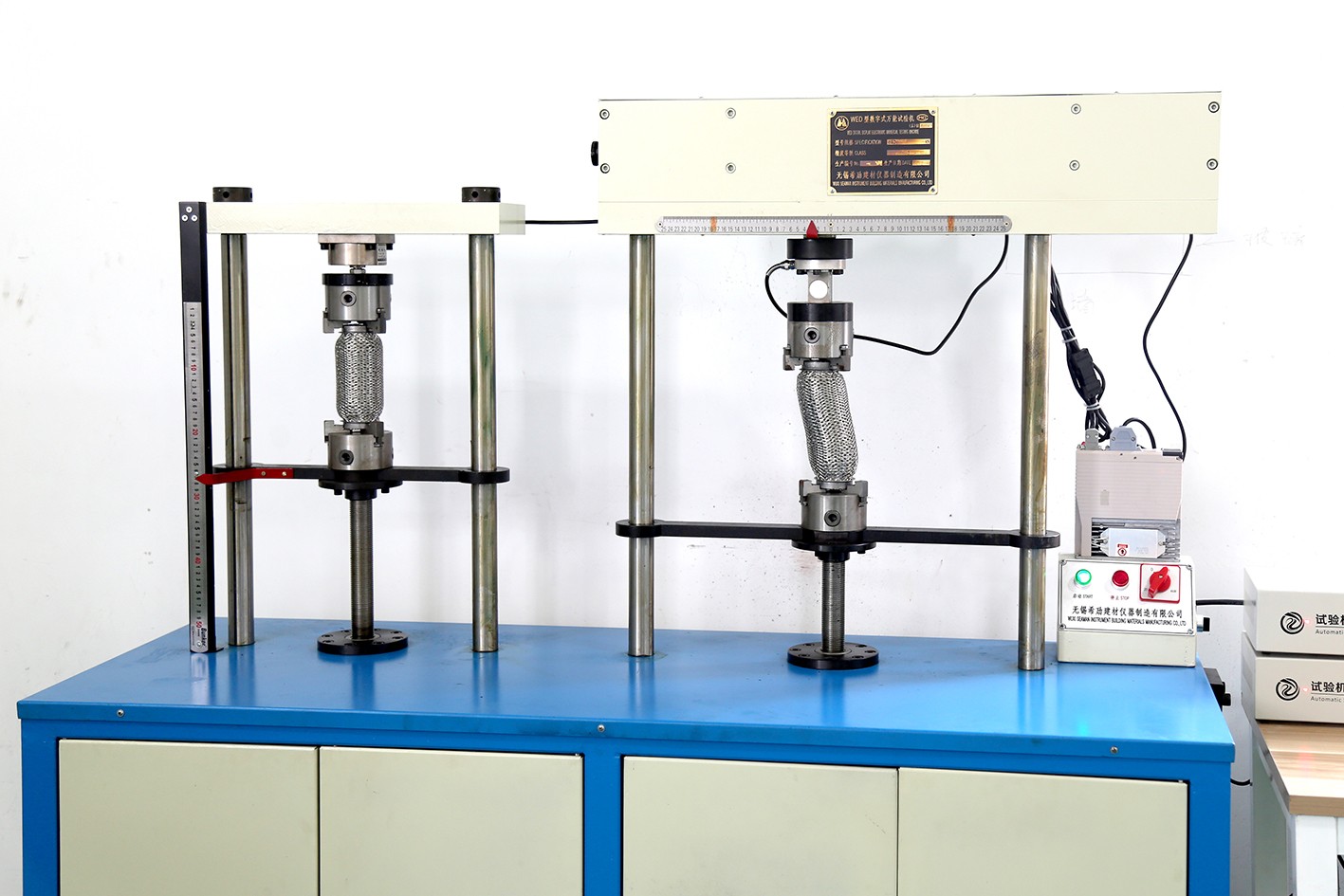

Mounted on dynamic vibration platforms, the pipes endure up to 10 million cycles of multidirectional vibration to ensure no braid unraveling, weld fatigue, or inner liner failures.
This test measures how much internal pressure the pipe can withstand before failure. Our standard flex pipes must tolerate at least 1.5× their rated pressure, with burst strength typically exceeding 4.5 bar.

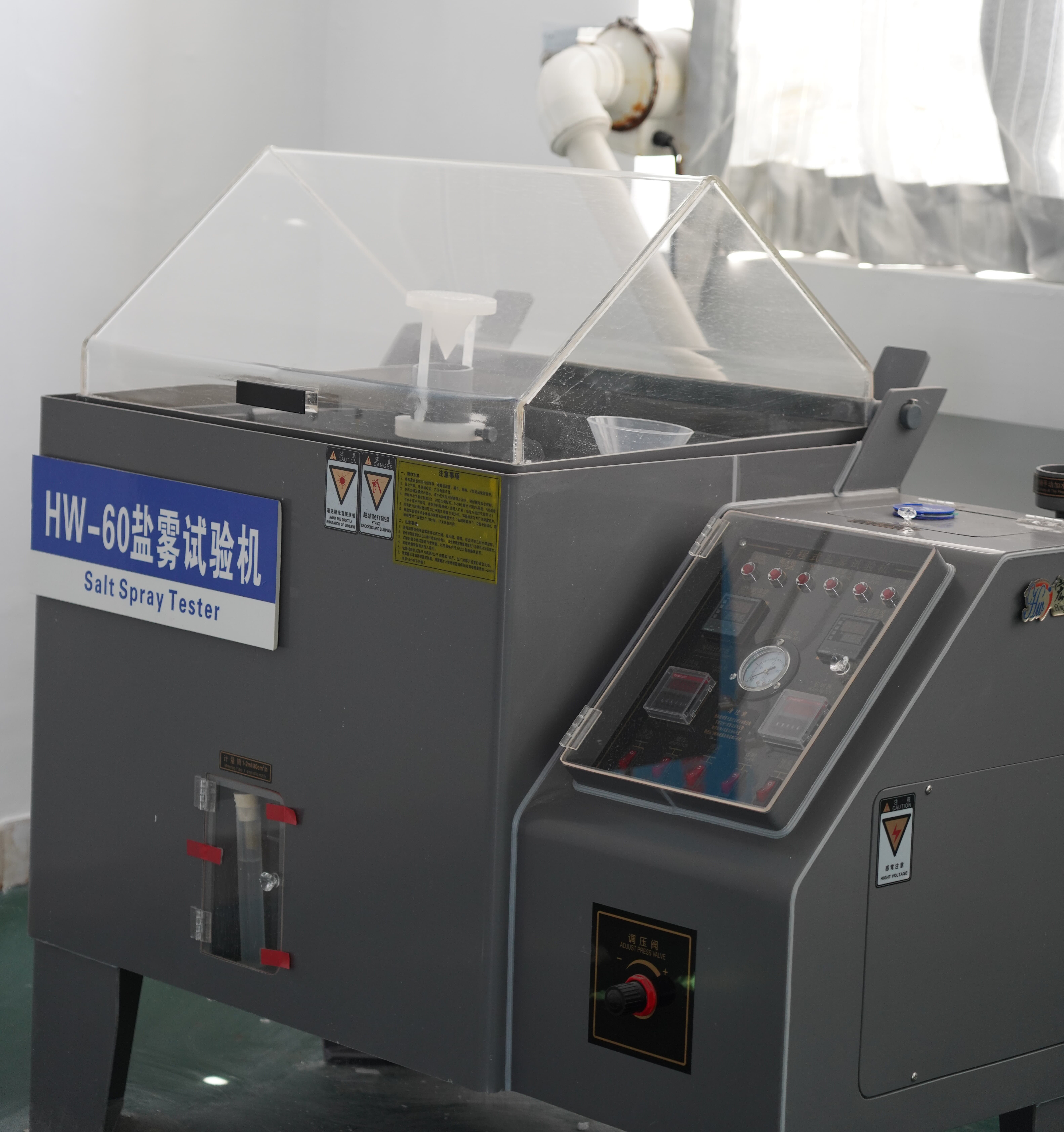

For applications near coastal or humid environments, we subject the pipe to 720-hour ISO 9227 salt spray testing. This simulates 5–7 years of real-world environmental exposure.

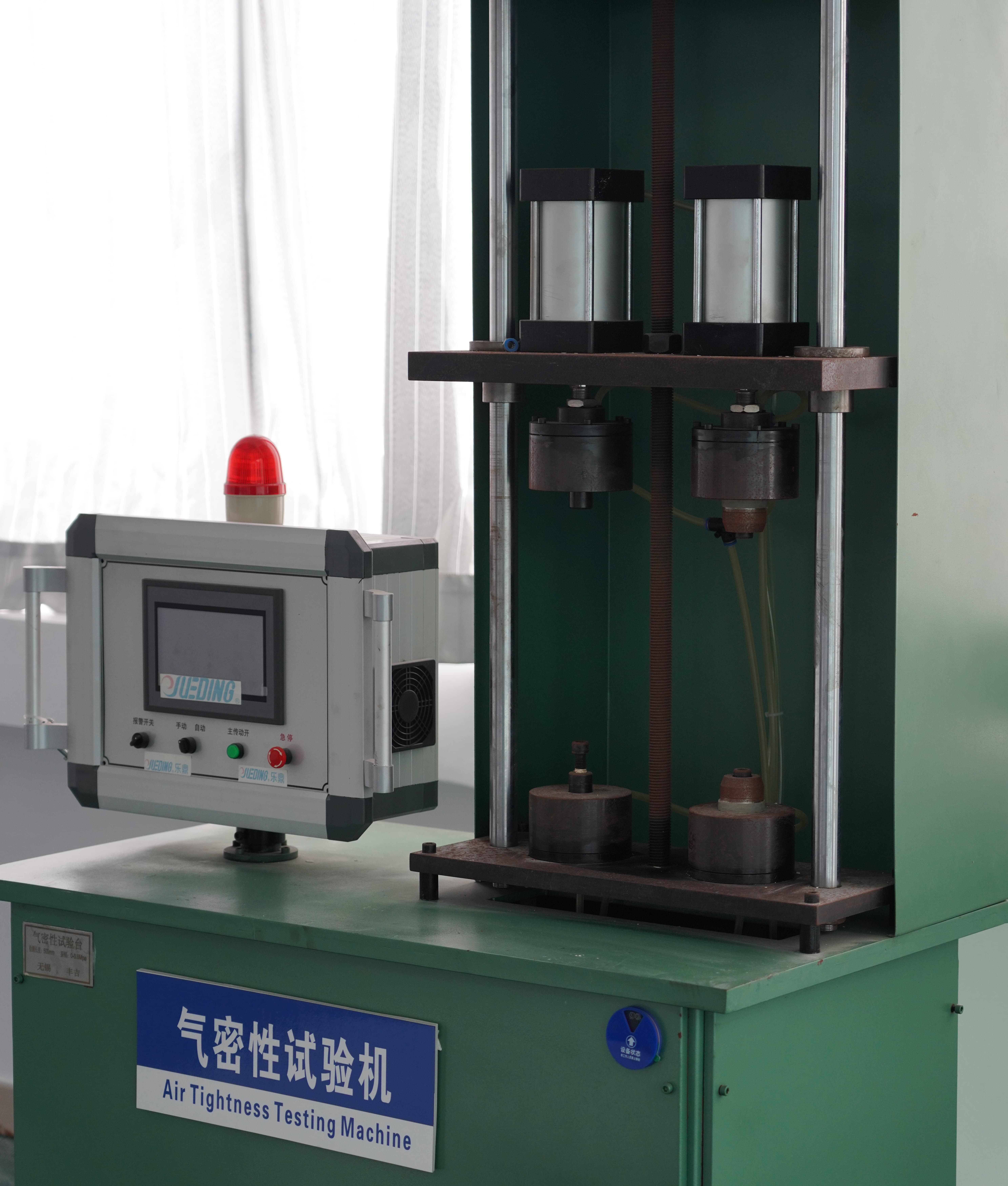

To ensure airtight construction, helium gas is used to detect any microscopic leaks at seams or fittings. This is vital in emission-controlled regions where leak-free operation is required.
For complete product specifications, see our Exhaust Flex Pipe Category Page.
Service life depends on installation, usage, and environment. In normal highway driving, a well-installed flex pipe can last over 150,000 km. For trucks operating in stop-and-go delivery in cities or harsh terrains like Saudi construction zones, lifespan may be 80,000–100,000 km. Our lab data supports these benchmarks across dozens of installations worldwide.
For marine or generator use, we recommend reinforced inner sleeves and outer armor braid, both available as options via our product catalog.
Can you weld an exhaust flex pipe? Yes—our pipes come with weldable collars or flanges designed for MIG or TIG welding. Alternatively, they can be clamped with high-torque exhaust clamps from our exhaust clamp series.
How to install exhaust flex pipe correctly?
1. Ensure the pipe is not in a pre-tensioned state
2. Allow for slight movement in all axes
3. Use appropriate sealing and torque
Incorrect installation is a major reason why some believe exhaust flex pipes leak. Leaks typically arise not from the pipe, but from poor joining surfaces or excessive tension.
How to fix exhaust flex pipe leak?
For minor leaks, high-temp exhaust tape may serve as a temporary fix, but is not recommended for long-term use
Replacement is the most reliable method, especially in regulated fleets
Flex pipes are not usually serviceable components. Once damaged, especially at the braid or weld seams, they should be replaced entirely.
Q: Does an exhaust need a flex pipe?
A: In most modern vehicles, yes. It compensates for engine vibration and prevents stress fractures elsewhere in the exhaust.
Q: Is flex pipe good for exhaust?
A: When tested and properly installed, absolutely. Our stainless steel construction and verified test results ensure optimal performance.
Q: Can you use exhaust tape on a flex pipe?
A: Temporarily, yes—but it’s a short-term patch. Replacement is preferred.
Q: How to replace exhaust flex pipe without welding?
A: Use band clamps or bolt-on flanges. We offer bolt-on kits for DIY or field repair.
Buyers trust us not because we claim quality, but because we prove it. Each exhaust flex pipe batch is shipped with optional test report data, including vibration profiles, pressure resistance curves, and salt corrosion performance.
Looking for a supplier with traceability, certifications, and flexible customization? Contact us now or request a sample.
