Exhaust Drone vs. Exhaust Vibration: The Critical Distinction
The Role of Exhaust Flex Pipes (Bellows) in Vibration Control
Upgrading an exhaust system is a common step for automotive enthusiasts seeking a more engaging driving experience. However, the pursuit of a powerful exhaust note often comes with an unintended consequence: exhaust drone. This persistent, low-frequency hum can turn a thrilling drive into an uncomfortable one. To truly address this issue, it's essential to move beyond subjective terms like "loud" or "deep" and understand the specific physics at play.

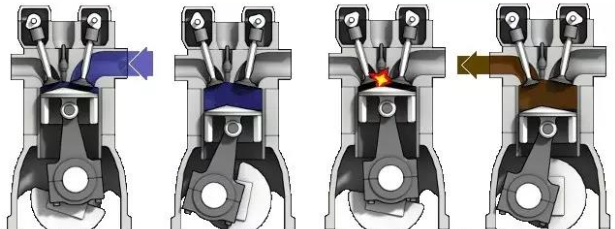

The sound generated by an exhaust system is a complex phenomenon. It's not just a single tone, but a combination of two distinct sound types. First, there are order sounds, which are directly related to the engine's periodic combustion cycles. These are the sounds enthusiasts seek to enhance—the deep rumble of a V8 or the high-pitched howl of an inline-six. The second type is airflow sound, a higher-frequency hiss caused by the movement of exhaust gases. Professional exhaust tuning focuses on amplifying the desired order sounds while minimizing unwanted airflow noise.
In our previous articles, we've explored the basics of exhaust components. Here, we will take a professional's perspective on the science of exhaust resonance and vibration, drawing directly from the fundamental principles that govern sound and material science. This deeper understanding is key to engineering an exhaust system that delivers both performance and comfort.
Before we dive into the issues of drone and vibration, let's briefly define exhaust sound itself. An exhaust note is primarily composed of two elements: Order Sounds, which are directly tied to the engine's combustion cycles, and Airflow Sounds, a higher-frequency hiss from gas velocity. Professional tuning aims to amplify the desirable order sounds while minimizing the airflow hiss.

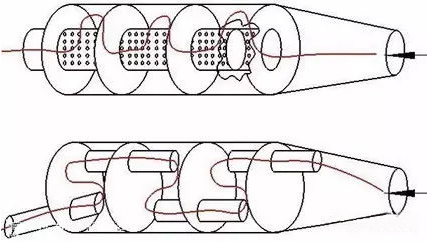

The tools for this tuning are the muffler and resonator. Based on their principles, mufflers can be categorized as absorptive (using packing material for high-frequency noise), reactive (using chambers to reflect low-frequency noise), or a combination of both. Understanding these functions is the first step to a targeted exhaust system upgrade that addresses sound quality and cabin comfort.
When discussing unwanted noise from a performance exhaust, the terms "drone" and "vibration" are often used interchangeably, but they refer to two distinct physical phenomena. Understanding this difference is the first step toward a correct diagnosis and solution.
Exhaust Vibration is the physical shaking of the exhaust system itself. This is caused by the mechanical vibrations of the engine being transferred through the exhaust manifold and piping. This shaking can then be transmitted through the exhaust hangers to the car's chassis and body, leading to a palpable rumble inside the cabin. While vibration can create noise, its primary characteristic is the physical sensation of movement.
Exhaust Drone, on the other hand, is a specific acoustic phenomenon. It is a form of sound resonance where sound waves within the exhaust system, often at a low frequency, are amplified. This amplified sound then propagates out of the tailpipe and into the cabin, where it can again resonate with the car's interior space, creating a pervasive and irritating hum. While often associated with vibration, drone is fundamentally about sound waves, not mechanical motion.
Any physical object, including an exhaust pipe, has a natural resonant frequency at which it will vibrate with a larger amplitude when exposed to an external vibration of the same frequency. The engine produces a wide range of vibrations as it operates. If the frequency of these engine vibrations matches the natural frequency of the exhaust system, the pipe will vibrate much more intensely. This amplified vibration is then transferred to the car's frame via the exhaust hangers.

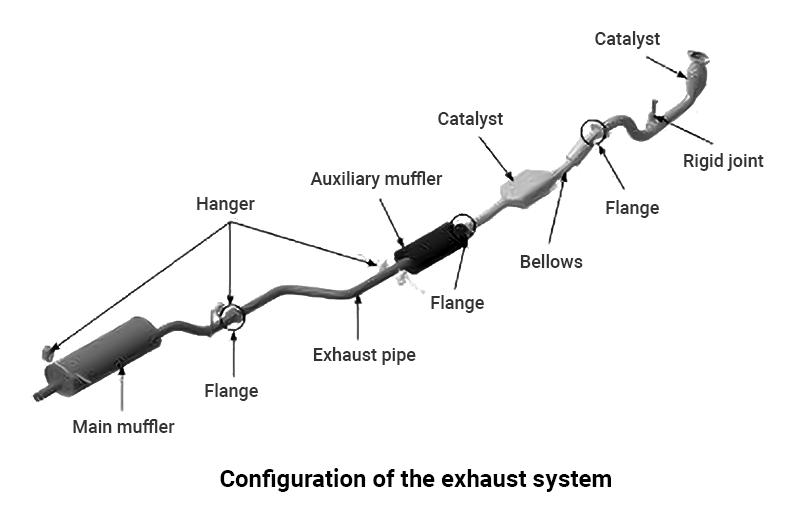

This is where the function of a flex pipe, or exhaust bellows, becomes critical. These components are designed to act as a spring-damper system, a standard engineering principle for isolating vibrations. By installing a flex pipe directly downstream from the catalytic converter, the majority of the engine's mechanical vibrations are absorbed before they can be transmitted to the rest of the exhaust system. This prevents the exhaust from reaching its resonant frequency and stops the transfer of vibration to the chassis.
While some aftermarket systems may omit this component for cost reasons, a properly engineered exhaust should always include a high-quality bellows. For B2B customers and workshops, this is a key indicator of a professionally designed product. Simply using factory hanger locations does not guarantee a vibration-free system, as the weight, diameter, and length of an aftermarket system will have a different natural frequency than the OEM unit. A truly professional solution requires engineering to both isolate engine vibration and ensure the exhaust hangers are placed at nodal points (areas of minimal vibration) of the new system.
Similar to vibration, sound waves within the exhaust system can also resonate. Sound waves traveling through the exhaust gases can create a standing wave (驻波), a pattern of sound pressure where certain points in the pipe have consistently high pressure, while others have consistently low pressure. When the frequency of the engine's exhaust pulses matches the frequency of these standing waves, sound resonance occurs.
This resonance is a primary source of exhaust drone. The amplified sound exits the tailpipe and, at certain RPMs, can match the natural acoustic frequency of the car's cabin, amplifying the drone even further. To combat this, engineers use specific tuning techniques, primarily involving resonators and mufflers.
Resonators function as acoustic filters, targeting a narrow frequency range to eliminate the specific frequency causing the drone. By precisely sizing the resonator chamber and internal piping, engineers can create a sound wave that is 180 degrees out of phase with the drone-causing frequency, effectively canceling it out. A correctly tuned resonator allows the desirable order sounds to pass through untouched, while eliminating the unwanted drone.

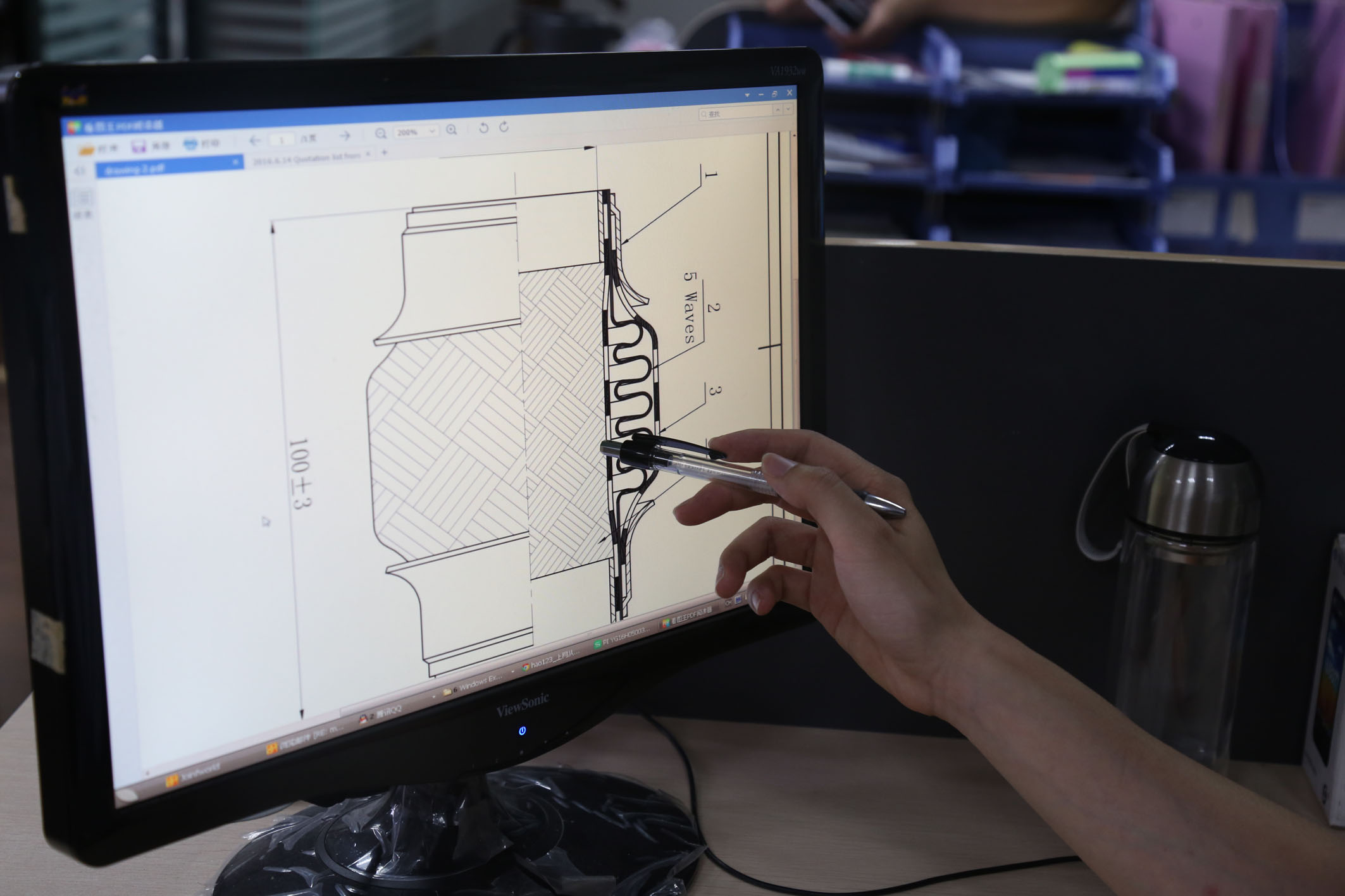

Our flex pipes (exhaust bellows) are a crucial component for any professional-grade exhaust system. Made from high-quality stainless steel, their corrugated structure is engineered to absorb the multifaceted forces present in a performance vehicle's engine and exhaust system. They are not merely a cosmetic add-on; they are a functional necessity.
From a product standpoint, a high-quality exhaust bellows offers several key benefits:
Vibration Isolation: It prevents engine vibrations from traveling down the exhaust pipes and into the chassis, which is a major contributor to in-cabin noise and the sensation of drone.
Stress Relief: The bellows absorbs mechanical stresses caused by the engine's torque and motion. This protects the manifold, catalytic converter, and other rigid components from cracking and premature failure.
Enhanced Durability: The flexibility of the bellows helps protect the exhaust system from damage caused by road bumps and impacts.
For workshops and B2B clients, incorporating a robust flex pipe into your builds is a mark of professional quality and customer care. It ensures that the end-user receives a refined product that not only performs well but also provides a comfortable and durable driving experience. Our products are designed with these principles in mind, using advanced engineering and quality materials to provide a reliable solution to vibration-related issues.
Q: Will a resonator delete cause drone?
A: Yes, very likely. Resonators are specifically designed to filter out drone-causing frequencies. Removing it will often result in a louder, more aggressive sound across all RPMs, but it will almost certainly introduce or worsen drone, especially at highway speeds.
Q: Can I use a muffler to solve drone?
A: A muffler can certainly help, as its primary function is noise reduction. However, a muffler alone may not be enough to eliminate a specific drone frequency. A professional solution often involves a combination of a quality muffler and a properly tuned resonator.
Q: What is the difference between an exhaust flex pipe and an exhaust bellows?
A: The terms are often used interchangeably in the aftermarket community. "Bellows" is a more technically precise term for the core component, while "flex pipe" is the common name for the complete assembly. We use both terms to ensure clarity for our diverse customer base.
The pursuit of the perfect exhaust note is a journey that involves more than just selecting a muffler. It requires a professional understanding of sound and vibration engineering. Exhaust drone and vibration are not an inevitable trade-off for performance; they are engineering problems that can be solved with the right knowledge and the right components.
By addressing both sound resonance with carefully selected resonators and mechanical vibration with a durable exhaust bellows, you can create an exhaust system that is powerful, refined, and comfortable to live with. As a manufacturer of high-quality exhaust components, we are committed to providing the technical solutions that help professionals and enthusiasts build systems that perform as well as they sound.
