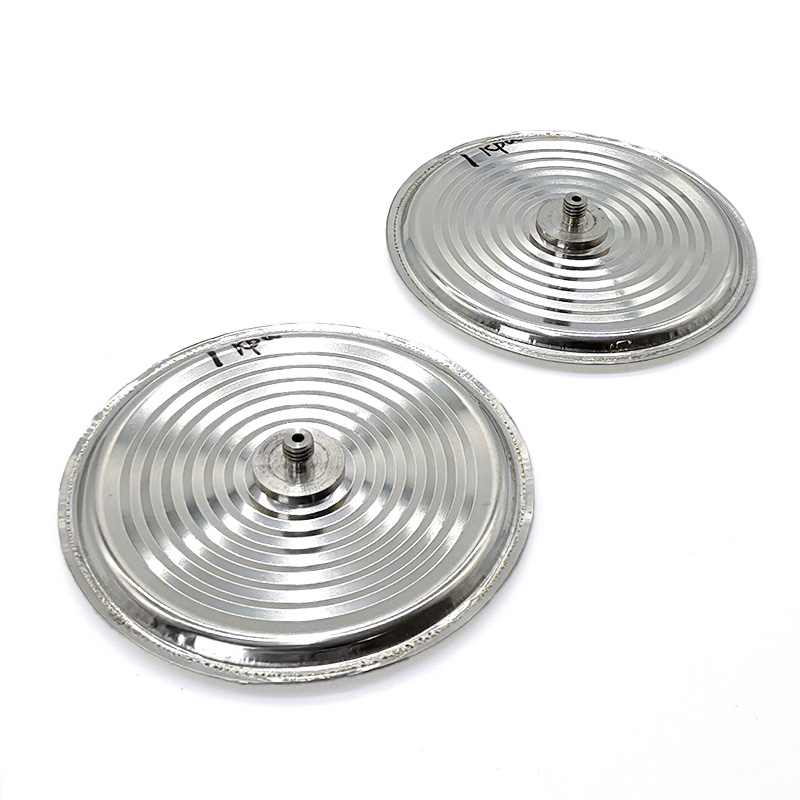

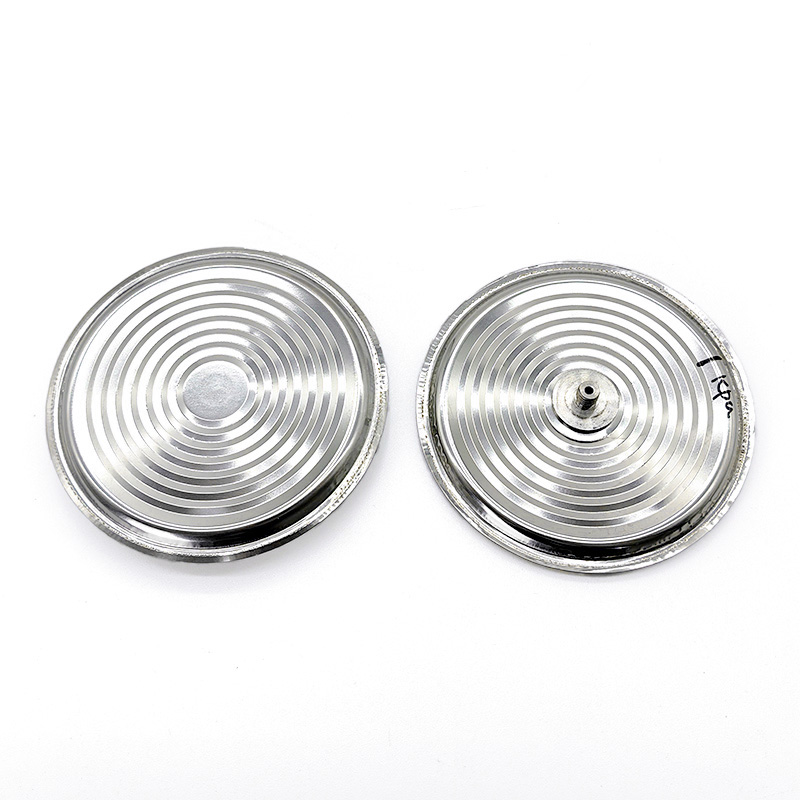

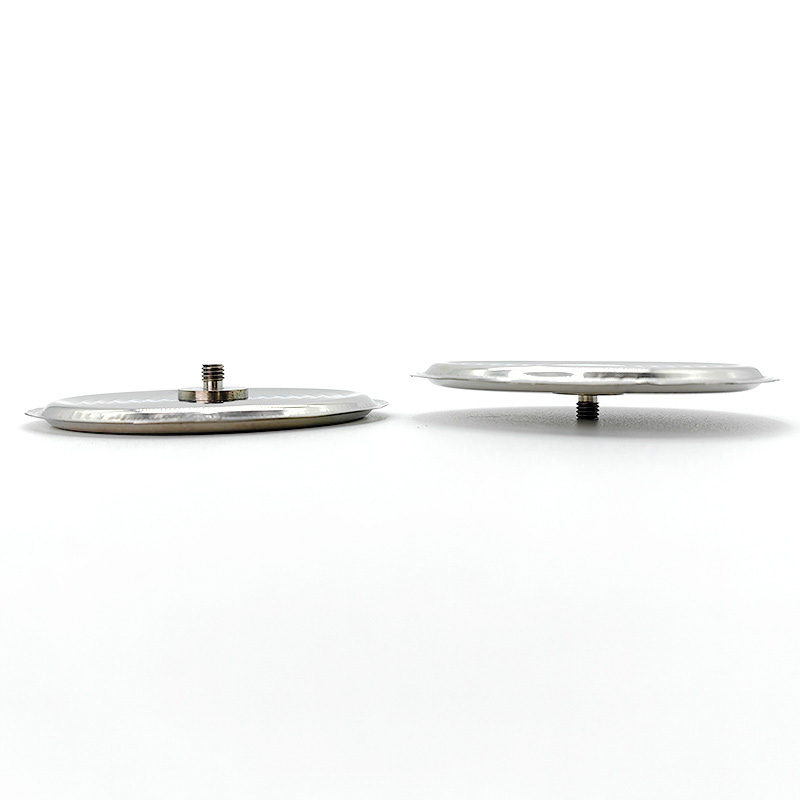

Stainless Steel Sensor Diaphragm
| Application Scenarios: Pressure sensors, pressure transmitters, hydraulic and pneumatic instrumentation, chemical fluid monitoring systems. Manufacturing Processes: CNC stamping, laser cutting, TIG welding, precision polishing. Features: Corrosion-resistant, high sensitivity, excellent mechanical stability. Customization: Material options include 316L, 304, or duplex stainless steel; available with welded edges, surface treatments, or non-standard thickness and diameter. | |||||||||
| Product Type | Size Range (mm) | Thickness (mm) | Materials | Remarks |
|---|---|---|---|---|
| Sensor Diaphragm | φ12 – φ35 | δ0.02 – δ0.3 | Hastelloy C-276, Titanium, Tantalum, 316L, 304L, Monel | Custom machining based on customer drawings or samples |
| Pressure Switch Diaphragm | Φ18 – φ30 | — | Same as above | Custom machining based on customer drawings or samples |
| Pressure Gauge Diaphragm | Φ20 – φ180 | — | Same as above | Custom machining based on customer drawings or samples |
| Diaphragm Valve Diaphragm | Φ25 – φ180 | — | Same as above | Custom machining based on customer drawings or samples |
*Corrugated diaphragm is a type of thin-shell elastic element. The diaphragm is a circular, membrane-shaped, flexible sensing component. When different pressures (or forces) are applied to both sides of the diaphragm, it deforms toward the side with lower pressure, causing its center to produce a displacement that corresponds proportionally to the pressure difference.
Due to the large number of interrelated parameters, the design of a corrugated diaphragm is quite complex. In most displacement-based instruments and meters, the diaphragm is required to produce an elastic displacement that is at least on the same order of magnitude as its thickness. The diaphragm thickness is selected based on the magnitude of the applied pressure.
| Product Type | Size Range (mm) | Thickness (mm) | Materials | Remarks |
|---|---|---|---|---|
| Sensor Diaphragm | φ12 – φ35 | δ0.02 – δ0.3 | Hastelloy C-276, Titanium, Tantalum, 316L, 304L, Monel | Custom machining based on customer drawings or samples |
| Pressure Switch Diaphragm | Φ18 – φ30 | — | Same as above | Custom machining based on customer drawings or samples |
| Pressure Gauge Diaphragm | Φ20 – φ180 | — | Same as above | Custom machining based on customer drawings or samples |
| Diaphragm Valve Diaphragm | Φ25 – φ180 | — | Same as above | Custom machining based on customer drawings or samples |
*Corrugated diaphragm is a type of thin-shell elastic element. The diaphragm is a circular, membrane-shaped, flexible sensing component. When different pressures (or forces) are applied to both sides of the diaphragm, it deforms toward the side with lower pressure, causing its center to produce a displacement that corresponds proportionally to the pressure difference.
Due to the large number of interrelated parameters, the design of a corrugated diaphragm is quite complex. In most displacement-based instruments and meters, the diaphragm is required to produce an elastic displacement that is at least on the same order of magnitude as its thickness. The diaphragm thickness is selected based on the magnitude of the applied pressure.
