Metal Bellow
Focused on large-scale manufacturing of various metal bellows, with support for structural and packaging customization based on application needs, meeting requirements for different working conditions and global shipping.
Professional Senior Metal Bellows Supplier
Since 1992, Yueding has been dedicated to providing one-stop metal bellows coupling solutions for customers worldwide. With years of technical expertise and supply chain advantages, our product range covers vacuum bellows, turbo bellows, precision elastic bellows, and thermal expansion joints. We support detailed customization, including material selection, inner and outer diameters, flange connection types, number of convolutions, and ply configurations.

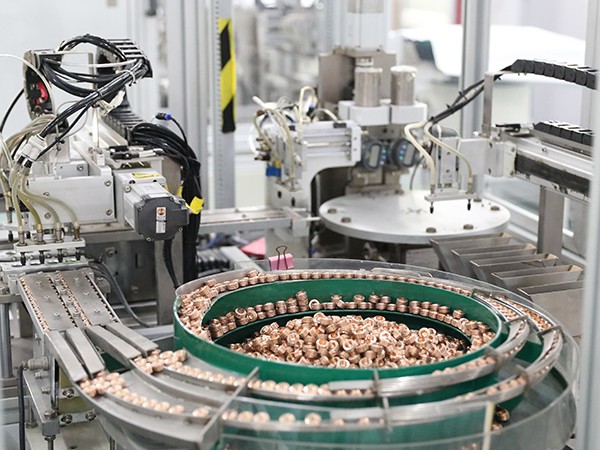

Our factory covers over 30,000 square meters and employs more than 300 experienced staff. By combining precision CNC machining and welding/forming processes with automated cleaning and helium leak testing, we provide full control from design to production. Whether through in-house manufacturing or strategic supply chain collaboration, we strictly manage quality and lead times to take full responsibility for your commercial projects.

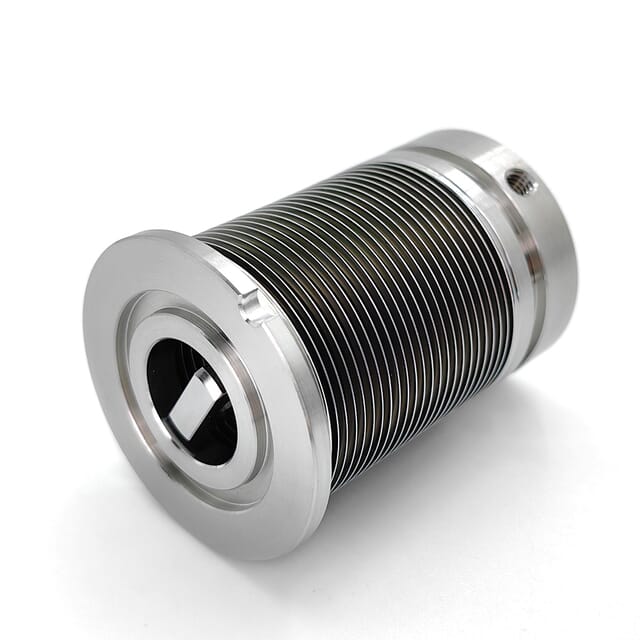

Welded Bellows Assemblies
Designed for ultra-high vacuum environments, manufactured with precision laser welding. Offer high compression ratio and long cycle life, suitable for semiconductor, aerospace, and precision dynamic sealing applications.

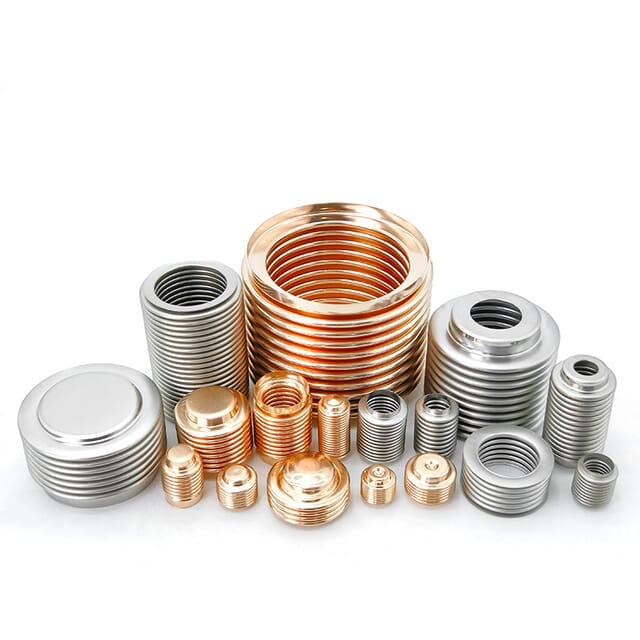

Precision Elastic Bellows
Available in SS316L, SS321, and beryllium copper. Provide stable elastic performance, suitable for precision instruments, pressure sensors, and miniature couplings.

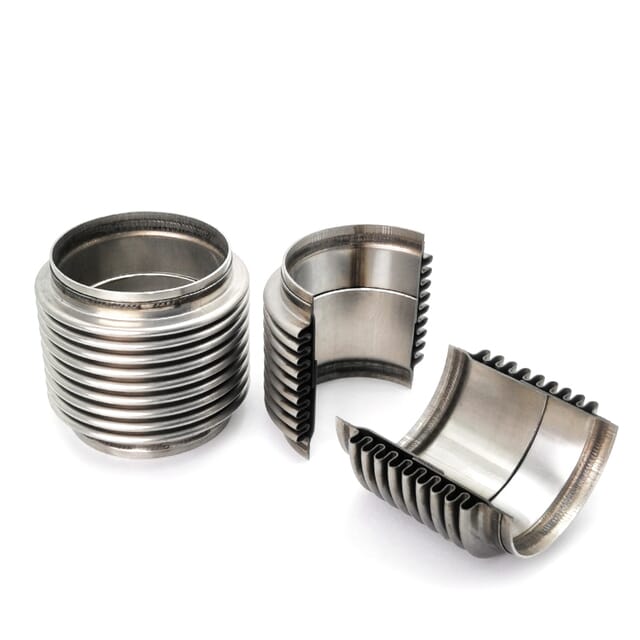

Turbo & Exhaust Bellows
Manufactured with multi-layer forming technology. Designed for high-performance exhaust systems and turbochargers. Offer strong vibration resistance and high temperature resistance, suitable for automotive aftermarket and powertrain applications.

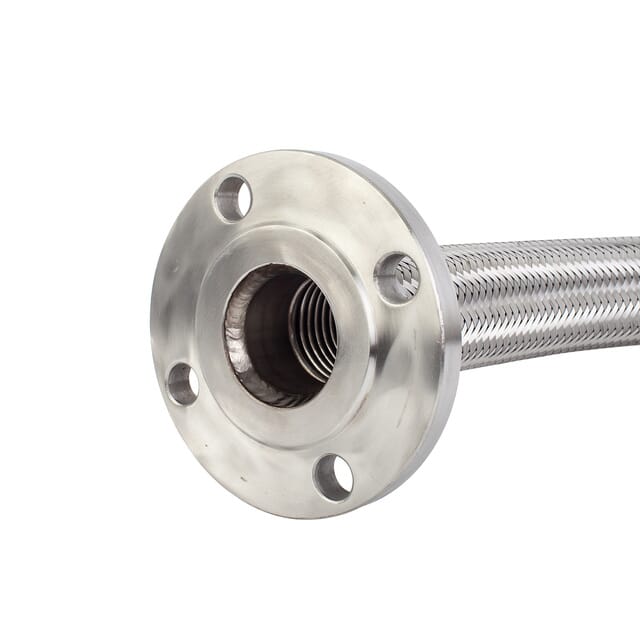

Braided Metal Hoses
Inner layer is stainless steel bellows, with an outer high-strength braided cover. Support ANSI / DIN / JIS flanges or threaded connections. Commonly used for vibration reduction in pump systems and high-pressure fluid transfer.

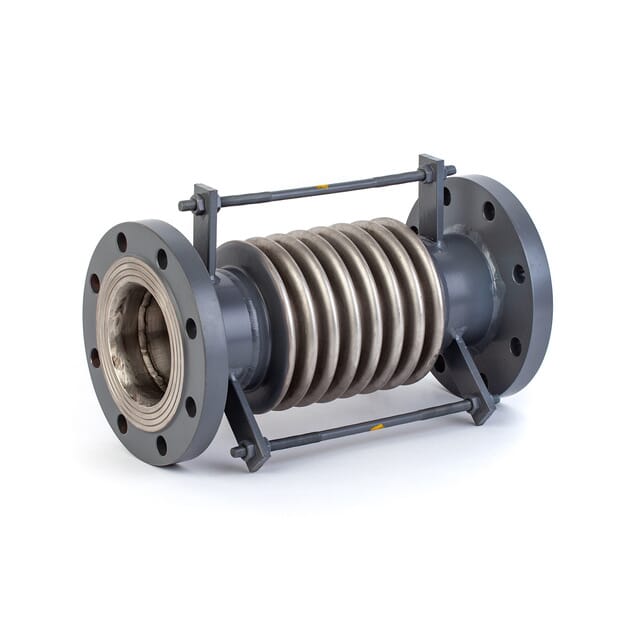

Bellow Expansion Joints
Mainly used to absorb axial thermal expansion in piping systems. Optional inner liners or protective covers available. Sizes range from 50–2000 mm, widely applied in thermal pipelines and industrial fluid systems.

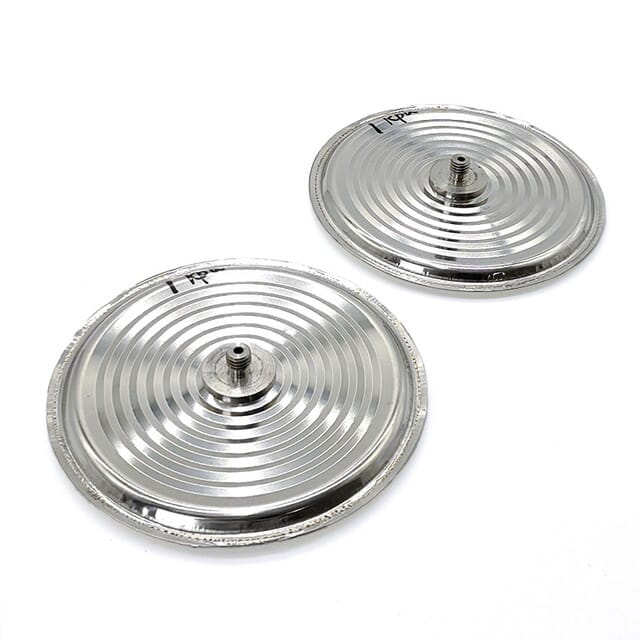

Metal Diaphragm
Made from ultra-thin stainless steel with precision forming and laser welding. Provide high linear displacement and sensitivity. Commonly used in pressure gauges, vacuum sensors, and micro-pressure measurement devices.

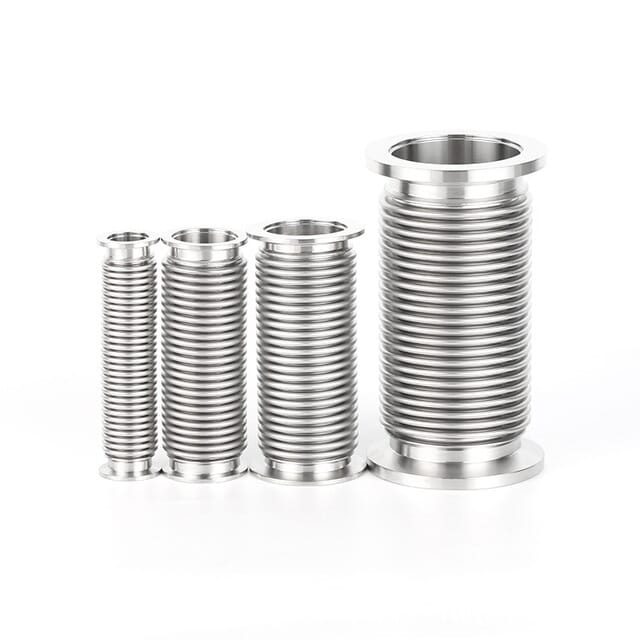

ISO/KF/CF Vacuum Bellows
Available in standard sizes (KF16–KF50, ISO63–ISO250). Support quick installation and removal. Widely used in semiconductor pipelines, vacuum pump connections, and laboratory equipment.

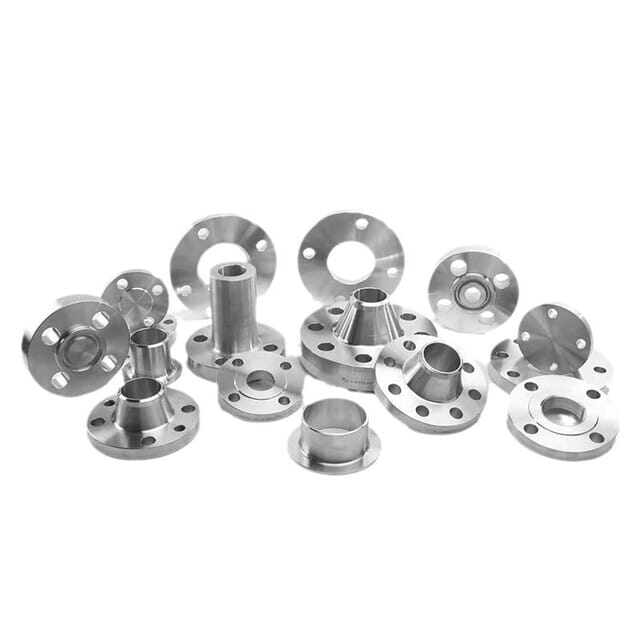

Vacuum Flanges & Fittings
Including KF, ISO, CF standard vacuum flanges, as well as custom fittings, bolts, clamps, and sealing rings. Support drawing-based customization, with precise tolerances and reliable sealing performance.
Manufacturing Capability for Metallic Bellow
Deep Technical Collaboration
We support custom designs for small and medium batches of bellows, including mold development, material selection, welding, hard anodizing, sandblasting, degaussing, and vacuum brazing.
To address potential service life issues caused by repeated axial movement, we continuously optimize convolution designs and improve welding processes. We ensure that final products undergo rigorous testing before delivery. We are committed to winning your trust through high quality and stable performance to achieve long-term win-win cooperation.

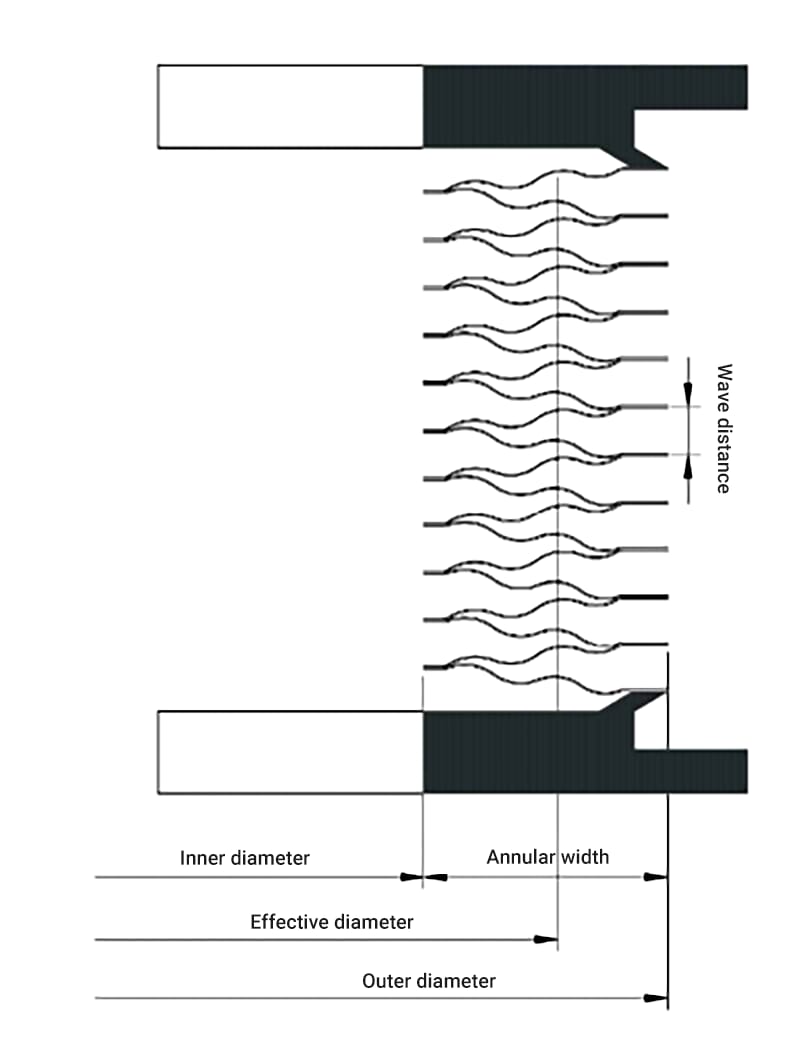

Edge Welded Bellows Structureand Scope
Flange
Flange shape as customers' requirement. Flange periphery preset groove, Flange edge preset groove, welded with bellows. (Preferably the same material as the bellows)
Bellow
Stamping a metal plate into a circular shape, the thickness and profile shape of the plate depend on the usage conditions.
Pitch
Effect pressure resistance, durability, spring rate, etc.
Annule width
Effect flexibility, yielding, pressure resistance, durability, and spring rate etc.
Distance = (OD - ID)/2
Distance = (OD + ID)/2
Effective area = (π*D^2)/4
Welding
Electron beam (EBW) ("Up to 150 kilowatt)
Gas Tungsten Arc Welding (GTAW)
Laser MBPA (PAW MBPA)
Orbital Tungsten Inert Gas (TIG) Arc
Testing Range
1.Life cycles(using pressure and
tempeture ai indicators
2.Load
3.Mass spoctrometer test (MST)
4.Average effectice area
5.Metallurgy
6.Pressure（burst、Pulse）
Emergency Backup Power
1.The characteristic that a sealing and leak proof function, ensuring that the leakage rate per second is only 1 ×101 standard cubic centimeters of helium
2. Longest product cycles (standard is more than i million cycles)
3.withstand lowand high temperatures
4.Lowgas output rate
5.corrosionresistance
Long-term Outdoor Adventure
(Bellows design procedure) BECAXTM

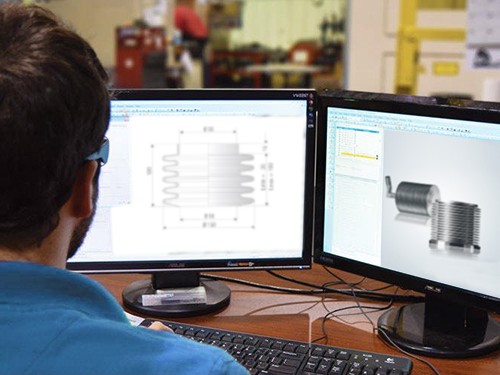

(Computeraideddesign) CAD
(finite element analysis) FEA
modeling
cleaning roon can be expanded to
class 100,class 1000 and class 10000
More than Parts, A True Partnership.
Professional manufacturing of stainless steel exhaust flexible connection components, certified under ISO and IATF systems, with stable exports to more than 100 countries, batch production combined with standard size stock, supporting detail and packaging customization, aiming to provide you with a more efficient and more predictable integrated supply solution.
