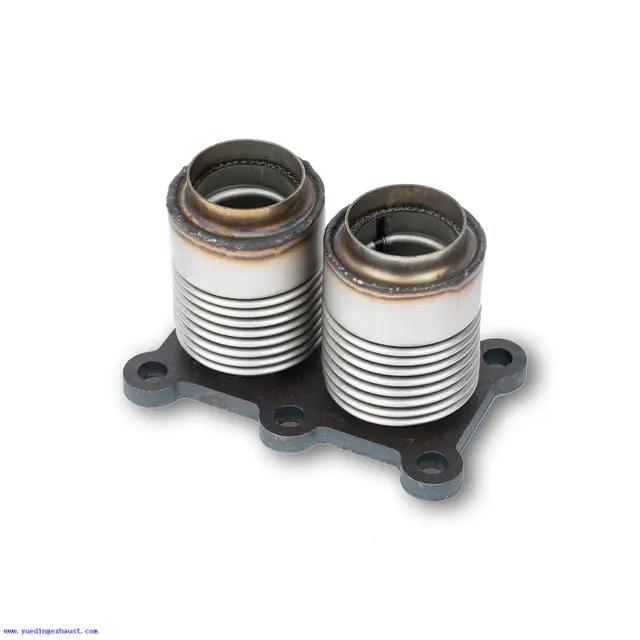

Metal bellows are highly flexible, precision-engineered mechanical components widely used in various industrial applications for their ability to absorb movement, vibration, and pressure. Their unique construction makes them ideal for accommodating axial, lateral, and angular displacements. But not all metal bellows are created equal. There are different types tailored for specific uses, each with unique structural characteristics and mechanical advantages. In this article, we will explore the major types of metal bellows, their construction, functions, and where each type is most effectively used.
Metal bellows are flexible, corrugated tubes made from metal that can compress, expand, or bend without losing structural integrity. They serve critical functions in mechanical systems, such as absorbing thermal expansion, isolating vibration, containing pressure, and sealing environments. Made typically from stainless steel, Inconel, Hastelloy, or titanium, these components ensure longevity and resistance to corrosion and fatigue.
The design of a metal bellow includes convolutions or “waves” formed through processes like hydroforming, mechanical forming, or welding. This intricate design allows metal bellows to provide precise, repeatable movement even under extreme operating conditions.
Metal bellows can be categorized in several ways—by their construction method, performance function, and the type of displacement they accommodate. Below are the primary classifications:
Formed bellows are created from a single metal tube using hydroforming or mechanical expansion. In hydroforming, fluid pressure is used to shape the convolutions into the metal. This process allows for thin-walled, highly flexible bellows that offer excellent cycle life.
Advantages:
Seamless construction reduces the risk of leaks.
Cost-effective for high-volume production.
Excellent for applications requiring high flexibility.
Applications:
Aerospace components.
Semiconductor equipment.
Medical instruments.
Welded bellows are constructed from individual metal diaphragms that are welded together at their inner and outer diameters. This method allows for extremely precise customization in terms of wall thickness, diameter, and convolution shape.
Advantages:
Superior performance in vacuum and pressure applications.
High fatigue life and precision movement.
Customizable for highly specialized applications.
Applications:
Vacuum technology.
Cryogenic systems.
Sensitive instrumentation and sensors.
Electroformed bellows are made using electrodeposition, a process where metal ions are deposited onto a mandrel to create ultra-thin layers. Once the desired thickness is achieved, the mandrel is removed, leaving behind a highly flexible, seamless bellows.
Advantages:
Extremely thin walls enable micro-motion capabilities.
Ideal for miniature or delicate systems.
High precision and repeatability.
Applications:
Aerospace and defense microactuators.
Biomedical devices.
Optical systems.
Axial bellows are specifically designed to absorb axial displacement, which occurs when two points move closer or farther apart along the same axis. These bellows are often found in piping systems to absorb thermal expansion and contraction.
Advantages:
Efficiently absorbs axial motion.
Protects systems from stress due to thermal cycling.
Often comes with end fittings for easy installation.
Applications:
Power plants.
Petrochemical pipelines.
Steam systems.
Lateral bellows are designed to absorb side-to-side movement or misalignment between connected systems. These typically include one or two plies of metal, depending on pressure and flexibility requirements.
Advantages:
Ideal for misalignment or offset conditions.
Allows movement without damaging the connection points.
Can combine axial and lateral capabilities.
Applications:
HVAC systems.
Tanker connections.
Bridge expansion joints.

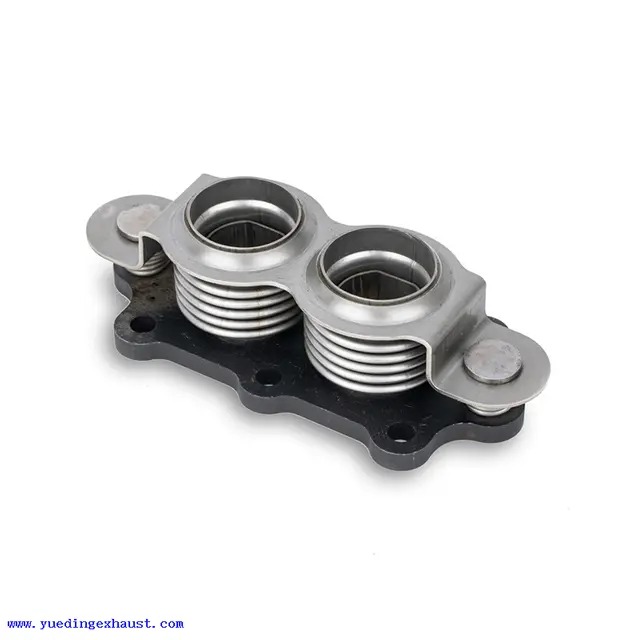

Angular bellows absorb rotational or bending motion between components. They are particularly useful in systems with frequent directional changes or vibration.
Advantages:
Compensates for angular deflection.
Suitable for systems with directional changes.
Prevents torque stress on joints.
Applications:
Automotive exhaust systems.
Rotating equipment.
Power generation turbines.
| Type | Construction Method | Main Movement Supported | Typical Applications |
|---|---|---|---|
| Formed Bellows | Hydroforming/Mechanical | Axial | Aerospace, Medical Devices |
| Welded Bellows | Welding Diaphragms | Axial, Lateral, Angular | Vacuum, Cryogenics, Instrumentation |
| Electroformed Bellows | Electrodeposition | Micro Axial | Defense, Optical Systems |
| Axial Bellows | Any | Axial | Pipelines, Power Plants |
| Lateral Bellows | Any | Lateral | HVAC, Bridges |
| Angular Bellows | Any | Angular | Exhausts, Turbines |
A: Stainless steel is the most commonly used due to its excellent corrosion resistance and durability. Inconel and Hastelloy are chosen for high-temperature or aggressive chemical environments.
A: Yes, especially welded and electroformed bellows are designed for high-pressure environments. Always consult pressure ratings specific to the design.
A: Their lifespan varies depending on material, design, and usage. Welded bellows, for instance, can last for millions of cycles if properly engineered and maintained.
Metal bellows are critical components in countless mechanical and industrial systems. By understanding the different types—formed, welded, electroformed, and function-specific like axial, lateral, and angular bellows—you can choose the right solution for your application. Their flexibility, durability, and ability to perform in extreme environments make them indispensable across aerospace, medical, power generation, and more. Selecting the right type ensures not only system efficiency but also long-term cost-effectiveness and safety.
