When building or replacing an exhaust system, people often focus on the muffler or tailpipe. But in reality, the most critical part lies in how each pipe is connected.
The connection type determines how well the system can handle vibration, temperature, and long-term fatigue. It’s where real durability begins.

Why the Connection Type Matters

Engines move constantly. They twist, expand, and vibrate — while the exhaust line remains fixed.
If that movement has nowhere to go, stress builds up. Cracks appear. The system starts to rattle or leak.
That’s why every connection — whether it’s welded, clamped, or flexible — plays a specific role.

The Clean Strength of Welded Joints

A properly welded joint feels solid and secure. It looks professional, seals perfectly, and holds under high temperature.
Welding is common in OEM systems and performance exhausts because it gives a tight, rigid structure.

But rigidity comes at a cost. When heat expands the front section or the engine vibrates, welded joints can’t absorb the movement. Over time, even a perfect TIG weld can fracture at the neck or near the manifold.

Our engineers have seen this especially in stainless steel systems where thermal expansion is high.
That’s why most modern systems combine welding with flexible elements — to allow movement where it’s needed.

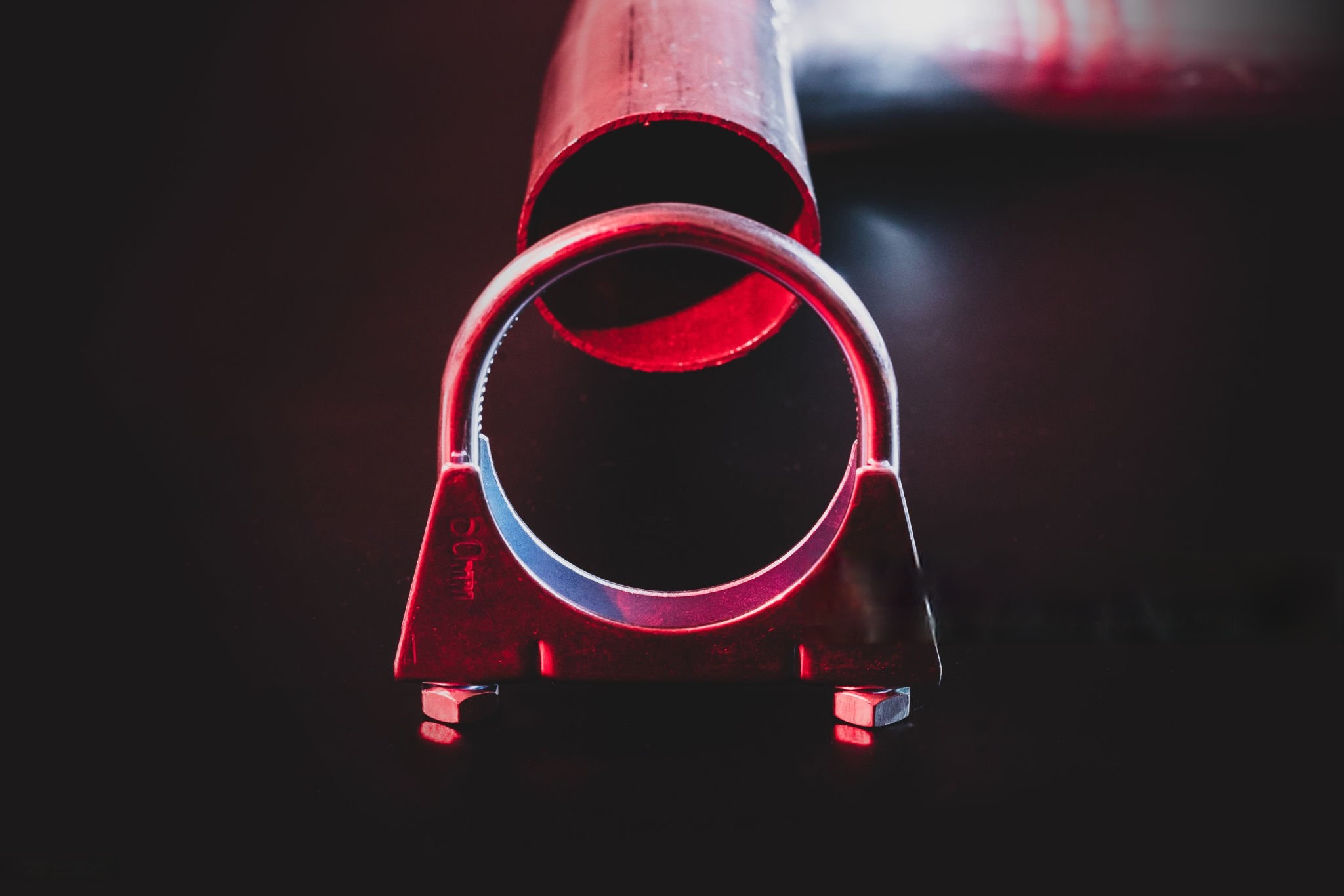

The Practicality of Clamped Connections

Clamps make assembly and repair much easier. You can disassemble or replace sections without cutting or welding.
A well-fitted V-band clamp or HD clamp offers nearly the same sealing as welding — if installed with precision.

Clamps are ideal for workshops and aftermarket applications where flexibility matters.
However, lower-grade clamps can loosen after heat cycles, causing noise or leaks.
Always choose stainless or aluminized steel clamps, matched closely to the pipe’s outer diameter.

In some cases, combining a welded front section with clamped rear sections gives the best of both worlds: strength up front, serviceability at the back.

The Quiet Role of Flexible Pipes

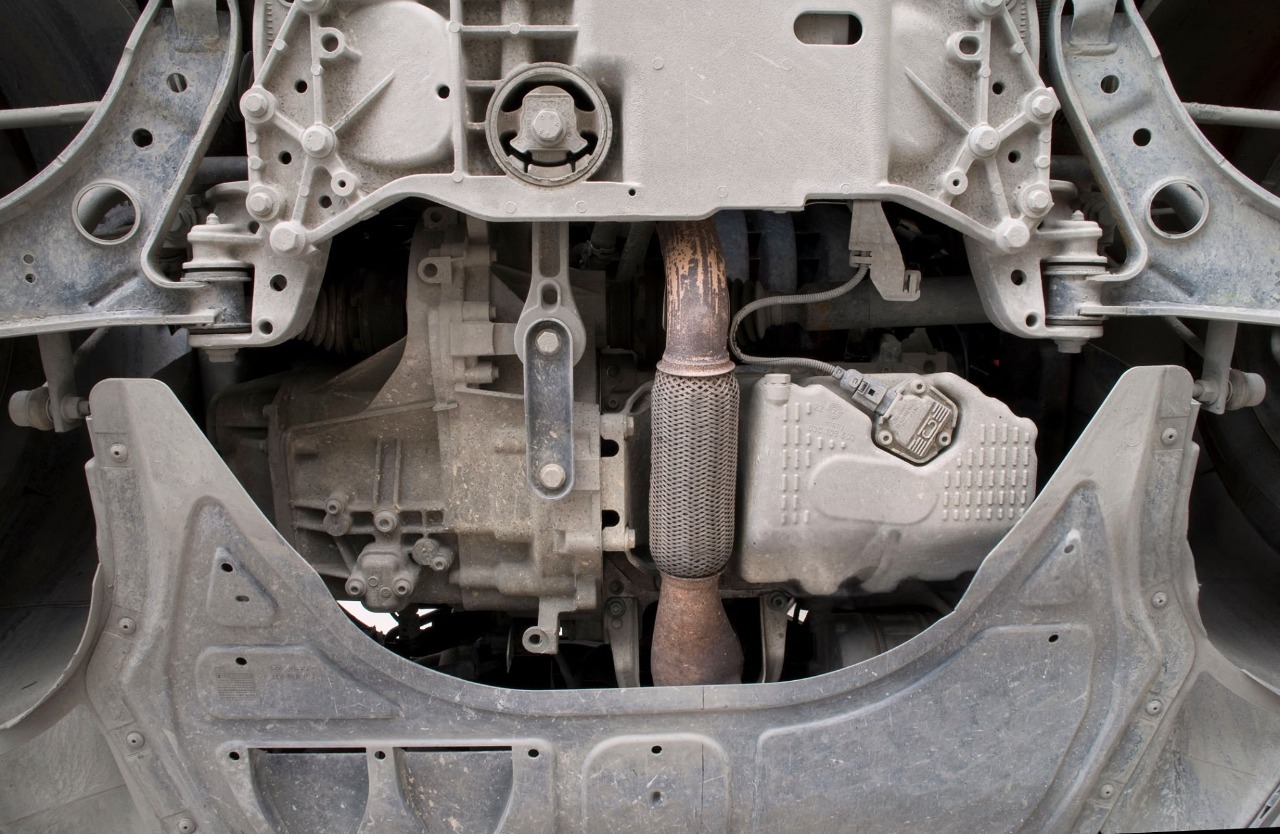

The exhaust flex pipe.
Its job is simple: absorb vibration and thermal movement before they reach the rest of the system.

Inside that short braided section hides real engineering.
A typical automotive exhaust flex pipe may use:

• Hydraulic-formed bellows to absorb expansion,

• Interlock liners or inside braid to resist exhaust pressure,

• Stainless or aluminized sleeves for connection,

• Single or double braiding for durability under vibration.

We often supply configurations like mesh braided flex pipes, exhaust flex connectors, or pipes with nipples, customized to suit car, truck, or generator exhaust setups.
Even oval or flanged types can be produced based on drawings.

A Quick Comparison You Can Keep in Mind

In most well-designed exhaust systems, all three types coexist. The weld provides structure, the clamp allows service, and the flex pipe absorbs movement — keeping everything balanced.

How Quality Control Makes the Difference

Even the best design fails without consistent manufacturing.
Our team uses TIG and laser welding for precise, airtight joints.
Hydraulic forming ensures each bellows has uniform ripple depth, preventing weak points.

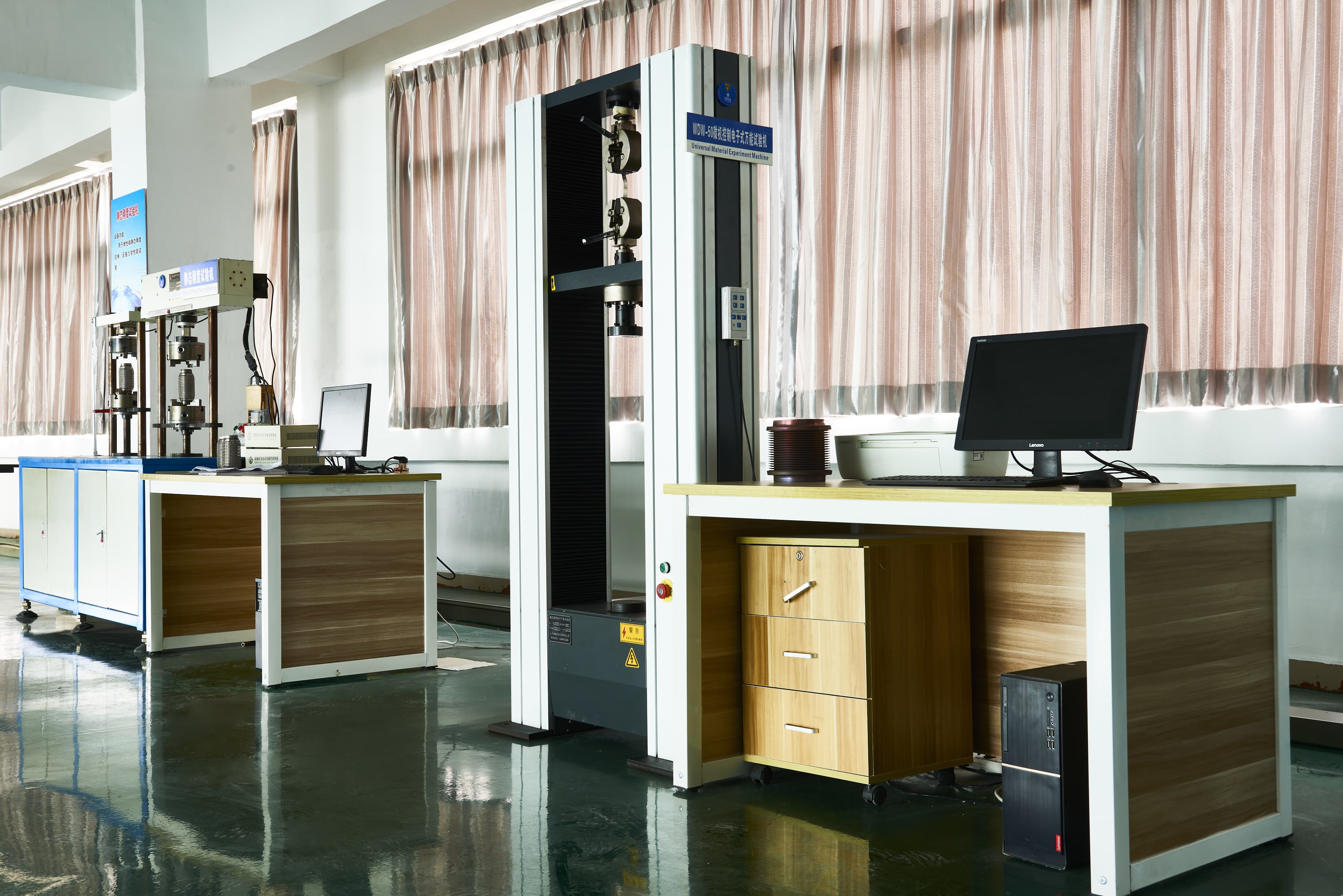

After assembly, every batch undergoes leak, pressure, fatigue, and salt-spray tests to verify long-term reliability.

This attention to detail ensures that every stainless steel exhaust hose or flex coupling performs consistently — whether it’s for a compact sedan or a heavy-duty truck.

Common Questions About Exhaust Flex Joints

Q1: How long does a flex pipe usually last?
It depends on material and use. A 304 stainless steel braided pipe in a well-supported system can last 5–8 years, while cheaper mild-steel types may fail in 1–2 years.

Q2: Can a flex joint fix vibration noise?
It reduces vibration transfer but won't fix noise caused by loose mounts or rusted brackets. Always check the whole system.

Q3: Can I weld a flex pipe instead of using clamps?
Yes, but be cautious. Welding too close to the braid can damage the inner liner. Pre-fitted nipple ends or flanges are better for welded setups.

Q4: What’s the difference between mesh braid and interlock types?
Mesh braid handles outer vibration, while interlock absorbs inner pressure and maintains flow. Many heavy-duty systems combine both.

A Balanced System Lasts Longer

The strongest exhaust system isn’t the one with the thickest steel — it’s the one designed to move naturally with the engine.
Welds give structure, clamps give serviceability, and flex pipes give freedom of movement.
Together, they form a system that lasts longer, runs quieter, and saves you from future repair costs.
