Customizable High-Performance Automotive Downpipes

Automotive Exhaust Downpipe Overview

An automotive exhaust downpipe forms an important connection between the turbocharger or upstream exhaust section and the remaining exhaust system. Its routing, pipe diameter, flange geometry, sensor positions, and internal flow path all affect how well the component fits and operates within the complete exhaust assembly.

Our automotive exhaust downpipes are developed for OEM vehicle exhaust systems, aftermarket replacement, performance upgrades, and custom automotive projects. Designs can be adapted for gasoline, diesel, and hybrid vehicle platforms according to the actual exhaust architecture and project requirements.

For turbocharged applications, the downpipe helps carry high-temperature exhaust gases away from the turbocharger. A properly designed flow path can reduce unnecessary restriction while maintaining the dimensional accuracy required for connection with catalytic converters, mid-pipes, sensors, and surrounding chassis components.

Available configurations include designs compatible with OEM catalytic converters and optional high-flow catalytic converters. Unrestricted or DPF-removal configurations may also be developed for off-road, motorsport, export, or other applications where their use is permitted by applicable regulations.

Key Features

T304 and T409 Stainless Steel

Material options include T304 and T409 stainless steel. Both are commonly used in automotive exhaust applications where components must operate under repeated heat cycles, vibration, moisture, and corrosive exhaust conditions.

Material selection can be matched to the application, expected operating environment, production requirements, and project budget.

Mandrel-Bent Exhaust Routing

Mandrel bending helps maintain a more consistent internal pipe diameter through curved sections. This reduces unnecessary deformation at bends and supports a smoother exhaust path.

Pipe routing can be developed around available installation space, turbocharger position, catalytic converter location, chassis clearance, and downstream exhaust connections.

TIG-Welded Construction

TIG welding is used for downpipe assemblies requiring controlled joints and consistent fabrication. Weld locations are arranged according to the component geometry and connection requirements.

Proper welding is especially important around flanges, sensor bungs, transitions, and other areas exposed to thermal cycling and vibration.

Precise Vehicle Fitment

Downpipes can be developed from OEM measurements, drawings, samples, or project specifications. Critical positions such as turbocharger connections, flanges, sensor bungs, and downstream joints are controlled to support proper alignment during installation. Critical dimensions can be controlled to a tolerance of ±0.5 mm according to the existing product specification.

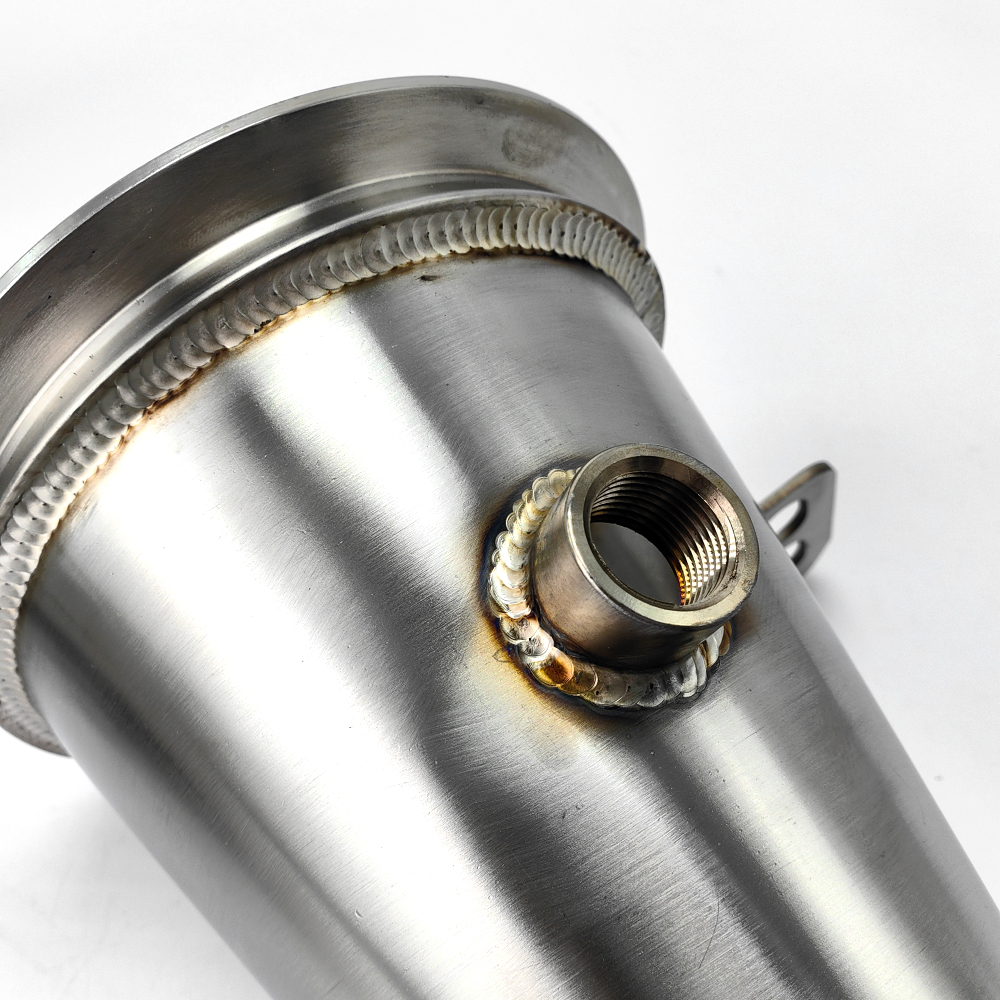

O2 Sensor Integration

Each downpipe can be configured with 1–3 O2 sensor ports. Available thread specifications include M18x1.5 and M12x1.25.

Sensor location and orientation can be adjusted according to the vehicle exhaust layout and monitoring requirements. Correct positioning helps maintain access for installation and service while matching the intended exhaust system design.

Catalytic Converter Options

High-flow catalytic converters are available upon request. Their use allows the downpipe design to combine exhaust routing requirements with catalytic converter integration.

The required catalytic configuration should be confirmed according to the vehicle, target market, and applicable emissions rules.

Surface Finish Options

Available surface finishes include polished, brushed, and raw stainless steel. The finish can be selected according to product positioning, downstream manufacturing needs, appearance requirements, or customer specifications.

Technical Specifications

Specifications can be adapted within the available manufacturing range according to vehicle layout, drawings, samples, connection requirements, and intended application.

Custom Downpipe Options

A downpipe usually needs more than a change in pipe diameter. Connection points, bends, sensor locations, available clearance, and downstream exhaust geometry must work together as one assembly.

We supports design-to-production customization for different automotive projects.

Pipe Diameter and Wall Thickness

Pipe outer diameter can be customized from 2.5" to 4.0", while wall thickness can be adjusted between 1.5 mm and 2.0 mm.

Selection should consider available installation space, connection dimensions, system layout, and the requirements of the specific exhaust application.

Flange Configuration

Available connection options include:

• V-Band

• 2-Bolt flange

• 3-Bolt flange

• OEM-specific flange

Flange dimensions and positions can be developed according to drawings, samples, or mating components.

Pipe Routing

Bend angles, section lengths, transitions, and overall routing can be adjusted to suit different engine bays and underbody layouts.

This is particularly important where the downpipe must clear steering components, subframes, heat shields, transmission housings, or other nearby parts.

Sensor Bung Position

O2 sensor quantity, thread type, location, and orientation can be specified according to the project. The design can accommodate 1–3 sensor ports using M18x1.5 or M12x1.25 threads.

Catalytic Converter Integration

Downpipes can be designed around OEM catalytic converters or configured with optional high-flow catalytic converters. For projects involving alternative catalytic or DPF arrangements, the required configuration should be confirmed according to the intended vehicle use and applicable regional regulations.

Surface and Accessories

Polished, brushed, and raw finishes are available. Optional gaskets and mounting hardware can also be supplied according to the assembly requirement.

Exhaust Flow and System Performance

The purpose of a performance-oriented downpipe is not simply to use a larger tube. The complete exhaust path must account for pipe diameter, bend quality, transition geometry, catalytic converter configuration, and downstream compatibility.

Mandrel-bent tubing helps maintain the internal cross-section through bends. This supports a smoother gas path compared with poorly formed bends that significantly reduce the effective tube area.

For turbocharged vehicles, reducing unnecessary restriction downstream of the turbine can support more efficient exhaust evacuation. Actual changes in turbo response, engine output, exhaust sound, and vehicle behavior depend on the complete vehicle setup, engine calibration, turbocharger, catalytic system, and downstream exhaust.

We therefore develops downpipes around application requirements rather than making a universal performance claim for every vehicle.

Acoustic behavior is also considered during product development. Pipe diameter, routing, catalytic converter selection, and the remaining exhaust system can all influence exhaust tone and resonance.

Applications and Vehicle Compatibility

Our automotive exhaust downpipes can be developed for a range of vehicle and exhaust projects.

Performance Vehicle Upgrades

Custom downpipes can support performance-oriented exhaust modifications where improved routing, larger pipe dimensions, or alternative catalytic converter arrangements are required.

Vehicle-specific dimensions remain important because available space and connection geometry vary between platforms.

OEM Vehicle Exhaust Systems

For OEM and project-based supply, downpipes can be manufactured according to drawings, samples, dimensional requirements, and specified connection interfaces.

Repeat production can be based on confirmed product specifications to help maintain consistency between batches.

Aftermarket Replacement

Downpipes can be developed as direct-fit or application-specific replacement components. OEM measurements and connection details can be used to match turbocharger outlets, catalytic converters, mid-pipes, sensors, and mounting positions.

Commercial and Passenger Vehicles

Configurations can be developed for compact passenger vehicles, performance cars, and commercial vehicle applications according to the exhaust system architecture.

The final design should be confirmed against the actual engine, chassis, exhaust configuration, and installation requirements.

Motorsport and Off-Road Projects

Custom exhaust routing and unrestricted configurations can be considered for motorsport, off-road, export, or other permitted applications.

Buyers should confirm local emissions and road-use requirements before specifying catalytic converter removal, DPF removal, or other emissions-related modifications.

Manufacturing and Quality Control

A custom exhaust downpipe depends heavily on dimensional repeatability. A small positional error at a flange, bend, or sensor bung can create installation problems further along the exhaust system.

We combines TIG welding, mandrel bending, CNC machining, flange forming, and inspection processes for downpipe manufacturing.

Drawing and Sample Review

Projects can begin from technical drawings, OEM dimensions, physical samples, or defined installation requirements.

The important connection points, pipe routing, material, wall thickness, flange design, sensor positions, and surface finish are reviewed before production.

Tube Bending and Forming

Mandrel bending is used to produce curved sections while maintaining the specified tube geometry as consistently as possible. Flanges and connecting features are produced according to the confirmed configuration.

Welding and Assembly

TIG welding is used to join tubing, flanges, sensor bungs, catalytic sections, and related components. Assembly control focuses on alignment because the relationship between individual features determines whether the finished downpipe fits correctly.

Dimensional Inspection

Critical dimensions are checked against the confirmed product requirements. The existing specification provides a dimensional tolerance of ±0.5 mm on critical dimensions.

Inspection can focus on connection locations, overall routing, sensor positions, and other project-defined features.

Batch Consistency

For repeat orders, approved dimensions and product requirements provide the reference for subsequent production.

This is important for OEM buyers, distributors, workshops, and aftermarket brands that require consistent fitment across multiple production batches.

What to Provide for a Custom Downpipe

Providing clear project information at the beginning helps reduce repeated revisions and makes technical evaluation more efficient.

For a custom automotive exhaust downpipe inquiry, provide as much of the following information as available:

1. Vehicle make, model, and year

2. Engine or turbocharger information

3. Existing downpipe sample or technical drawing

4. Required pipe diameter

5. Preferred T304 or T409 stainless steel

6. Turbocharger-side connection

7. Downstream exhaust connection

8. Flange type and dimensions

9. O2 sensor quantity and position

10. Catalytic converter requirement

If a complete drawing is not available, a physical sample or key dimensional information can be used for further technical review.

FAQ

How should I choose between T304 and T409 stainless steel?

The choice depends on the operating environment, corrosion expectations, product positioning, manufacturing requirement, and budget. Both T304 and T409 are available for Yueding downpipes. If the material is specified by an existing OEM drawing or customer standard, production can follow that requirement.

Can Yueding handle large-volume downpipe orders?

Yes. We supports both small custom batches and larger production orders. For volume projects, specifications, samples, drawings, inspection requirements, packaging, and delivery expectations should be confirmed before production so repeat batches can follow the approved requirements.

Are high-flow catalytic downpipes emissions compliant?

Compliance cannot be determined from the downpipe alone. It depends on the catalytic converter specification, vehicle, calibration, intended use, and regulations in the destination market. Yueding can provide downpipes with integrated high-flow catalytic converters, but buyers should confirm applicable emissions and road-use requirements before ordering.

Can you manufacture a downpipe from my drawing or sample?

Yes. Custom development can be based on drawings, samples, OEM dimensions, or detailed project specifications. Pipe routing, material, diameter, wall thickness, flange configuration, sensor positions, catalytic converter arrangement, and finish can be reviewed before production.

What information is most important when requesting a custom downpipe?

Vehicle and engine information, connection dimensions, pipe diameter, flange type, sensor locations, material, catalytic requirements, and target quantity are the most useful starting points. A drawing or physical sample can further reduce uncertainty when the downpipe has complex routing.

Can O2 sensor positions be customized?

Yes. The product can accommodate 1–3 O2 sensor ports in M18x1.5 or M12x1.25 thread sizes. Their exact positions and orientations can be arranged according to the exhaust layout and project specification.

For inquiries, please share your specifications, vehicle details, and project goals. Our team is ready to assist you in identifying or developing the right downpipe solution for your needs.
