Exhaust Flex Pipe Sizes Chart: Common Diameters, Lengths & Dimensions

Common exhaust flex pipe diameters include 1.75", 2", 2.25", 2.5", 3", 3.5", and 4" for most automotive exhaust repair and replacement applications. Larger or non-standard sizes can also be produced for trucks, buses, generators, construction machinery, and industrial exhaust systems. When choosing an exhaust flex pipe size, you should confirm not only the nominal diameter, but also the overall length, flex section length, end pipe structure, wall thickness, material, tolerance, and installation method. For bulk purchasing or custom projects, product photos, drawings, or samples can help confirm the correct specification before quotation and production.

Request a Size-Based Quote

Explore Exhaust Flex Pipes

Common Exhaust Flex Pipe Sizes Chart

The table below lists common exhaust flex pipe diameters and overall length options. Our regular finished-product diameter range covers 37–127 mm, while special 32 mm sizes can also be sourced for specific projects.

Nominal Size	Inch Size	Metric Size	Common Length Options	Typical Applications	Notes
1-3/4 inch	1.75"	44.45 mm	4", 6", 8", 10", 12"	Compact cars, small exhaust repair	Check actual pipe diameter before welding
2 inch	2.00"	50.80 mm	4", 6", 8", 10", 12"	Passenger cars, vans, light exhaust repair	One of the most common aftermarket sizes
2-1/4 inch	2.25"	57.15 mm	4", 6", 8", 10", 12"	Sedans, SUVs, replacement market	Often used for standard exhaust repair
2-1/2 inch	2.50"	63.50 mm	4", 6", 8", 10", 12"	SUVs, light trucks, wholesale supply	Popular size for distributors and repair shops
3 inch	3.00"	76.20 mm	4", 6", 8", 10", 12"	Performance exhaust, trucks, modified systems	Structure and liner choice should be confirmed
3-1/2 inch	3.50"	88.90 mm	6", 8", 10", 12"	Heavy-duty exhaust systems	Thickness and tolerance should be checked
4 inch	4.00"	101.60 mm	8", 10", 12"	Trucks, buses, generators, industrial exhaust	Usually requires project confirmation

Note: Nominal sizes are for reference. Actual I.D. or O.D. should be confirmed for the selected product.

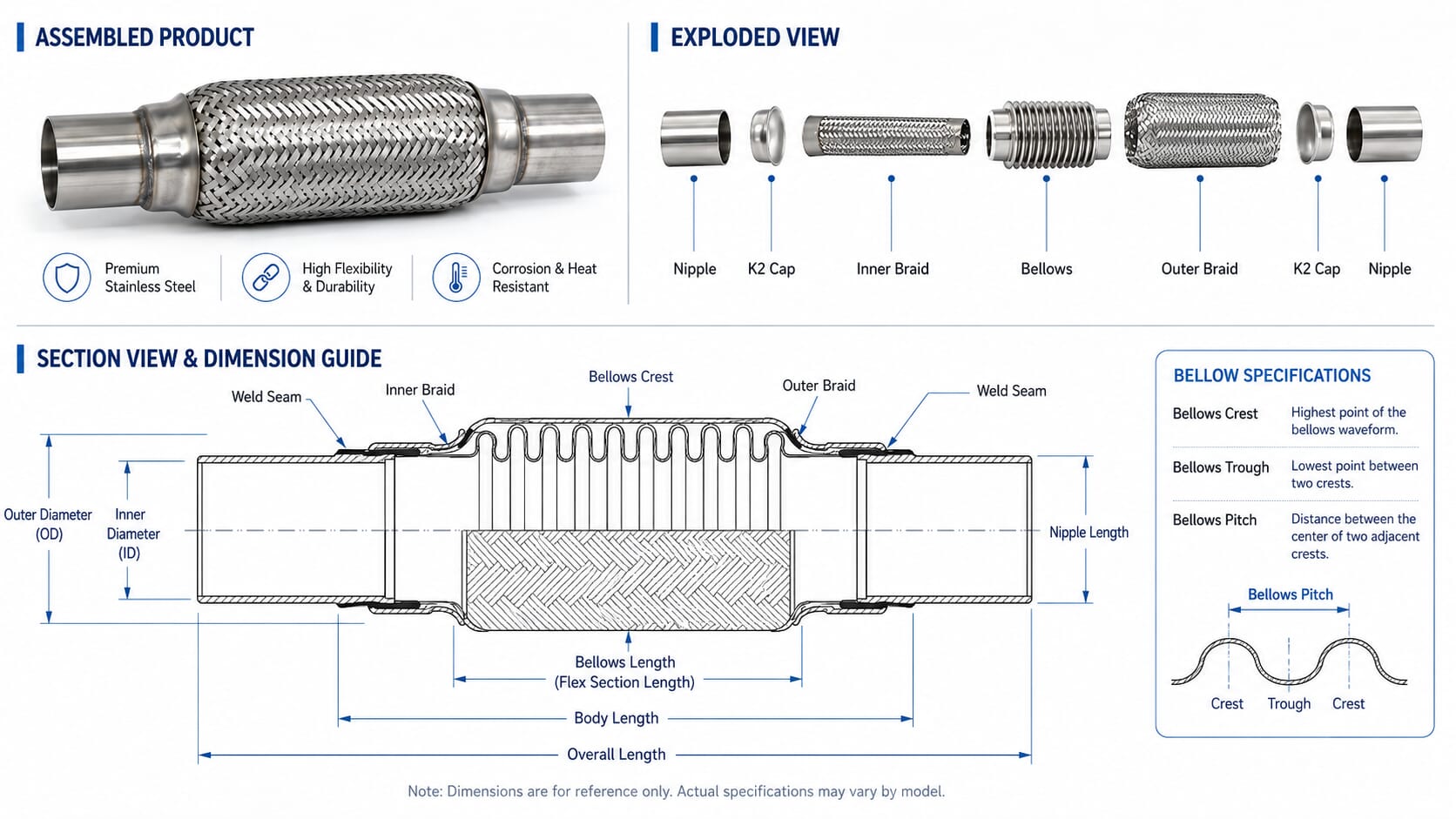

Exhaust flex pipe structure diagram with component labels and dimension measurement points

Common Exhaust Flex Pipe Lengths

In addition to diameter, overall length is another important factor when selecting an exhaust flex pipe. Common lengths include 4", 6", 8", 10", and 12", but the final length should match the installation space and connection method of the exhaust system.Most customers choose insert welding, or use matching exhaust clamps for fixing. For replacement and repair applications, you usually need to check the old pipe length or measure the available installation space before ordering. For custom exhaust systems, drawings or samples are recommended to avoid mismatch during installation.

Length	Metric Approx.	Common Use	Reminder
4"	101.6 mm	Short repair sections	Confirm welding space
6"	152.4 mm	Common repair and replacement	Suitable for many passenger cars
8"	203.2 mm	Standard aftermarket applications	Check overall installation clearance
10"	254.0 mm	Longer vibration absorption area	Confirm flex section length
12"	304.8 mm	Extended repair or custom exhaust use	May require project confirmation
Custom	According to drawing	Trucks, generators, industrial systems	Provide drawing, sample, or full dimensions

How to Confirm Exhaust Flex Pipe Dimensions

Before placing an order, you should confirm several dimensions instead of relying only on product appearance. Exhaust flex pipes may look similar from the outside, but small differences in diameter, length, end pipe structure, wall thickness, or internal liner can affect installation and performance. For detailed measurement methods, see our Exhaust Flex Pipe Measurement Guide. For special flange connections, refer to our Exhaust Flex Pipe with Flange Assembly.

Dimension to Confirm	What to Check	Why It Matters
Inner Diameter / Outer Diameter	Confirm whether the required size is ID or OD	Prevents mismatch with the exhaust pipe
Overall Length	Measure the full length from end to end	Ensures the part fits the installation space
Flex Section Length	Measure only the flexible corrugated section	Affects vibration absorption and flexibility
End Pipe Length	Check the length, I.D., O.D., and wall thickness of each nipple	Ensures proper fit for welding or insertion
Wall Thickness	Confirm required thickness or sample standard	Affects durability, cost, and production feasibility
Material Grade	201, 304, 409, or other stainless steel options	Affects corrosion resistance and market positioning
Structure Type	With ends, without ends, inner braid, interlock, etc.	Affects application and quotation
Quantity per Size	Confirm each size and quantity separately	Helps calculate unit price and production planning
Flange Dimensions	Confirm flange diameter, thickness, bolt-hole quantity, hole diameter, and bolt-hole spacing	Ensures compatibility with the mating flange

Exhaust Flex Pipe Construction & End Connection Options

For nipple-equipped flex pipes, overall length includes the welded end sections. Different liner and braid configurations also require specific dimensions to be checked. The comparison below highlights these differences.

Type	Dimensions to Confirm	Suitable For	Notes
Flex Pipe Without Ends	Diameter, flex section length, wall thickness, braid type	Universal repair, welding, aftermarket distribution	More flexible for different installations
Flex Pipe With Ends	Diameter, total length, flex section length, end pipe length, end pipe OD	Direct replacement, easier welding, repair shops	End pipe size must match installation requirements
Interlock Liner Flex Pipe	Diameter, liner type, length, thickness	Trucks, high-temperature or high-vibration systems	Better for demanding applications
Inner Braid Flex Pipe	Diameter, inner braid, outer braid, length	Passenger cars, vibration and noise control	Common for automotive replacement

Standard Single Braid

Structure: High-grade Bellows + Outer Braid + K2 Cap

Feature: This is the foundational design for vibration isolation. It features a robust K2 cap that secures the outer braid to the bellows.

Best For: Economic replacement solutions where basic vibration damping is required without the need for internal flow liners.

With Inner Braid

Structure: Base Structure + Inner Braid

Feature: Engineered with a stainless steel inner wire braid. This additional layer significantly improves noise elimination functionality by smoothing exhaust gas flow and reducing turbulence.

Best For: Passenger vehicles requiring a quieter ride and protection for the bellows against exhaust pulses.

With Interlock

Structure: Base Structure + Interlock Liner + K1 Cap

Feature: This premium design utilizes a K1 cap and a flexible metal interlock hose. The interlock structure enhances resistance to higher temperatures and significantly increases the pipe's overall tensile strength.

Best For: High-performance engines, turbocharged applications, and commercial trucks where extending component lifespan is critical.

With Nipple

Structure: Available for all types + Extension Nipples.

Feature: Includes pre-welded nipples (extension tubes) on both ends. This configuration retains all the performance features of the base, inner braid, or interlock models but adds better welding capability.

Best For: Repair shops and assembly lines looking for a "ready-to-install" solution that simplifies the connection to existing exhaust piping.

Wall Thickness and Tolerance Options

Wall thickness and tolerance are important for bulk purchasing, especially when the exhaust flex pipe is used for replacement, distribution, or custom exhaust production. A small difference in thickness may affect product weight, flexibility, welding performance, and cost. YDCT can support size confirmation and production according to your requirements. Wall thickness varies by component. Standard double-layer bellows commonly use 0.2 mm material per layer, while welded extension nipples typically have a wall thickness of 1.5 mm.

For applicable exhaust flex pipe models, Yueding has tightened the inner diameter tolerance from +0.5–+0.7 mm to +0.2–+0.5 mm. Under our current inspection standards, length tolerance is ±2 mm for domestic orders and ±3 mm for export orders. Specific dimensions and tolerances for custom products can be confirmed against the approved drawing before production.

Slip-Fit Welding Dimensions

For slip-fit welded connections, the mating pipe diameter must allow suitable clearance for assembly and welding. The following dimensions are based on Yueding's common pipe-size references and recommended mating pipe dimensions.

Nominal Pipe Size	Reference Diameter (mm)	Recommended Mating Pipe I.D. (mm)
1.75"	44.5	45–45.5
2"	50.8	51.3–51.8
2.5"	63.5	64–64.5
3"	76.2	76.7–77.2

Need Help Confirming Your Exhaust Flex Pipe Size?

If you are not sure which exhaust flex pipe size is suitable for your project, you can send us product photos, drawings, samples, or a size list. YDCT can help check the product structure, confirm common or custom dimensions, and prepare a quotation based on your application, quantity, and packaging requirements. Following part numbers represent standard base models without suffixes. Suffix B indicates an inner-braid version, L indicates an interlock-lined version, and N indicates a nipple-equipped version. Our in-house single-layer bellows forming capability covers DN20–DN200. This refers to the corrugation forming process range, which is different from our regular finished exhaust flex pipe diameter range of 37–127 mm. Finished product specifications depend on the required construction and end connections.

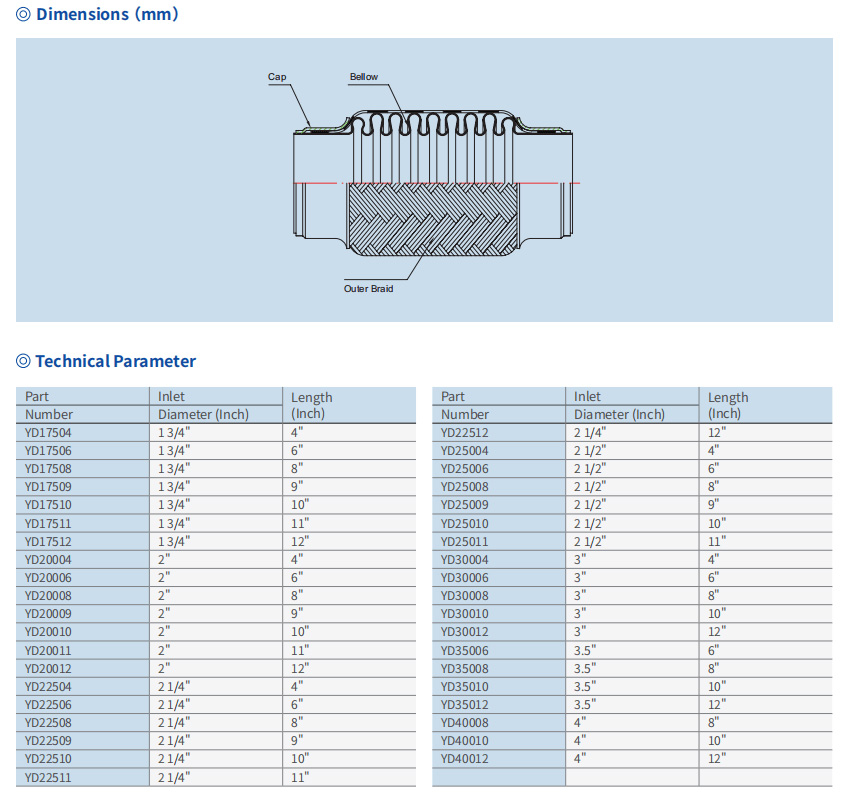

Part Number	Inlet Diameter			Overall Length
Part Number		inch	mm	inch	mm
YD17504	1 3/4"	45	4"	102
YD17506	1 3/4"	45	6"	152
YD17508	1 3/4"	45	8"	203
YD17510	1 3/4"	45	10"	254
YD17512	1 3/4"	45	12"	305
YD20004	2"	51	4"	102
YD20006	2"	51	6"	152
YD20008	2"	51	8"	203
YD20010	2"	51	10"	254
YD20012	2"	51	12"	305
YD22504	2 1/4"	57	4"	102
YD22506	2 1/4"	57	6"	152
YD22508	2 1/4"	57	8"	203
YD22510	2 1/4"	57	10"	254
YD22512	2 1/4"	57	12"	305
YD25004	2 1/2"	63.5	4"	102
YD25006	2 1/2"	63.5	6"	152
YD25008	2 1/2"	63.5	8"	203
YD25010	2 1/2"	63.5	10"	254
YD25012	2 1/2"	63.5	12"	305
YD30004	3"	76.2	4"	102
YD30006	3"	76.2	6"	152
YD30008	3"	76.2	8"	203
YD30010	3"	76.2	10"	254
YD30012	3"	76.2	12"	305
YD35006	3 1/2"	89	6"	152
YD35008	3 1/2"	89	8"	203
YD35010	3 1/2"	89	10"	254
YD35012	3 1/2"	89	12"	305
YD40008	4"	102	8"	203
YD40010	4"	102	10"	254
YD40012	4"	102	12"	305

More than Parts, A True Partnership.

Professional manufacturing of stainless steel exhaust flexible connection components, certified under ISO and IATF systems, with stable exports to more than 100 countries, batch production combined with standard size stock, supporting detail and packaging customization, aiming to provide you with a more efficient and more predictable integrated supply solution.
