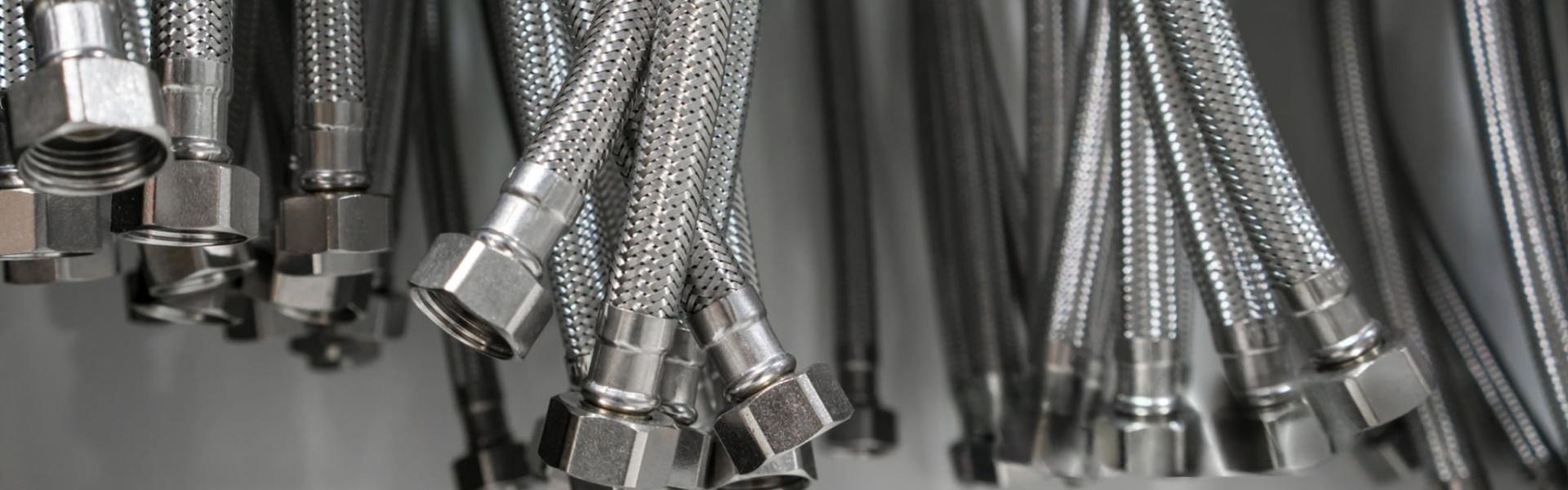

Stainless Steel Braided Hose
Yueding manufactures complete stainless steel braided hose assemblies for flexible piping connections, supporting stable production and dependable supply for industrial projects.
Stainless steel braided hose is a flexible piping connection component used to convey gases, liquids, steam, and other media. It uses a corrugated metal tube as the inner tube and is reinforced and protected by an outer stainless steel wire braid. This structure combines flexibility with a certain level of pressure resistance. It is commonly used between piping and equipment, pumps, or valves, as well as between fixed piping and components exposed to vibration, thermal movement, or limited relative movement, providing a flexible transition where rigid piping cannot be connected directly.
When correctly selected and installed within the allowable bend radius, stainless steel braided hose can be used to absorb vibration, compensate for thermal expansion and contraction, reduce piping stress, and accommodate a certain degree of installation misalignment. It is therefore widely used in industrial piping, petrochemical equipment, machinery, power and thermal systems, instruments, vacuum equipment, automotive systems, and other applications that require flexible piping connections.
Stainless Steel Braided Hose Specifications and Selection
Yueding can configure and manufacture metal hoses according to your piping interfaces, installation dimensions, and actual operating conditions, with a supply range covering nominal diameters from DN6 to DN800. Corrugated inner tubes are usually hydroformed from SS304 or SS316L stainless steel. Annular corrugations are used for most standard products. If your project requires helical corrugations, availability can be confirmed separately according to the required size, quantity, and supply conditions.
A metal hose mainly consists of a corrugated inner tube, an outer braid, and end fittings. The corrugated inner tube provides flexibility. The braid is used to reinforce and protect the corrugated tube and helps limit axial elongation under internal pressure. The end fittings connect the hose to external piping or equipment. Depending on the product structure and application requirements, the corrugated tube, braid, and fittings can be assembled by welding, mechanical clamping, or a combined structure using both methods.
Metal hoses can usually be connected to your piping or equipment by flanged connections, welded tube connections, mechanical clamping, or custom fittings. Flanged connections are convenient for installation, sealing, later removal, and maintenance, making them suitable for piping systems that require regular servicing. Welded tube connections are suitable for projects where reliable on-site welding conditions are available and can provide a direct and relatively economical fixed connection. Clamp-secured connections and special fitting connections are usually more suitable for small-diameter stainless steel hoses and for applications that require convenient assembly or a specific interface match. We can also provide matching stainless steel clamps and fittings in different structures to help the hose match your existing piping, equipment ports, and installation conditions.
Because both the hose structure and the external connection method need to be confirmed according to the actual operating conditions, you can refer to the following six points when preparing the relevant information. Based on these details, we can help you determine a more suitable hose structure, connection method, and production configuration.
Hose Size and Length
Confirm the nominal diameter, overall length, and required flexible section according to the piping layout and installation distance.
Pressure and Temperature
Provide the actual working pressure, temperature range, and required test conditions. Pressure capability varies with hose diameter, material, braid structure, and temperature.
Conveyed Medium
Identify the gas, liquid, steam, chemical medium, or vacuum condition to help select the corrugated tube, fitting, and sealing materials.
Movement and Bend Radius
Confirm whether the hose is used for static installation, vibration absorption, repeated bending, axial movement, or lateral displacement.
End Connections
Confirm the connection type, standard, size, material, and orientation at both ends. Different fittings can be combined on the same hose assembly.
Drawing and Quantity
Provide drawings, samples, existing part numbers, and order quantity when available to improve specification confirmation and quotation accuracy.
Small Metal Hose End Fitting Options
The end connection should match your equipment interface, piping standard, installation space, and maintenance requirements. Yueding can provide fixed or loose flanges, threaded fittings, quick-lock couplings, PTFE-lined ends, elbow connections, and other configurations for stainless steel braided hose assemblies.Flanges can be supplied in carbon steel, SS304, or SS316L and matched to standards such as ASME, DIN, EN, JIS, GB, HG, and JB. Metric, NPT, G, and BSP thread options can also be confirmed according to the mating port.You can also combine different fittings on the two ends, such as a fixed flange with a loose flange, a flange with a threaded end, or a quick coupling with a welded tube.

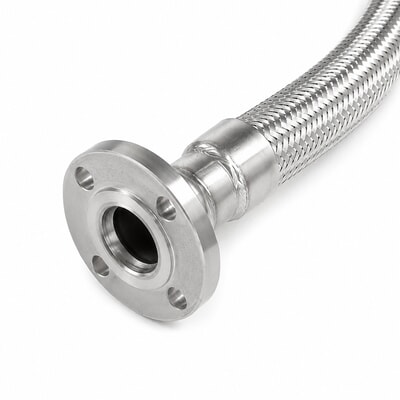

Fixed Flange Metal Hose
Welded in a fixed position at the hose end, the flange maintains a stable bolt-hole orientation during installation. Commonly used for pumps, valves, equipment ports, and industrial piping with a confirmed connection direction.

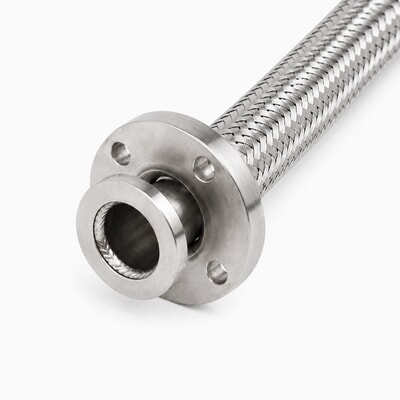

Loose Flange Metal Hose
Designed with a rotating flange ring behind the welded stub end, this connection allows easier bolt-hole alignment during assembly. Suitable for field installation, large-diameter piping, and locations where flange orientation is difficult to determine in advance.
Send Inquiry

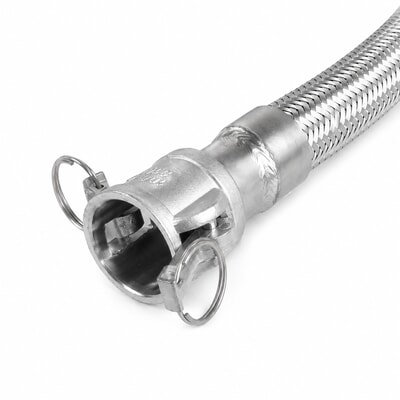

Quick Coupling Metal Hose
Equipped with locking arms or retaining parts, the quick coupling allows repeated connection and removal without tightening flange bolts or threaded fittings. Suitable for temporary transfer lines, regular cleaning, inspection, and frequent hose replacement.

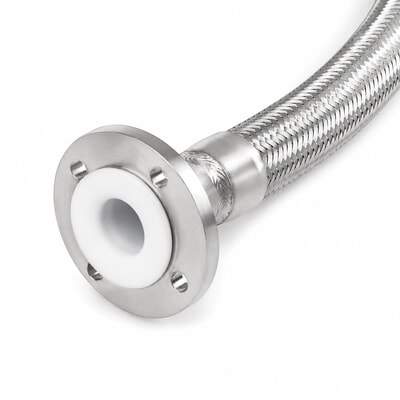

PTFE Lined Metal Hose
Lined with PTFE along the internal flow path, this structure separates the conveyed medium from the metal hose and provides a smoother contact surface. Suitable for corrosive, high-purity, or easily adhering media.

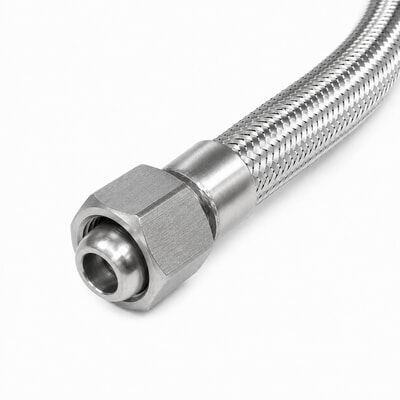

Spherical Joint Metal Hose
Combined with a swivel nut and protruding spherical sealing seat, this connection allows limited angular alignment during assembly. Commonly used for small-diameter equipment, instruments, and detachable piping connections.

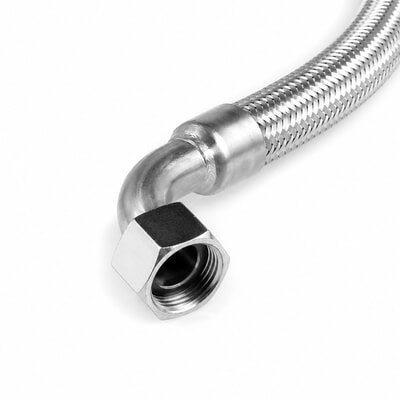

Elbow Connection Metal Hose
Formed with an angled tube or threaded elbow at the hose end, this connection changes the outlet direction within limited installation space. Suitable for compact equipment, restricted layouts, and piping where a straight fitting cannot be installed.

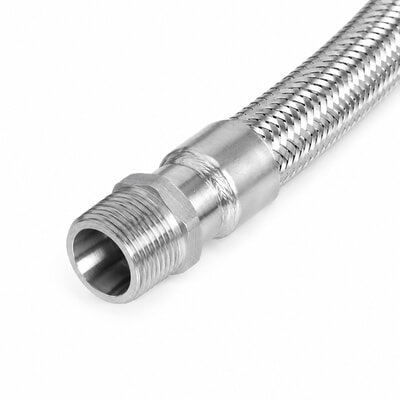

Male Threaded Metal Hose
Finished with a male threaded fitting welded directly to the hose end, this structure provides a compact connection without a separate flange. Commonly used for valves, instruments, vessels, and small-diameter threaded piping.

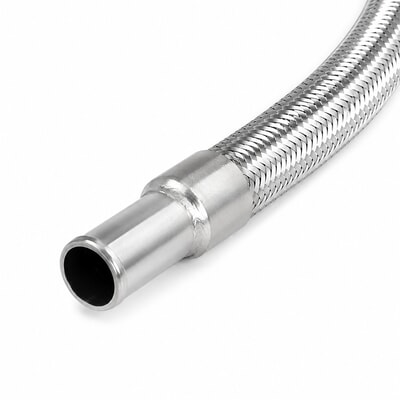

Straight Weld-End Metal Hose
Finished with a plain straight tube end without a flange, thread, or quick coupling, this structure allows direct welding or further fitting assembly. Suitable for field fabrication and projects requiring customer-specified final connections.

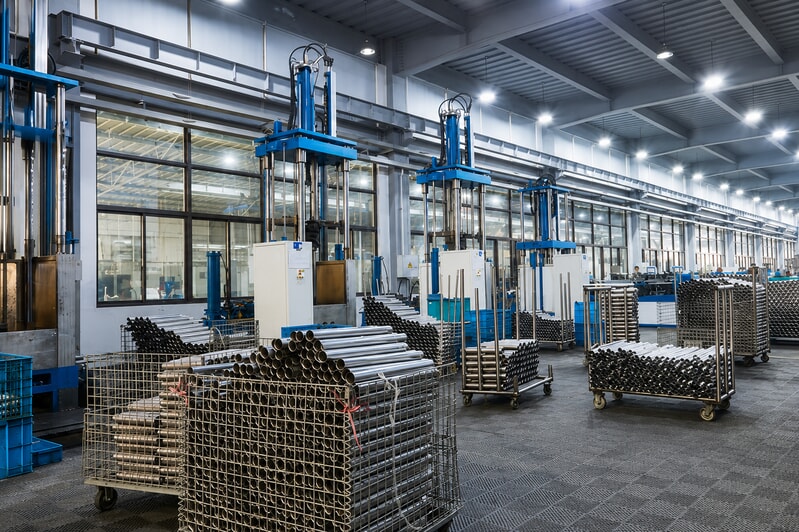

Metal Hose Manufacturing and Final Inspection
Yueding can arrange metal hose production according to the confirmed drawings and order requirements. The common production process includes material cutting, initial welding, pressure testing, braid installation, secondary welding, another pressure test, surface finishing, and packaging. The nominal diameter, fitting dimensions, overall length, and component tolerances of the hose are checked step by step during production to prevent the fitting position, assembly dimensions, or finished length from differing from the confirmed requirements. The products can be manufactured and inspected with reference to GB/T 12777-2008, GB/T 14525-2010, EJMA, and other relevant technical requirements.
Less Installation Stress
Corrugated inner tube can accommodate normal vibration, thermal movement, and a limited range of piping movement during equipment operation. Where rigid piping is difficult to align accurately or where there is a limited deviation between equipment interfaces, the flexible hose can provide you with greater installation allowance, reduce on-site adjustment, and lower the risk of vibration and movement being transferred directly to pumps, valves, and adjoining piping.

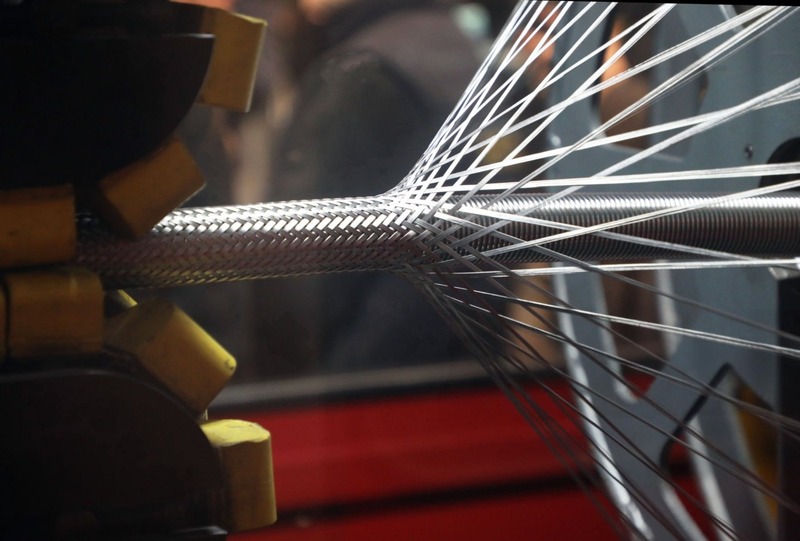

Stable Reinforcing Braid
Stainless steel wire braid is used to reinforce and protect the corrugated inner tube and helps limit axial elongation under internal pressure. A suitable braid configuration can be matched according to the hose structure and actual operating conditions, giving you more stable performance during handling, installation, and normal operation, while reducing the replacement and after-sales pressure caused by surface damage, structural deformation, or premature failure.
Flexible Connection Configurations
Our metal hose can be fitted with suitable connection structures according to your equipment interfaces and existing piping, and the two ends can also use different configurations according to the actual installation requirements. Confirming the complete hose assembly in advance can reduce your need to add adapters, modify the piping, or carry out secondary processing after delivery, helping shorten installation time and allowing the hose to connect more smoothly to your existing equipment and piping system.
Suitable Material Matching
Hose body, braid, and connection components can be made from suitable materials according to your conveyed medium, temperature, and operating environment. A reasonable material combination can help reduce the risk of failure caused by corrosion, temperature, or material mismatch, while avoiding the use of unnecessarily high-grade materials under normal operating conditions, so that service life, operating reliability, and purchasing cost can remain in a more suitable balance.
Regular Production and Engineering Projects
More than 30 years of experience in manufacturing metal hoses and expansion joints has enabled Yueding to gradually build project experience ranging from regular hose production to the manufacture of large flexible piping assemblies.

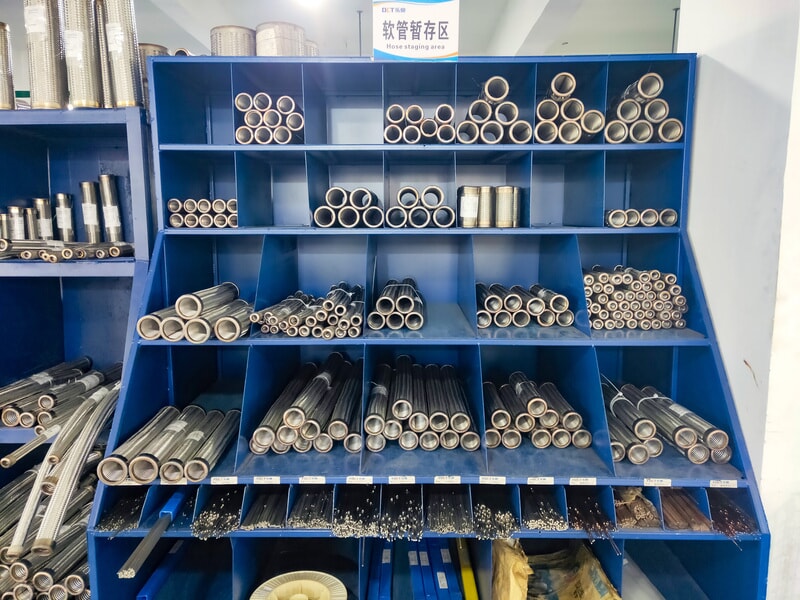

Semi-Finished Hose Staging
After different specifications of corrugated tubes and braided hoses complete a stage of processing, they are sorted according to the next production step and held for fitting welding, length processing, or final assembly. This area is mainly used to support production flow within the workshop and can hold hose semi-finished products in multiple specifications and at different processing stages at the same time.

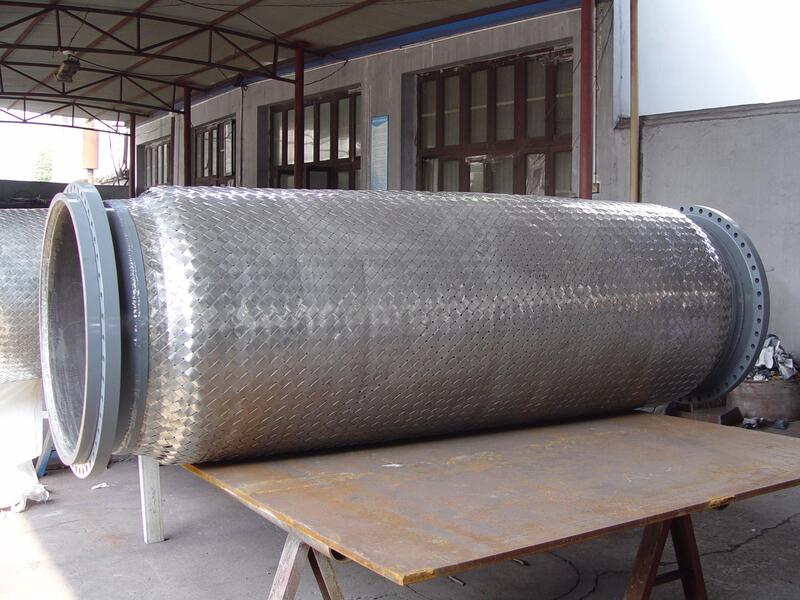

Large-Diameter Anti-Vibration Metal Hose
Yueding holds more than 30 invention patents and utility model patents directly related to metal hoses and expansion joints. The related technical experience also covers segmented external-curved central drainage devices, metal bellows expansion joints, wellhead compensation devices for heavy-oil steam injection pipelines, fiber fabric expansion joints, and other products used for flexible connection and displacement compensation.
Dimensions & Pressure
Bending Radius & Life
Medical Industry
Product Questions & Answers
What materials are commonly available?
SS304 and SS316L are the most common materials for the corrugated inner tube. SS304 is widely used for general industrial applications, while SS316L is selected when improved corrosion resistance is required. SS321 may be available for specific projects, but material availability and order quantity should be confirmed.
What sizes can be supplied?
What information is required for quotation?
Can the two ends use different fittings?
How is the correct braid structure selected?
Can unfinished hose without end fittings be supplied?
What inspections are carried out before shipment?
How should a stainless steel braided hose be installed?
