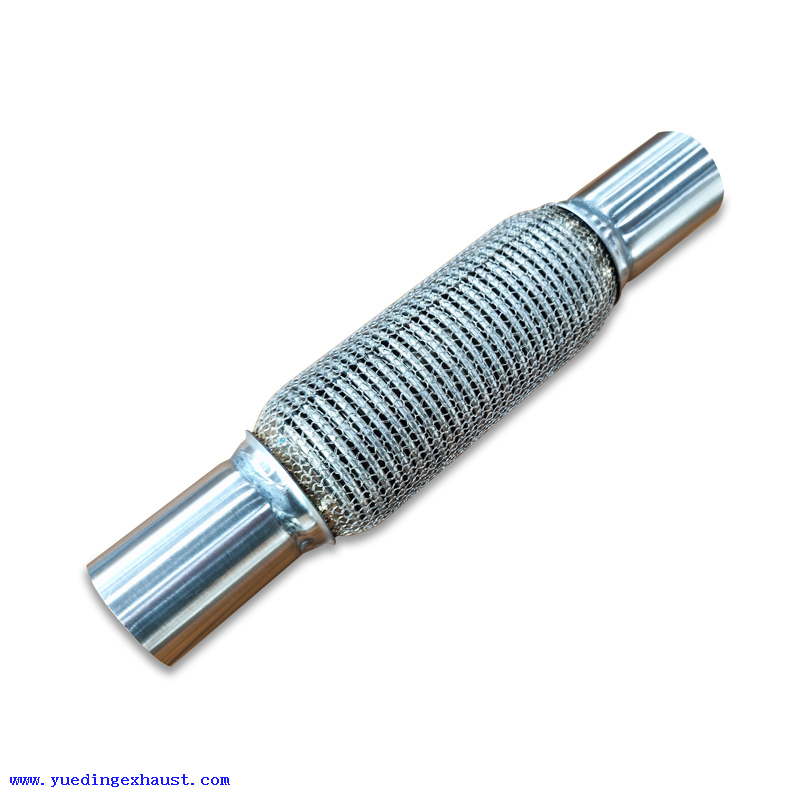

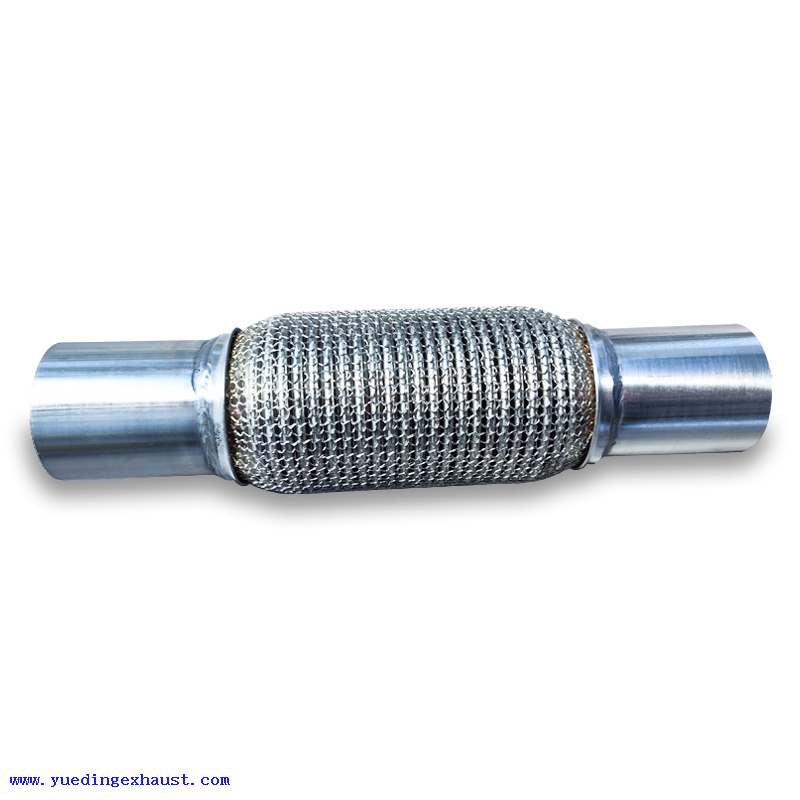

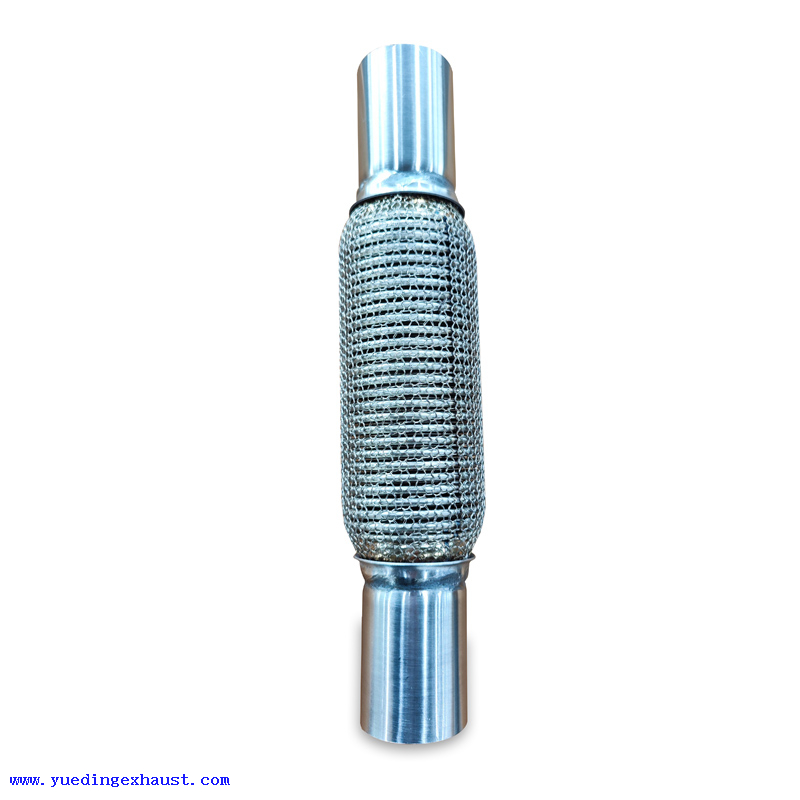

Outer Wire Mesh Flexible Pipe

What is an Exhaust Flexible Pipe?

The flexible pipe is an important part of a car exhaust system, engineered to manage the intense physical stresses generated during vehicle operation. When you accelerate, the car’s engine moves back and forth on its rubber engine mounts, creating a significant amount of kinetic energy. The flexible pipe allows for essential flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the rigid exhaust pipe.

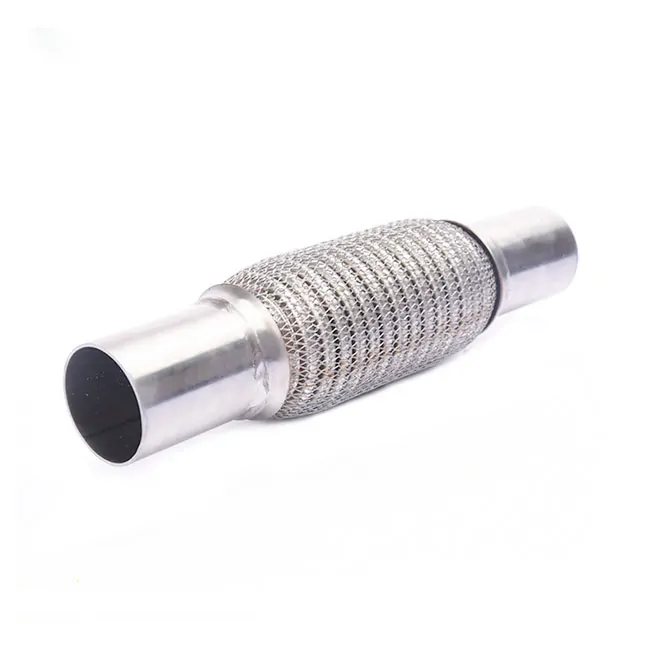

Running your hand along the exterior, you can feel the tightly woven metallic strands of the outer wire mesh, which provides both structural reinforcement and a distinct tactile resilience. This critical component acts as a shock absorber for your vehicle's undercarriage. By isolating the engine's constant oscillation from the rest of the exhaust manifold, it ensures that the entire system remains intact, preventing hazardous exhaust leaks and costly structural failures. The integration of extended nipples (connecting tubes) further simplifies the installation process, allowing for secure welding or clamping without compromising the integrity of the flexible core.

Product Specifications & Materials

Strict adherence to material specifications is paramount for components exposed to extreme thermal cycling and corrosive exhaust gases. The parameters below detail the exact construction elements that ensure the longevity and reliability of our flexible pipe assemblies.

Core Features & Performance Advantages

1. Automobile Exhaust System Component

As a foundational element of the vehicle's emission control infrastructure, this flexible pipe is engineered to withstand severe under-car environments. It effectively bridges the gap between the rigid engine manifold and the downstream exhaust components, maintaining a continuous, leak-free seal even under extreme thermal expansion and contraction.

2. Installed Between Engine and Muffler

Strategically positioned in the hottest and most volatile section of the exhaust route, this component acts as a vital thermal and kinetic buffer. Its placement ensures that the intense heat and aggressive vibrations originating from the engine block are dissipated before they can reach the more sensitive catalytic converter and muffler assemblies.

3. Decrease Vibration and Engine Noise

The combination of the corrugated bellows and the tightly braided outer wire mesh creates an exceptional acoustic and kinetic dampening effect. By absorbing the harsh, metallic rattling sounds and the deep, resonant vibrations of the engine, it significantly enhances the acoustic comfort within the vehicle cabin, providing a smoother, quieter driving experience.

4. To Compensate Displacement and Installation Tolerances

During the assembly of complex exhaust systems, slight misalignments are inevitable. The inherent flexibility of this pipe, combined with the extended nipples, easily compensates for these installation tolerances. This adaptability prevents forced fitting, which can introduce premature stress fractures into the piping, thereby ensuring a natural, tension-free connection.

5. Smooth Inner Surface to Ensure Waste Gas to Convey the Back Part

The internal interlock structure is meticulously designed to create a remarkably smooth pathway for exhaust gases. Unlike standard corrugated interiors that can cause turbulence and restrict flow, this interlocking liner ensures that high-velocity waste gases are conveyed swiftly and efficiently toward the rear of the vehicle, optimizing engine performance and fuel efficiency.

6. To Bear Load

Beyond flexibility, the robust construction of the outer wire mesh provides substantial tensile strength. It is engineered to bear the suspended weight of the exhaust system and resist the sheer forces encountered during rapid acceleration or rough terrain driving, ensuring the pipe does not elongate or deform under continuous mechanical stress.

Packaging & Delivery Standards

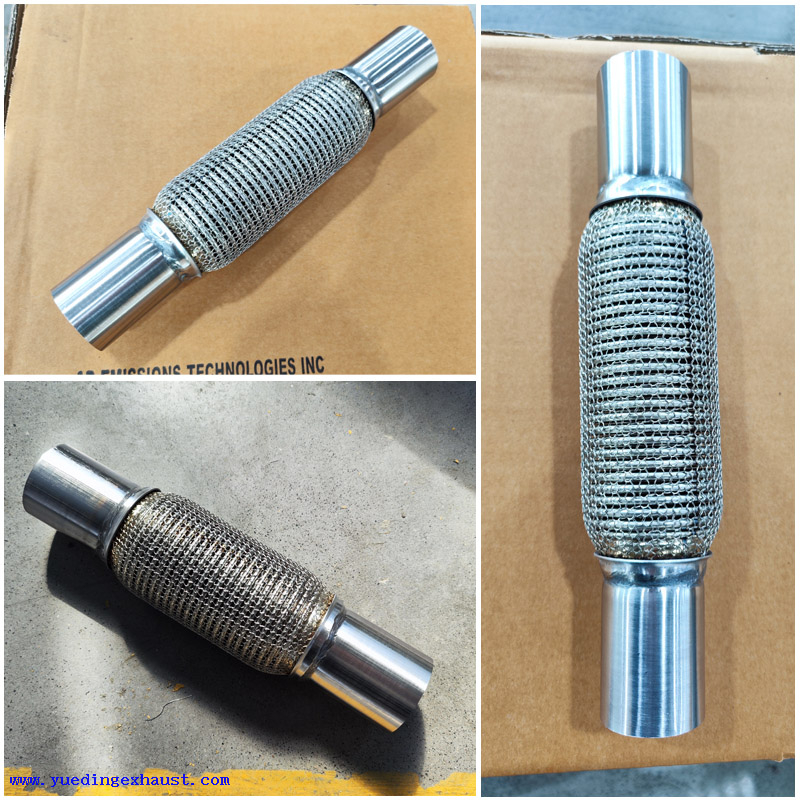

Understanding the rigors of global transit, our packaging protocols are designed to protect the structural integrity of every flexible pipe from our facility to your receiving dock. Each unit is carefully inspected to ensure the wire mesh is free from snags and the nipples are perfectly cylindrical before being packed. We provide comprehensive support for volume orders, offering customized SKU labeling, specific shipping marks, and systematic categorization to streamline your inventory management and sorting processes upon arrival. The components are securely nested within heavy-duty, moisture-resistant corrugated cartons and firmly strapped to standardized pallets, preventing any shifting or crushing during extended transit periods.

Why Do You Choose Us?

1. We are factory. The price is competitive.

As a direct source manufacturer, we eliminate intermediary markups, providing a direct line from our production floor to your supply chain. This vertical integration allows us to maintain strict cost controls while offering highly competitive pricing structures, especially advantageous for large-scale procurement and continuous assembly line demands.

2. Good quality is guaranteed. From production to loading, there are technical workers to inspect.

Quality control is embedded in every stage of our manufacturing process. From the initial forming of the stainless steel bellows to the precise matching of the outer mesh and the final welding of the caps, dedicated technical inspectors monitor the workflow. We conduct rigorous fatigue resistance and leak-proof testing to ensure every unit meets stringent automotive industry standards.

3. Delivery time is on time.

We understand that supply chain stability is critical for your operations. Backed by substantial manufacturing capacity and optimized production scheduling, we ensure rapid response times for standard specifications. Our commitment to punctuality means your production lines or aftermarket distribution networks will never face unnecessary downtime due to delayed components.

4. Sample are available. But you need to pay the freight.

To facilitate your evaluation process and ensure absolute compatibility with your specific exhaust system designs, we readily provide physical samples. This allows your engineering team to physically verify the dimensions, inspect the weld quality, and test the flexibility firsthand before committing to a volume order. Clients are only responsible for the associated shipping logistics costs.

5. Professional package which assure long distance sea transportation.

Our logistics team employs robust packaging solutions specifically engineered to withstand the challenging conditions of international ocean freight. By utilizing reinforced materials and precise spatial arrangement within containers, we eliminate the risk of deformation caused by stacking pressure or maritime humidity, ensuring the products arrive in pristine, ready-to-install condition.

Applications & Replacement Guide

The versatility of the outer wire mesh flexible pipe makes it an indispensable component across a wide spectrum of automotive and industrial applications. Its robust design is particularly suited for environments where mechanical stress and thermal variance are constant factors.

• Passenger Vehicles: Ideal for routine exhaust system repairs and OEM replacements, ensuring a quiet cabin and preventing premature manifold cracking.

• Commercial & Industrial Vehicles: Provides the necessary durability to handle the heavier vibrations and higher exhaust temperatures generated by larger diesel engines.

• Custom Exhaust Fabrication: The included nipples offer a clean, uniform surface that accommodates both precise TIG/MIG welding and heavy-duty exhaust clamps, giving fabricators multiple secure connection options.

• System Retrofitting: When upgrading catalytic converters or mufflers, this flexible pipe serves as the perfect transitional piece to absorb any new dimensional discrepancies or shifting resonance frequencies.
