Are You Using The Right Clamp for Your System?

Why Choosing the Right Clamp Matters

In a piping system, clamps (hose clamps / band clamps / mounting clamps) may seem like “small parts,” but they often serve as the last millimeter defense of the sealing system. If the clamp is mis-selected, subjected to uneven force, made from a material that doesn’t resist corrosion, or installed poorly, you may face leaks, looseness, creep failure, and other problems. In high temperature, high pressure, vibration, or chemically aggressive environments, this risk becomes especially serious.

From the perspective of stress distribution, an ideal clamp should deliver a uniform circumferential compressive force, without obvious stress concentration (especially at threads or fastening sections). Also, as temperature changes or the pipe material expands and contracts, the clamp needs a certain “strain margin” to maintain stable clamping force. This is why in automotive cooling systems, boost systems, exhaust systems, sprinkler systems, or plumbing engineering, different use cases often require different styles of clamps.

Next, we will take each use-case keyword and explain what types of clamps are appropriate and what points to watch.

Typical Applications

Radiator Hose Clamps / Marine Grade Hose Clamps
These clamps are used in automotive cooling water circuits or marine cooling systems, where they must endure thermal cycling, pressure, and corrosive environments. For selection, stainless steels such as 304, 316, or 316L are preferred for corrosion resistance and fatigue strength. Threaded (worm-gear type) or spring clamps are used to accommodate minor diameter adjustments and thermal expansion. In systems with frequent thermal cycling or large temperature differences, constant-tension spring clamps or dual-wire/dual-leaf spring clamps perform better by maintaining clamping force under temperature fluctuations. For instance, in an engine area where cooling hoses vary between –40 °C and +110 °C during operation, a spring clamp helps reduce relaxation risk.

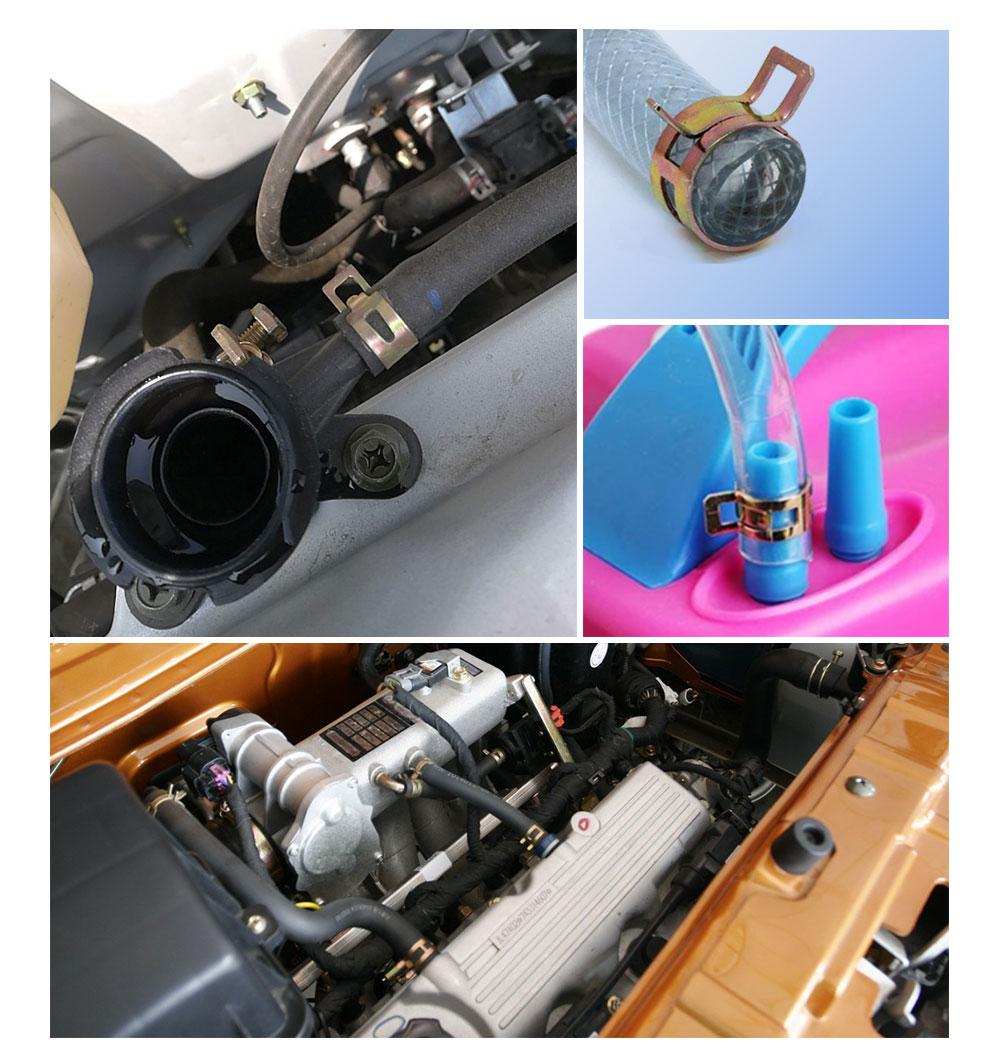

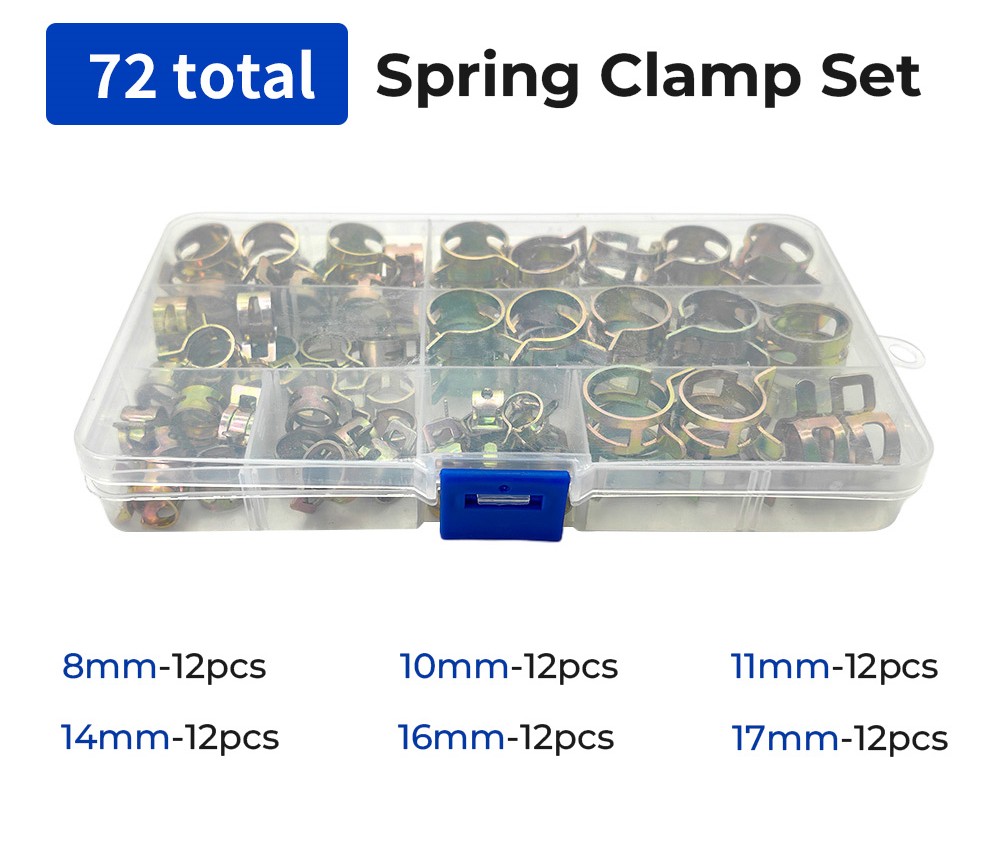

Our spring clamp kits cover the most common hose sizes on the market and are suitable for use in automotive and marine cooling systems, turbocharger connections, exhaust systems, and plumbing or sprinkler applications.

Turbo Clamps / Band Clamps for Hoses

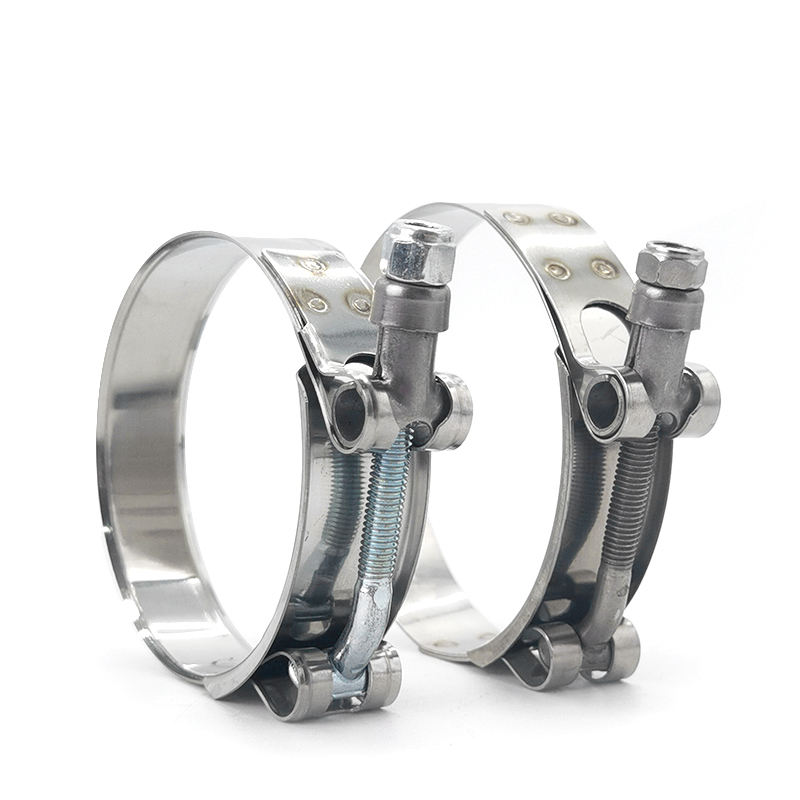

In turbocharged systems and boost pipe connections, clamps must withstand high internal pressures and dynamic loads. Selection should lean toward T-bolt clamps or heavy-duty wide-band clamps to distribute force and reduce local deformation. Designs with reinforced bridges or stiffening ribs can improve anti-deformation strength. A wide band (e.g. 12 mm or wider) increases the contact area with the seal and reduces indentation risk on softer hoses.

Muffler Clamps / Muffler Mounting Clamps

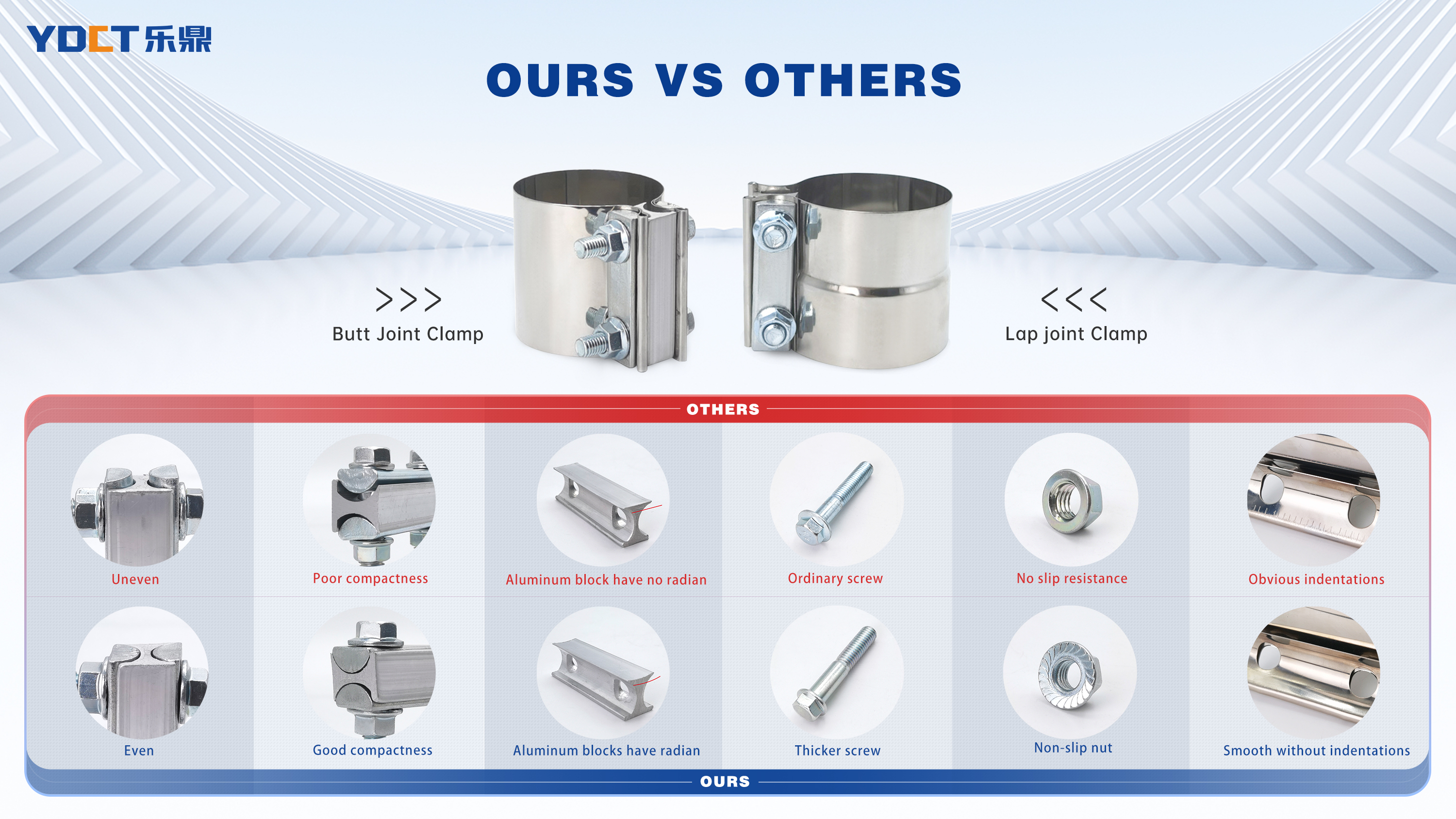

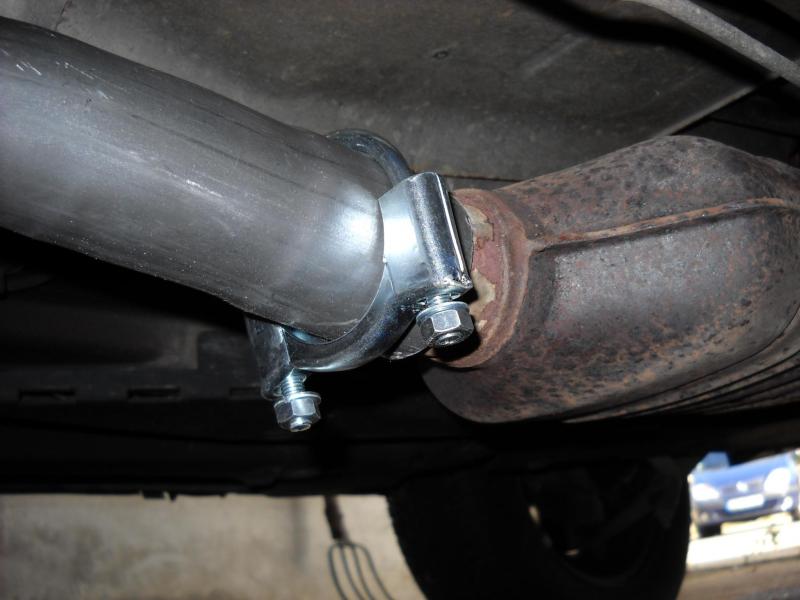

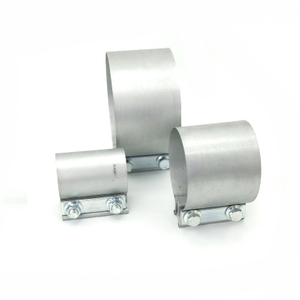

These are used in exhaust systems, connecting exhaust pipes and mufflers. Because exhaust temperatures can reach hundreds of degrees or more, high temperature corrosion-resistant stainless steels such as 309, 310, or 316 are recommended. The clamping force should not be excessive to avoid damaging the muffler shell; U-bolt clamps are often used. In addition,Butt joint clamps and lap joint clamps are particularly suitable for these applications, serving as the preferred choice for securely joining large-diameter exhaust pipes while maintaining reliable performance under high temperature and vibration conditions.

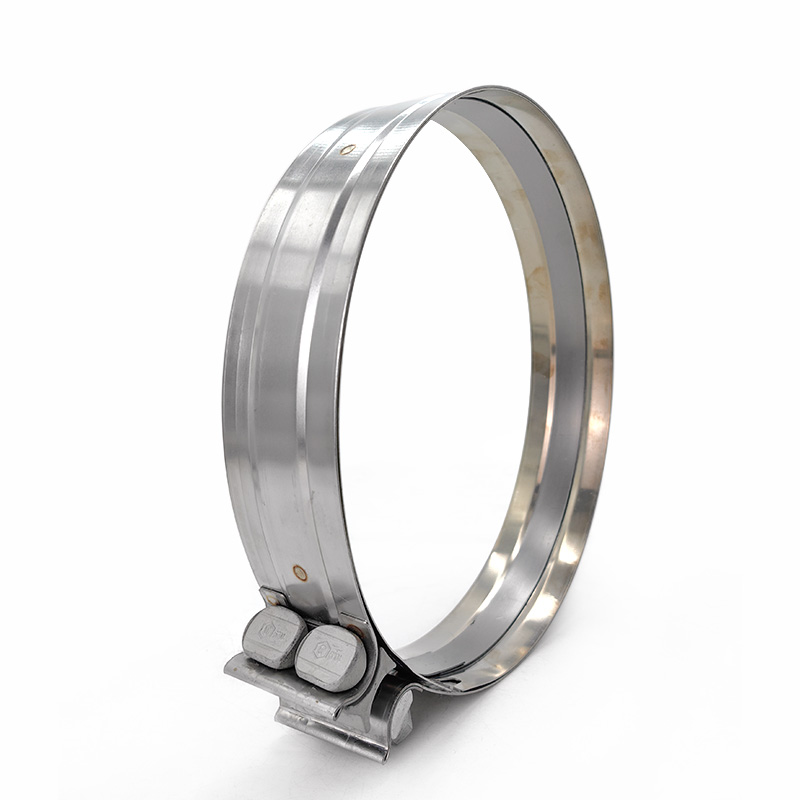

DPF Clamps
DPF (Diesel Particulate Filter) clamps connect the DPF unit with exhaust piping, facing very high temperatures, corrosive gases (e.g. sulfur compounds, acids), and vibration. Selection demands resistance to high heat and corrosion, as well as precise control of sealing surface pressure, bolt pre-load, and thermal expansion compensation. Some designs adopt V-band clamps, locking band spring structures, or symmetrical pressure plate designs to ensure both easy disassembly and reliable sealing.

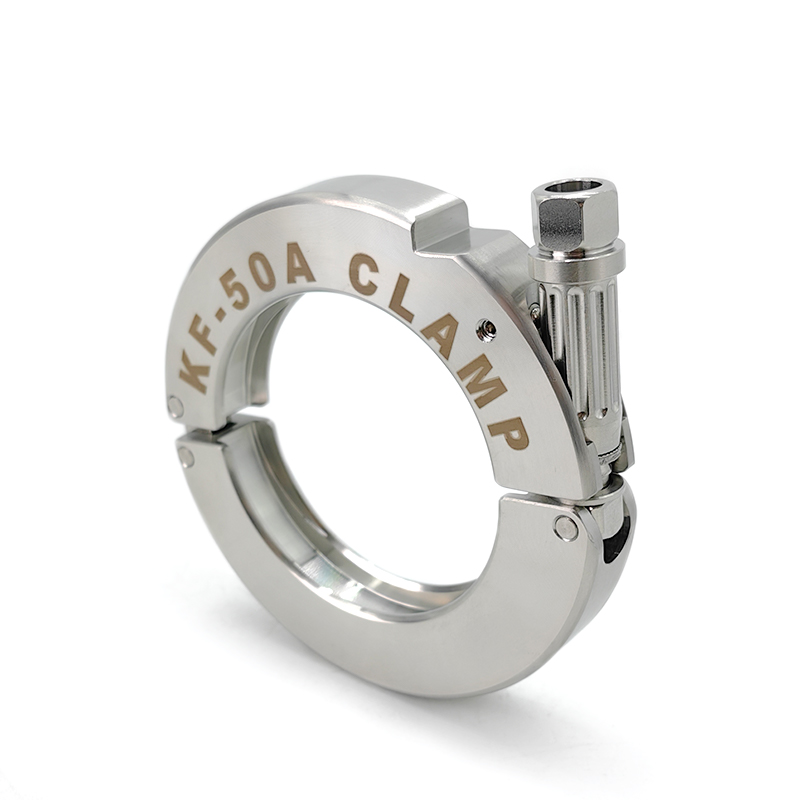

KF Clamp
KF clamps are used in vacuum systems, vacuum chambers, and vacuum piping (e.g. vacuum pumps, flange connections). The standard demands that the clamp works in coordination with a centering ring to ensure vacuum sealing. Common materials are aluminum alloy or stainless steel; the clamp structure must allow adjusted compression force to make full contact with the O-ring sealing surface. If the system also needs to resist overpressure or has strict leak rate requirements, an overpressure ring design may be necessary.

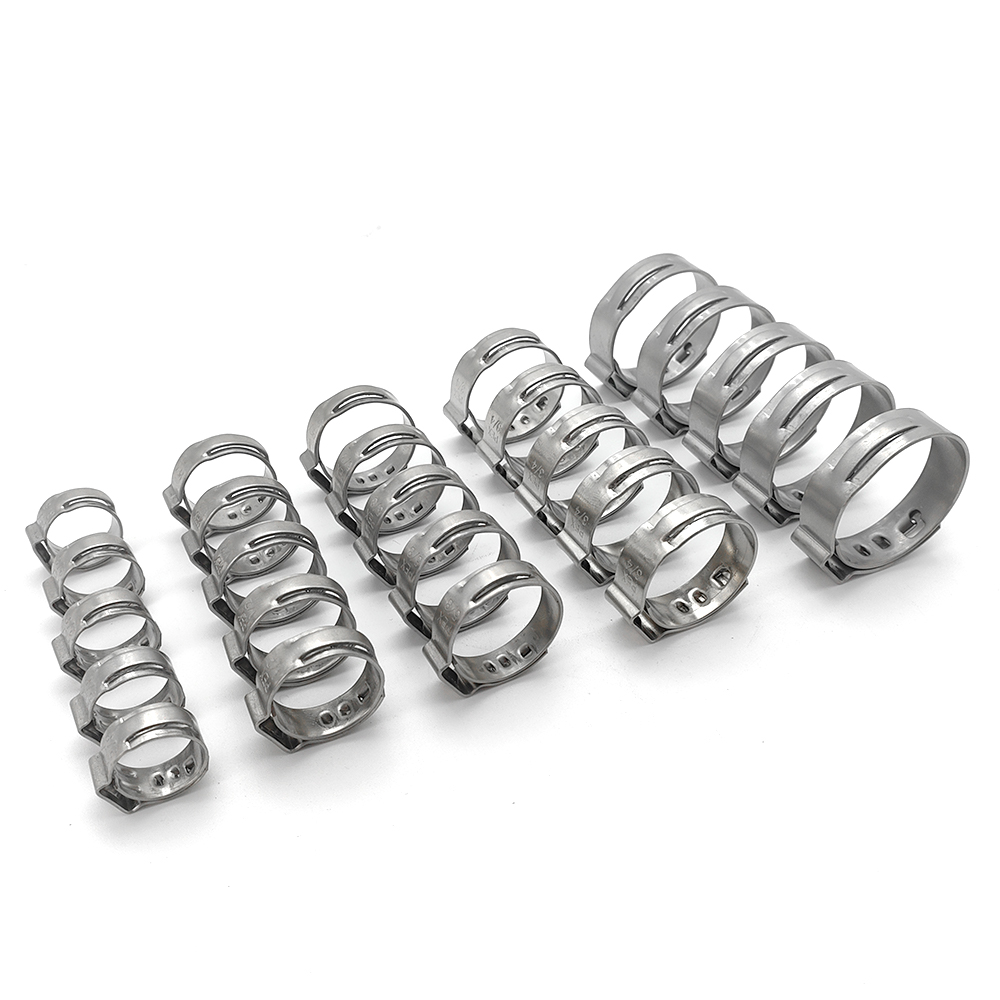

PEX Cinch Clamp
PEX cinch clamps are deployed in plumbing, heating, or underfloor heating systems for securing cross-linked polyethylene (PEX) pipes. They must comply with standards (such as ASTM F1807 / F2159). The cinch (crimp-type) clamp is compressed once with a special tool to form a permanent lock. Materials are typically stainless steel, with demands for corrosion resistance, water pressure resistance, and long-term stability.

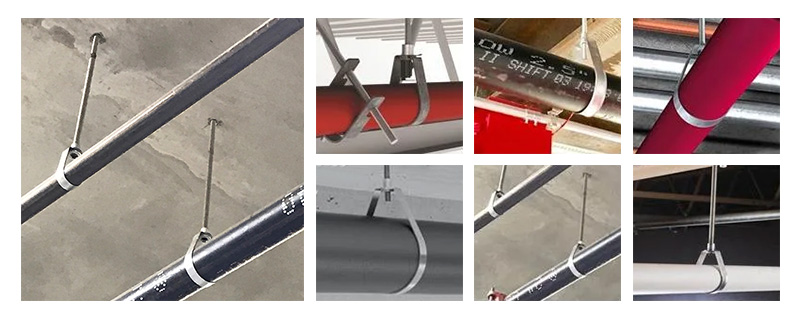

Sprinkler Hanger Clamp
These clamps serve fire sprinkler systems and pipeline suspension support. They require strong load bearing capacity, sturdy structure, and good fire resistance. Stainless steel or galvanized steel is commonly used, often with vibration damping pads or anti-vibration accessories. The width, thickness, and machining accuracy of the hanger clamp need to ensure safety over long service periods.

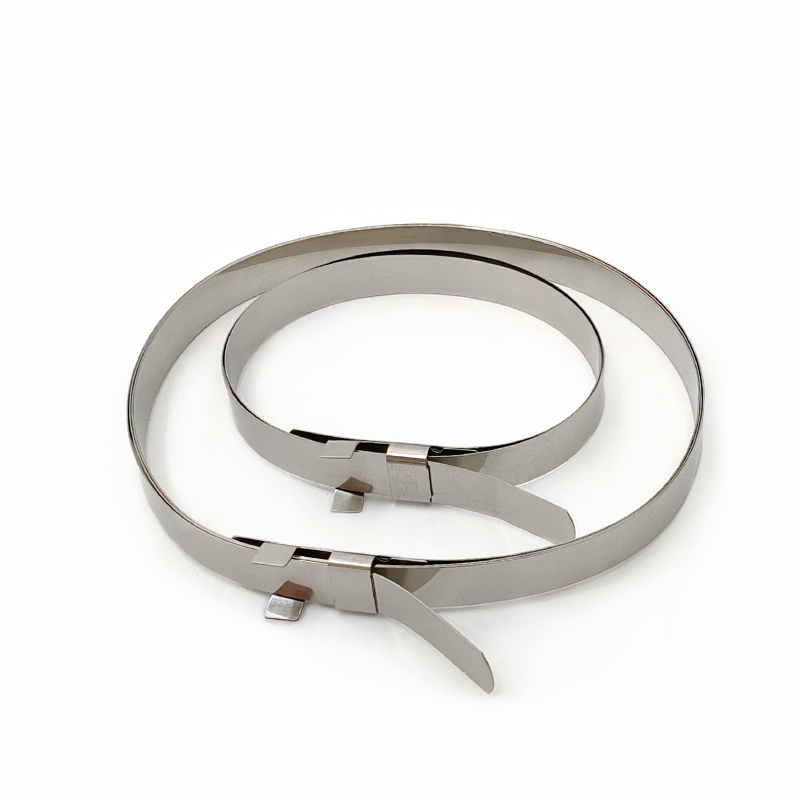

CV Joint Boot Clamp / CV Clamp
Used to fix the dust boot (boot) of a vehicle’s CV joint, these clamps must maintain sealing under high temperature, oil exposure, and centrifugal forces. Common are Oetiker style ear clamps (single-ear / double-ear) or small screw clamps. Important considerations include oil resistance, high temperature performance (engine compartment temperatures may reach 120–150 °C), and dust sealing. Ear-type clamps, once crimped, are usually non-reusable and must ensure one-time forming quality.

Clamp Material, Strength & Lifetime Considerations

Material Grades
Clamps commonly use materials such as stainless steel (304, 316, 316L), spring steel, aluminum alloy, or zinc-plated steel. In high corrosion settings (marine environments, salt spray, exhaust systems), 316 / 316L stainless or specially treated surface versions are recommended.

Structural Geometry & Cross-Section Design
Wide band structures, dual-line bands, reinforced bridges, ribs, and beveled edges significantly enhance deformation resistance and stress uniformity. The wider the band, the lower the per-unit area stress under the same loading, helping reduce indentation.

Torque / Preload Control
In automotive and engineering systems, using a torque wrench or setting a precise tightening value prevents over-tightening from damaging hoses or flanges. For thread-driven clamps, one must calculate the thread friction, band stiffness, and deformation of the gripped object to determine the required preload.

Fatigue & Thermal Cycling Effects
Repeated thermal expansion and contraction cycles can cause creep, relaxation, or plastic deformations, especially in high temperature or wide thermal swing conditions. In such cases, spring clamps or designs with compensation features (locking latches, dual springs, wave structures) help maintain stable clamping force over time.

Corrosion Resistance & Accelerated Life Testing

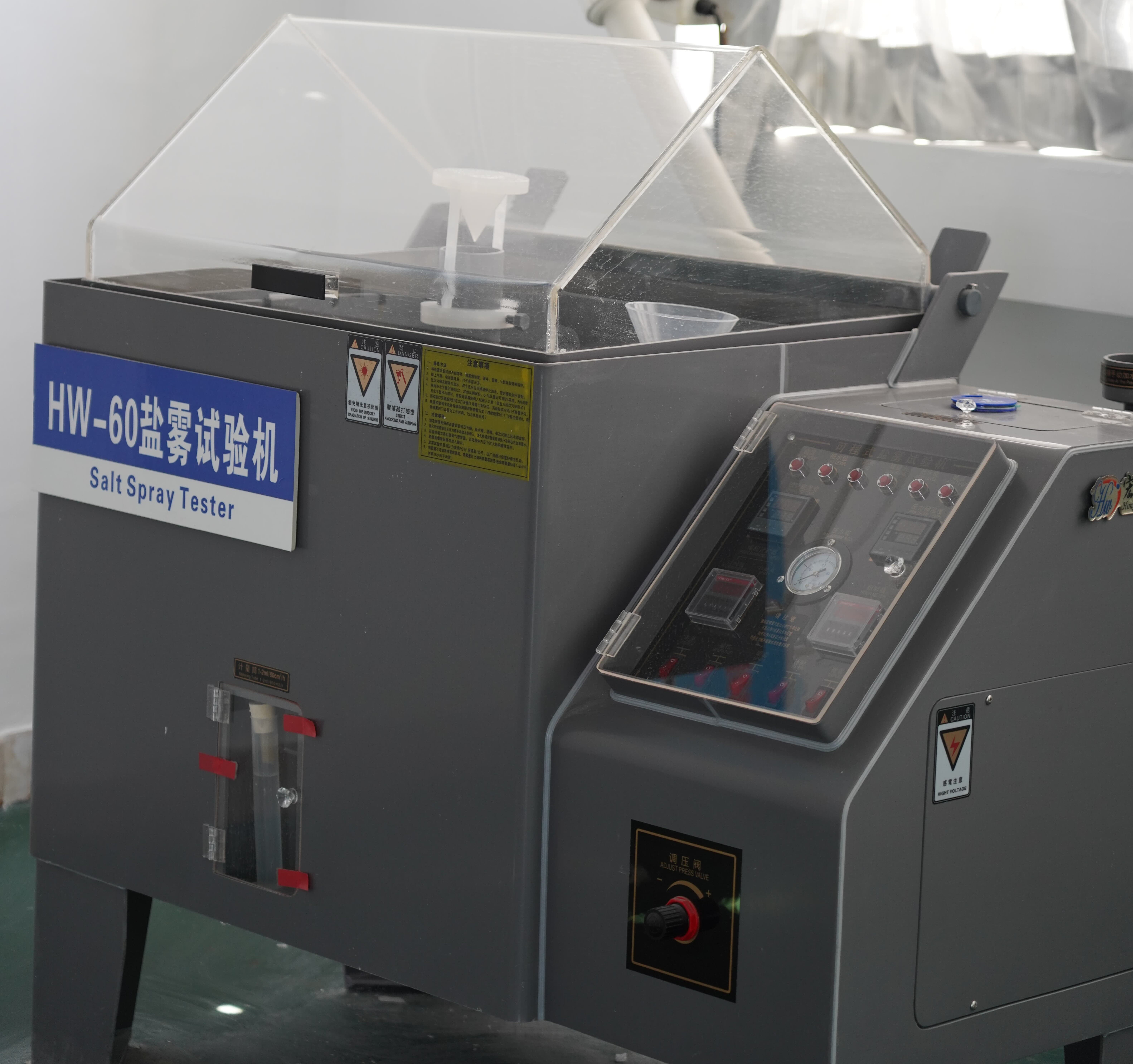

In factory mass production, clamp samples should undergo salt spray tests (e.g. 500 h, 1000 h, 2000 h, etc.) to verify corrosion resistance. High temperature aging, vibration life tests, and stress relaxation tests are all vital to ensure customers’ long-term confidence.We can provide customers with relevant test reports to ensure the quality of our products.

Installation Tips & Common Failure Issues

Installation Position & Clearance: The clamp should avoid being placed too close to elbows, joints or walls, and should leave enough space for a wrench or driver.
Symmetric Placement / Multiple Clamps: For longer hoses or high-pressure lines, it’s wise to apply clamps at both ends or offset two clamps to avoid uneven sealing pressure.
Avoid Sharp Edges / Burrs: Clamp edges should be chamfered or de-burred to avoid cutting into the hose.
Torque Errors / Overtightening / Undertightening: Too loose leads to leaks or loosening; too tight causes hose deformation, stress concentration, or early failure.
Vibration Loosening / Relaxation: In vibrating environments, threaded connections may loosen. Use lock washer, double nuts, or self-locking designs to reduce risk.
Material Thermal Expansion Mismatch: If the expansion coefficients of pipe and clamp differ greatly, temperature changes will cause tension swings. Consider elastic designs or allow strain compensation.

FAQ

Q: Can clamps be reused?
A: It depends on the type of clamp. Threaded (worm gear) clamps are typically reusable (provided threads and band aren’t damaged), but ear clamps (Oetiker / single-ear / double-ear) are usually non-reversible after crimping. You must judge based on the specific type.

Q: How to judge if the clamp’s clamping is sufficient?
A: You can use leak detection fluids (like dye / leak detector), pressure testing, vibration tests, etc. More precisely, in the design stage you estimate pressure, band elastic modulus, friction coefficients, etc., and calculate the needed initial preload and safety margin.

Q: I have a hose of 50 mm diameter under 1 MPa pressure; what clamp should I choose?
A: 1 MPa (≈10 bar) is relatively high for hoses. A heavy-duty T-bolt clamp or widened band clamp is recommended, and symmetric installation is prudent for stability. If the system also involves thermal cycles, vibration, or corrosive media, pick a higher grade material (e.g. 316 stainless) and add safety margin.

Q: How to handle loosening due to thermal expansion / contraction?
A: Use spring clamps or constant-tension designs, or incorporate compensating structure/slip allowance in the design. Or during initial installation apply extra preload to offset expected relaxation.

Q: Are all clamps suitable for marine or salt spray environments?
A: No. For marine / salt spray environments, you must use high-corrosion-resistant materials (316 / 316L stainless, nickel alloys, or surface-treated versions) and validate via strict corrosion tests. Ordinary 304 or zinc-plated clamp tends to corrode under prolonged salt spray exposure.

Conclusion: Choose Wisely, Enhance Reliability

In designing and selecting clamps, you shouldn’t stop at “I have this pipe” or “I need this usage.” You must dive deeper and consider:

• Environmental factors: temperature range, vibration, chemicals, corrosion

• Pressure levels: static pressure, pulsating peaks, pressure fluctuations

• Material compatibility: thermal expansion coefficients of hose / pipe vs clamp, stress distribution at contact

• Lifetime / reliability requirements: long-term durability, vibration fatigue, stress relaxation

• Installation & maintenance convenience: ease of disassembly, reusability, spare capacity

We provide support in technical selection, material verification, and customized solutions—including OEM logos, packaging, markings, and size variations—so you can choose the right clamp with confidence. By combining our experience and quality standards, we help ensure long-term performance, durability, and reliable operation in your applications.
