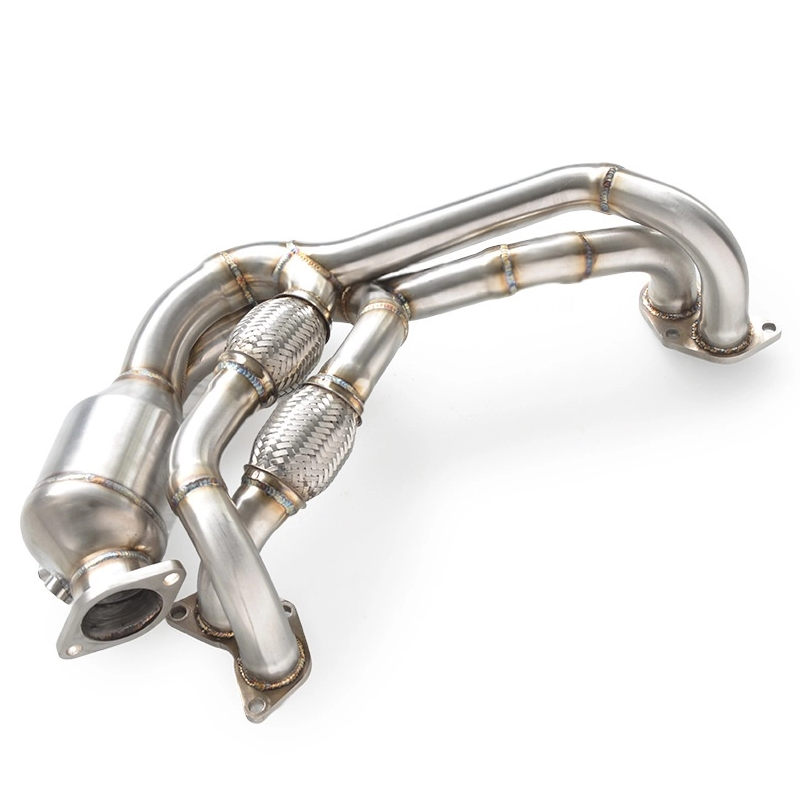

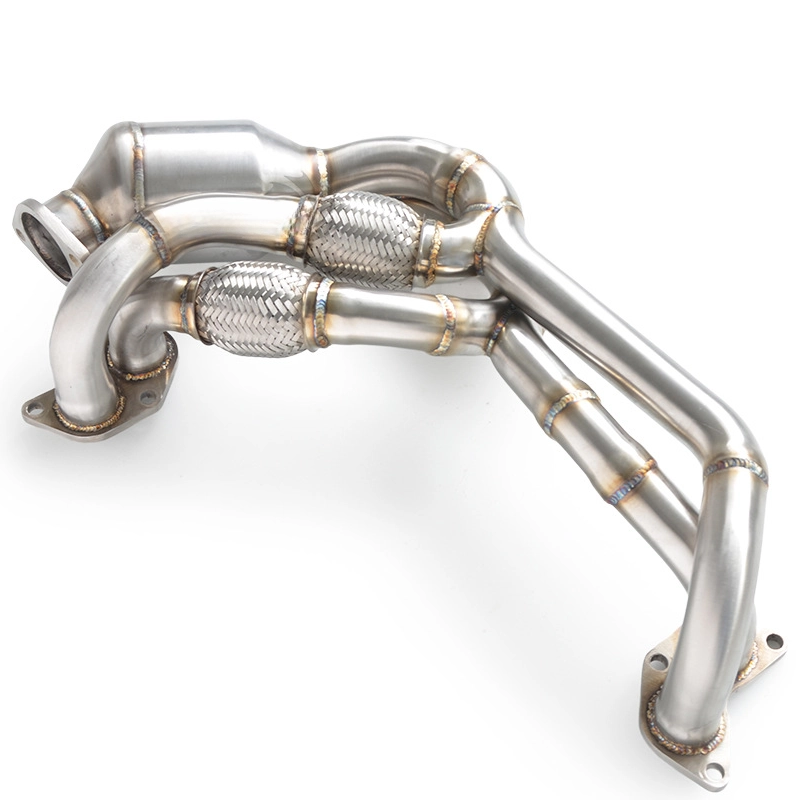

Performance Exhaust Header Overview

This performance exhaust header is designed for Toyota GR86 models equipped with the FA24 2.4L flat-four engine. It replaces the factory exhaust manifold with an equal-length stainless steel runner layout intended to provide a more direct and consistent exhaust path.

The header is manufactured from 304 stainless steel and combines mandrel-bent tubing, TIG-welded joints, and precision CNC-machined flanges. These construction methods help maintain tube geometry, mounting accuracy, and structural stability in an exhaust environment exposed to repeated heat cycles and vibration.

The product is suitable for performance tuning workshops, aftermarket exhaust brands, racing projects, automotive wholesalers, and distributors looking for a GR86-specific exhaust component for individual sale or inclusion in a complete exhaust package.

Rather than assigning a fixed horsepower claim, this header should be evaluated as part of the complete exhaust and engine setup. Final vehicle performance can depend on the catalyst configuration, downstream exhaust, ECU calibration, fuel, and other modifications.

Toyota GR86 FA24 Fitment

This version is intended for 2022–2024 Toyota GR86 models equipped with the FA24 2.4L flat-four engine.

The mounting layout is designed around the FA24 exhaust side and provides a direct bolt-on replacement at the engine-side mounting points. A pre-installed oxygen sensor port is incorporated into the header for the required sensor connection.

Both automatic and manual transmission GR86 applications can be accommodated by the header layout.

Earlier Toyota 86 and GT86 vehicles use different engine configurations. Buyers sourcing headers for those models should provide the vehicle year, engine code, or an existing part drawing before ordering so that fitment can be confirmed separately.

For distributors ordering across several model years, confirming the exact vehicle and engine information before production helps prevent mixed fitment within the same shipment.

Equal-Length Header Design

The header uses equal-length primary tubes rather than routing each cylinder through substantially different runner lengths.

Keeping the primary exhaust paths similar in length helps create a more consistent route from the cylinder-head outlets toward the collector. This layout is commonly selected for naturally aspirated performance exhaust applications where balanced exhaust pulse routing is preferred.

Smooth tube transitions are formed through mandrel bending. The process is intended to maintain the internal tube profile through bends rather than introducing unnecessary flattening or abrupt changes in section.

The runner routing is also designed around the available GR86 engine-bay space. This allows the header to combine the required flow path with practical mounting clearance and service access.

Actual horsepower, torque, or throttle-response changes depend on the complete vehicle configuration. For this reason, Yueding does not assign a universal power-gain figure to the header without a defined vehicle and test setup.

304 Stainless Steel Construction

304 Stainless Steel Tubing

The header is manufactured from 304 stainless steel, a material widely used for aftermarket exhaust components because it combines corrosion resistance, formability, and suitability for repeated exhaust heat cycles.

The stainless construction also provides a suitable base for both the standard polished surface and optional ceramic-coated finish.

TIG-Welded Joints

The exhaust tubes and connection areas are joined using TIG welding. TIG welding allows controlled joints to be produced around tubular exhaust components where consistent penetration, joint alignment, and a clean finished seam are important. Welded areas are checked during production before the completed header proceeds to final finishing and inspection.

10 mm CNC-Machined Flange

The cylinder-head flange is CNC machined and has a specified thickness of 10 mm. Machining helps control bolt-hole positioning and sealing-surface geometry. The thicker flange also provides a stable mounting interface between the header and cylinder head during repeated heating and cooling.

Mandrel Bending and Inspection

Primary tubes are formed using mandrel bending to maintain the intended runner shape through curved sections. Manufacturing includes precision TIG welding, CNC flange machining, leak pressure testing, and surface treatment. These steps are used to check the completed assembly before packing and shipment.

Key Features

Equal-Length Primary Tubes

Equal-length runners provide a balanced exhaust routing layout for the FA24 engine and form the main design characteristic of this GR86 header.

304 Stainless Steel

The complete header uses 304 stainless steel for corrosion resistance and long-term use in high-temperature automotive exhaust environments.

CNC-Machined 10 mm Flange

A precision-machined mounting flange provides defined mounting-hole locations and a stable sealing surface at the cylinder head.

TIG-Welded Construction

TIG-welded joints are used throughout the header to maintain accurate tube positioning and durable welded connections.

Pre-Installed O2 Sensor Port

An oxygen sensor port is integrated into the header, allowing the required sensor to be installed without adding a separate bung during normal assembly.

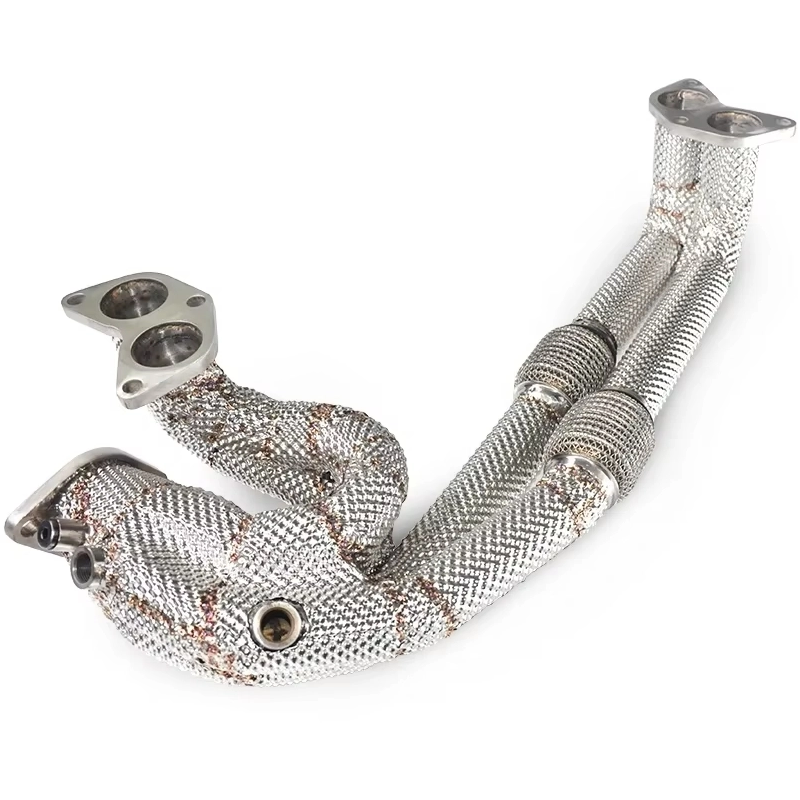

Polished or Ceramic-Coated Finish

The standard version is available with a polished stainless steel surface. Ceramic coating can also be supplied as an optional finish according to project requirements.

Direct Bolt-On Installation

The header is designed as a direct bolt-on replacement at the engine-side mounting points, reducing the need for fabrication during normal installation. Downstream exhaust and catalyst compatibility should still be checked according to the exact vehicle and exhaust configuration.

Technical Specifications

Applications

The Toyota GR86 performance exhaust header can be supplied for several aftermarket and motorsport-related applications.

Performance Tuning Workshops

Tuning workshops can use the header as part of naturally aspirated GR86 exhaust upgrades or larger vehicle modification projects. Because downstream exhaust arrangements vary, workshops can match the header with suitable front-pipe, catalyst, mid-pipe, and muffler configurations according to the vehicle build.

Aftermarket Exhaust Brands

Performance parts brands can source the header as an individual product or integrate it into a broader GR86 exhaust product range. Logo engraving, surface finish, flange requirements, and packaging can be discussed for private-label or distributor programs.

Racing and Track Projects

The stainless steel construction, equal-length layout, and TIG-welded assembly make the header suitable for GR86 track and racing projects where an aftermarket manifold is required. Vehicle setup, local competition rules, noise requirements, and catalyst requirements should be reviewed separately for each project.

Automotive Wholesalers and Distributors

The product can be supplied in repeat batches for automotive wholesalers and regional performance parts distributors. It may be sold individually or combined with compatible exhaust components within distributor kits.

Installation and System Compatibility

The header is designed as a direct replacement at the FA24 cylinder-head mounting points. Professional installation is recommended, especially when the vehicle uses other aftermarket exhaust components.

Before installation, the technician should confirm the condition of the sealing surfaces, gaskets, fasteners, oxygen sensor, and downstream exhaust connection.

The integrated O2 sensor port allows the required oxygen sensor to be installed in the header. Sensor wiring should be routed away from excessive heat and moving components after installation.

Because exhaust systems can differ between factory and modified vehicles, the connection between the header, catalyst, front pipe, or other downstream components should be checked before ordering.

If the original manifold contains a catalytic converter, replacing that assembly may require a corresponding high-flow catalyst or compatible downstream exhaust configuration.

After installation, all fasteners and connections should be checked for correct tightening and exhaust leakage. A second inspection after initial heat cycling is recommended for modified exhaust systems.

Local emissions and road-use regulations also vary by market. Buyers and installers should confirm applicable requirements before removing or changing any factory emissions-control component.

Customization and Wholesale Supply

Yueding supports exhaust header supply for distributors, tuning brands, workshops, and other aftermarket automotive customers.

Available customization can include:

• Logo engraving

• Flange thickness adjustment

• Optional ceramic coating

• Surface finish requirements

• Packaging design

• Private-label packaging

• Order quantities by model

The standard MOQ is 10–50 units per model and can be customized according to the project.

For custom exhaust header projects, buyers can provide vehicle information, drawings, samples, required flange details, coating requirements, branding information, and expected order quantity for technical review.

Manufacturing processes can include mandrel bending, precision TIG welding, CNC-machined flanges, leak pressure testing, and anti-corrosion surface treatment.

For international distributor orders, packaging, labeling, shipment preparation, and related export documentation can be discussed according to the destination and purchasing arrangement.

FAQ

Does This GR86 Exhaust Header Fit Both Manual and Automatic Models?

Yes. The header layout is designed to accommodate both manual and automatic transmission Toyota GR86 models equipped with the applicable FA24 2.4L engine. Vehicle year and engine specification should still be confirmed before ordering.

Can This Exhaust Header Be Used With the OEM Catalytic Converter?

The header replaces the factory manifold assembly. Depending on the vehicle's original catalyst arrangement and downstream exhaust setup, a compatible high-flow catalytic converter or matching pipe may be required. Buyers should confirm the complete exhaust configuration before installation.

Will Installing an Aftermarket Header Cause a Check Engine Light?

A check engine light can depend on catalyst configuration, oxygen sensor readings, ECU strategy, and other exhaust modifications. The header includes a pre-installed O2 sensor port, but the presence of the port alone cannot guarantee that no diagnostic code will occur on every vehicle setup.

Does a Toyota GR86 Need ECU Tuning After a Header Is Installed?

The requirement for ECU calibration depends on the exact header, catalyst arrangement, other engine modifications, and the intended use of the vehicle. For modified performance setups, consultation with an experienced GR86 tuner is recommended.

Is This Header Suitable for a Turbocharged FA24 Build?

This version is primarily intended for naturally aspirated exhaust applications. Turbocharged FA24 projects normally require a different manifold layout, flange position, reinforcement strategy, and turbo mounting arrangement. Custom manifold requirements can be reviewed separately.
