1.75 Inch V-Band Clamp Overview

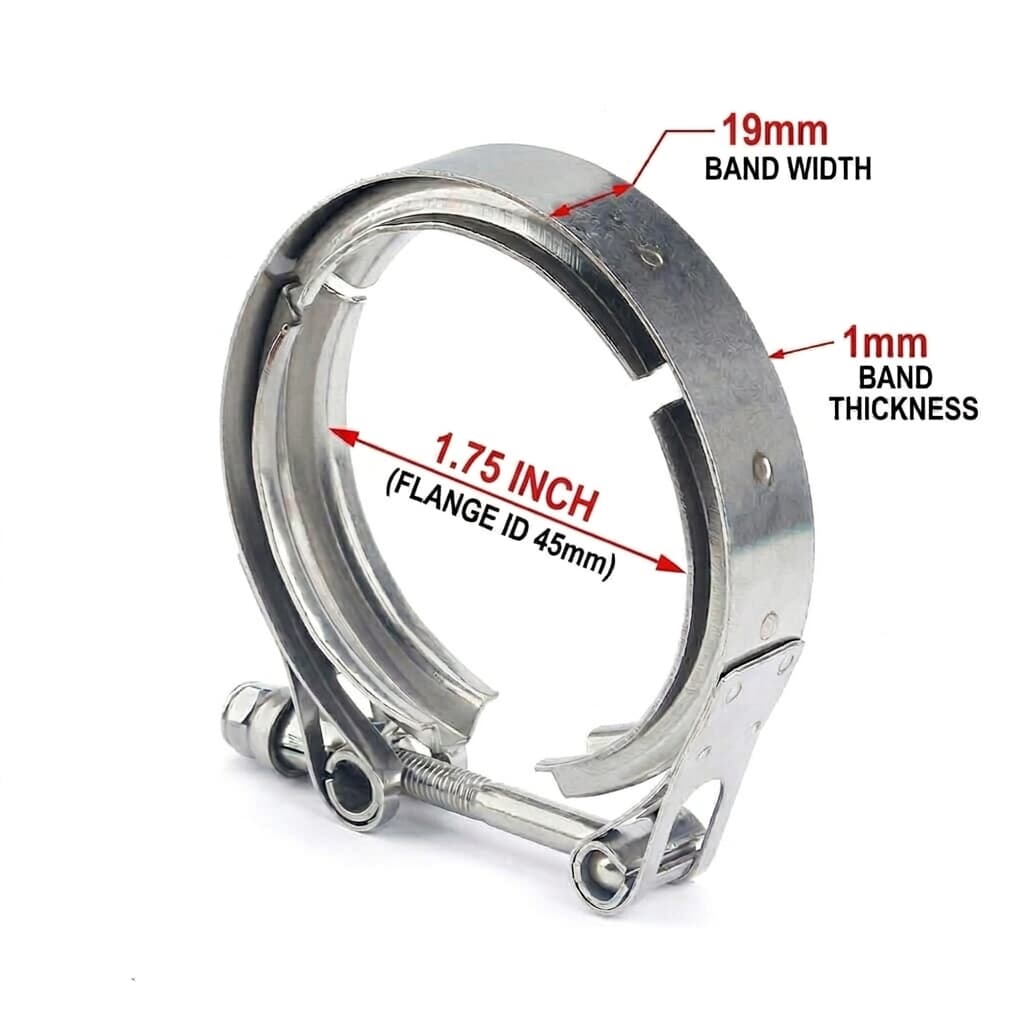

Our 1.75 inch exhaust V-band clamp provides a compact connection for pipe systems where space, service access, and joint alignment are important. The standard clamp uses AISI 304 stainless steel and is produced for a 45 mm ID flange connection. The band dimensions are controlled at 19 × 1 mm.

The V-band structure applies clamping force around the circumference of the mating flange pair rather than relying on several individual flange bolts. This makes the connection useful in compact exhaust layouts and other systems where conventional multi-bolt flanges would require more installation space.

Matching male and female flanges can be supplied with the clamp. Their mating profiles help position the two pipe sections during assembly and reduce the chance of lateral misalignment at the joint.

This size is commonly used around external wastegate piping, compact turbo manifolds, racing exhaust systems, motorcycle exhaust fabrication, and other small-diameter high-temperature pipe connections.

V-Band Clamp Specifications

Actual flange profile and mating dimensions should be checked when the clamp is intended to connect with an existing V-band component. Nominal pipe size alone does not define every flange dimension.

SS304 Clamp and Male/Female Flange Design

AISI 304 Stainless Steel Construction

AISI 304 stainless steel is used for the standard clamp because it combines corrosion resistance, forming capability, and mechanical strength for common exhaust connection applications.

The material is suitable for many automotive and industrial environments where the clamp experiences repeated heating, cooling, moisture, and vibration. Material selection should still be based on the actual exhaust temperature, corrosion exposure, and required service conditions.

For projects requiring different corrosion or temperature performance, other stainless steel grades can also be discussed.

Male/Female Flange Alignment

The matching flange set uses male and female mating profiles. When the two sides are brought together, the profiles help center the joint before the V-band clamp is tightened.

This arrangement is especially useful during fabrication because pipe alignment can be checked before final tightening. Correct flange positioning also allows the V-band clamp to sit evenly around the circumference of the joint.

The weld-side geometry of the flange should match the pipe being used. For replacement applications, we recommend confirming the existing flange ID, overall diameter, V-profile, step dimensions, and mating surface rather than selecting the clamp only by nominal pipe size.

Compact Serviceable Connection

A V-band joint can be opened without removing several separate flange bolts. This is useful on systems where turbochargers, wastegates, exhaust sections, or other connected components may need periodic removal.

For applications requiring more frequent disassembly, we can also supply quick-release clamp structures. Safety-pin structures are available for projects where additional retention is required in vibration-sensitive installations.

Applications for 1.75 Inch V-Band Clamps

External Wastegate Connections

The 1.75 inch / 45 mm size is commonly considered for compact external wastegate piping and bypass connections.

Wastegate products in the 44–45 mm class are one reason this connection size appears frequently in performance exhaust fabrication. Examples may include systems built around components such as TiAL MVR 44 mm, Precision Turbo PW46, or Turbosmart Gen-V Hyper-Gate 45 units.

However, wastegate manufacturers can use different flange profiles and dimensions. Actual compatibility should therefore be checked against the existing flange, technical drawing, or physical sample before ordering.

Turbo Manifolds and Performance Exhaust Systems

The compact V-band connection is also used on custom turbo manifolds and exhaust systems where space around the engine bay is limited.

Applications can include custom exhaust layouts built around engines such as the Nissan SR20DET, Subaru EJ25, and Toyota 2JZ-GTE. The correct clamp and flange selection depends on the pipe diameter and the specific manifold or wastegate configuration rather than the engine model alone.

For fabrication projects, the male/female flange arrangement also helps establish pipe alignment before the joint is fully secured.

Motorcycle Exhaust Systems

A 45 mm V-band connection can be used in custom motorcycle exhaust sections where compact packaging and removable joints are required.

Applications may include custom mid-pipes and fabricated exhaust sections for motorcycles such as Ducati models or the BMW S1000RR. Because exhaust layouts vary by model year and aftermarket system, pipe and flange dimensions should be verified before production.

Specialized Pipe Connections

The same V-band principle can also be applied outside conventional automotive exhaust systems.

Small gas-handling systems, experimental equipment, and micro-gas turbine research may use compact V-band connections where vibration resistance, service access, and repeated assembly are important. Material and flange configuration should be selected according to actual temperature, pressure, medium, and operating conditions.

Installation and Fitment

Correct fitment starts with the flange rather than the clamp alone. Before welding, check that both flange bores correspond to the pipe size and that the male and female profiles mate correctly.

The pipe ends should be clean and properly aligned before welding. Uneven flange positioning can cause the clamp to load one side of the joint more heavily than the other.

During fabrication, tack welding the flanges before completing the final weld can help maintain alignment. The flange faces should be allowed to cool and checked again before the clamp is fully installed.

When assembling the finished joint, place the clamp evenly around both flange profiles. Tighten the fastener gradually while checking that the V-band remains centered.

Do not use the clamp to pull two severely misaligned pipe sections into position. Excessive pipe stress can affect flange seating and may shorten the working life of the clamp or adjoining exhaust components.

After initial installation and the first operating heat cycles, the connection can be inspected for clamp position, flange seating, and any signs of loosening.

V-Band Clamp Manufacturing and Quality Control

We manufacture exhaust flexible connection components, metal bellows, clamps, and related pipe hardware in our production facility in Zhejiang, China.

Our manufacturing base covers more than 20,000 square meters and supports regular production, mixed specifications, and drawing-based custom orders. Our products are supplied to customers in more than 100 countries and regions.

Production processes include raw material preparation, tooling development, stamping and forming, welding, machining, surface finishing, assembly, and inspection. Keeping these processes under coordinated production control helps us maintain consistent dimensions between initial samples and repeat orders.

For V-band clamp and flange projects, dimensional consistency is important because the clamp, V-profile, and mating flange geometry must work together as one connection.

Our quality and production operations are supported by ISO 9001, ISO 14001, ISO 45001, and IATF 16949 management systems. Inspection equipment and in-house tooling capabilities are used to support dimensional control and batch consistency.

Standard clamp sizes are also included in our regular production and inventory planning, helping us support recurring bulk purchasing requirements.

Material and Structure Options

SS304 is the standard material for this 1.75 inch V-band clamp, but operating conditions vary considerably between exhaust systems.

SS316 or SS316L can be considered where increased corrosion resistance is required. SS316L may also be discussed for projects involving hygienic or process piping requirements where that material grade has already been specified by the customer.

For exhaust projects exposed to particularly high temperatures, SS321 can be evaluated. Where localized exhaust temperatures may exceed 900°C, material suitability should be reviewed together with the actual duty cycle, exposure time, joint design, and surrounding components.

Clamp structure can also be selected according to service requirements. Standard T-bolt clamps are suitable for conventional assembly, while quick-release structures are useful where the joint is opened more frequently. Safety-pin versions can be supplied for selected high-vibration or retention-sensitive applications.

OEM and Custom V-Band Clamp Supply

Not every exhaust project uses the same flange geometry. We therefore support both standard supply and drawing-based customization.

Band width, band thickness, clamp structure, stainless steel grade, flange configuration, and surface treatment can be adjusted according to the confirmed application.

For OEM programs, we can also provide laser marking for logos, product codes, or part numbers. Packaging requirements can be coordinated for bulk distribution, aftermarket programs, or project-based supply.

When a standard drawing is not available, an existing sample can be used as the basis for dimensional review. For projects involving an existing exhaust assembly, providing both the mating flange and pipe dimensions helps reduce fitment uncertainty.

We can support development from sample review and specification confirmation through batch production and repeat supply.

What to Confirm Before Ordering

For an accurate quotation and fitment review, provide the required pipe or flange ID, existing flange dimensions, male/female profile, clamp structure, preferred stainless steel grade, band dimensions if different from 19 × 1 mm, surface treatment, application, operating conditions, quantity, marking requirements, and any technical drawing or reference sample available.

For an existing V-band joint, flange geometry is particularly important. Two products described as “1.75 inch V-band” may still use different outside diameters or seating profiles.

Providing these details before production makes it easier to confirm the correct clamp-and-flange combination and maintain the same specification for repeat orders.

FAQ

How do I check whether this 1.75 inch V-band clamp matches my existing flange?

Measure more than the pipe diameter. Check the flange inner diameter, overall outside diameter, V-profile, male/female seating structure, and other critical mating dimensions. A drawing or physical sample is the safest reference when replacing an existing V-band connection.

Does a male/female V-band flange connection require a gasket?

A properly matched interlocking male/female flange pair is normally designed to seal through its machined mating surfaces and clamp load rather than a separate conventional exhaust gasket. The flange faces, welding accuracy, and clamp fit must still be correct for the application.

How can flange distortion be reduced during welding?

Keep both pipe sections aligned, tack the flange before completing the weld, and avoid concentrating excessive heat in one area. Allow the assembly to cool before checking the mating surfaces. The clamp should not be used to force distorted flanges back into alignment.

How can thread galling be reduced when the clamp is removed frequently?

Repeated tightening at elevated temperature can increase the risk of stainless thread galling. Clean threads, correct tightening practices, and suitable thread or nut selection can help. For repeated high-temperature service, we can also provide YDS3 silver-plated nuts. Under typical exhaust conditions below 600°C, the current bolt design is intended to support stable service, while actual service life depends on temperature cycles, installation, tightening load, vibration, and maintenance conditions.

Can logos or part numbers be added to the clamp?

Yes. We can support laser marking for logos, part numbers, or other identification according to OEM requirements. Band dimensions, structure, stainless steel grade, surface treatment, and packaging can also be reviewed for qualifying custom orders.
