Universal Catalytic Converter

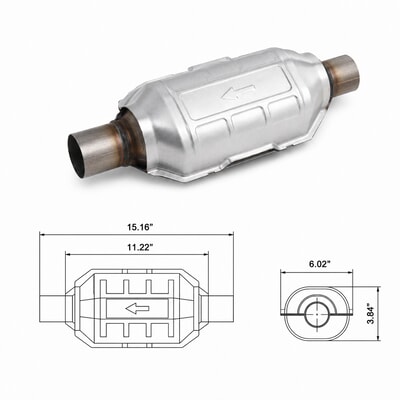

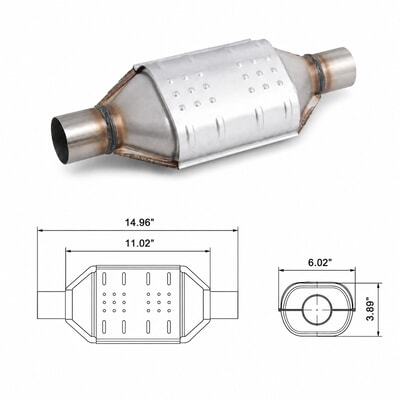

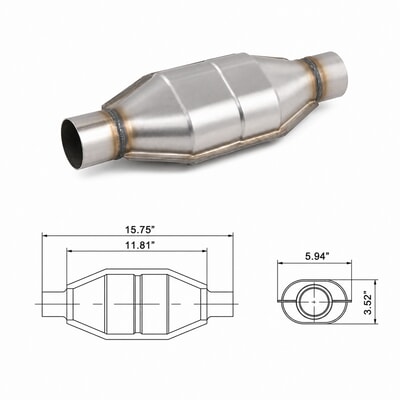

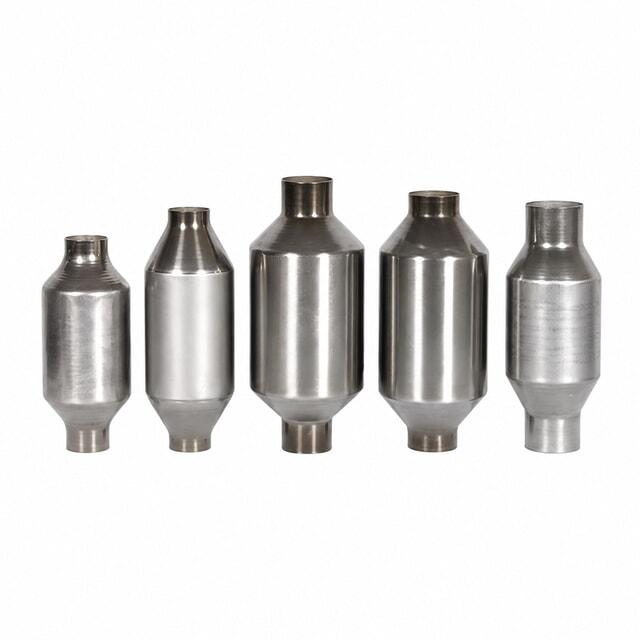

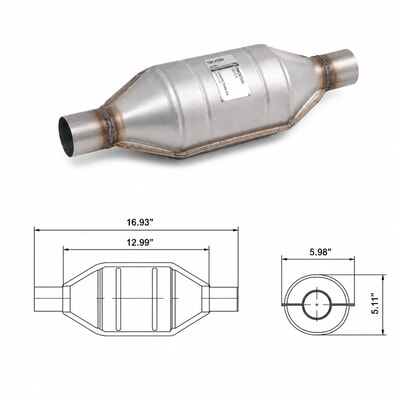

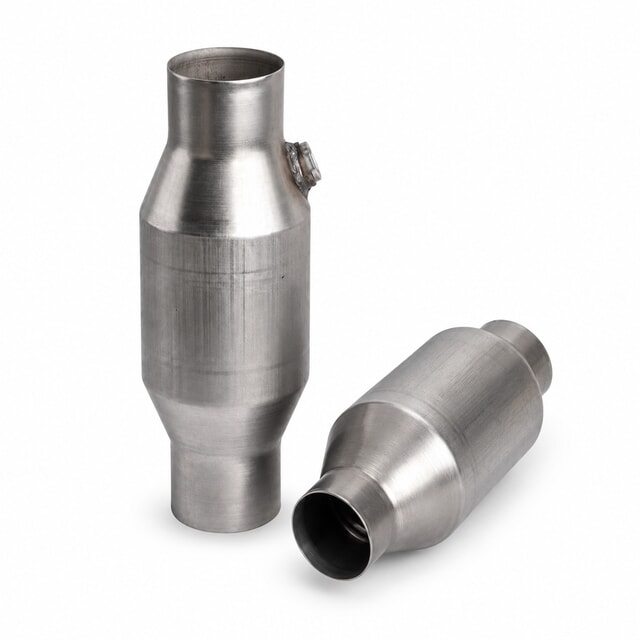

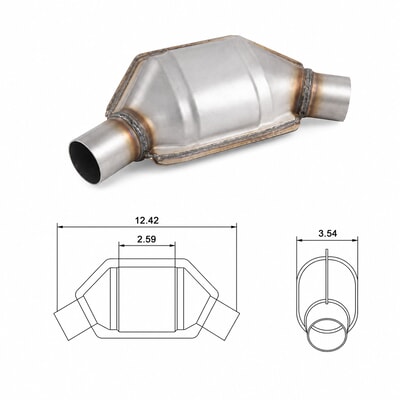

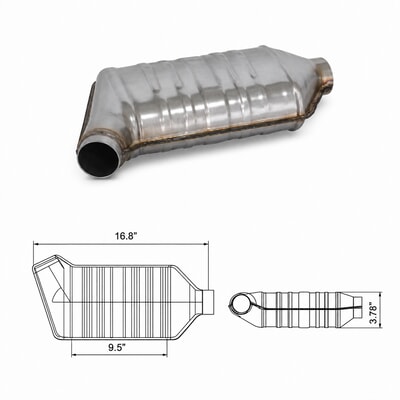

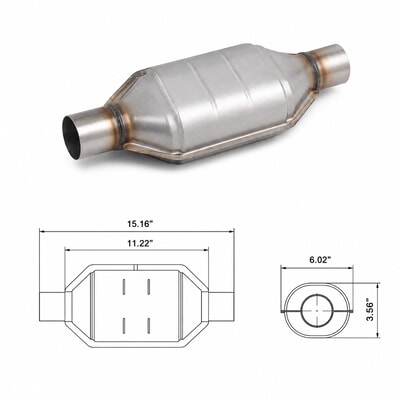

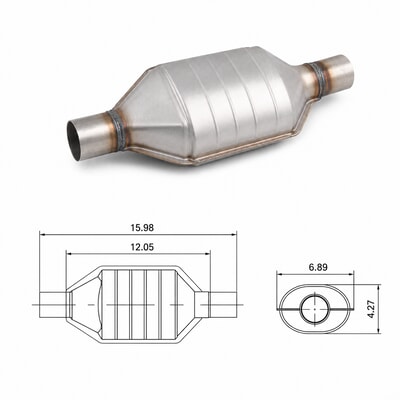

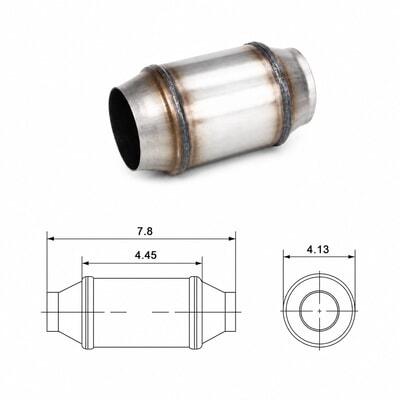

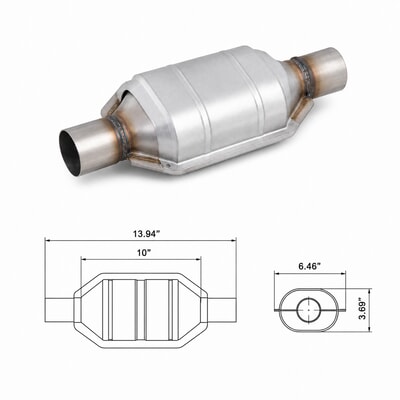

Pipe diameter alone is not enough to determine the correct model. Converter body size, overall length, engine capacity, available installation space, and any required oxygen sensor port should also be checked. Yueding offers multiple universal catalytic converter sizes and inlet/outlet options, so you can use the model drawings on this page for an initial match. Existing converter dimensions, drawings, or installation-space measurements can also be sent to us for further checking. Applicable emissions requirements should be confirmed as well, since these may vary by market.

Welding is one of the most common installation methods for a Universal Catalytic Converter, but the exact connection method depends on the existing exhaust system. Installation may also involve cutting the pipe, using reducers or adapters, or making other connection adjustments. Unlike a Direct-Fit converter, a universal model is not primarily designed for direct bolt-on replacement. Proper installation should match the inlet/outlet size, available space, and existing exhaust layout while keeping the oxygen sensor and converter position appropriate for the system.

Engine capacity is an important reference when selecting a Universal Catalytic Converter. Rated Engine Capacity shown in the model guide can be used to narrow down suitable options, and the selected model should normally cover the actual engine displacement. Engine size is not the only factor, however. Pipe diameter, converter dimensions, installation position, and applicable emissions requirements also need to be considered. Two converters with the same rated engine capacity may still have very different body sizes and inlet/outlet dimensions.

Premature converter failure does not always mean the catalytic converter itself is defective. Engine misfires can allow unburned fuel to enter the converter and create excessive heat. Oil consumption, coolant leakage, or an abnormal air-fuel mixture may also contaminate the catalyst surface and reduce conversion performance. Replacing the converter without correcting the original engine or exhaust-system problem can cause the new unit to fail again. Checking combustion condition, fluid leakage, and related exhaust faults before replacement helps reduce this risk.

Possible signs include a Check Engine light, slower acceleration or reduced power, an unusual sulfur-like exhaust smell, abnormal emissions-test results, or rattling caused by loose internal material. Severe exhaust restriction can also affect normal engine operation. These symptoms are not unique to the catalytic converter, however, and may also be related to oxygen sensors, ignition problems, fuel-system faults, or exhaust leaks. Diagnostic codes such as P0420 or P0430 should therefore be investigated together with the surrounding engine and exhaust system rather than treated as automatic proof that the converter must be replaced.
