Exhaust Flex Pipe Size, Structure and Material Guide

Exhaust flex pipes may look like simple replacement parts, but incorrect selection can easily lead to exhaust leakage, cracking, or premature failure after installation. Even when the diameter matches, an improper length, insufficient internal structural strength, or materials that are not suitable for the actual operating environment can significantly reduce service life.

This guide is designed to help you confirm the key specifications of exhaust flex pipes before purchasing, stocking, repair replacement, or custom production. It also focuses on a practical engineering perspective, explaining how to systematically evaluate size, structure, material, installation method, and application scenarios, so you can make more reliable selection decisions.

Exhaust Flex Pipe Size Measurement

The first and most important step is to confirm the pipe diameter, and whenever possible, it should be measured directly from the actual exhaust pipe. Vehicle application, engine displacement, or OE reference can provide a general direction, but they should never replace real measurement in replacement or aftermarket supply.

For accurate specification confirmation, the most important data usually includes:

• outside diameter of the exhaust pipe;

• overall flex pipe length;

• body length of the flexible section;

• end connection type (welded, slip-fit, flange, nipple, etc.);

• structure type (single braid, double braid, interlock, etc.);

• material requirement (stainless steel grade, coating, etc.);

• required quantity per size.

Photos can help identify the general product type, but they are often not sufficient for non-standard or modified systems. When the pipe includes special features such as nipples, flanges, offset ends, reinforced collars, or non-standard lengths, a technical drawing, an old sample, or a detailed dimension list will significantly improve confirmation accuracy.

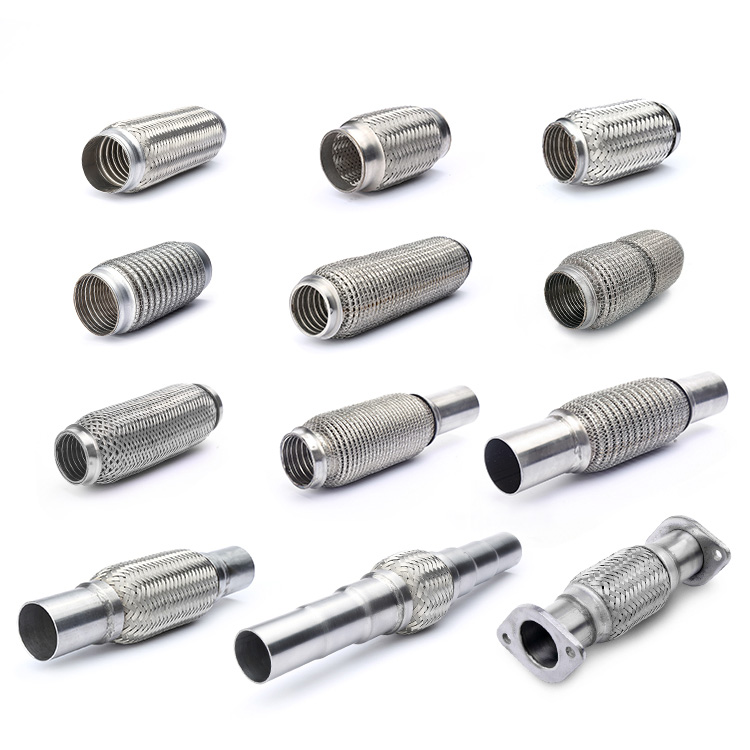

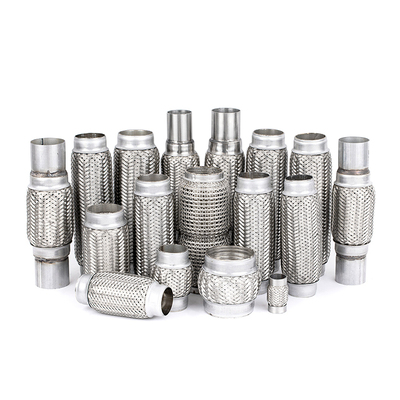

Common Exhaust Flex Pipe Sizes

Exhaust flex pipes are commonly produced from about 1 inch to 6 inches, but the size range should not be treated as a fixed rule. The better question is: what system will this pipe be installed in, and what kind of stress will it handle?

Small sizes are usually seen on motorcycles, scooters, compact cars, and light-duty exhaust layouts. In these applications, space is limited, so the overall length and body length can be just as important as the diameter.

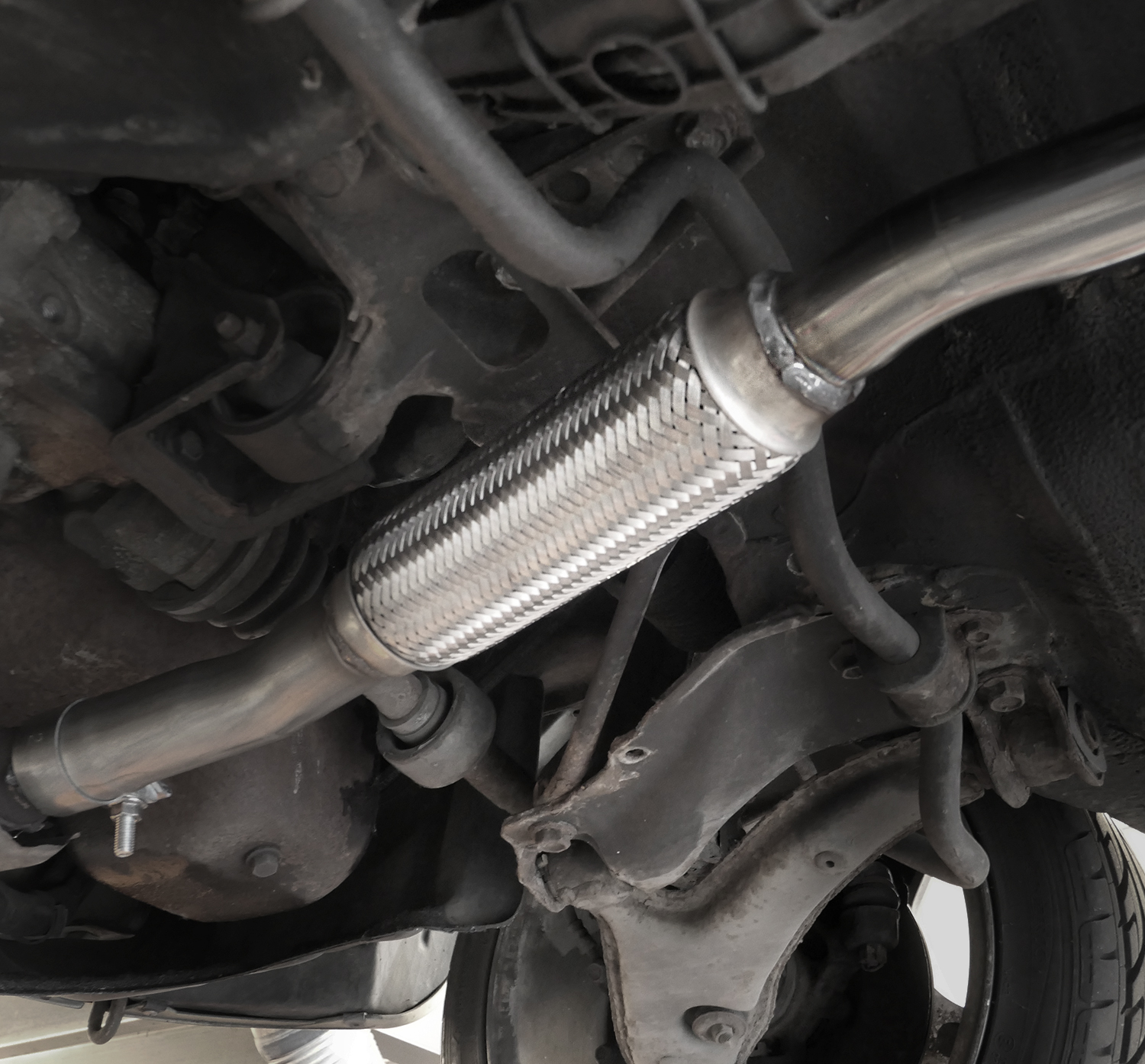

The middle range, especially around 1.75 inch to 2.5 inch, is common in passenger cars, sedans, SUVs, and light vans. This is also the range many repair shops and parts sellers need for regular replacement demand. In this range, stable stock combinations matter: different markets may need several diameters and lengths rather than one single “popular” size.

Larger diameters, such as 3 inch and above, are more common in performance exhaust systems, trucks, buses, generators, agricultural machinery, and industrial exhaust systems. These applications usually create more heat, vibration, and movement, so the structure and material become more important than price alone.

For a detailed diameter and length reference, this page should link to your Exhaust Flex Pipe Common Sizes Guide. The size guide can focus on charts and standard dimensions, while this article explains how to choose the right specification.

Matching Pipe Size with Engine Displacement

Engine displacement can provide a general reference when estimating exhaust flex pipe size, but it should never be used as a final selection standard.

In real production and replacement cases, smaller engines usually correspond to smaller diameter pipes, while diesel engines, trucks, and heavy-duty systems tend to use larger and thicker structures. However, this relationship is not fixed. Exhaust layout design, turbocharger configuration, available installation space, and even regional repair standards often lead to completely different specifications for similar engine sizes.

For example, two vehicles with nearly identical engine displacement may still require different flex pipe lengths due to routing differences or chassis layout. In generator sets and industrial equipment, it is also common to see large-diameter pipes combined with flange or nipple connections to simplify assembly and maintenance. In aftermarket repair markets, weld-in designs are more common, while OEM or industrial applications may prefer flanged or reinforced end structures.

Because of these variations, engine displacement should only be treated as a secondary reference. The practical selection process always starts from the actual pipe condition:

• confirm the real pipe diameter from the existing exhaust system;

• check the available installation length and space limitation;

• then select structure type and material based on temperature, vibration, and application environment.

This approach reduces sizing errors caused by relying only on engine specifications and improves installation reliability in real working conditions.

Common Exhaust Flex Pipe Structures

Different structures are not just different product names. They solve different installation and durability problems. A low-cost structure may work well for common replacement, but it may not be suitable for heavy vibration, turbo engines, or industrial equipment.For practical selection and quick comparison, the following table breaks down the most common exhaust flex pipe structures, their typical applications, and the key performance considerations. It provides a more direct reference for matching different structures with real working conditions and durability requirements.

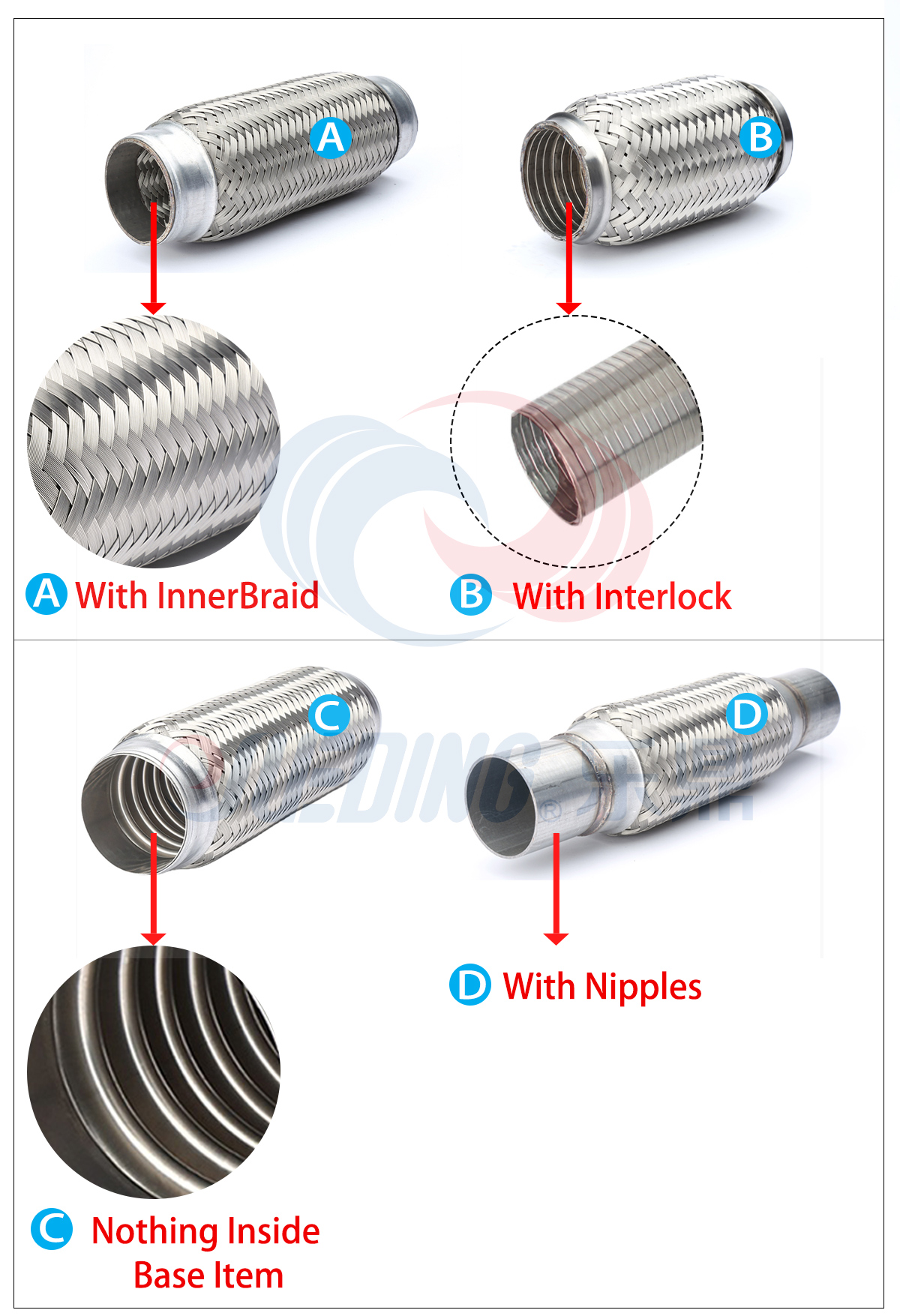

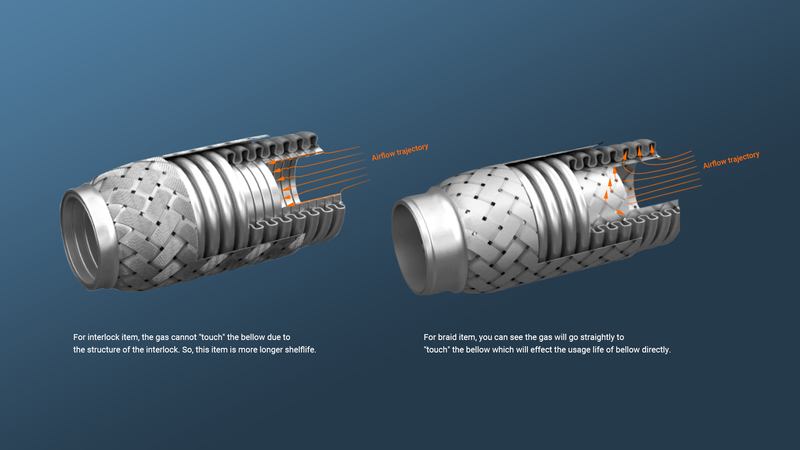

As shown in the figure above, the Interlock structure adopts a spiral interlocking metal inner liner design, which prevents exhaust gases from directly impacting the bellows body during flow. This effectively reduces the direct influence of high-temperature gas flow and continuous vibration on the flexible section. As a result, it is more suitable for high-temperature and high-load applications such as turbo engines, diesel systems, trucks, and industrial equipment, where it provides more stable structural support over long-term use.

In contrast, the braided inner liner guides the gas flow directly into the flexible bellows area through an internal braided structure. This design is lighter and more cost-effective, and performs well in standard passenger vehicles or light-duty repair replacement applications, meeting basic requirements for vibration damping and noise reduction. However, in environments with sustained high temperatures or strong vibration, the direct gas impact on the bellows section can accelerate fatigue and shorten service life.

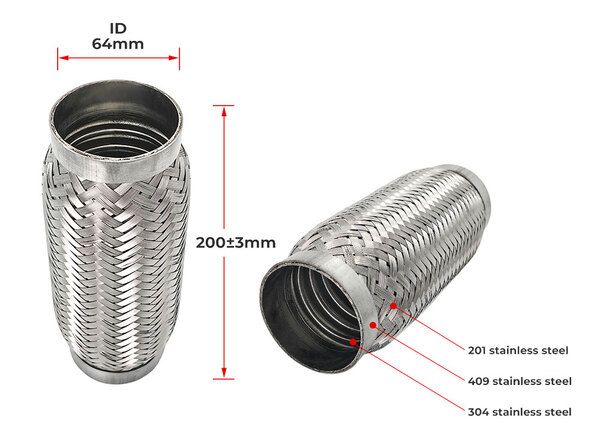

Material Selection for Exhaust Flex Pipe Components

Material selection should not be understood as simply choosing between “201, 304, or 316L”. An exhaust flex pipe is made up of multiple functional parts, and each part works under different stress conditions. The bellows absorbs vibration and thermal expansion, the braid provides external protection, the inner structure is directly exposed to hot exhaust flow, and the end caps, nipples, and flanges are responsible for installation stability and welding reliability. Because of this, material selection should always be based on both the working environment and the role of each component in the system.

In real production practice, we rarely recommend materials in isolation. Instead, we evaluate the full structure under actual operating conditions such as temperature, vibration level, corrosion exposure, and service life expectation. This is why two products may look similar from the outside but use different material combinations depending on the target market.

For example, in standard replacement markets, 201 stainless steel may be used for cost control when operating conditions are relatively mild. 304 stainless steel is the most common choice for bellows, braid, and inner structures when corrosion resistance and durability are required, especially in passenger vehicles, commercial vehicles, and general aftermarket supply. For more demanding environments such as coastal regions, road salt exposure, or high humidity conditions, 316L stainless steel can be considered due to its stronger corrosion resistance. In high-temperature or turbo-related applications, 321 stainless steel may be used when improved thermal stability is required. Meanwhile, 409 stainless steel and aluminized steel are often applied to caps, collars, and certain exhaust system components where cost control is more important than long-term corrosion resistance.

From a component perspective, the bellows is the most critical part because it directly absorbs movement and vibration. For most standard applications, 304 is the stable and widely used material, while 316L and 321 are selected only when corrosion or temperature conditions are more severe. The outer braid mainly affects protection and appearance, and usually follows the same material logic as the bellows, with 304 used as the balanced option between cost and durability.

The inner liner (braided or interlock) directly faces exhaust gas flow and has a greater influence on durability under heat and vibration. Inner braid structures are more suitable for light-duty passenger vehicle applications, while interlock liners are typically used in trucks, diesel systems, turbo engines, and generator sets where stronger internal support is required. In these cases, 304 is commonly used as the base material, with 321 or 316L selected for more demanding conditions.

End caps, nipples, and flanges are mainly related to installation and welding compatibility rather than pure durability. Their material selection should match the exhaust system interface and market positioning. Aluminized steel or 409 stainless steel is often used in cost-sensitive markets, while 304 is preferred when corrosion resistance and appearance consistency are required. In many practical designs, it is common to see mixed material structures, such as 304 for the bellows and braid, combined with 409 or aluminized steel for end components. This is not a defect, but a cost-performance balance based on application requirements.

For customized or project-based orders, material selection should never be based on material name alone. It should always be confirmed together with installation type, working temperature, vibration level, corrosion environment, and expected service life to ensure stable performance in real working conditions.

Installation Method and Order Confirmation

Installation method not only affects the structural design of an exhaust flex pipe, but also directly determines its application range and service life. In real production and replacement scenarios, different installation types correspond to different levels of operating stress and maintenance requirements. Therefore, the final installation method must be clearly confirmed before selection.

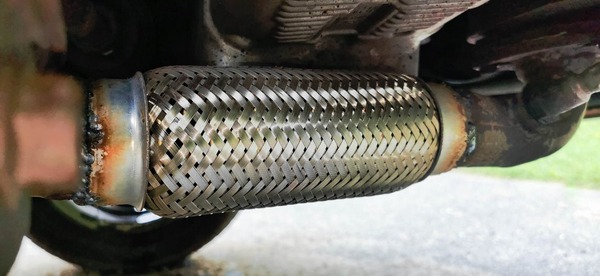

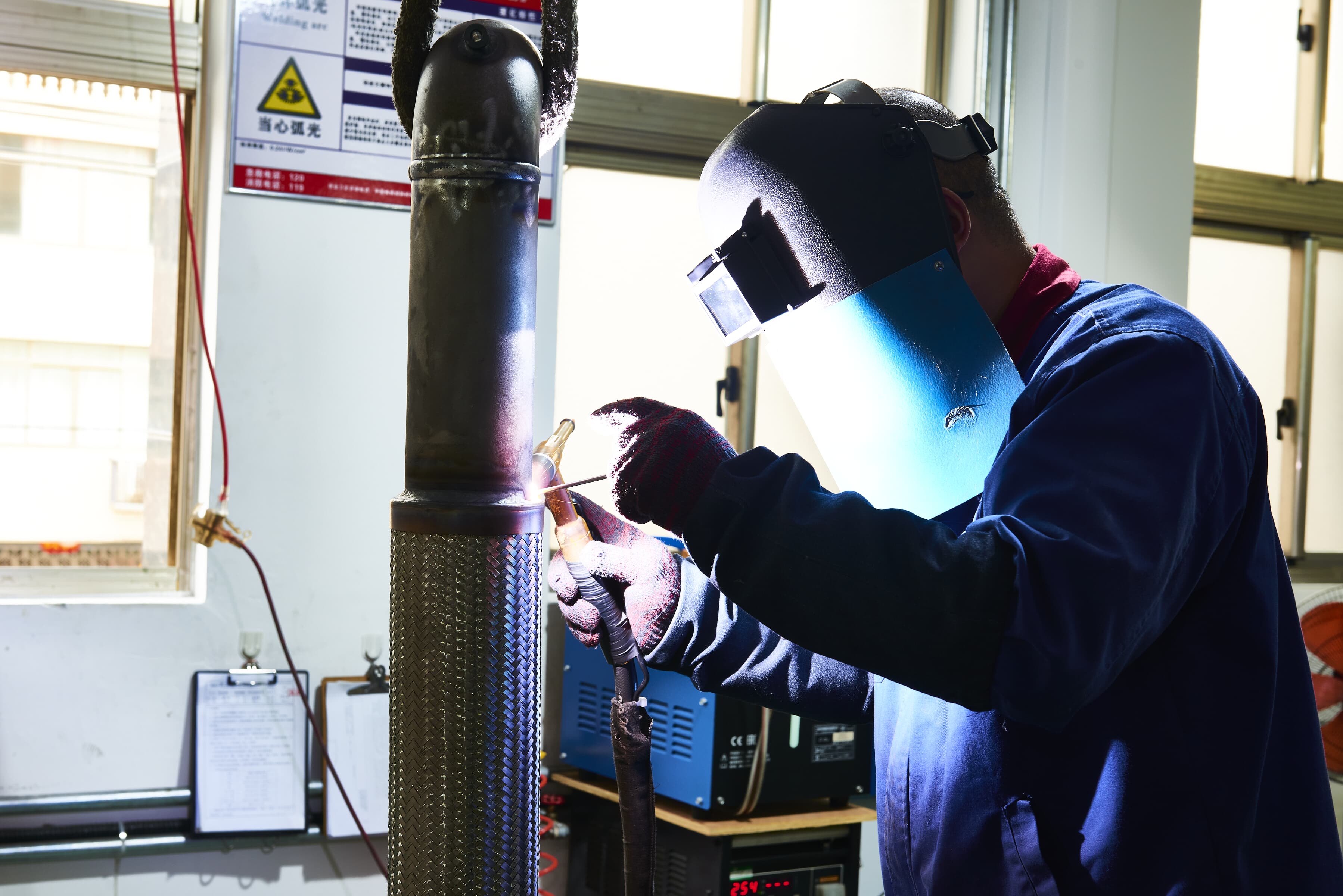

Weld-in flex pipes are the most common structure used in repair markets and long-term replacement applications. They offer high connection strength, good sealing performance, and stable structure, making them suitable for most passenger and commercial vehicle exhaust systems. However, they require welding during installation, and once damaged, the entire unit usually needs to be replaced.

Clamp-on flex pipes are easier to install and are commonly used for quick repairs or temporary fixes. However, under high vibration or heavy-duty operating conditions, they may become loose or suffer from reduced sealing performance. Therefore, they are generally not recommended for long-term high-load applications.

Nipple end structures use pre-formed ends to standardize welding positions, reducing on-site adjustment and improving installation consistency and production efficiency. They are suitable for batch replacement projects or OEM applications that require stable assembly quality.

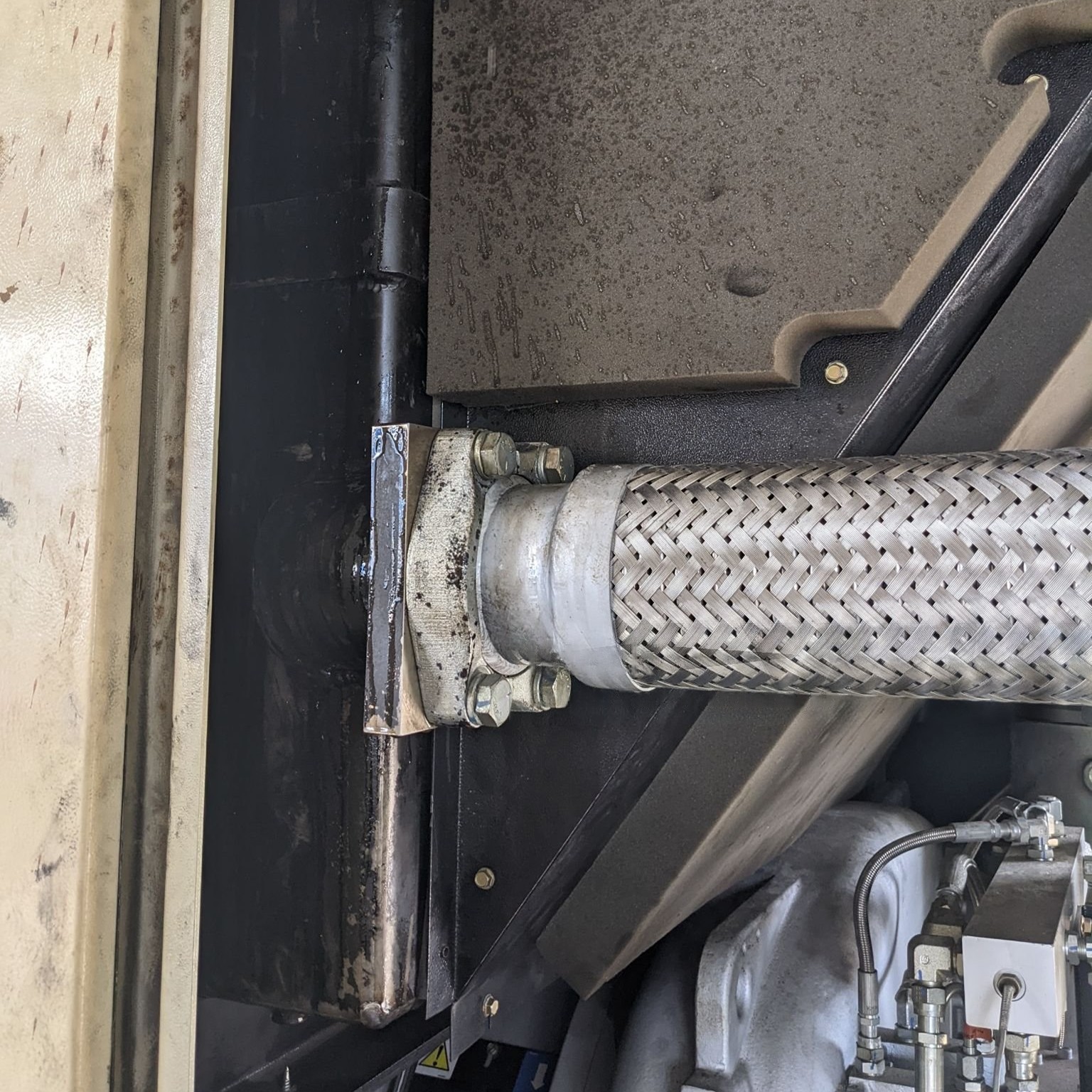

Flange-mounted flex connectors are more suitable for generator sets, industrial exhaust systems, heavy-duty trucks, and equipment applications. Their bolt-on structure allows easier disassembly and maintenance, but they require higher machining accuracy and precise flange matching, and their cost is relatively higher.

In practical selection, it is essential to confirm before production whether the installation method is weld-in, clamp-on, flange-mounted, or nipple-end, because different connection types not only affect structural design, but also influence material selection, end design, and overall service life.

Application-Based Selection Guide

In real exhaust flex pipe sourcing and manufacturing, application is one of the most important factors that determines the final product configuration. Instead of relying only on size, material, or structure selection rules, professional buyers and OEM suppliers usually evaluate how the exhaust flex pipe will perform under real working conditions such as temperature load, vibration level, installation environment, and expected service life.

For passenger vehicle applications, exhaust flex pipes are typically supplied as standardized components with balanced cost and durability requirements. In this segment, base-type or braided inner liner structures combined with 201 or 304 stainless steel are commonly used to support general aftermarket replacement needs and stable daily performance under moderate exhaust temperatures and vibration conditions.

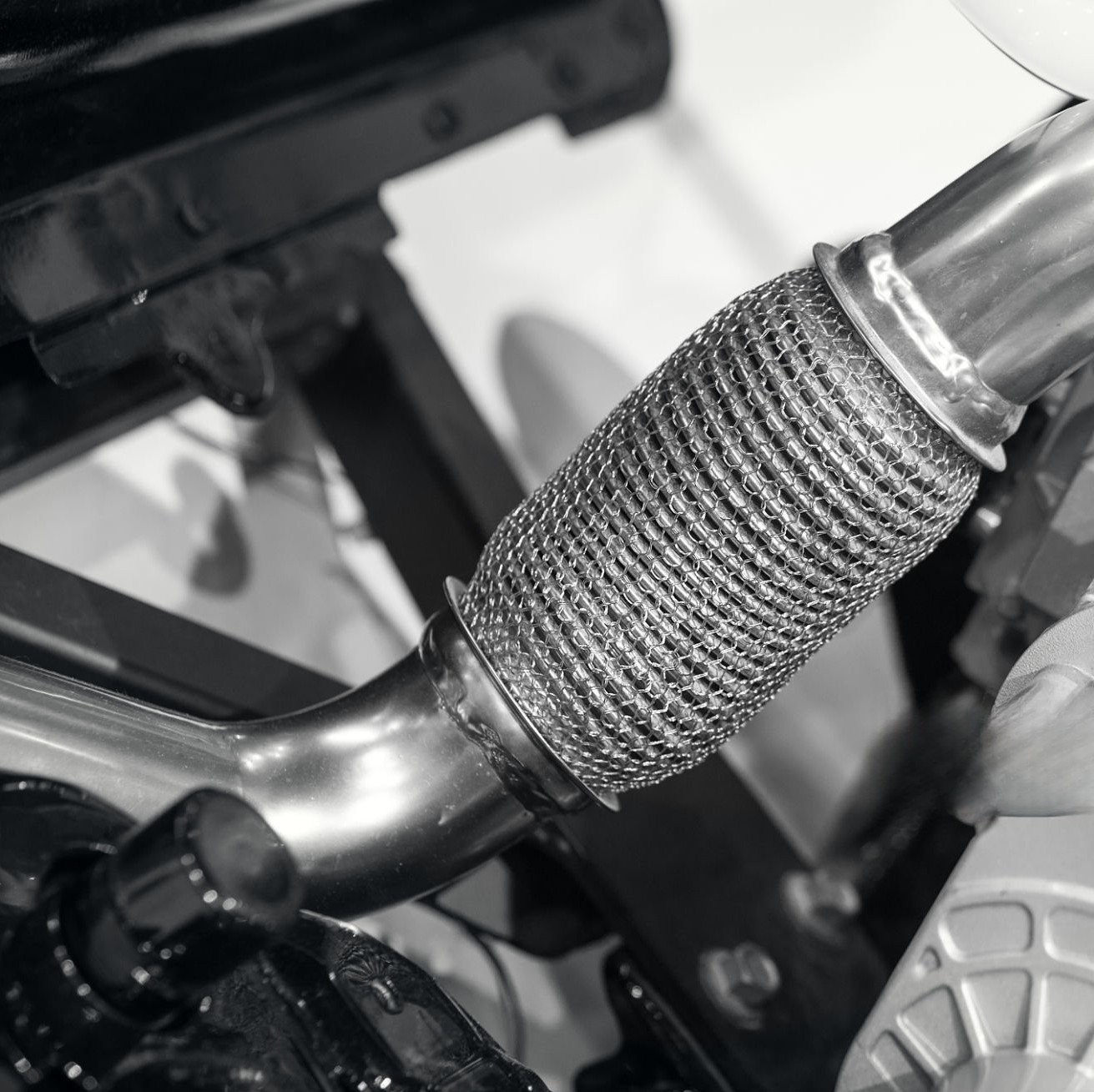

For SUVs, light trucks, and performance vehicles, higher thermal load and stronger vibration require more durable exhaust flex pipe configurations. In practical supply, interlock inner liner structures combined with 304 stainless steel are more widely adopted to improve fatigue resistance and extend service life in more demanding driving environments.

For trucks, buses, and diesel exhaust systems, durability becomes the primary requirement. Continuous vibration, long operating cycles, and high exhaust temperatures make structural reinforcement essential. Therefore, heavy-duty interlock structures, reinforced braiding, and 304 or 321 stainless steel materials are commonly used in these applications to ensure long-term stability in commercial operation environments.

For generators, agricultural machinery, and industrial exhaust systems, installation flexibility and maintenance efficiency are key considerations. Nipple-end or flange-mounted exhaust flex connectors are widely used in these scenarios to support easier assembly, replacement, and system maintenance. Material selection is often project-based and confirmed according to drawings, working temperature, and installation requirements rather than standard catalog specifications.

For industrial and custom exhaust systems, there is no fixed standard configuration. Each project is evaluated based on engineering drawings, operating conditions, vibration intensity, and corrosion environment. In these cases, mixed material structures, customized end fittings, and non-standard exhaust flex pipe designs are commonly applied to meet specific OEM or industrial requirements.

In professional exhaust flex pipe manufacturing, application-based selection is not a theoretical guideline but a practical engineering decision. It integrates structure design, material configuration, and installation method to ensure that each exhaust flex pipe performs reliably under its real operating conditions rather than only meeting dimensional specifications.

Frequently Asked Questions

What material should you choose for large diameter exhaust flex pipes？

When your exhaust flex pipe size reaches 76mm and above, we strongly recommend using 304 stainless steel for the bellows and main body.

If you use 201 stainless steel in large-diameter applications, you may face a higher risk of cracking or fatigue failure caused by vibration, especially in diesel engines, trucks, or heavy-duty systems.

For this reason, in our production practice, 76mm and above flex pipes are normally manufactured in 304 material to ensure stable durability.

For 89mm and above exhaust flex pipes with nipples or welded connectors, the end connection material is typically limited to 409 stainless steel, which provides better welding stability and cost balance in heavy-duty exhaust systems.

Can I order mixed sizes in one shipment?

Yes. Mixed-size orders are common for replacement supply and distributor stock. You can send a size list with quantity by diameter and length, and we can prepare the quotation, production plan, and packing arrangement.

What is your exhaust flex pipe leakage or air tightness test standard?

Before delivery, each exhaust flex pipe is tested using a controlled air pressure and water immersion method.

We seal both ends of the product using fixtures and sealing rings, then inject 150 kPa air pressure into one side. The product is then fully immersed in a water tank and held under pressure for at least 9 seconds.

During the test, we check:

• whether any air bubbles appear around the product

• whether the pressure gauge remains stable

If no bubbles are observed and no pressure drop occurs, the product is considered fully qualified and meets our air tightness standard.

Why do some 304 exhaust flex pipes still use 201 inner support rings?

This is related to material performance and manufacturing stability.

Although 304 stainless steel has better corrosion resistance, it is softer compared to 201 stainless steel under the same thickness.

In the inner support ring or inner fixing structure, we need enough rigidity to hold the inner mesh firmly during forming and welding.

If we use full 304 material in this position, the structure may become too soft, leading to instability during production or deformation issues.

For this reason, even in full 304 exhaust flex pipe products, we may still use 201 stainless steel for the inner support ring to ensure stable forming and consistent production quality.
