How To Choose Stainless Steel Elbow Pipes for Exhaust Systems?

At first glance, an exhaust elbow pipe does not look complicated: it is simply a section of stainless steel tubing formed to a certain angle. Once it is installed in an exhaust line, however, whether it fits properly often depends on much more than whether it is a 45-degree or 90-degree bend.

Two pipes that appear to have a similar bend may occupy very different amounts of space under the chassis because their centerline radii are different. Elbows with the same pipe diameter may also fail to connect with the existing exhaust line if one is matched by outside diameter while the other is made according to a slip-fit size. Differences in straight end length, wall thickness and end configuration can further affect the welding position, clamp coverage and the route of the next pipe section.

For your replacement project, pipe fabrication order or repeat purchasing plan, the key is not simply to find a “suitable angle,” but to ensure that the elbow’s complete geometry matches the existing system.

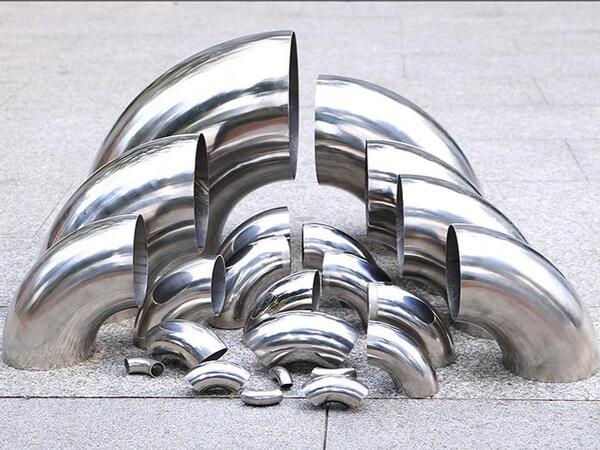

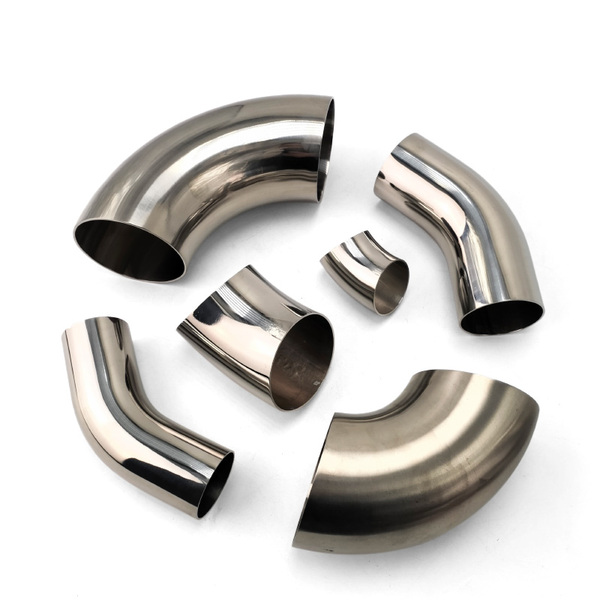

What Is a Stainless Steel Exhaust Elbow Pipe?

A stainless steel exhaust elbow is a curved pipe section used to change the direction of an exhaust line. Exhaust pipes in vehicle underbodies, truck exhaust systems, generator sets and industrial equipment can rarely remain straight from the inlet to the outlet. Elbows allow the pipe to pass around chassis structures, suspension parts, engines, equipment frames or other fixed components.

They are not exactly the same as the stainless steel elbows used in water pipes or chemical piping. General pipe fittings often use threaded, socket or standard butt-weld connections, while exhaust elbows are more commonly used as pipe sections that can be welded, joined by a slip fit or connected with a clamp.

Therefore, when you search for a “stainless steel elbow,” not every product you see will necessarily be suitable for an exhaust system. For exhaust applications, the details that really matter are the pipe outside or inside diameter, wall thickness, bend angle, centerline radius, straight sections at both ends and the actual connection method.

In the industry, exhaust elbow, exhaust bend, exhaust pipe bend and exhaust tubing elbow are sometimes used for the same type of product, although they may also emphasize different structures or forming methods. Rather than focusing too much on the name, it is more reliable to look at the final pipe profile and how it connects with the components before and after it.

Exhaust Elbow Applications

The basic function of an exhaust elbow is always to change the direction of the pipe, but the factors that affect the final result vary with the installation environment.

Automotive Underbody Exhaust Lines

The space beneath a passenger vehicle is usually limited. The floor, suspension, fuel tank, catalytic converter and muffler positions already define where the exhaust pipe can pass.

In this situation, even the correct bend angle does not guarantee that the elbow will follow the original route. For example, between two 90-degree elbows, the one with the larger centerline radius extends farther outward and may sit closer to the chassis or another component. If the straight end is too short, the weld or clamp position may also be forced onto the bend transition.

For automotive replacement parts, the actual profile of the original exhaust line is usually more useful than a general product name. Installation photos can help identify the direction, but accurately reproducing the original route still requires the pipe diameter, radius, straight end length and connection dimensions.

Truck and Diesel Exhaust Systems

Truck and diesel exhaust pipes usually have larger diameters and longer pipe sections. As the dimensions increase, small differences in elbow geometry are more likely to affect the complete assembly.

A change in the centerline radius, for example, may move the clamp position forward or backward. A different straight end length may also prevent a bracket from aligning with the original mounting point. Pipe sections close to the engine must also handle more heat and vibration, while rear sections depend more on proper support and overall alignment.

If your project involves long-term repeat purchasing, the appearance of one sample alone is not enough to ensure that later batches will continue to fit. The angle, radius, straight ends and orientation all need to be recorded. Otherwise, the next batch may “look similar” but still place the connections in different positions.

Generator and Industrial Exhaust Pipes

Exhaust lines for generator sets and industrial equipment are usually arranged around fixed connections. The equipment outlet, metal hose, silencer and discharge pipe positions are often already determined before the elbow is produced.

Projects of this kind are rarely confirmed only by using a name such as “90-degree elbow.” A drawing can directly show the connection centerlines, pipe direction and installation boundaries. Installation photos are better suited to providing additional information about the surrounding space and site conditions.

When dimensions are estimated only from a photo, the elbow may have approximately the correct direction but still fail to reach the next connection accurately. For these engineered pipe sections, the overall profile and connection positions are often more important than the standard bend angle.

Bend Angle and Bend Radius

The bend angle determines how much the pipe changes direction, while the bend radius determines the amount of space over which that change takes place. Both affect the overall dimensions of the elbow, but they do so in different ways.

90-degree exhaust elbow may have a compact, tight-radius shape or a wider, long-radius curve. The first takes up less space but requires tighter control during forming. The second provides a wider transition but requires more installation space.

This is also why some elbows appear to have exactly the same angle but end up in noticeably different positions after installation.

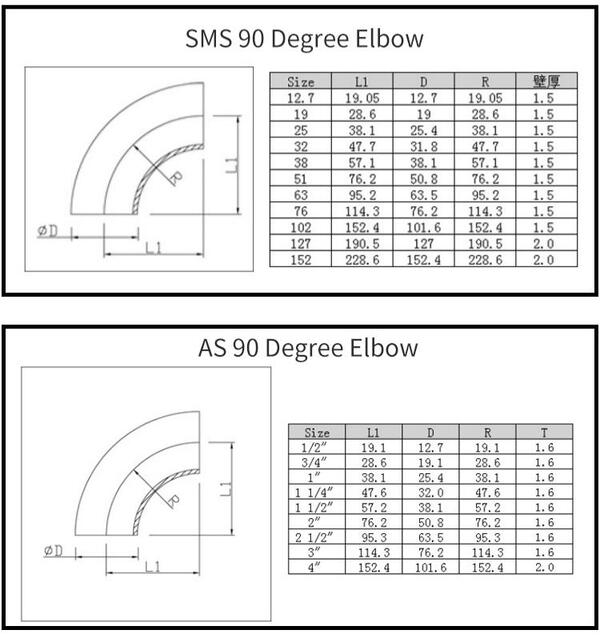

90 Degree Elbows

90-degree stainless steel exhaust elbow is commonly used where the pipe needs to make a clear change in direction. It may turn a vertical generator exhaust outlet into a horizontal pipe, route a vehicle exhaust pipe around a chassis component or connect to a side-inlet muffler.

However, “90 degrees” only describes the change in direction. It does not indicate the actual size of the elbow. The larger the centerline radius, the farther the bend extends outward. Longer straight ends also increase the elbow’s overall dimensions.

For projects with fixed installation space, the angle, centerline radius and center-to-end dimensions need to be considered together rather than selected separately.

Smaller Bend Angles

45-degree or smaller-angle elbow is usually used for an offset, alignment correction or gradual change in pipe direction. It is not necessarily a substitute for a 90-degree elbow, but is suited to a different type of pipe layout.

Two 45-degree elbows can theoretically create a 90-degree change in direction, but the length of the intermediate straight pipe, the distance between the elbows and their rotational orientation all change the final connection position. This arrangement provides greater adjustment flexibility during on-site pipe fabrication, but it may not directly replace a one-piece 90-degree elbow in a replacement part with a fixed profile.

The Centerline Radius Needs to Be Clearly Identified

The radius on an elbow drawing may refer to the centerline radius, inside radius or outside radius. All three values relate to the same bend, but they are measured at different positions and cannot be directly substituted for one another.The centerline radius is usually marked as CLR. It is measured along the centerline of the pipe and is commonly used in elbow design and tube-forming drawings.

When a drawing gives only a radius value without showing where it is measured, the finished product may have the correct bend angle but an overall width that does not match the original design.

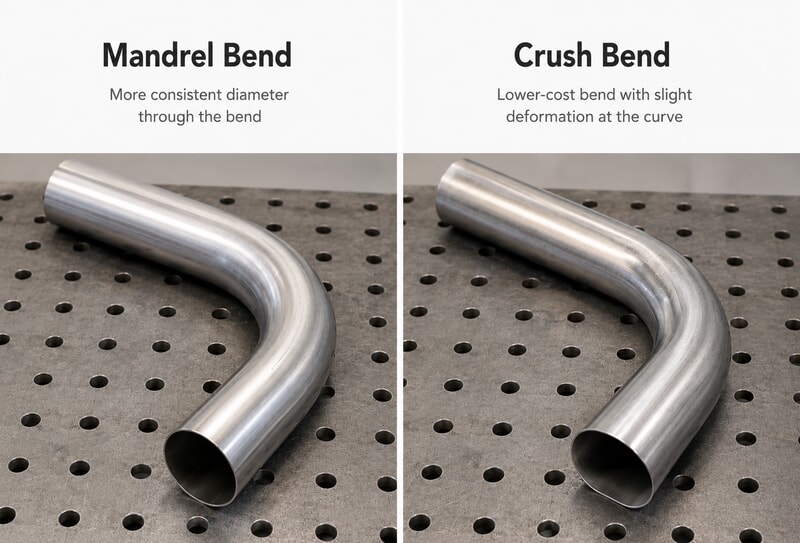

Mandrel Bent vs. Crush Bent Exhaust Elbows

Mandrel bending and crush bending can produce the same bend angle, but the shape inside the curve is different. This difference is important when you compare exhaust elbows that appear similar from the outside.

During mandrel bending, an internal support tool helps the pipe maintain a more consistent shape through the bend. This reduces flattening and excessive wrinkling on the inner side of the curve. The result is usually a smoother bend with a more stable flow area.

A crush-bent pipe is formed without the same level of internal support. The inside of the bend may become narrower or develop visible wrinkles, especially when the bend radius is tight. This process is generally less costly, but the final shape may vary more through the curved section.

Which Bending Method Should You Choose?

Mandrel-bent elbows are commonly selected when the bend shape, internal flow area and appearance need to remain more consistent. They may be more suitable for exhaust fabrication, turbo or performance pipe sections, visible components and orders with tighter dimensional requirements.

Crush-bent pipes may still be suitable for some standard replacement applications where cost is more important and the reduction in the curved section is acceptable. A crush bend is not automatically unusable, but it should be judged according to the pipe diameter, bend radius, installation space and the requirements of the finished exhaust system.

When requesting a quotation, do not confirm only the bend angle. You should also specify whether mandrel bending is required and provide the pipe diameter, wall thickness, bend radius and straight end length. These details help avoid receiving an elbow with the correct angle but an unsuitable bend shape.

Which Dimensions Actually Determine Whether an Elbow Fits?

A complete exhaust elbow specification should describe the usable shape of the entire part, rather than only stating the size in inches and the bend angle.

I.D., O.D. and Slip-Fit Size

Exhaust pipes are commonly described by outside diameter, but not every connection is determined only by O.D.For example, a nominal 2-inch elbow may mean that the pipe itself has a 2-inch outside diameter. It may also mean that one end is expanded to fit over a 2-inch straight pipe, or that it has a reduced end designed to fit inside another component.

All three may simply be described as a “2-inch elbow,” although their actual connection dimensions are different.When you are sourcing a replacement part or matching the elbow with another pipe section, confirming only the nominal size can easily cause misunderstanding. The size needs to be considered together with the connection method: butt welding, slip fit, expanded end, reduced end or clamp connection.

Pipe Diameter and Wall Thickness

Wall thickness relates not only to the weight and strength of the part, but also to thinning during bending, the expansion result and welding conditions.A thicker wall may change the requirements placed on the forming equipment and welding process. A thinner wall makes the pipe mouth and curved section more likely to deform during processing, handling or transport.

Wall thickness therefore cannot be judged separately from the pipe diameter, material and connection method. For a repeat-production part, even a small change in wall thickness may affect the actual expanded-end size, welding parameters and fit with the adjoining pipe.

Straight End Length for Welding or Clamp Connection

The straight pipe sections retained at both ends of the bend are often used for welding, clamp installation, expansion, reduction or final cutting.If a straight end is too short, the clamp may not fully cover a stable round section. A welding fixture may also lack enough straight material for secure positioning. On the other hand, if a replacement part with fixed connection points has an excessively long straight end, it may push the next component away from its original position.

Fabrication stock and completed replacement parts do not have the same straight-end requirements. Fabrication stock usually needs some cutting allowance, while a finished replacement part depends more on whether the connection lands directly in the required position.

Elbow Connects

Exhaust elbows can have plain-cut, deburred, expanded, reduced, slotted or beaded ends. A flange or another connector may also be welded onto the end in advance.The end configuration is not merely an additional appearance detail. It forms the actual interface between the elbow and the next pipe section.

An expanded end requires the correct internal fit and overlap length. A butt-weld pipe mouth needs to remain round and have a suitable wall-thickness relationship with the adjoining tube. A clamp connection requires enough straight length and a stable contact area.When only the elbow body is confirmed and the end configuration is ignored, the result may be a pipe with the correct shape that still cannot be assembled directly.

Material and Forming Quality

304 stainless steel is a common material for exhaust elbows, especially for components that require a certain level of corrosion resistance and surface condition. However, material grade alone cannot define the actual quality of an elbow.

304 Stainless Steel

Exposed exhaust components, parts with visible surface requirements, and sections frequently exposed to moisture or road conditions usually place more value on the corrosion resistance and appearance retention of 304 stainless steel.

For standard replacement pipe sections hidden beneath the chassis, material selection also needs to consider the expected service life, installation position and cost requirements. Not every project must use the same material, and materials should not be divided simply into “high-end” and “low-end” categories.A more professional judgment is whether the material matches the actual working conditions and target product requirements.

During tube bending, the outer curve is stretched while the inner curve is compressed. Different machines, tooling and process controls can produce different levels of roundness, wall-thickness change and inner-curve marks.Therefore, even when two elbows are both made from 304 stainless steel, they may still differ in angle, radius, pipe-mouth roundness and surface condition.For your repeat-purchasing project, reviewing only one selected and polished sample has limited value. What matters more is whether the same dimensions and profile can continue to be maintained in later batches.

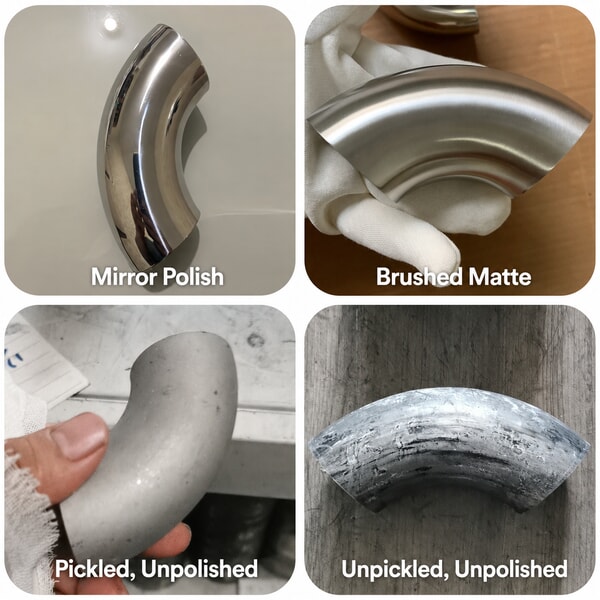

Surface Finish

Exposed tailpipes or visible pipe components may require polishing or brushing to maintain a more uniform surface. Pipe sections installed inside the chassis or industrial equipment usually place greater importance on dimensional stability, forming quality and durability.Defining the actual surface requirement in advance can avoid unnecessary decorative processing on parts that will not be visible after installation. It also helps maintain consistency across later production batches.

Common Ordering Problems

Problems with exhaust elbows are rarely caused by one parameter alone. More often, drawings, samples, connection relationships and production records have not been brought together into one consistent reference.

Correct Size but Poor Fit

Simply stating “2 inches, 90 degrees” does not fully define an elbow.The 2-inch size may refer to O.D. or may relate to a slip-fit dimension. The 90-degree angle does not define the centerline radius. The straight ends and overall dimensions also remain unspecified.

The first batch may be produced using a physical sample, but if that sample is later installed or no longer available, subsequent orders may fall back on a vague product name. At that point, even if the new batch looks similar, it may not reproduce the original installation position.

Radius Is Not Suitable

Some problems do not appear in the curved section, but at the connection ends.The expanded end may be too large or too small, the straight section may not be long enough for a clamp, or the pipe-mouth roundness may affect welding alignment. For assemblies that include a flange, exhaust flex pipe or reducer, each component may meet its own specification without necessarily fitting together.

The interfaces need to be checked as part of the complete assembly rather than confirming every product separately and then attempting to connect them.

Sample Approval

A physical sample allows our factory to understand the overall profile and connection form, but the sample itself does not automatically create a dimensional standard.If the pipe diameter, radius, straight ends, orientation and permitted variation are not recorded at the same time, later production may still change gradually.The real value of sample approval is to convert the sample’s key features into information that can be repeated and inspected.

Deformation During Shipment

When elbows with different diameters, angles and end configurations are shipped together, products with similar appearances can easily be misplaced or used incorrectly.Clear part numbers, labels, carton marks and size separation do more than help organize the warehouse. They also reduce the risk of elbows with different radii or connection forms being mixed during assembly.

The packing also needs to protect the pipe mouths and surfaces. For thin-wall or polished components, loose stacking may deform the ends or cause scratches between parts, making an originally acceptable product unusable directly after delivery.

Wth Other Exhaust Parts

exhaust elbow usually does not complete an exhaust line by itself. It may connect with straight tubing, an exhaust flex pipe, reducer, flange, clamp, muffler or tailpipe.Reviewing these components together is not simply about increasing the number of products in one order. More importantly, their interfaces are directly related.

For example, when an elbow is welded to an exhaust flex pipe, the pipe diameter and welding position need to match. For a clamp connection, the slip-fit size, overlap length and available straight section must correspond. A flanged pipe section also requires control of the flange orientation and its position relative to the elbow centerline.

When the components use different dimensional references, every individual part may meet its own description but the complete assembly may still contain size gaps.

For a project containing multiple specifications, a clear parts list can link each pipe diameter, angle, radius, material, end configuration and assembly position. This allows production, packing and receiving teams to work from the same product relationship rather than from a group of unrelated names.

Stainless Steel Exhaust Elbow FAQ

Can exhaust elbow pipes be cut or adjusted after delivery?

Some elbow pipes can be cut or adjusted during installation, but this depends on the pipe length, wall thickness, and connection method.

For bulk orders, it is better to confirm the final size before shipment, so your customer does not need to make too many changes during installation.

Can stainless steel exhaust elbows be supplied in mirror polished or brushed finish?

Yes, surface finish can be reviewed according to your order. Mirror polished or brushed finish is more common for visible exhaust parts.

Hidden underbody pipe sections usually focus more on fit, material, and stable structure than appearance.

How should stainless steel elbow pipes be packed for export?

For export orders, elbow pipes should be packed to reduce pipe mouth damage, surface scratches, and mixed-size confusion.

Carton packing, separated packing, labels, carton marks, or pallet packing can be arranged according to order quantity and shipping method.

What is the difference between an exhaust elbow and an exhaust bend?

In many exhaust pipe orders, “elbow” and “bend” are used in a similar way. “Elbow” is often used for a finished pipe fitting.

“Bend” may refer more to the curved pipe section or bending process. When placing an order, confirm the actual shape, angle, end length, and pipe size instead of relying only on the name.

Can one shipment include different elbow sizes and angles?

Yes. Mixed sizes and angles can be arranged in one shipment.

For this type of order, clear size lists, carton marks, and separated packing are important. They help your warehouse identify the products faster after arrival.

Can stainless steel exhaust elbows be used for both repair and fabrication?

Yes. They can be used for repair replacement, exhaust modification, pipe fabrication, or assembly projects.

The key is to confirm whether you need a standard elbow, a cut-to-length pipe section, or a part matched to an existing exhaust layout.
