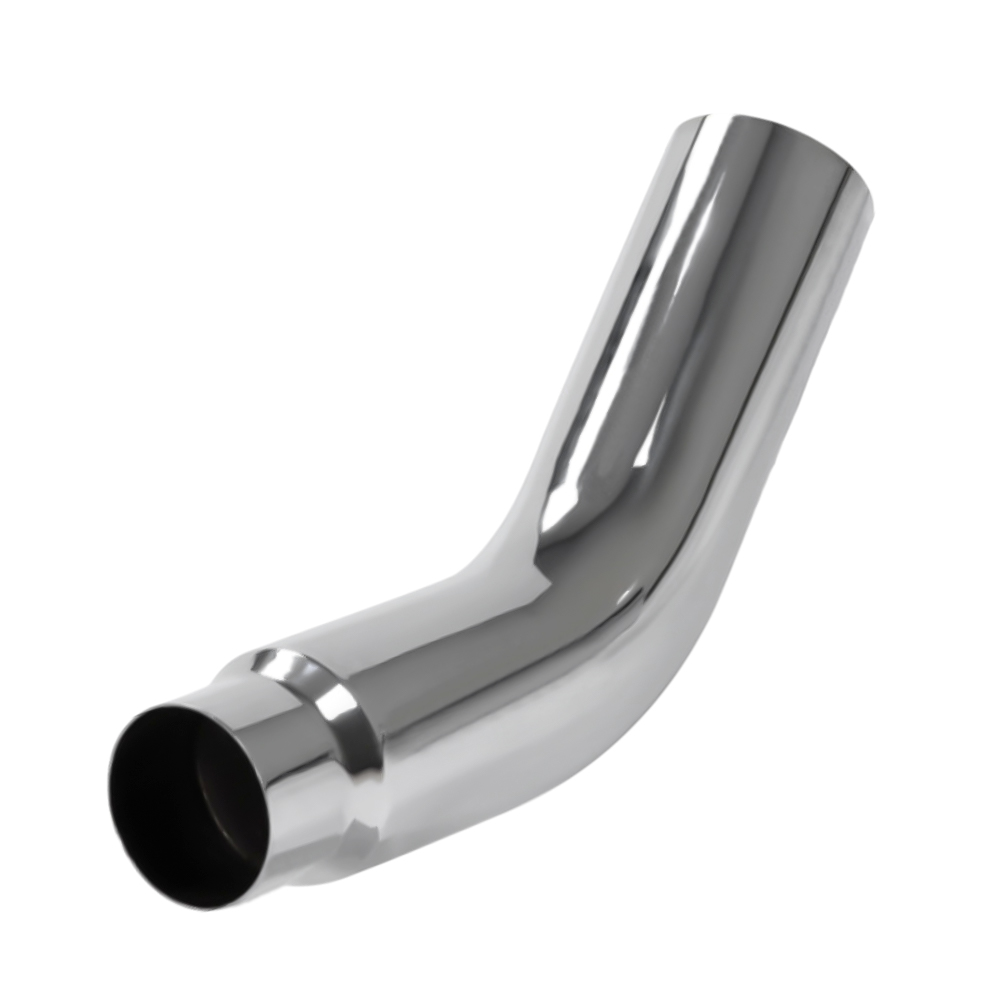

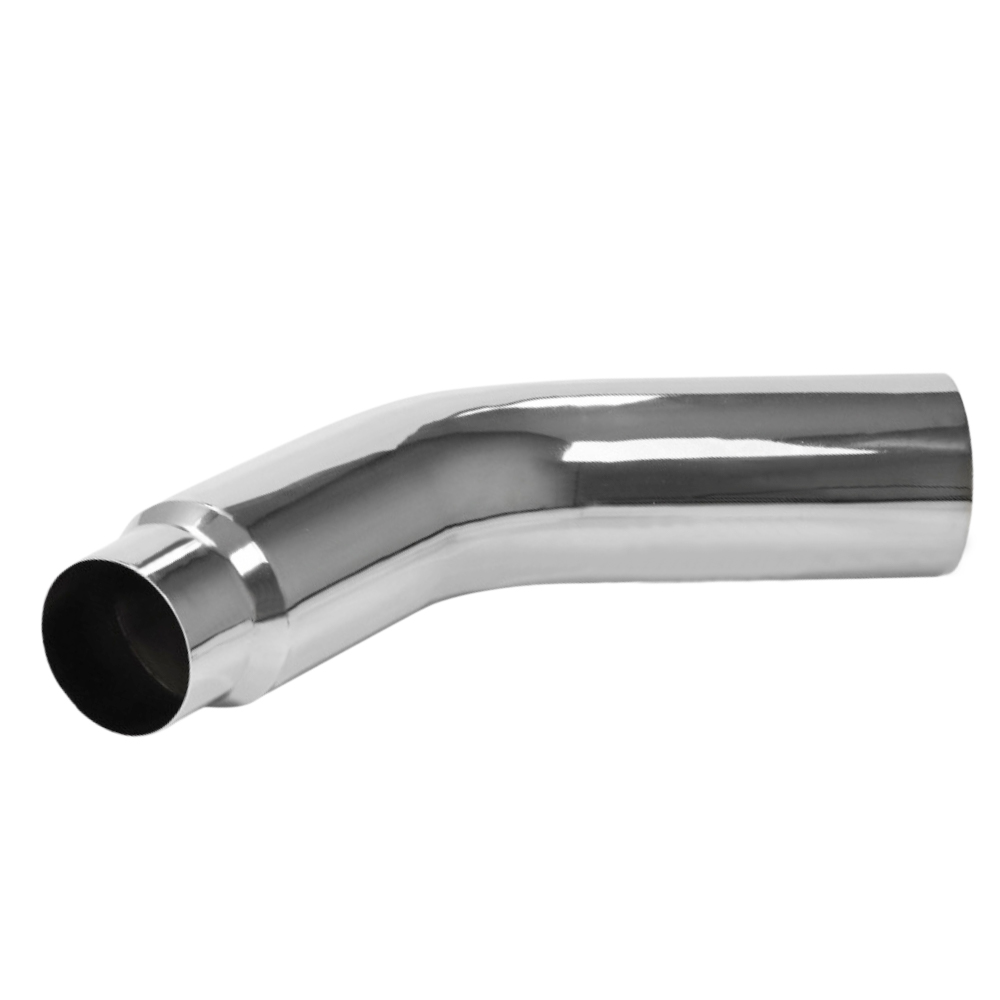

135° Chrome Plated Steel Truck Exhaust Elbow Pipe
| Application Scenarios This 135° chrome plated steel exhaust elbow is designed for heavy duty trucks, buses, agricultural machinery, and other large diesel-powered vehicles. Its angled bend is ideal for routing exhaust gases in limited spaces or transitioning between vertical and horizontal stack systems. Manufacturing Processes The elbow is formed from high-grade steel tubing, precision bent to 135°, and finished with a chrome plating layer to protect against corrosion. Each unit undergoes dimensional inspection to ensure accurate fitment and smooth gas flow. Features The 135° bend allows efficient exhaust routing without compromising flow performance. The chrome plating improves resistance to rust and adds a professional finish, making it suitable for visible stack applications. Customization Available in various diameters (4" to 8") , with options for different materials, bend radii, and surface finishes. OEM custom production is available for integration into specialized exhaust systems. | |||||||||
Product Overview
The 135° chrome plated steel truck exhaust elbow is engineered for heavy duty trucks, semi-trailers, buses, and agricultural machinery. Its precise bend allows efficient routing of exhaust gases, making it a practical solution for both OEM manufacturing and aftermarket modifications.
Material & Compatibility
Constructed from high-strength steel with a chrome plated finish, this elbow offers both durability and corrosion resistance. The 135° bend design is compatible with a wide range of exhaust configurations, fitting most North American and European heavy truck systems. Available in multiple diameters from 4" to 8".
Installation Guidelines
The elbow is designed for slip-fit or clamp-on installation, depending on the matching exhaust system. Ensure proper alignment and sealing surfaces before fastening. Welding is optional depending on the intended permanence of the installation.
Technical Specifications

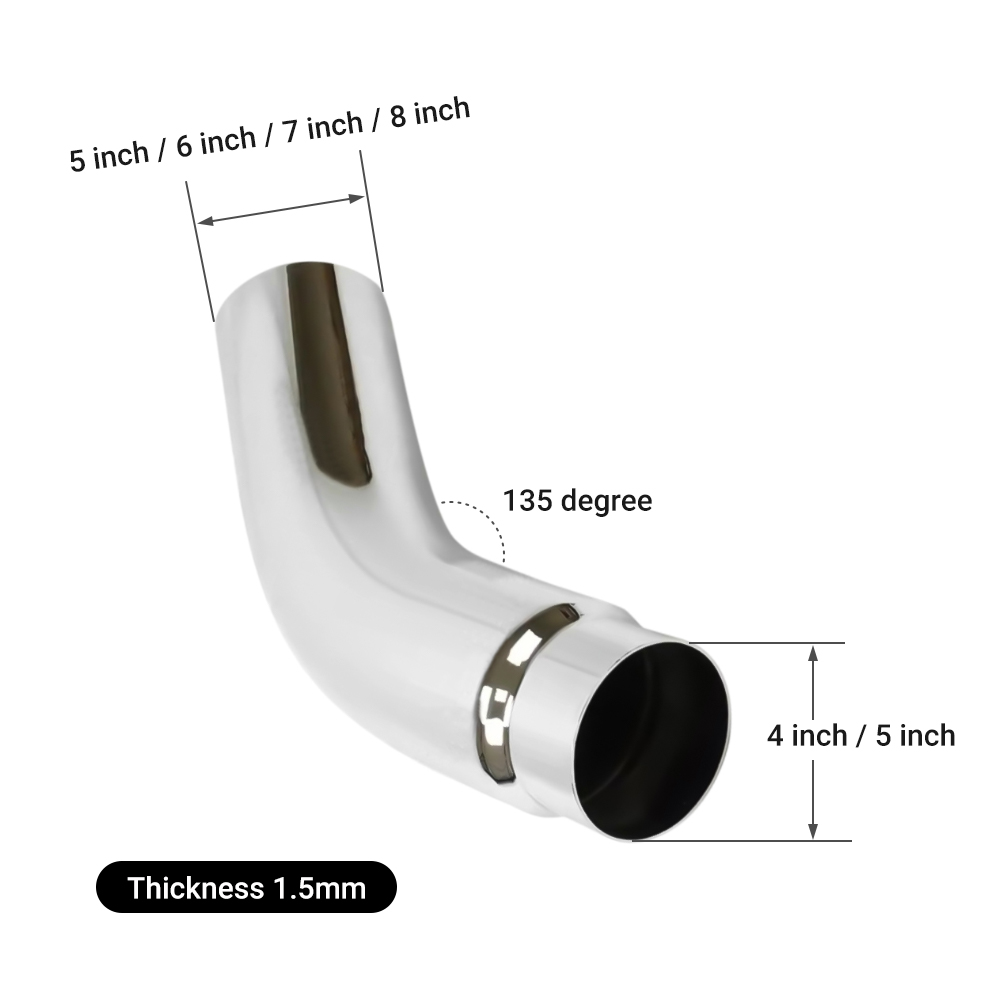

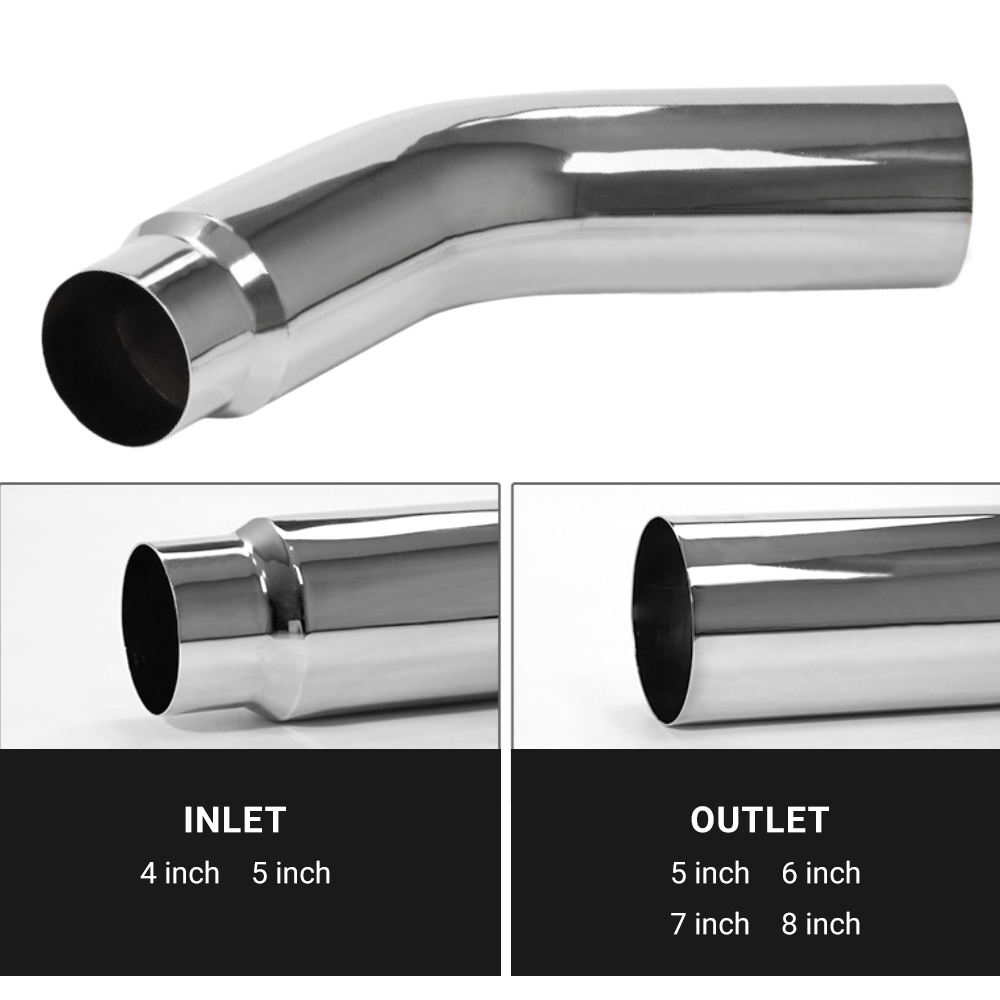

| No. | Product Size (Inches) | Material | Unit Weight (kg) | Package Size (cm) | Thickness (mm) |
|---|---|---|---|---|---|
| 1 | 4–5 | Chrome-plated Steel | 3.8 | 67.5 × 25.5 × 15.5 | 1.5 |
| 2 | 4–6 | Chrome-plated Steel | 4.1 | 67.5 × 26.5 × 17.5 | 1.5 |
| 3 | 5–6 | Chrome-plated Steel | 4.3 | 67.5 × 27.5 × 17.5 | 1.5 |
| 4 | 5–7 | Chrome-plated Steel | 6.3 | 68 × 26 × 16 | 1.5 |
| 5 | 5–8 | Chrome-plated Steel | 6.3 | 68 × 33 × 23 | 1.5 |
Frequently Asked Questions
1. What is the main use of a 135° exhaust elbow?
It is primarily used to change the direction of exhaust flow between vertical stacks and horizontal piping, often in tight spaces where standard bends would not fit.
2. Does the chrome plating affect heat resistance?
The chrome finish is designed to withstand high exhaust temperatures without peeling or discoloration under normal operating conditions.
3. Can this elbow be welded to the exhaust system?
Yes. It can be either clamped or welded depending on the installation requirements and desired permanence.
We also offer related connection accessories, such as lap joint clamps, in various sizes and models. You can enjoy more discounts by purchasing them as a set.
4. What sizes are available for bulk orders?
Standard diameters range from 4" to 8". Custom sizes can be manufactured according to OEM specifications.
5. Is this elbow suitable for aftermarket upgrades?
Yes. It is widely used in custom exhaust projects for heavy duty trucks and other large vehicles where performance, durability, and appearance are important.
Product Overview
The 135° chrome plated steel truck exhaust elbow is engineered for heavy duty trucks, semi-trailers, buses, and agricultural machinery. Its precise bend allows efficient routing of exhaust gases, making it a practical solution for both OEM manufacturing and aftermarket modifications.
Material & Compatibility
Constructed from high-strength steel with a chrome plated finish, this elbow offers both durability and corrosion resistance. The 135° bend design is compatible with a wide range of exhaust configurations, fitting most North American and European heavy truck systems. Available in multiple diameters from 4" to 8".
Installation Guidelines
The elbow is designed for slip-fit or clamp-on installation, depending on the matching exhaust system. Ensure proper alignment and sealing surfaces before fastening. Welding is optional depending on the intended permanence of the installation.
Technical Specifications
| No. | Product Size (Inches) | Material | Unit Weight (kg) | Package Size (cm) | Thickness (mm) |
|---|---|---|---|---|---|
| 1 | 4–5 | Chrome-plated Steel | 3.8 | 67.5 × 25.5 × 15.5 | 1.5 |
| 2 | 4–6 | Chrome-plated Steel | 4.1 | 67.5 × 26.5 × 17.5 | 1.5 |
| 3 | 5–6 | Chrome-plated Steel | 4.3 | 67.5 × 27.5 × 17.5 | 1.5 |
| 4 | 5–7 | Chrome-plated Steel | 6.3 | 68 × 26 × 16 | 1.5 |
| 5 | 5–8 | Chrome-plated Steel | 6.3 | 68 × 33 × 23 | 1.5 |
Frequently Asked Questions
1. What is the main use of a 135° exhaust elbow?
It is primarily used to change the direction of exhaust flow between vertical stacks and horizontal piping, often in tight spaces where standard bends would not fit.
2. Does the chrome plating affect heat resistance?
The chrome finish is designed to withstand high exhaust temperatures without peeling or discoloration under normal operating conditions.
3. Can this elbow be welded to the exhaust system?
Yes. It can be either clamped or welded depending on the installation requirements and desired permanence.
We also offer related connection accessories, such as lap joint clamps, in various sizes and models. You can enjoy more discounts by purchasing them as a set.
4. What sizes are available for bulk orders?
Standard diameters range from 4" to 8". Custom sizes can be manufactured according to OEM specifications.
5. Is this elbow suitable for aftermarket upgrades?
Yes. It is widely used in custom exhaust projects for heavy duty trucks and other large vehicles where performance, durability, and appearance are important.
