Product Name:Auto Flex Pipe Bellows Of Exhaust System
Application
Chery, Chevrolet, DAEWOO, Geely, Hyundai, JAC
Product Description:
Zhejiang Yueding has been in manufacturing auto exhaust system products over 10 years,TS16949
certificated,and keeping focusing on exhaust flexible pipes( flex pipes / flex tubes/ flexible joints).
They are used for construction and manufacturing of standard, racing and sport exhaust systems, as well as for repair purposes of damaged vehicle exhausts.

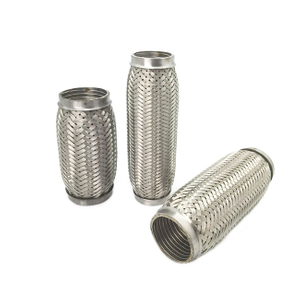

Our exhaust flexible pipes are produced exclusively, out of stainless steel. All of them are produced in a gas-dense, double walls, flow optimized version, with an additional inner layer of braids or with a strengthened
interlock inner layer for heavy duty use. Some exhaust flexible pipes are already equipped with additional stainless steel,welded on extension pipes to both ends. The program contains flex-pipes with connecting diameters from 38mm up to 76 mm in different lengths and construction versions.
| Exhaust Flex Pipe Size Table (Other sizes can be customized) | ||||
| Part Number | Inlet Diameter | Inlet Diameter | Overall Length | Overall Length |
| inch | mm | inch | mm | |
| YD17504B | 1 3/4" | 45 | 4" | 102 |
| YD17506B | 1 3/4" | 45 | 6" | 152 |
| YD17508B | 1 3/4" | 45 | 8" | 203 |
| YD17510B | 1 3/4" | 45 | 10" | 254 |
| YD17512B | 1 3/4" | 45 | 12" | 305 |
| YD20004B | 2" | 51 | 4" | 102 |
| YD20006B | 2" | 51 | 6" | 152 |
| YD20008B | 2" | 51 | 8" | 203 |
| YD20010B | 2" | 51 | 10" | 254 |
| YD20012B | 2" | 51 | 12" | 305 |
| YD22504B | 2 1/4" | 57 | 4" | 102 |
| YD22506B | 2 1/4" | 57 | 6" | 152 |
| YD22508B | 2 1/4" | 57 | 8" | 203 |
| YD22510B | 2 1/4" | 57 | 10" | 254 |
| YD22512B | 2 1/4" | 57 | 12" | 305 |
| YD25004B | 2 1/2" | 63.5 | 4" | 102 |
| YD25006B | 2 1/2" | 63.5 | 6" | 152 |
| YD25008B | 2 1/2" | 63.5 | 8" | 203 |
| YD25010B | 2 1/2" | 63.5 | 10" | 254 |
| YD25012B | 2 1/2" | 63.5 | 12" | 305 |
| YD30004B | 3" | 76.2 | 4" | 102 |
| YD30004B | 3" | 76.2 | 6" | 152 |
| YD30004B | 3" | 76.2 | 8" | 203 |
| YD30004B | 3" | 76.2 | 10" | 254 |
| YD30004B | 3" | 76.2 | 12" | 305 |
| YD35006B | 3 1/2" | 89 | 6" | 152 |
| YD35008B | 3 1/2" | 89 | 8" | 203 |
| YD35010B | 3 1/2" | 89 | 10" | 254 |
| YD35012B | 3 1/2" | 89 | 12" | 305 |
| YD40008B | 4" | 102 | 8" | 203 |
| YD400010B | 4" | 102 | 10" | 254 |
| YD400012B | 4" | 102 | 12" | 305 |
