Exhaust Flexible Pipe with Mesh Braided

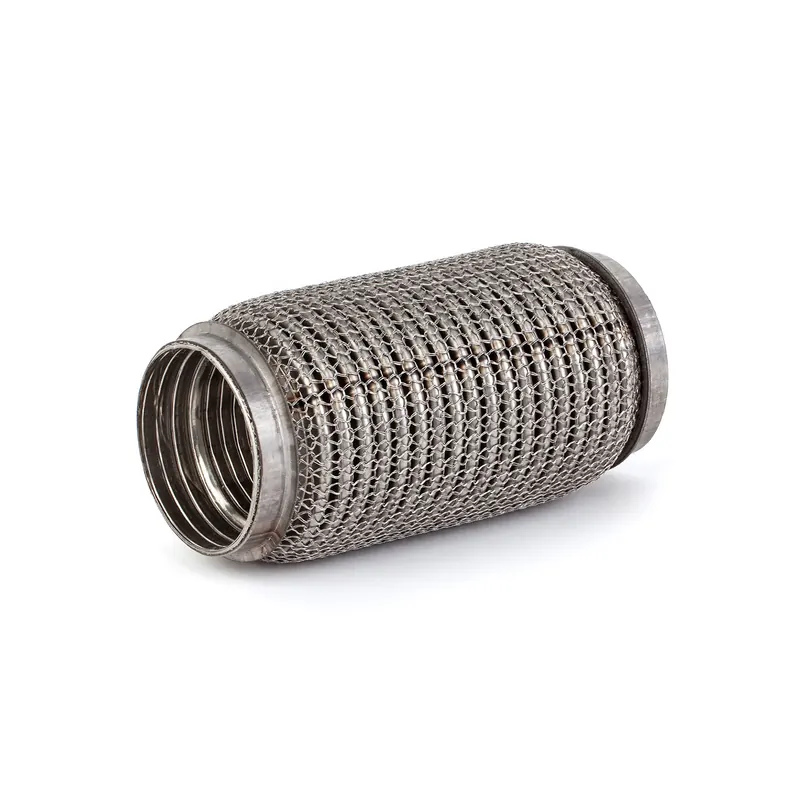

Outer wire mesh flexible exhaust pipe with interlock
What is Flexible Pipe?
The flexible pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.
Material: Stainless steel 304,201,409 etc.
Caps: Aluminum steel or stainless steel
Type: Bellows+Outer Wire Mesh+Interlock
| Exhaust Flex Pipe Size Table (Other sizes can be customized) | ||||
| Part Number | Inlet Diameter | Inlet Diameter | Overall Length | Overall Length |
| inch | mm | inch | mm | |
| YD17504B | 1 3/4" | 45 | 4" | 102 |
| YD17506B | 1 3/4" | 45 | 6" | 152 |
| YD17508B | 1 3/4" | 45 | 8" | 203 |
| YD17510B | 1 3/4" | 45 | 10" | 254 |
| YD17512B | 1 3/4" | 45 | 12" | 305 |
| YD20004B | 2" | 51 | 4" | 102 |
| YD20006B | 2" | 51 | 6" | 152 |
| YD20008B | 2" | 51 | 8" | 203 |
| YD20010B | 2" | 51 | 10" | 254 |
| YD20012B | 2" | 51 | 12" | 305 |
| YD22504B | 2 1/4" | 57 | 4" | 102 |
| YD22506B | 2 1/4" | 57 | 6" | 152 |
| YD22508B | 2 1/4" | 57 | 8" | 203 |
| YD22510B | 2 1/4" | 57 | 10" | 254 |
| YD22512B | 2 1/4" | 57 | 12" | 305 |
| YD25004B | 2 1/2" | 63.5 | 4" | 102 |
| YD25006B | 2 1/2" | 63.5 | 6" | 152 |
| YD25008B | 2 1/2" | 63.5 | 8" | 203 |
| YD25010B | 2 1/2" | 63.5 | 10" | 254 |
| YD25012B | 2 1/2" | 63.5 | 12" | 305 |
| YD30004B | 3" | 76.2 | 4" | 102 |
| YD30004B | 3" | 76.2 | 6" | 152 |
| YD30004B | 3" | 76.2 | 8" | 203 |
| YD30004B | 3" | 76.2 | 10" | 254 |
| YD30004B | 3" | 76.2 | 12" | 305 |
| YD35006B | 3 1/2" | 89 | 6" | 152 |
| YD35008B | 3 1/2" | 89 | 8" | 203 |
| YD35010B | 3 1/2" | 89 | 10" | 254 |
| YD35012B | 3 1/2" | 89 | 12" | 305 |
| YD40008B | 4" | 102 | 8" | 203 |
| YD400010B | 4" | 102 | 10" | 254 |
| YD400012B | 4" | 102 | 12" | 305 |
Feature:
1.Automobile exhaust system component
2. Installed between engine and muffler
3. decrease vibration and engine noise
4.To compensate displacement and installation tolerances
5. Smooth inner surface to ensure waste gas to convey the back part
6.To Bear load

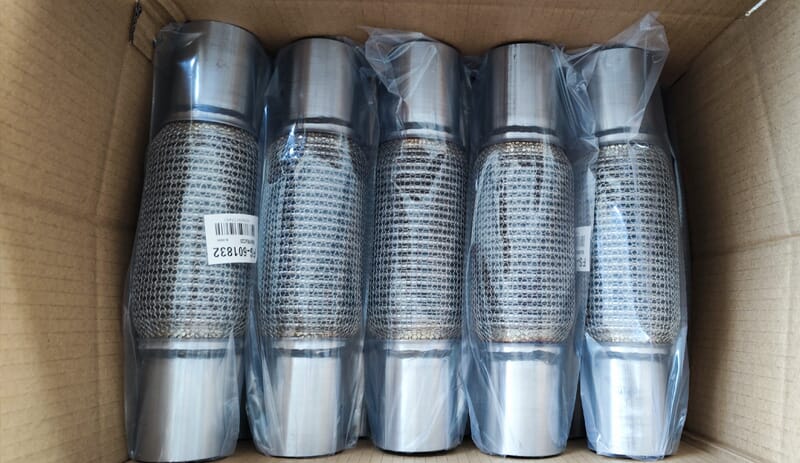

Package:
Why do you choose us?
1. we are factory. The price is competitive.
2. Good quality is guaranteed. From production to loading, there are technical workers to inspect.
3.Delivery time is on time.
4.Sample are available. But you need to pay the freight.
5.Professional package which assure long distance sea transportation.
Our Customers:
Outer wire mesh flexible exhaust pipe with interlock
What is Flexible Pipe?
The flexible pipe is an important part of car exhaust system. When you accelerate, The car’s engine moves back and forth on rubber engine mounts. The flexible pipe allows for flexibility in your exhaust system, preventing the engine’s movement and vibrations from damaging and cracking the exhaust pipe.
Material: Stainless steel 304,201,409 etc.
Caps: Aluminum steel or stainless steel
Type: Bellows+Outer Wire Mesh+Interlock
| Exhaust Flex Pipe Size Table (Other sizes can be customized) | ||||
| Part Number | Inlet Diameter | Inlet Diameter | Overall Length | Overall Length |
| inch | mm | inch | mm | |
| YD17504B | 1 3/4" | 45 | 4" | 102 |
| YD17506B | 1 3/4" | 45 | 6" | 152 |
| YD17508B | 1 3/4" | 45 | 8" | 203 |
| YD17510B | 1 3/4" | 45 | 10" | 254 |
| YD17512B | 1 3/4" | 45 | 12" | 305 |
| YD20004B | 2" | 51 | 4" | 102 |
| YD20006B | 2" | 51 | 6" | 152 |
| YD20008B | 2" | 51 | 8" | 203 |
| YD20010B | 2" | 51 | 10" | 254 |
| YD20012B | 2" | 51 | 12" | 305 |
| YD22504B | 2 1/4" | 57 | 4" | 102 |
| YD22506B | 2 1/4" | 57 | 6" | 152 |
| YD22508B | 2 1/4" | 57 | 8" | 203 |
| YD22510B | 2 1/4" | 57 | 10" | 254 |
| YD22512B | 2 1/4" | 57 | 12" | 305 |
| YD25004B | 2 1/2" | 63.5 | 4" | 102 |
| YD25006B | 2 1/2" | 63.5 | 6" | 152 |
| YD25008B | 2 1/2" | 63.5 | 8" | 203 |
| YD25010B | 2 1/2" | 63.5 | 10" | 254 |
| YD25012B | 2 1/2" | 63.5 | 12" | 305 |
| YD30004B | 3" | 76.2 | 4" | 102 |
| YD30004B | 3" | 76.2 | 6" | 152 |
| YD30004B | 3" | 76.2 | 8" | 203 |
| YD30004B | 3" | 76.2 | 10" | 254 |
| YD30004B | 3" | 76.2 | 12" | 305 |
| YD35006B | 3 1/2" | 89 | 6" | 152 |
| YD35008B | 3 1/2" | 89 | 8" | 203 |
| YD35010B | 3 1/2" | 89 | 10" | 254 |
| YD35012B | 3 1/2" | 89 | 12" | 305 |
| YD40008B | 4" | 102 | 8" | 203 |
| YD400010B | 4" | 102 | 10" | 254 |
| YD400012B | 4" | 102 | 12" | 305 |
Feature:
1.Automobile exhaust system component
2. Installed between engine and muffler
3. decrease vibration and engine noise
4.To compensate displacement and installation tolerances
5. Smooth inner surface to ensure waste gas to convey the back part
6.To Bear load
Package:
Why do you choose us?
1. we are factory. The price is competitive.
2. Good quality is guaranteed. From production to loading, there are technical workers to inspect.
3.Delivery time is on time.
4.Sample are available. But you need to pay the freight.
5.Professional package which assure long distance sea transportation.
Our Customers:
YUEDING EXHAUST
As one of China's leading exhaust flexible components manufacturers, YDCT focuses on helping you get the right parts that fit your project, whether for automotive systems or industrial equipment. We produce a complete range of stainless steel flex pipes, metal bellows, expansion joints, and exhaust clamps, all designed for durability and easy installation. More importantly, we can customize each order to match your needs — from OEM logo marking and material options to color selection and drawing-based production with reasonable MOQ. You tell us what you need, and we’ll make sure every piece arrives ready to perform, with the quality and consistency you expect.
Global Shipping & Payment Flexibility
We ship worldwide with EXW, FOB, or CIF terms, and support safe payment methods like T/T, PayPal, and L/C — flexible for different order sizes.

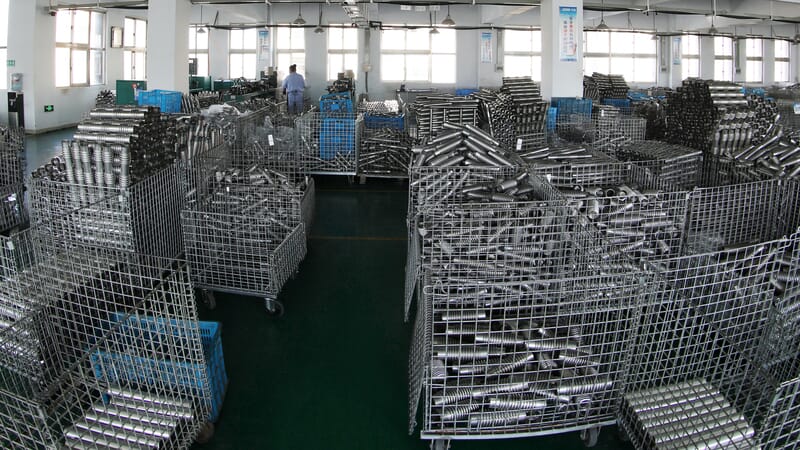

Factory-Direct Reliability
We make most products in our own factory and work closely with reliable partners for others, so every shipment meets the same level of quality.
Wholesale Pricing for Bulk Orders
We offer competitive factory prices for bulk orders and provide OEM solutions to match your brand and technical requirements.
