Exhaust Flex Pipes

An exhaust flex pipe is generally installed where engine vibration and relative movement could place excessive stress on rigid exhaust pipes, welds, or mounting points. The installation position should provide sufficient clearance for the flexible section to move without interference. Pipe diameter, overall length, end connections, operating temperature, and the direction of expected movement should all be considered when determining the appropriate location.

A straight pipe cannot provide the same movement compensation as an exhaust flex pipe. Replacing a flexible connection with a rigid section may transfer engine vibration and thermal movement directly to adjacent pipes, welds, and mounting points, increasing the risk of fatigue damage. Unless the exhaust system has been redesigned to accommodate these movements elsewhere, a straight pipe is not recommended as a direct replacement.

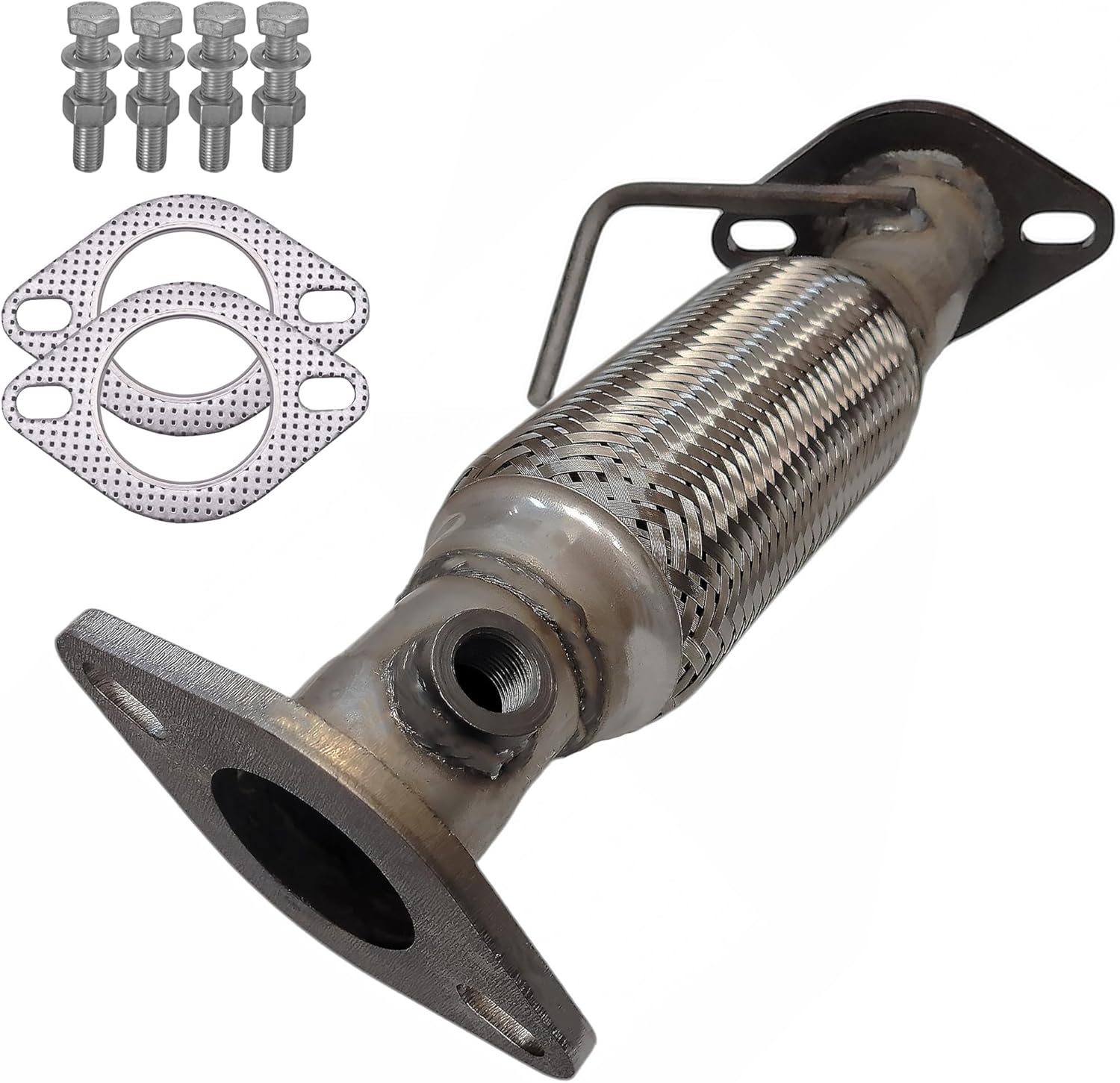

Yes. Yueding can review customer drawings, physical samples, or OE part references to determine the required product construction and dimensions. Customization options include diameter, overall length, braid or liner configuration, nipples, flanges, and end connections. Critical dimensions and manufacturing requirements are confirmed against the approved drawing or sample before production. For OE-based requests, additional measurements may be needed to establish the complete specification.

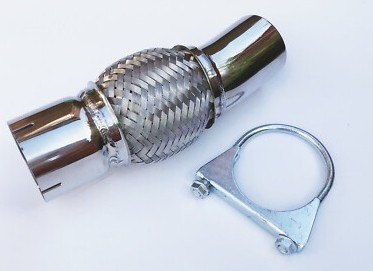

Yes. Our commonly used welded extension nipples are approximately 50 mm long with a wall thickness of 1.5 mm. Necked-down ends and 3 × 22 mm slots are also available for suitable connection designs. These features are not standard on every model. Nipple length, diameter, slot configuration, and other end details can be adjusted according to the customer's drawing, with tooling requirements confirmed before production.

Yes. Every finished exhaust flex pipe undergoes a 100% underwater air-tightness inspection at 150 kPa (1.5 bar) for at least 9 seconds. No visible bubbles or pressure drop are permitted. High-temperature fatigue and thermal deformation tests are carried out separately for performance validation; these are not part of the inspection performed on every individual finished pipe.

Yes. Some exhaust connection designs use a bellows with an inner liner but no external braid. However, an inner liner does not automatically replace the mechanical restraint and external protection provided by an outer braid. Whether this construction is suitable depends on the required movement, vibration conditions, external exposure, and pipe support arrangement. The final structure should be confirmed for the specific installation.

Our standard minimum order quantity is 100 pieces per size. Products are normally packed in individual dustproof bags, with approximately 25 pieces per carton or 50 pieces for certain smaller sizes. Custom printed color boxes are available from 1,000 pieces. Carton quantities and packaging arrangements can be adjusted according to product dimensions, construction, and order requirements.

Standard samples can typically be prepared in around 3 days, while custom tooling generally takes approximately one week for applicable designs. Projects involving new connection structures, special forming requirements, or multi-nipple configurations may require additional development work. The sampling and tooling schedule is confirmed after reviewing the product drawing, technical requirements, and tooling complexity.

An exhaust flex pipe is generally used to accommodate vibration and relative movement within an exhaust run. A spherical joint may be more suitable when angular articulation is the main requirement, particularly where installation space is restricted. Yueding has developed a double-articulating spherical joint for applications with approximately 50–100 mm of available connection space. The final choice depends on movement direction, sealing requirements, temperature, and the surrounding pipe layout.
