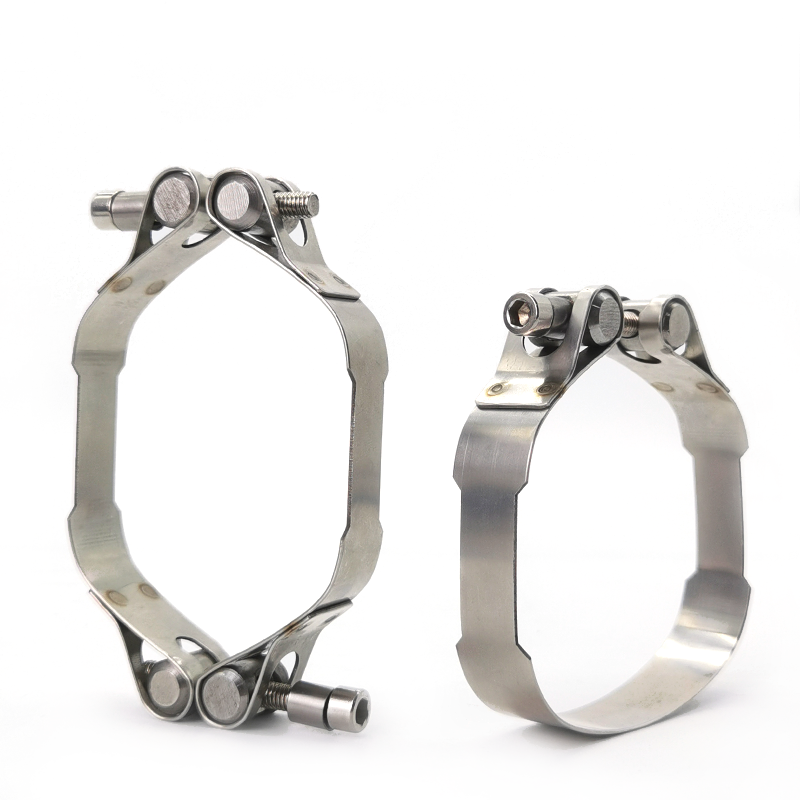

Heavy-Duty Single & Double Bolt Hose Clamp
| Application Scenarios:Exhaust system assemblies in automobiles, trucks, generators, and industrial piping connections. Manufacturing Processes:Precision stamping, CNC machining, TIG welding, and surface passivation to ensure corrosion resistance. Features:High clamping force, vibration resistance, anti-loosening structure, and available in multiple diameters. Customization:Available in custom widths, thicknesses, bolt types, and OEM laser marking per project requirements. | |||||||||
Product Introduction
Our stainless steel single and double bolt exhaust clamps are engineered for industrial-grade performance in automotive and machinery applications. Designed to provide a secure and leak-proof connection between exhaust pipes or other cylindrical components, these clamps are an essential fastening solution for heavy-duty environments.
Whether you're assembling truck exhausts or managing OEM production for off-road vehicles, these clamps offer a reliable and cost-effective fastening method that meets rigorous performance standards. YDCT’s product line includes both single bolt and double bolt variants to suit various levels of clamping strength and installation flexibility.
Features & Benefits

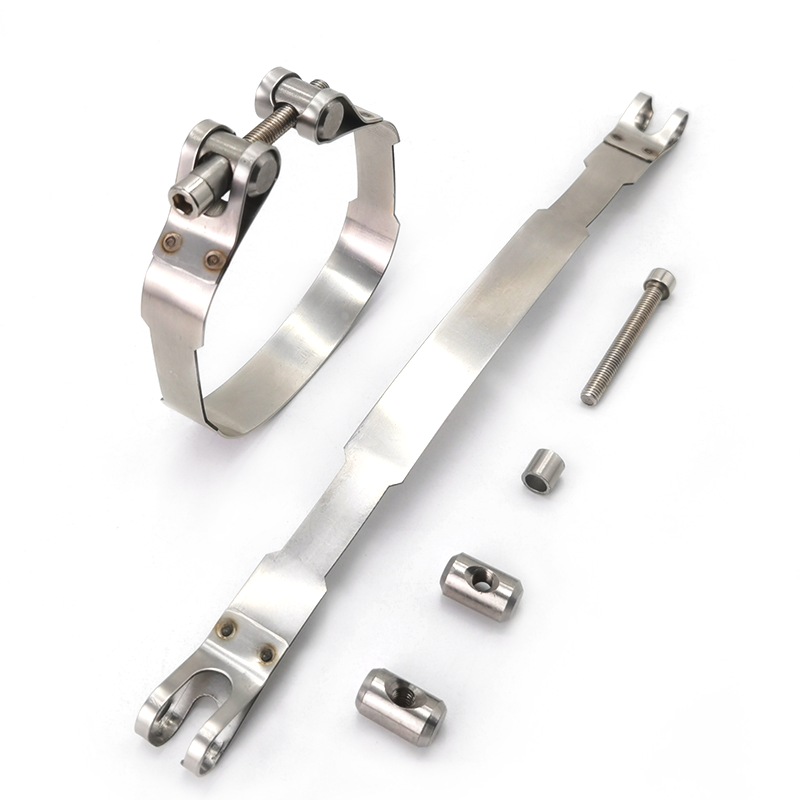

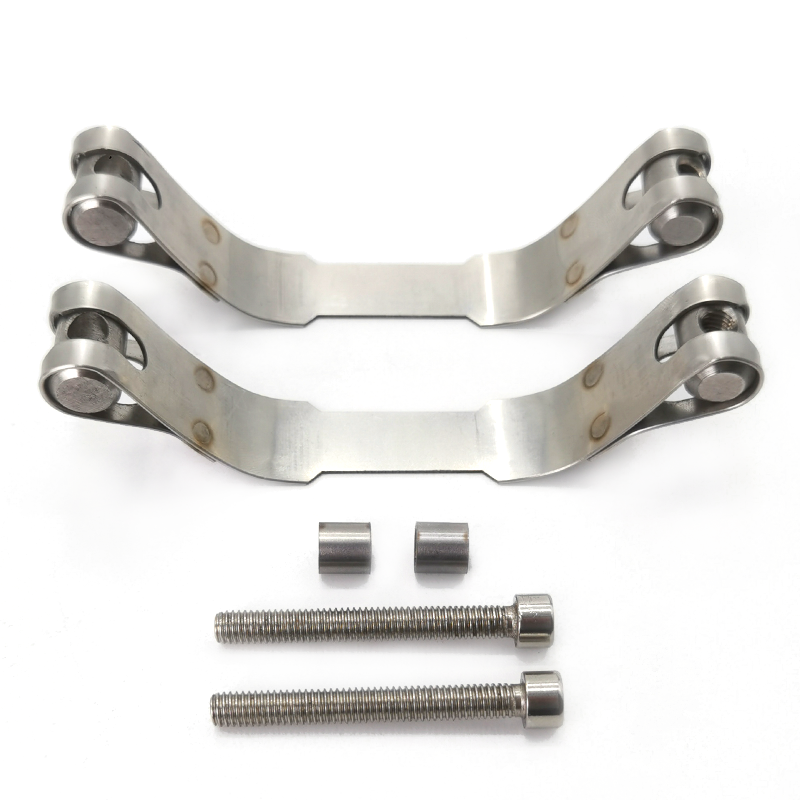

The clamp body is made from 304 or 316 stainless steel, offering excellent corrosion resistance even under prolonged exposure to high-temperature exhaust gases and harsh road conditions. The design features precision-engineered bolt mounts that evenly distribute the clamping force around the pipe, preventing deformation or leakage. The single bolt variant is ideal for tight spaces or moderate pressure systems, while the double bolt version offers higher tensile resistance for robust applications. Each unit is polished for aesthetic appeal and smooth handling during installation.
Additionally, the clamp design includes a unique interlocking ear configuration that maintains clamping force even under vibration. This makes them suitable not only for automotive applications but also for generator exhaust systems, agricultural equipment, and heavy machinery. The bolts are typically hex head or Allen type, and can be optionally replaced with tamper-proof designs for added security.
Technical Specs Table
| Parameter | Specification |
|---|---|
| Material | Stainless Steel 304 / 316 |
| Available Diameters | 38mm – 120mm (custom sizes available) |
| Clamp Width | 20mm – 30mm |
| Thickness | 0.8mm – 1.5mm |
| Bolt Type | Hex, Allen, or Custom |
| Torque Rating | 6 Nm – 12 Nm (varies by size) |
| Finish | Polished / Passivated |
| Application Temp. | Up to 500°C (932°F) |
| Packaging | Bulk, Boxed, or OEM Custom |
FAQs

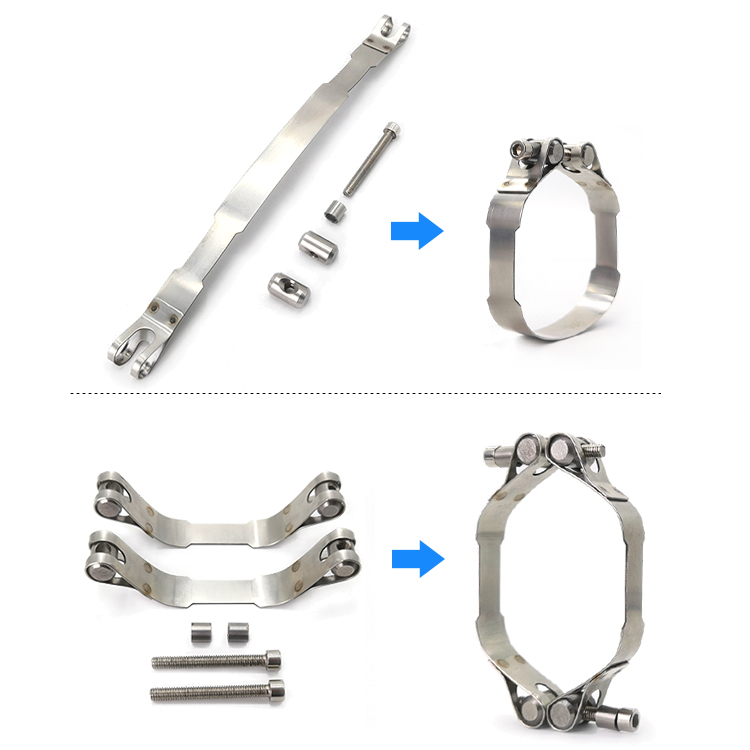

Q: What's the difference between the single and double bolt clamp?
A: The single bolt clamp is typically used for lighter-duty applications or areas with limited space, while the double bolt clamp provides a more uniform clamping force and is better suited for high-pressure or large-diameter pipes.
Q: Can I order custom sizes or materials?
A: Yes, YDCT provides full OEM customization, including clamp diameter, band width, thickness, bolt style, and even branding (laser etching or stamping).
Q: Are these clamps reusable?
A: Yes, these clamps are designed for multiple installations. However, it is recommended to inspect for thread wear or deformation before reuse in high-stress applications.
Q: Do you provide samples for testing?
A: We offer free samples for quality evaluation. Please contact our sales team to confirm specifications and shipping details.
Q: What industries use your exhaust clamps most?
A: Our clamps are widely used in automotive manufacturing, truck maintenance, agricultural equipment, industrial exhaust systems, and generator sets.
